Spline Shaft 5 Axis Cnc Machining Process and Milling Parts Custom OEM Billet Bolt-on slip Stub Shaft

Spline Shaft(slip stub shafts) No. A B C D Spicer No. Similar Teeth NO. Vehicle Seires 865-01 180 72.3 67.00 38.03 3-40-1901 P112 PT1029 16 AGRALE 1800MA/5000D/MA5.5T,FORD TURBO,GM D20,MB 709/710 1410 865-02 123 72.3 51.00 38.06 3-53-1811 PT1030 10 A

Send Inquiry

Product Description

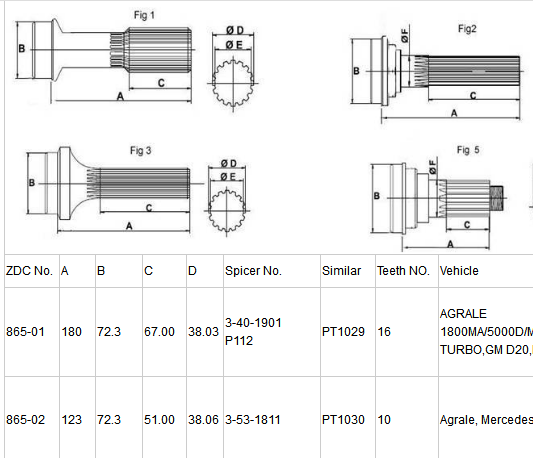

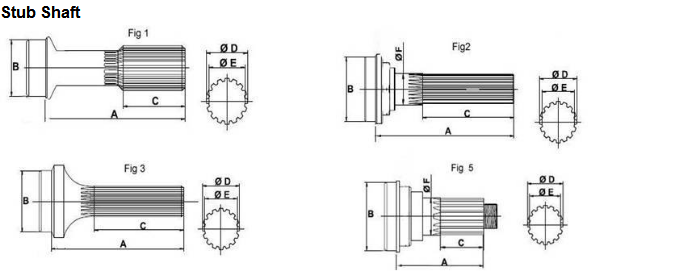

Spline Shaft(slip stub shafts)

No.	A	B	C	D	Spicer No.	Similar	Teeth NO.	Vehicle	Seires
865-01	180	72.3	67.00	38.03	3-40-1901 P112	PT1029	16	AGRALE 1800MA/5000D/MA5.5T,FORD TURBO,GM D20,MB 709/710	1410
865-02	123	72.3	51.00	38.06	3-53-1811	PT1030	10	Agrale, Mercedes Benz 709/710	1410
865-38					3-53-1881		10
865-39					3-53-1741	PT1931	16

Series No.: 2401711R,5401011,etc

we are manufacturer of each precision and high quality components!!

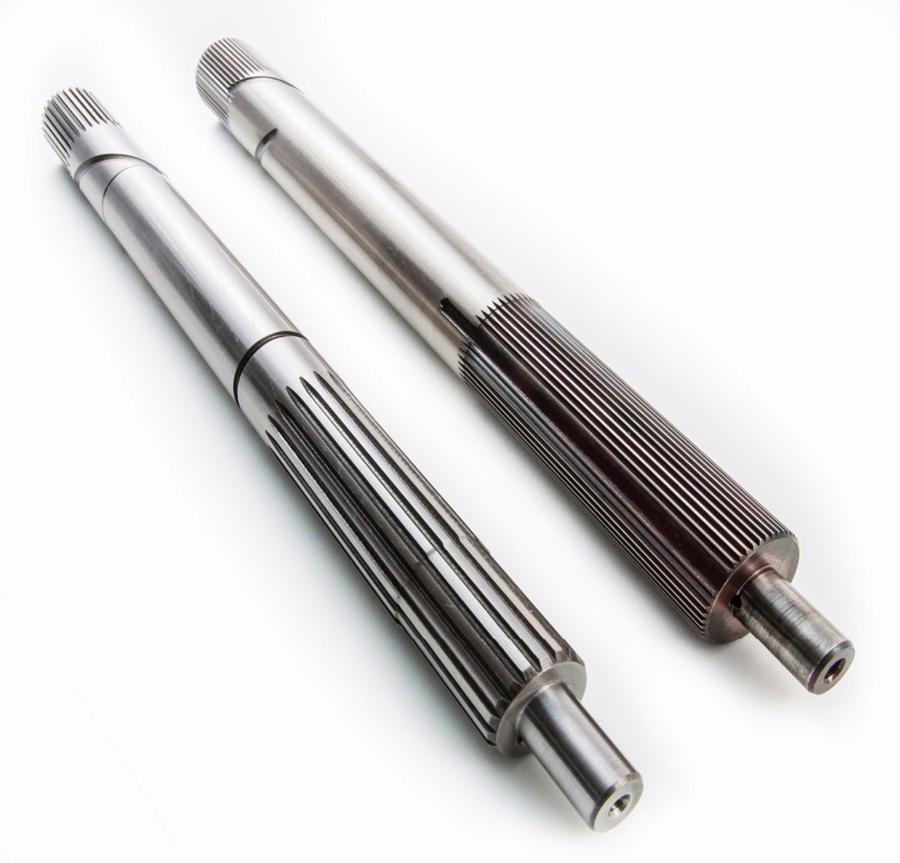

5 axis cnc machining and milling parts custom OEM Billet Bolt-on slip stub shaft PTO shaft
Specialty Hardware Manufactory!
Surface: as your requirement
Material: steel / aluminum / brass / iron / zinc / alloy
Any other material and dimension depends on customers' demand.
Usage: machinery / furniture / toy / woodboard / wall
Manufacturing process: casting parts
Equipment: casting machine
Testing equipment: projector
Tolerance:+/-0.05MM
We are willing to provide with sample for quality and function testing.
We are ISO 9001: 2008 / TS 16949 / AS 9100 certified firm.

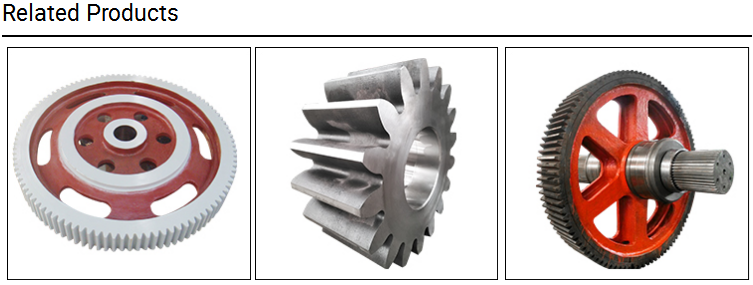

Our Transmission Spur Helical Pinion Spline Gear Shaft are manily used for large cement plant equipments.Such as Rotary kiln,Ball Mill,Dryer,etc.Also we can produce other big forging or casting gear ring for stell plant,Dragline excavator.The can be a whole ring gear or segment gear wheel in half,four segments.eight segments.

Materia		Carbon Steel , Alloy Steel
Standard		ASTM DIN . EN GOST JIS ETC
Structure		Forging , Casting and Welding
Module of Gear		8-120
Gear Grinding		MAX Module 24
Diameter of Gear Wheel :		MAX 13 000 mm
Diameter of Spiral Gear :		MAX . 2 200 mm
Length of Gear Shaft :		MAX 5 000 mm
OEM Service Offered		According to Customer Drawings
Segments Gear Offered :		According to Customer Requests
Heat Treatment		Q & T Case Hardening
