Slewing Drives for Solar tracker

Slewing drives for solar tracker /Solar slewing drive Slewing drives are powered with hourglass worm technology for maximum gear torque and the smoothest rotation. Typical slew drive applications include truck cranes, man lifts, utility equipment, hy

Send Inquiry

Product Description

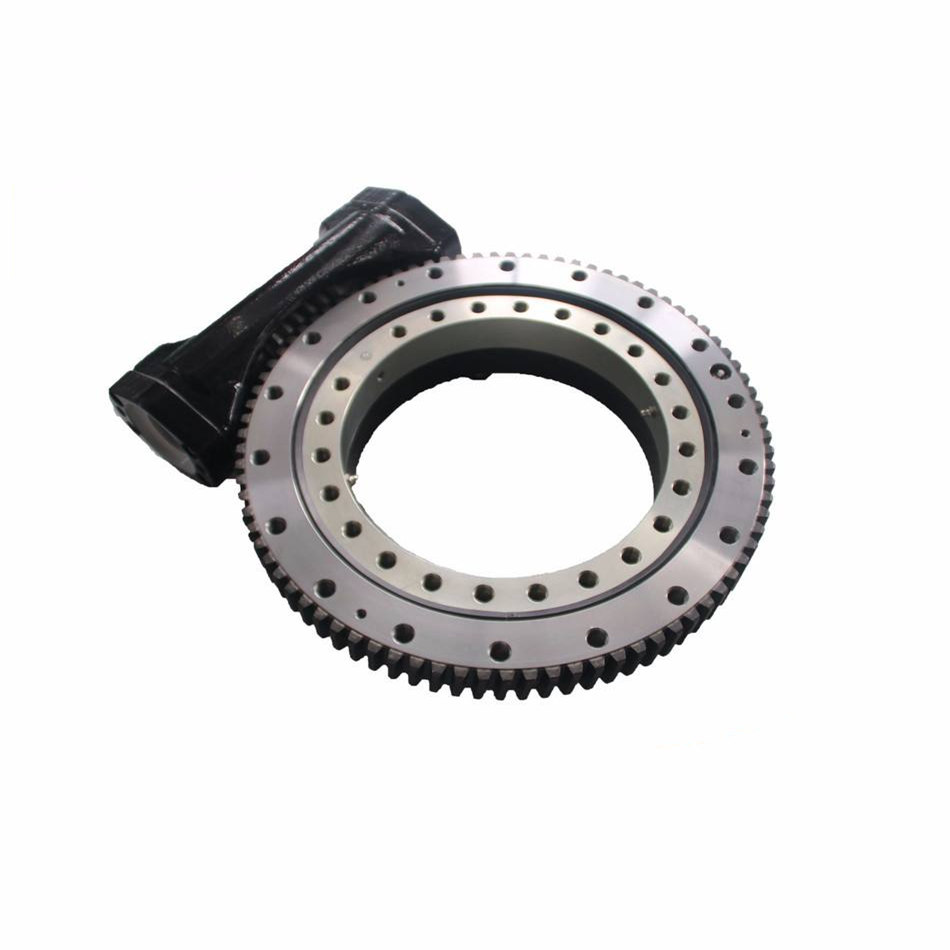

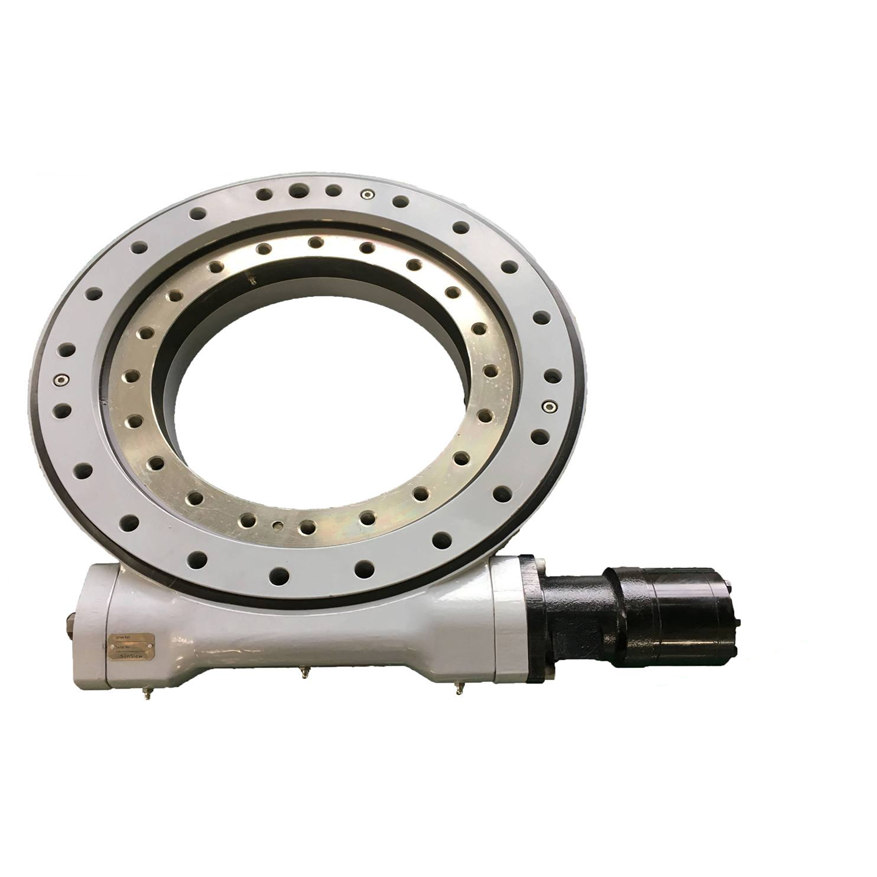

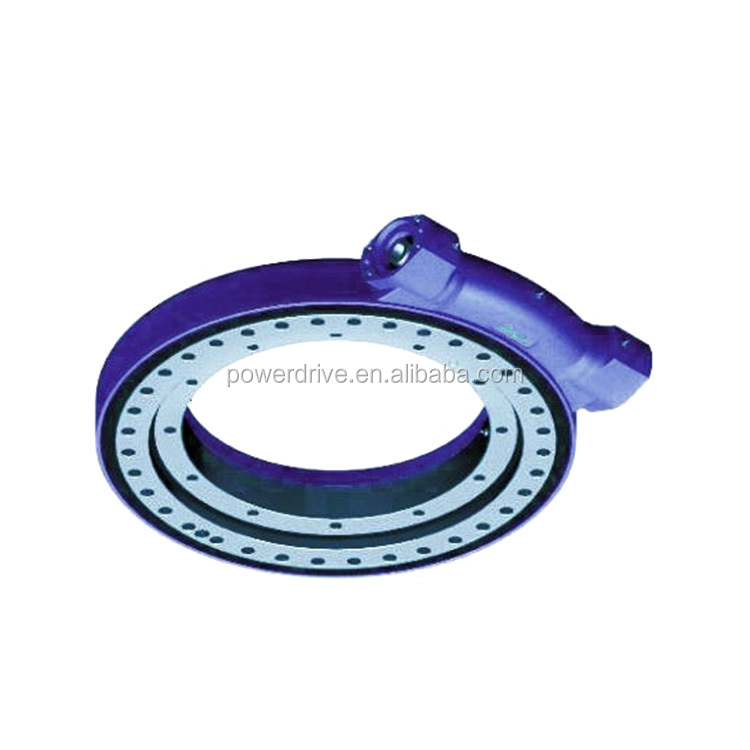

Slewing drives for solar tracker /Solar slewing drive

Slewing drives are powered with hourglass worm technology for maximum gear torque and the smoothest rotation.

Typical slew drive applications include truck cranes, man lifts, utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger derricks and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with moment load capacities of 5,000 to 200,000 ft-lbs.

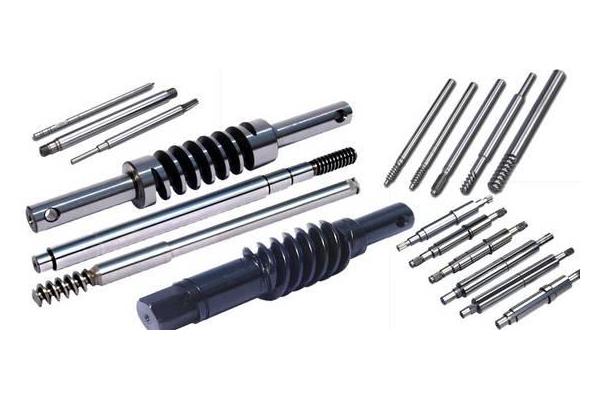

The standard slew drives are fitted with an open housing and single self locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device. If this is not desirable for the application we offer overrunning worm shafts that will allow the load to back drive the input shaft and motor. We also have dual input slew drives to double the torque and fully enclosed housings for industrial environments where personnel are working closely to the moving gears.

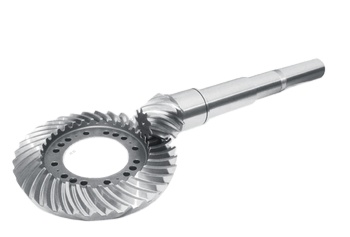

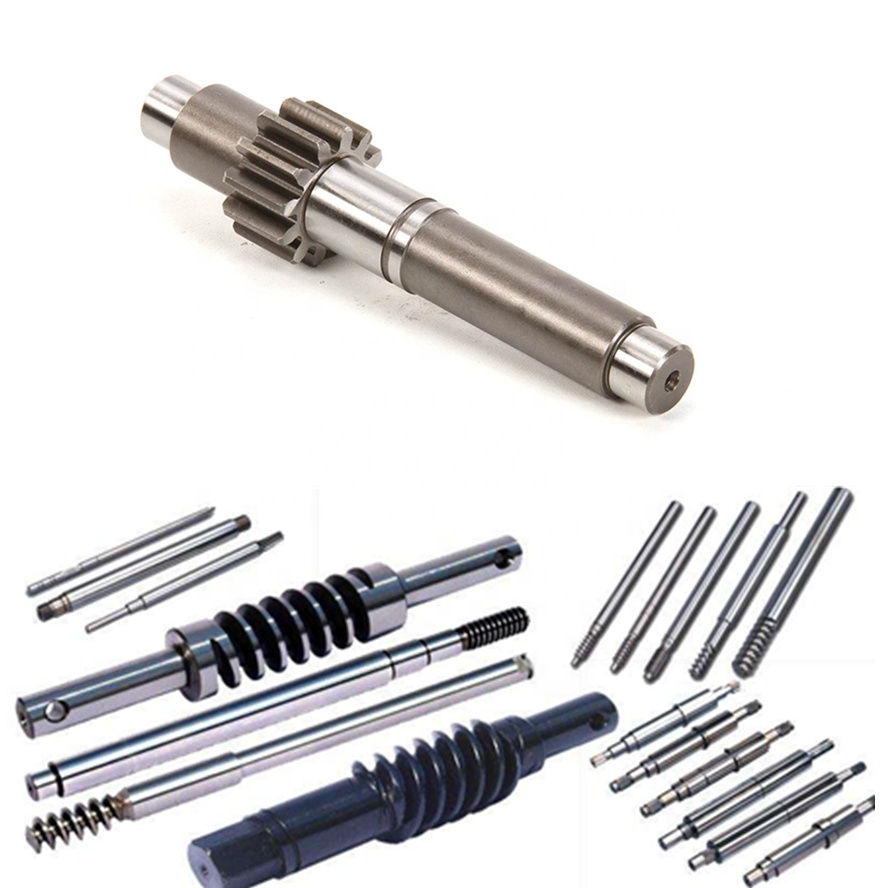

The slew drive can be with worm gear, spur gear, bevel gear. And also for the inside slewing ring, it can be single-row ball slewing ring, and also can be double-row ball slewing ring. The one with double-row can take much more load. It can be chosen depended on your application.

We have own standard number for slew drive, but we also can do as customer required.

Slewing Drives for Solar tracker

Brand	Raydafon,neutral
Output Torque	400 N.m
Tilting Moment Torque	1100 N.m
Holding Torque	2000 N.m
Static Axial Rating	30 kN
Gear Ratio	62:1
Tacking Precision	≤0.2°
Weight	12kg
Standard	CE/ISO/SUHC(REACH)/TUV
Place of Origin	China
Service	OEM service; Customized Solution
Material	42CrMo
Transport terms	by sea , by air or by Railway
Delivery Time	Within 25 days after down payment
Port	Shanghai
Payment terms	A: T/T B: Western Union
