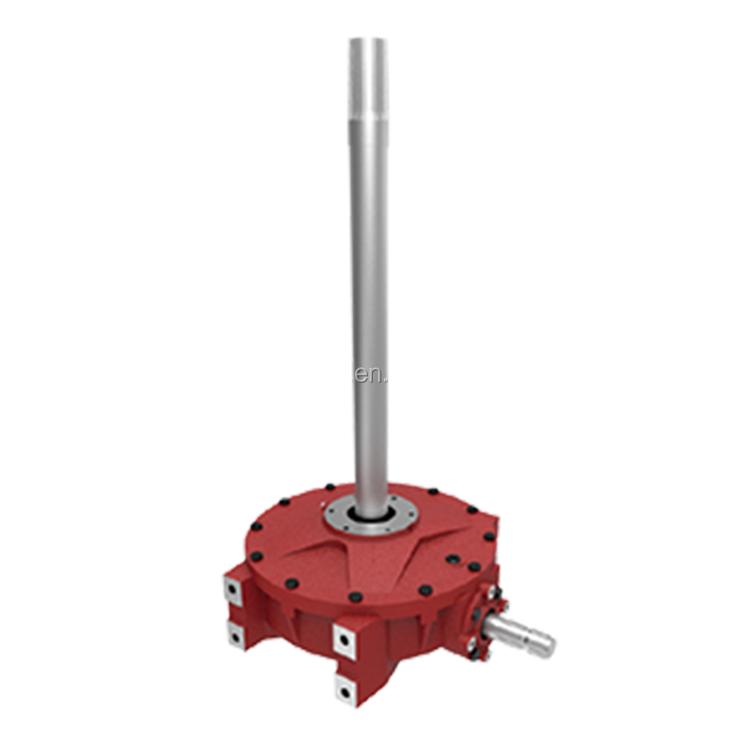

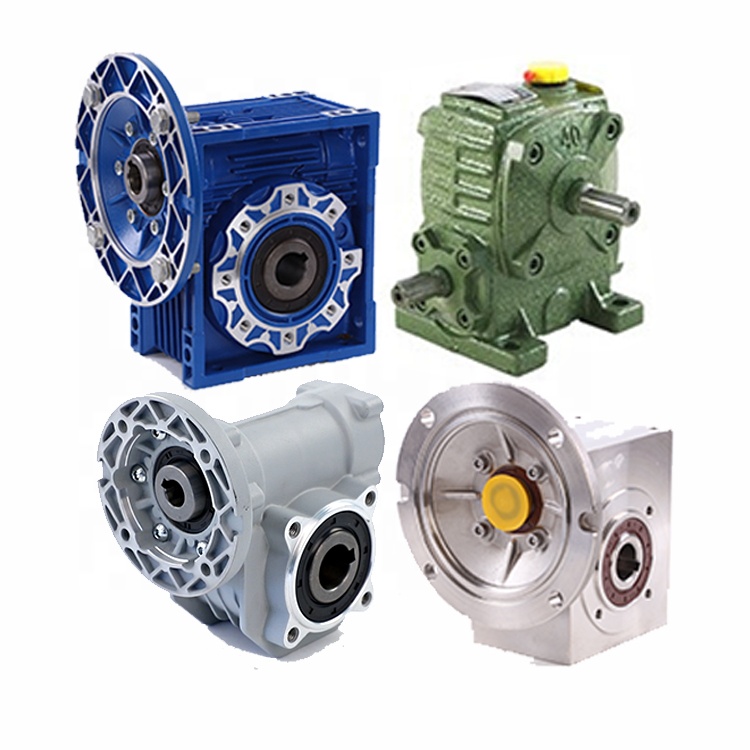

Series DKA Worm Gearbox Speed Reducers

Detailed Product Description speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes SIZE KW RATIO A AB B CC E F H HL LL M N G Z FLANGE INPUT HOLE OUTPUT SHAFT KG LA LB LC LE LG LZ Q U T×V S W×Y 50 0.18 1/101/201/301/

Send Inquiry

Product Description

Detailed Product Description

speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes

SIZE	KW	RATIO	A	AB	B	CC	E	F	H	HL	LL	M	N	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																LA	LB	LC	LE	LG	LZ	Q	U	T×V	S	W×Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	155	84	107	50	95	110	180	50	100	120	140	15	11	115	95	140	5	10	M8	25	11	4×12.8	20	6×22.8	8
60	0.37		170	92	117	60	105	120	210	60	120	130	150	20	11	130	110	160	5	12	M8	35	14	5×16.3	25	8×28.3	10.5
70	0.37		206	110	131	70	115	150	243	70	140	150	190	20	15	130	110	160	5	12	M8	35	14	5×16.3	30	8×33.3	17
	0.75															165	130	200		15	M10	45	19	6×21.8
80	0.75		232	128	144	80	135	180	273	80	160	170	220	20	15	165	130	200	5	15	M10	45	19	6×21.8	35	10×38.3	26
	1.5																					55	24	8×27.3
100	1.5		266	145	175	100	155	220	340	100	200	190	260	25	15	165	130	200	5	15	M10	55	24	8×27.3	40	12×43.3	38
120	2.2		340	182	200	120	180	260	405	120	240	230	320	30	18	215	180	250	5	18	M12	65	28	8×31.3	45	14×48.8	60
	3.0
135	3.0		375	200	212	135	200	290	455	135	270	250	350	30	18	215	180	250	5	18	M12	65	28	8×31.3	60	18×64.4	85
	4.0
155	5.5		442	236	312	155	220	320	490	135	290	280	390	38	20	265	230	300	5	20	M12	85	38	10×41.3	70	20×74.9	120
175	7.5		465	240	334	175	250	350	565	160	335	310	430	40	20	265	230	300	6	18	M12	85	38	10×41.3	80	22×85.4
