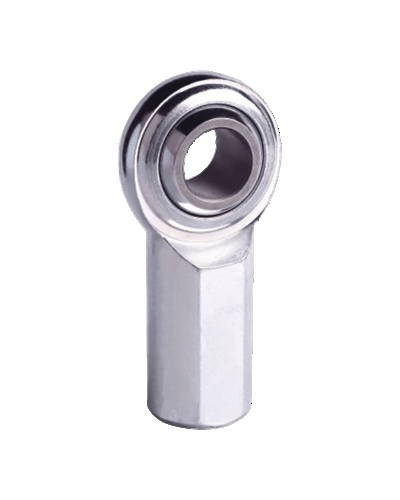

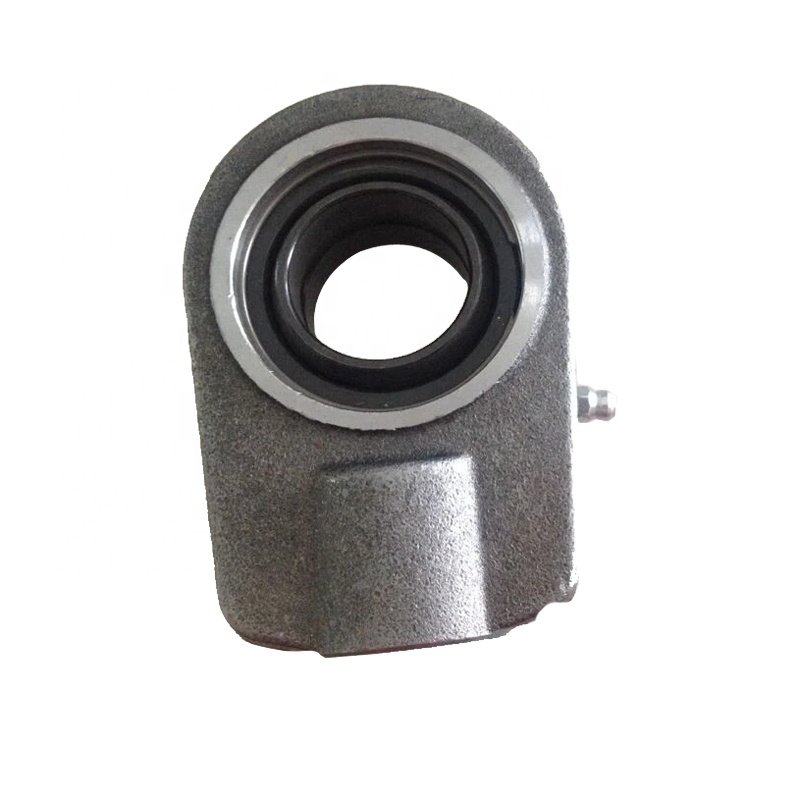

Raydafon studded Zinc Plated Clip Locking Angle Ball Socket Metric Size Ball Joint Rod End Inch Dimension Rod Ends CF..T,CF..TS

Part No. Dimensions Load ratings Weight d B C1 h1 d2 d5 W dk l3 d3 a Kg min 2B ≈ ≈ CF5T 0.3125 0.437 0.312 1.375 0.875 0.5 0.437 0.625 0.687 5/16-24 11 28.693 0.036 CF6T 0.375 0.5 0.359 1.625 1 0.687 0.562 0.719 0.812 2003-8-24 11 38.371 0.059 CF7T 0

Send Inquiry

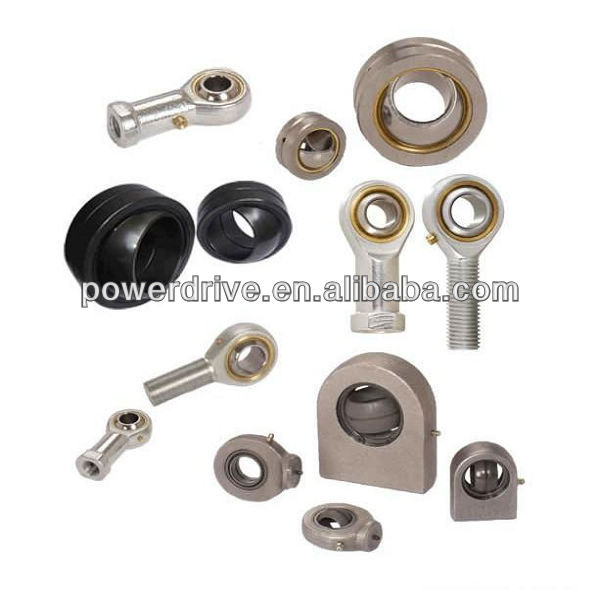

Product Description

Part No.	Dimensions											Load ratings	Weight

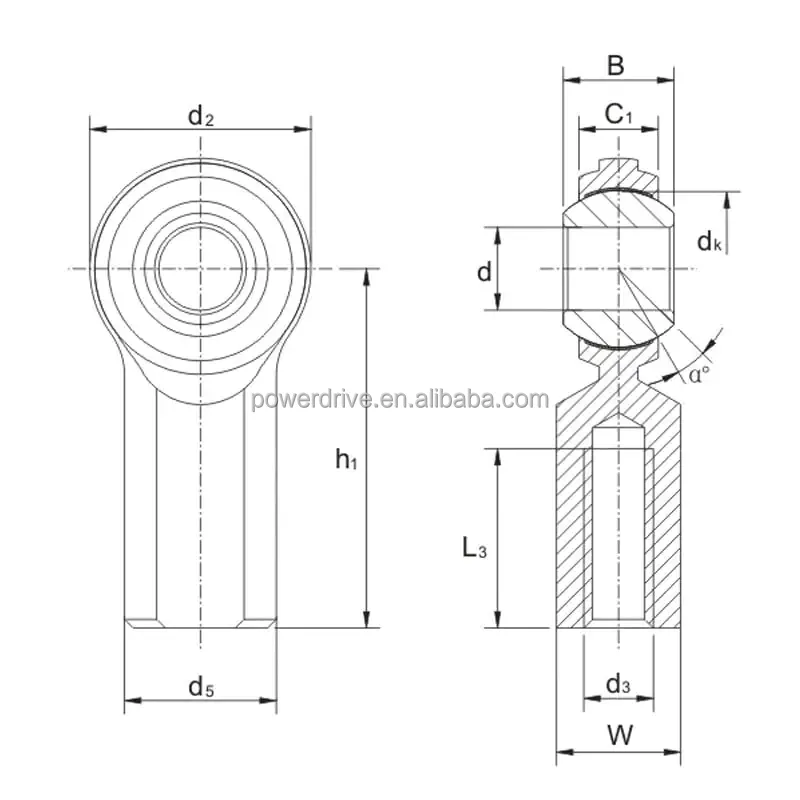

	d	B	C₁	h₁	d₂	d₅	W	d_k	l₃	d₃	a		Kg
	d	B	C₁	h₁	d₂	d₅	W	d_k	min	2B	≈		≈
CF5T	0.3125	0.437	0.312	1.375	0.875	0.5	0.437	0.625	0.687	5/16-24	11	28.693	0.036
CF6T	0.375	0.5	0.359	1.625	1	0.687	0.562	0.719	0.812	2003-8-24	11	38.371	0.059
CF7T	0.4375	0.562	0.406	1.812	1.125	0.75	0.625	0.812	0.937	7/16-20	10.5	41.676	0.082
CF8T	0.5	0.625	0.453	2.125	1.312	0.875	0.75	0.937	1.062	2001-2-20	10	67.299	0.132
CF10T	0.625	0.75	0.484	2.5	1.5	1	0.875	1.125	1.375	2005-8-18	13	75.271	0.195
CF1c2T	0.75	0.875	0.593	2.875	1.75	1.125	1	1.312	1.562	2003-4-16	12	113.642	0.295

- Rod body is pressed around inner ring.

- Outer race is lined with PTFE composite material.

- If assembling with rod, please add suffix "S", e.g. CF8TS.

- For left-hand thread, please add suffix "L" ,e.g. CFL 8 T.

- All with turn part.

Material and surface treatments:

- Body: medium carbon steel 45, zinc plating; steel ball: bearing steel with hard chrome plating; with PTFE composite material.

- Body: stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation.Steel ball: alternative stainless steel 440C.

Part No.	Dimensions									Load ratings	Weight
	d	B	C₁	h₁	d₂	d_k	L₃ min	d₃ 3A	a ≈		Kg≈
CM3*	0.1900	0.312	0.234	1.250	0.625	0.437	0.750	10-32	10	5.355	0.014
CM4*	0.2500	0.375	0.250	1.562	0.750	0.500	1.000	1/4-28	13.5	9.839	0.018
CM5*	0.3125	0.437	0.312	1.875	0.875	0.625	1.250	5/16-24	11	15.910	0.032
CM6	0.3750	0.500	0.359	1.938	1.000	0.719	1.250	3/8-24	11	22.542	0.050
CM7	0.4375	0.562	0.406	2.125	1.125	0.812	1.375	7/16-20	10.5	28.223	0.068
CM8	0.5000	0.625	0.453	2.438	1.312	0.937	1.500	1/2-20	10	37.087	0.109
CM10	0.6250	0.75	0.484	2.625	1.500	1.125	1.625	5/8-18	13	43.203	0.163
CM12	0.7500	0.875	0.593	2.875	1.750	1.312	1.750	3/4-16	12	63.193	0.259

- Rod body is pressed around inner ring.

- Lubricating hole or grease nipple isn't available for the sizes marked “*”.When grease nipple is required for other sizes please use the sign CLM..C.

- If assembling with rod, please add suffix "S” , e.g.CM 8S.

- Load ratings only apply to rod ends without grease nipple.

- For left-hand thread, please add suffix "L" ,e.g.CML 8.

- All with turn part.

Material and surface treatments:

- Body: medium carbon steel 45, zinc plating; steel ball:bearing steel with hard chrome plating.
