We can offer standard size,
OEM producuts are also welcome!

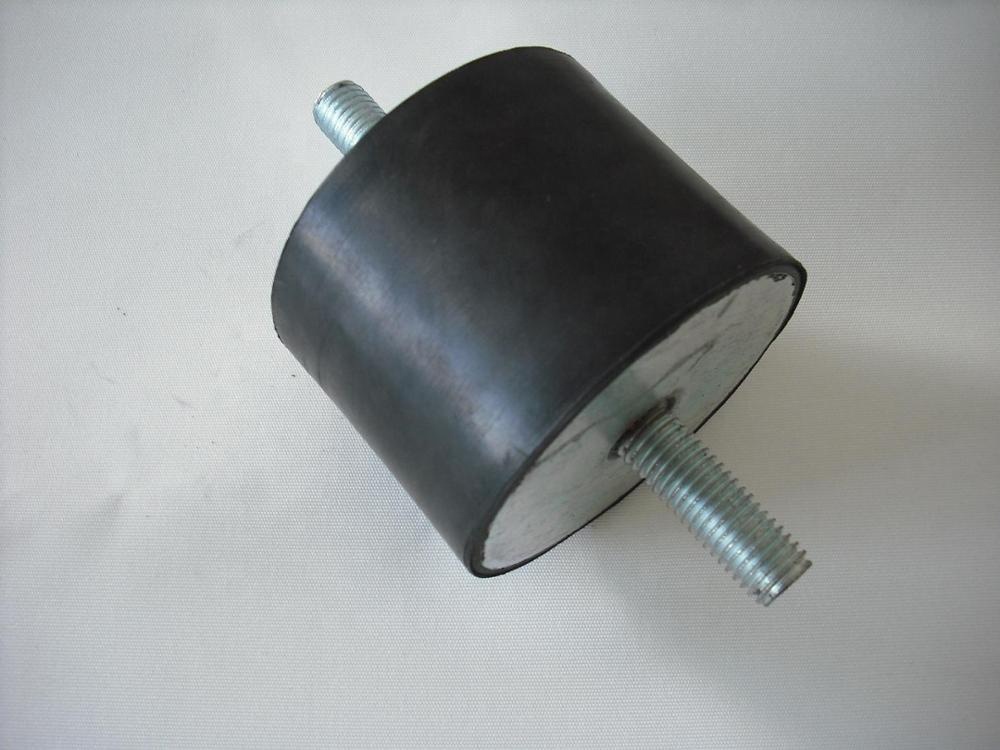

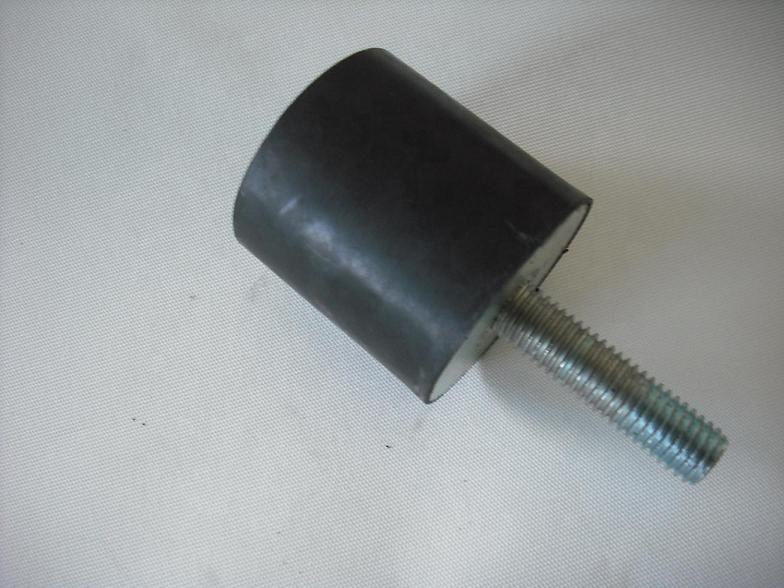

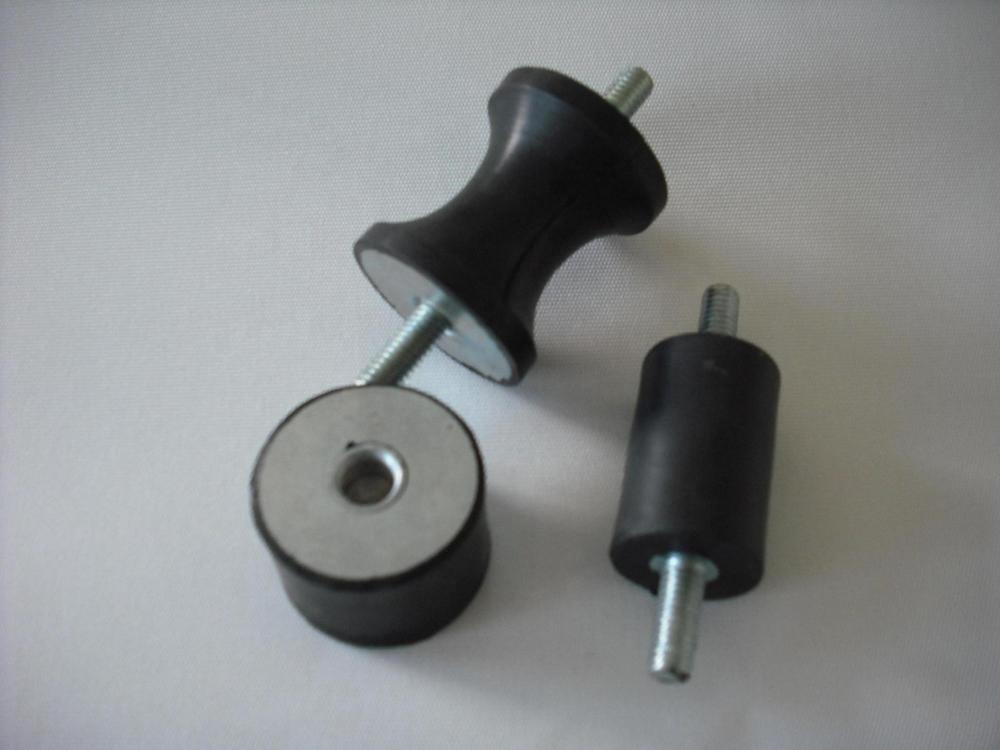

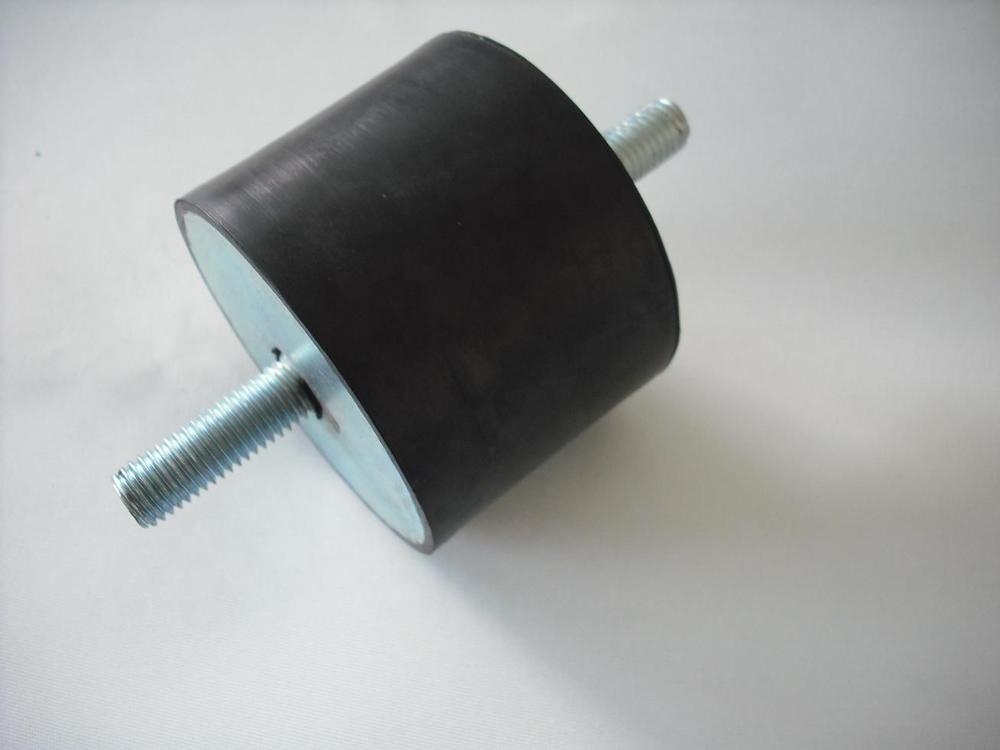

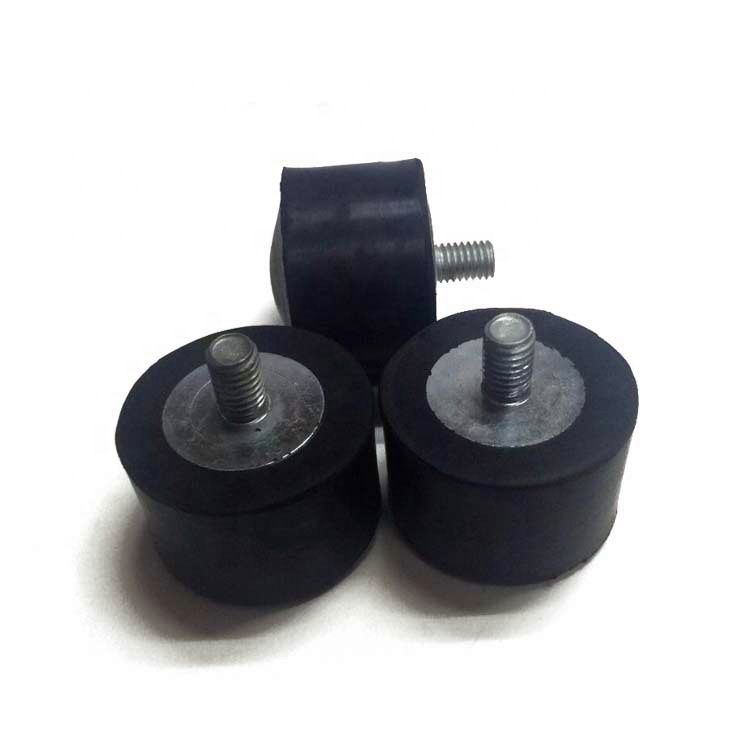

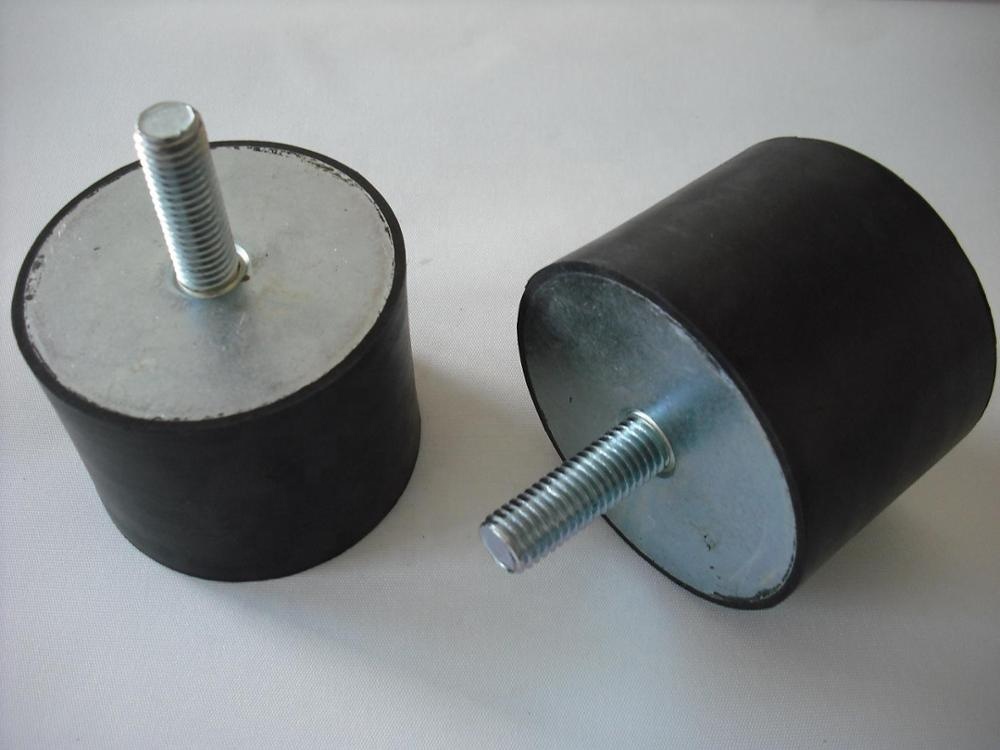

A complete range of anti-vibration mountings,buffer, isolateters. Size from Outer Diameter 13mm to 150mm.
| IZE/PART No.(DXT) (mm) | MAX COMPRESSIVE LOAD (N) | STATIC DEFL (mm) | THREAD SIZE | ||
| BOLT | NUT | ||||
| PO 10x10 | A | 24.4 | 1.1 | M4x10 | M3x5,M5x5 |
| B | 49.3 | 1.1 | |||
| C | 71.4 | 1.1 | |||
| PO 15x15 | A | 50.6 | 1.8 | M4x13 | M4x6,M4x8 M4x10,M4x15 M5x15 |
| B | 108.4 | 1.8 | |||
| C | 176 | 1.8 | |||
| PO 20x15 | A | 141.7 | 1.7 | M6x15 | M5x15,M6x8 |
| B | 221.7 | 1.7 | |||
| C | 318.8 | 1.7 | |||
| PO 20x20 | A | 120 | 2.4 | M6x15 | M5x15,M6x8 |
| B | 200 | 2.4 | |||
| C | 294.1 | 2.4 | |||
| PO 20x25 | A | 115.3 | 3.2 | M6x15 | M5x15,M6x8 |
| B | 186.5 | 3.2 | |||
| C | 270.5 | 3.2 | |||
| PO 25x20 | A | 206.2 | 2.4 | M6x18 | M6x8 M6x10 |
| B | 332.2 | 2.4 | |||
| C | 474.1 | 2.4 | |||
| PO 25x25 | A | 190.2 | 3.2 | M6x18 | M6x8 M6x10 |
| B | 304.5 | 3.2 | |||
| C | 479 | 3.2 | |||
| PO 25x30 | A | 176.2 | 3.9 | M6x18 | M6x8 M6x10 |
| B | 278.6 | 3.9 | |||
| C | 405.3 | 3.9 | |||
| PO 30x15 | A | 453.1 | 1.7 | M8x20 | M8x8,M8x10 |
| B | 826.4 | 1.7 | |||
| C | 1190 | 1.7 | |||
| PO 30x20 | A | 320.7 | 2.4 | M8x20 | M8x8,M8x10 |
| B | 490.6 | 2.4 | |||
| C | 715.4 | 2.4 | |||
| PO 30x30 | A | 239.8 | 3.9 | M8x20 | M8x8,M8x10 |
| B | 420 | 3.9 | |||
| C | 606.7 | 3.9 | |||
| PO 40x30 | A | 511.3 | 3.9 | M8x20 | M8x12,M8x13 |
| B | 749.2 | 3.9 | |||
| C | 1181.8 | 3.9 | |||
