Raydafon Radial Spherical Plain Bearings GIHR K 20 DO Bearing Rod Ends for Hydraulic Cylinder

Therod end bearing, also knamed as a heim jointand rose joint, is a mechanical articulating joint. thisjoints are used on the ends of control rods, steering links, tie rods, hydrualic cylinder end or anywhere a precision articulating joint is require

Send Inquiry

Product Description

The rod end bearing, also knamed as a heim joint and rose joint, is a mechanical articulating joint.

this joints are used on the ends of control rods, steering links, tie rods, hydrualic cylinder end or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

Product Description

• sliding contact surface: steel / steel

• housing: carbon steel

• requiring maintenance

• inner ring

—bearing steel

—heat treated HRC 58-64

—phosphating

• outer ring

—bearing steel

—heat treated HRC 54-60

—phosphating

Raydafon Radial Spherical Plain Bearings GIHR K 20 DO Bearing Rod Ends for Hydraulic Cylinder

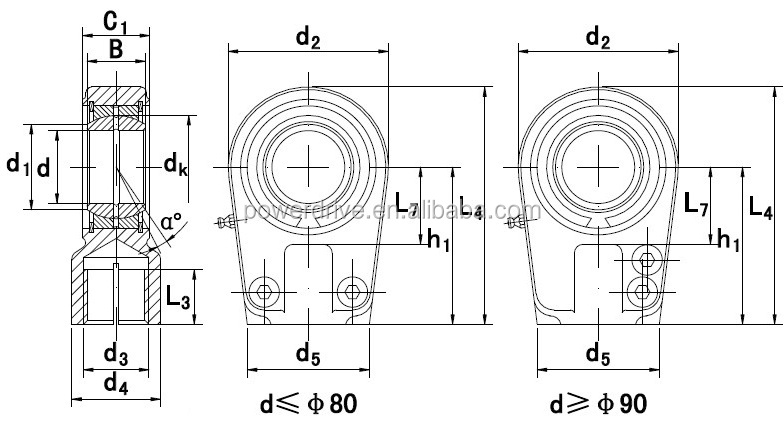

	Dimension(MM)											Load rating(KN)		Weight
Item	d	d3	d4	L3	B	C1	d2	h1	L4	d5	α≈	Dyn.	stat.	KG

		6H		min								Cd	Cs
GIHR-K20 DO	20	M16×1.5	25	17	16	19	56	50	80	46	9	30	72	0.43
GIHR-K25 DO	25	M16×1.5	25	17	20	23	56	50	80	46	7	48	72	0.48
GIHR-K30 DO	30	M22×1.5	32	23	22	28	64	60	94	50	6	62	106	0.74
GIHR-K35 DO	35	M28×1.5	40	29	25	30	78	70	112	66	6	80	153	1.2
GIHR-K40 DO	40	M35×1.5	49	36	28	35	94	85	135	76	7	100	250	2
GIHR-K50 DO	50	M45×1.5	61	46	35	40	116	105	168	90	6	156	365	3.8
GIHR-K60 DO	60	M58×1.5	75	59	44	50	130	130	200	120	6	245	400	5.4
GIHR-K70 DO	70	M65×1.5	86	66	49	55	154	150	232	130	6	315	540	8.5
GIHR-K80 DO	80	M80×2.0	105	81	55	60	176	170	265	160	6	400	670	12
GIHR-K90 DO	90	M100×2.0	124	101	60	65	206	210	323	180	5	490	980	21.5
GIHR-K100 DO	100	M110×2.0	138	111	70	70	231	235	360	200	7	610	1120	27.5
GIHR-K110 DO	110	M120×3.0	152	125	70	80	266	265	407.5	220	6	655	1700	40.5
GIHR-K120 DO	120	M130×3.0	172	135	85	90	340	310	490	257	6	950	2900	76

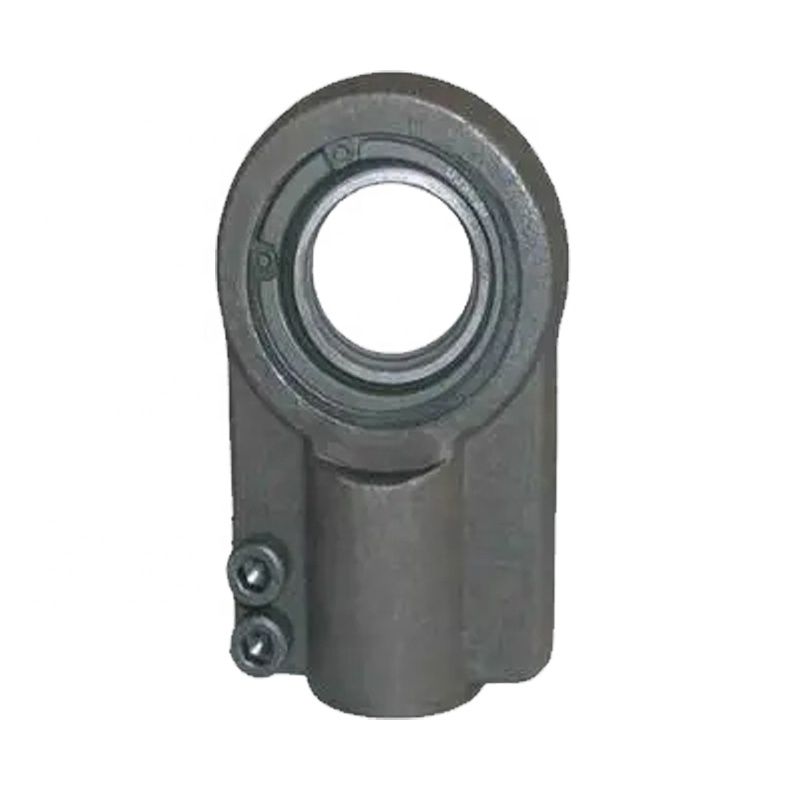

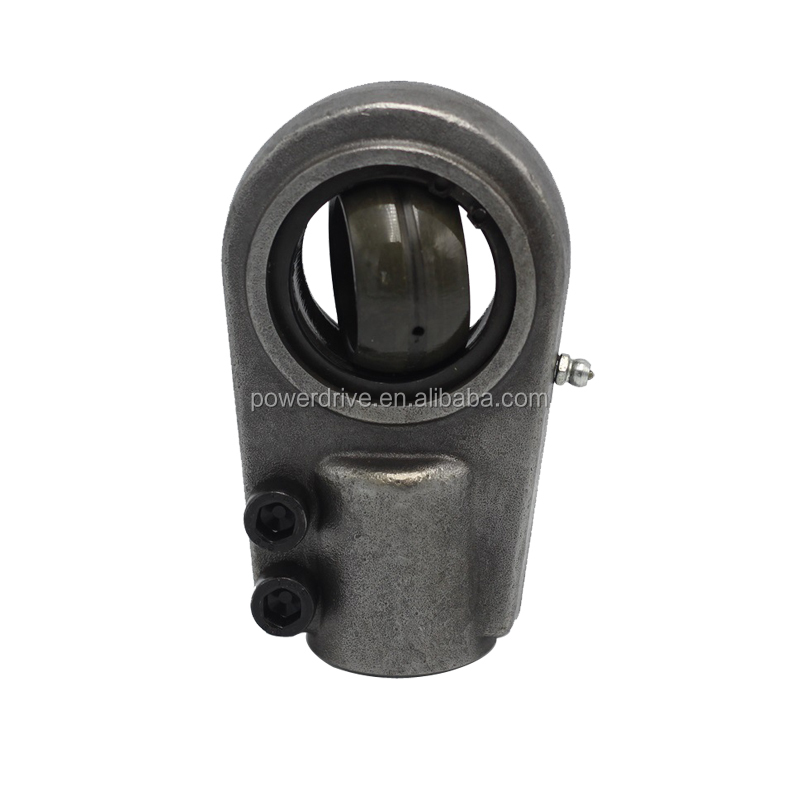

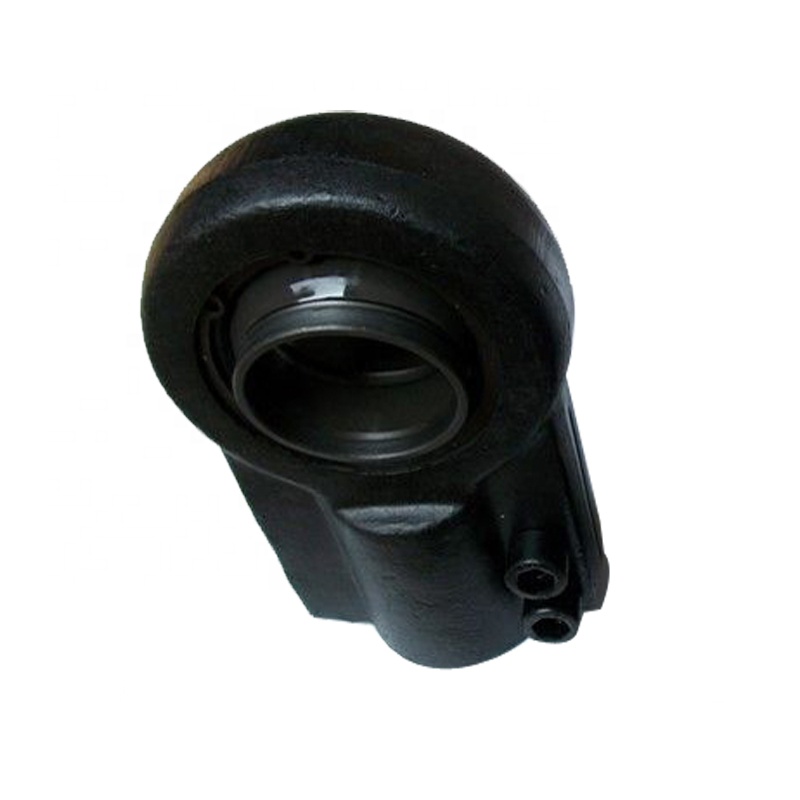

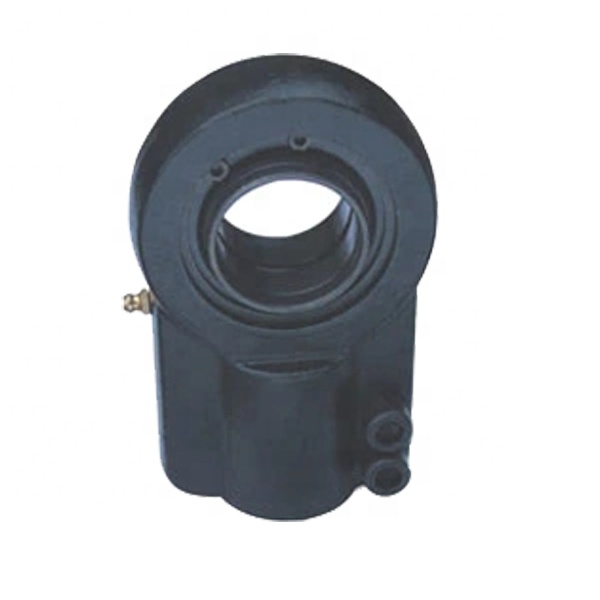

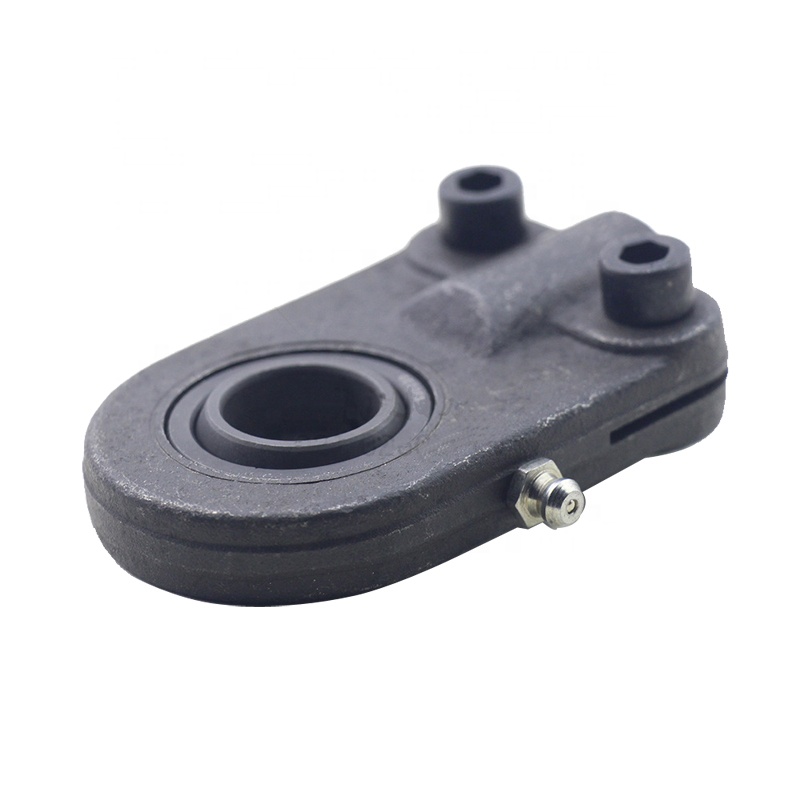

Detailed Images

Raydafon Radial Spherical Plain Bearings GIHR K 20 DO Bearing Rod Ends for Hydraulic Cylinder

we also can supply other Spherical Plain Bearings:

GE.E(S) /GE.ES-2RS

GEG.E(S)/ GEG.ES-2RS

GEZ.ES/GEZ.ES-2RS

GE.UK/GE.UK-2RS

GE.FW /GE.FW-2RS

GEBK.S, G.PB, G.PW, S.PW, DIN 648(Spherical Plain Bearings DIN ISO 12240-1),etc.

We can also make special rod ends according to your drawings and samples. If anything of interest to you, please feel free to contact us, thanks.
