Excavator Telescopic Rotary Hydraulic Cylinder

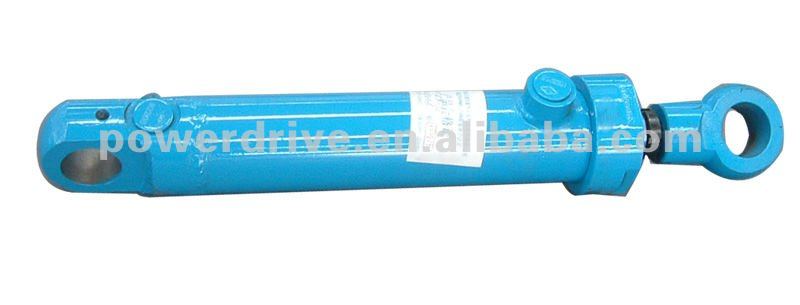

1.Engineering Oil Cylinder



The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines.



<img src="//sc01.alicdn.com/img/pb/862/121/526/526121862_265.jpg" alt="Cylinder / Hydraulic Cylinder" ori-width="500" ori-height="375">

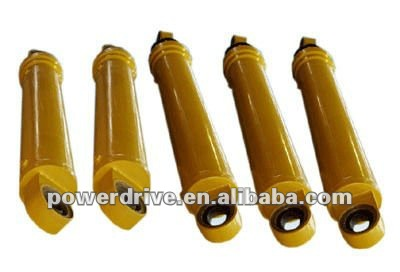

2.YGD series basic oil cylinder



The oil cylinder and hydraulic station is generally applied in metallurgy machines, cutting machine, vehicle assembly line and engineering machines.



<img src="//sc01.alicdn.com/img/pb/938/123/526/526123938_188.jpg" alt="Cylinder / Hydraulic Cylinder" ori-width="500" ori-height="375">

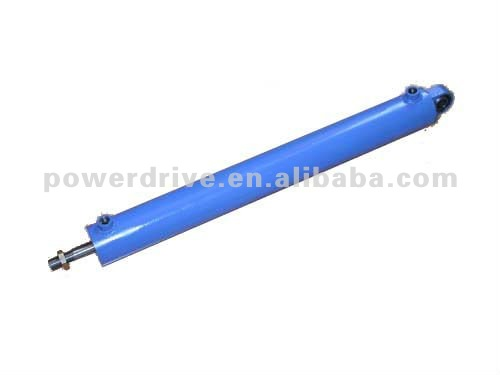

3.vehicle oil cylinder



<img src="//sc01.alicdn.com/img/pb/918/124/526/526124918_615.jpg" alt="Cylinder / Hydraulic Cylinder" width="518" height="238" ori-width="800" ori-height="305">

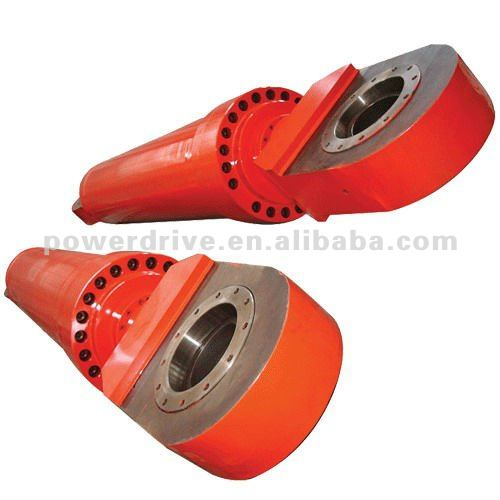

4.metallurgy hydraulic cylinder



1):Pressure: the standard cylinder had two kinds of pressure levels for E and G. E-class applied to pressure more than 6.3 Mpa ~ 16Mpa of the hydraulic cylinders (E-cylinder).G class applied to pressure more than >16Mpa~25Mpa of the hydraulic cylinders (G-cylinder).

2). Seal: E-cylinder used simple structure, good wear resistance, Y-shaped polyurethane ring and the wide application of the Y-shaped rubber ring. G-cylinder use high temperature resistantce,reliable combined seal in V-ring.

3). Dustproof : The hydraulic cylinders adopted polyurethane or rubber free- skeleton dust ring.

4). Applicable media: hydraulic oil, machine oil, emulsion, Inapplicable to organic phosphate .

5).Applicable  temperature:-40 -+120



<img src="//sc01.alicdn.com/img/pb/711/129/526/526129711_166.jpg" alt="Cylinder / Hydraulic Cylinder" ori-width="500" ori-height="500">

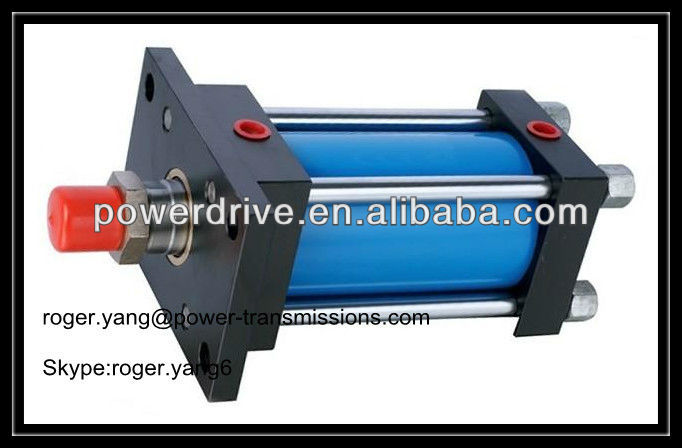

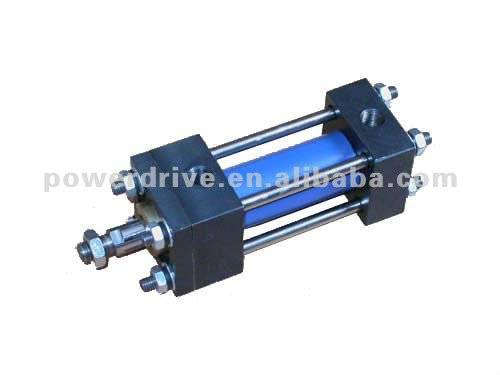

5.Pull bar type hydraulic cylinder



<img src="//sc01.alicdn.com/img/pb/226/129/526/526129226_298.jpg" alt="Cylinder / Hydraulic Cylinder" ori-width="400" ori-height="272">

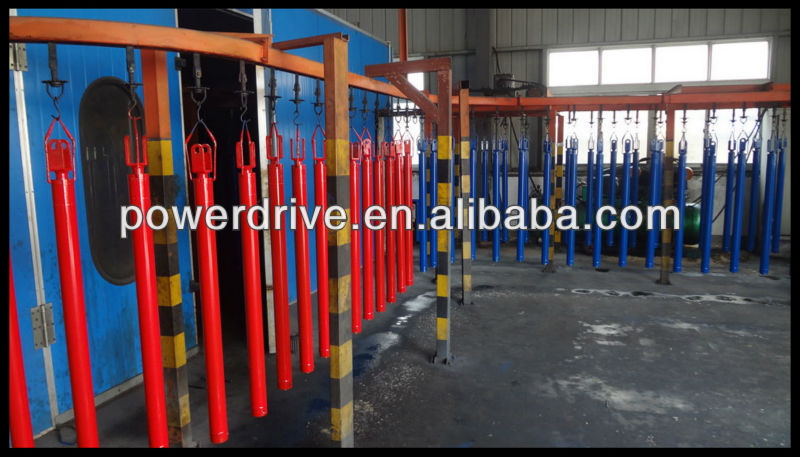

Our Factory





<img src="//sc01.alicdn.com/img/pb/055/542/567/567542055_690.jpg" alt="Cylinder / Hydraulic Cylinder" width="525" height="800" ori-width="490" ori-height="800">



<img src="//sc01.alicdn.com/img/pb/010/543/567/567543010_357.jpg" alt="Cylinder / Hydraulic Cylinder" width="800" height="457" ori-width="800" ori-height="457">





Raydafon Technology Group Co.,Limited is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.
