Raydafon Maintenance Required Rod Ends SA..E(S),SA..ES 2RS

Part No. Dimensions Load ratings Weight d d3 B C1 L1 d2 l7 h L2 dk R1s a dyn. C stat. C0 Kg 6g min min ≈ ≈ SA6E* 6 M6X1.0 6 4.4 18 21 11 36 46.5 10 0.3 13 3.4 8.15 0.017 SA8 E* 8 M8X1.25 8 6 22 24 14 42 54 13 0.3 15 5.5 12.9 0.029 SA10E* 10 M10X1.5 9

Send Inquiry

Product Description

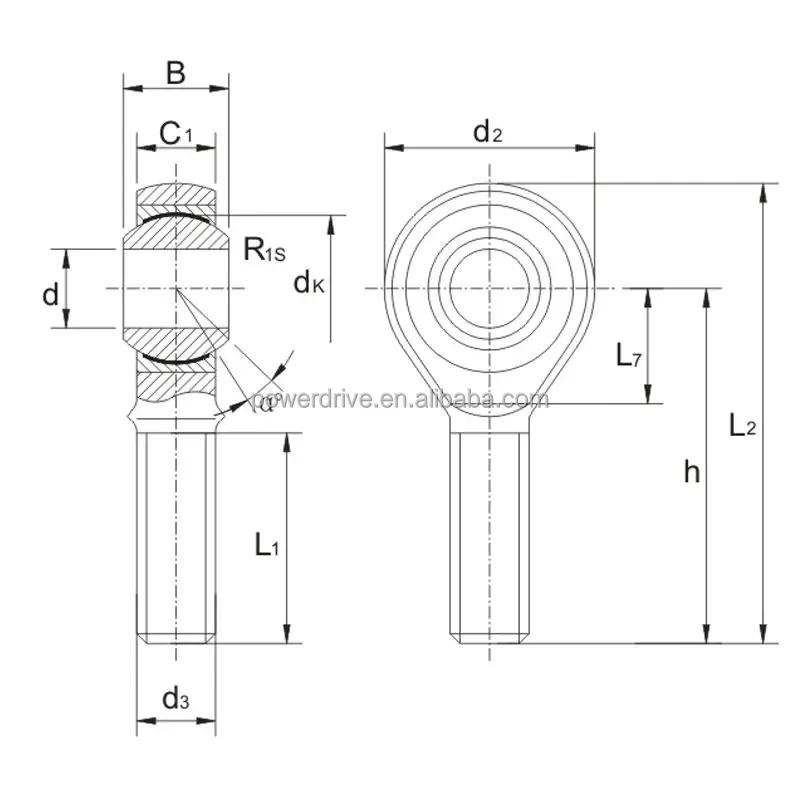

Part No.	Dimensions												Load ratings		Weight
	d	d₃	B	C₁	L₁	d₂	l₇	h	L₂	d_k	R_1s	a	dyn. C	stat. C₀	Kg
	d	6g	B	C₁	min	d₂	min	h	L₂	d_k	R_1s	≈	dyn. C	stat. C₀	≈
SA 6 E*	6	M6X1.0	6	4.4	18	21	11	36	46.5	10	0.3	13	3.4	8.15	0.017
SA 8 E*	8	M8X1.25	8	6	22	24	14	42	54	13	0.3	15	5.5	12.9	0.029
SA 10 E*	10	M10X1.5	9	7	26	29	15	48	62.5	16	0.3	12	8.15	17.6	0.051
SA 12 E*	12	M12X1.75	10	8	28	34	17	54	71	18	0.3	11	10.8	24.5	0.086
SA 15 ES	15	M14X2.0	12	10	34	40	20	63	83	22	0.3	8	17	36	0.14
SA 17 ES	17	M16X2.0	14	11	36	46	23	69	92	25	0.3	10	21.2	45	0.19
SA 20 ES	20	M20X1.5	16	13	43	53	27	78	104.5	29	0.6	9	30	60	0.31
SA 25 ES	25	M24X2.0	20	17	53	64	32	94	126	35.5	0.6	7	48	83	0.56
SA 30 ES	30	M30X2.0	22	19	65	73	37	110	146.5	40.7	0.6	6	62	110	0.89
SA 35 ES	35	M36X3.0	25	21	82	82	41	140	181	47	0.6	6	80	146	1.4
SA 40 ES	40	M39X3.0	28	23	86	92	46	150	196	53	0.6	7	100	180	1.8
SA 45 ES	45	M42X3.0	32	27	94	102	51	163	214	60	0.6	7	127	240	2.6
SA 50 ES	50	M45X3.0	35	30	107	112	56	185	241	66	0.6	6	156	290	3.4
SA 60 ES	60	M52X3.0	44	38	115	135	68	210	277.5	80	1	6	245	450	5.9
SA 70 ES	70	M56X4.0	49	42	125	160	80	235	315	92	1	6	315	610	8.2
SA 80 ES	80	M64X4.0	55	47	140	180	90	270	360	105	1	6	400	750	12

- It is made up of a radial spherical plain bearing GE..E(S) or GE..ES 2RS and rod body.

- Rod body of SI..ES with a lubricating hole or a grease nipple.

- For bearings d215, SI..ES 2RS also available, e.g. SA 20 ES 2RS.

- Lubricating hole or grease nipple isn't available for the sizes marked " *".

- For left-hand thread, please add suffix "L" ,e.g.SAL 20ES.

- All with forging part.

SA..T/K

GIR..UK,GIR..UK 2RS Raydafon Maintenance Required Rod Ends SA..E(S),SA..ES 2RS

- Body: medium carbon steel 45, zinc plating; Inner ring and steel ball: both bearing steel GCr15.
