Product Description

Part No.	Dimensions									Load ratings	Weight

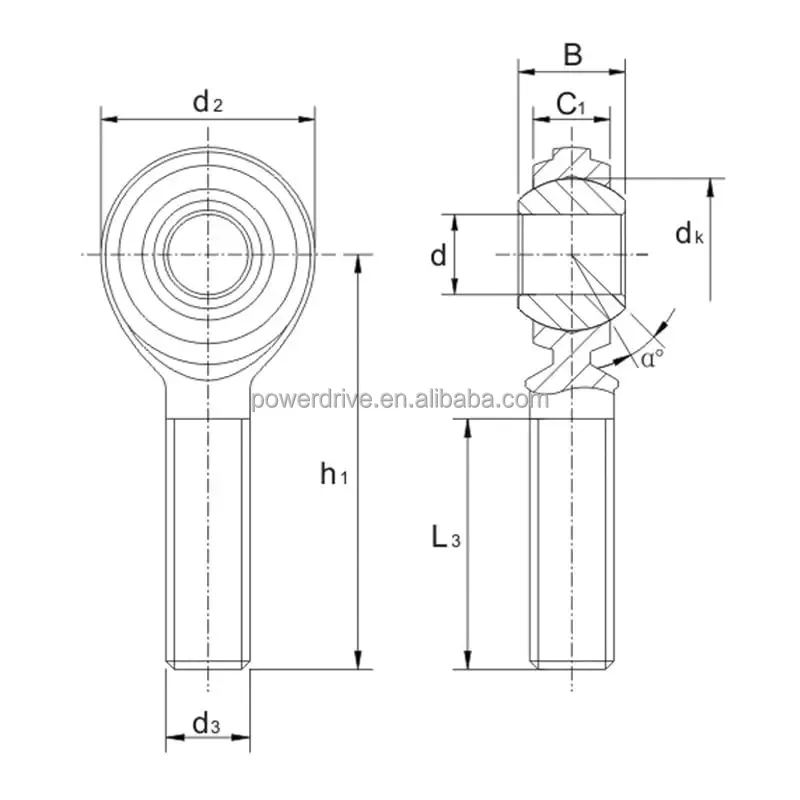

	d	B	C₁	h₁	d₂	d_k	L₃ min	d₃ 3A	a ≈		Kg≈
CM3*	0.1900	0.312	0.234	1.250	0.625	0.437	0.750	10-32	10	5.355	0.014
CM4*	0.2500	0.375	0.250	1.562	0.750	0.500	1.000	1/4-28	13.5	9.839	0.018
CM5*	0.3125	0.437	0.312	1.875	0.875	0.625	1.250	5/16-24	11	15.910	0.032
CM6	0.3750	0.500	0.359	1.938	1.000	0.719	1.250	3/8-24	11	22.542	0.050
CM7	0.4375	0.562	0.406	2.125	1.125	0.812	1.375	7/16-20	10.5	28.223	0.068
CM8	0.5000	0.625	0.453	2.438	1.312	0.937	1.500	1/2-20	10	37.087	0.109
CM10	0.6250	0.75	0.484	2.625	1.500	1.125	1.625	5/8-18	13	43.203	0.163
CM12	0.7500	0.875	0.593	2.875	1.750	1.312	1.750	3/4-16	12	63.193	0.259

- Rod body is pressed around inner ring.

- Lubricating hole or grease nipple isn't available for the sizes marked “*”.When grease nipple is required for other sizes please use the sign CLM..C.

- If assembling with rod, please add suffix "S” , e.g.CM 8S.

- Load ratings only apply to rod ends without grease nipple.

- For left-hand thread, please add suffix "L" ,e.g.CML 8.

- All with turn part.

Material and surface treatments:

- Body: medium carbon steel 45, zinc plating; steel ball:bearing steel with hard chrome plating.
