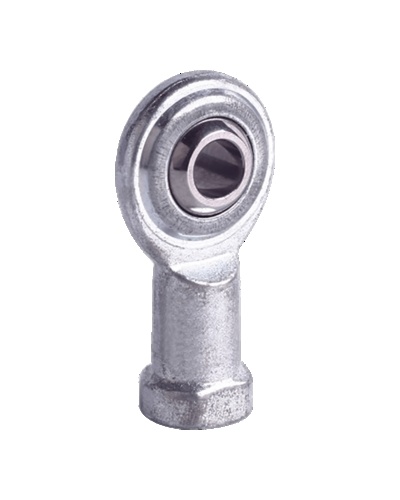

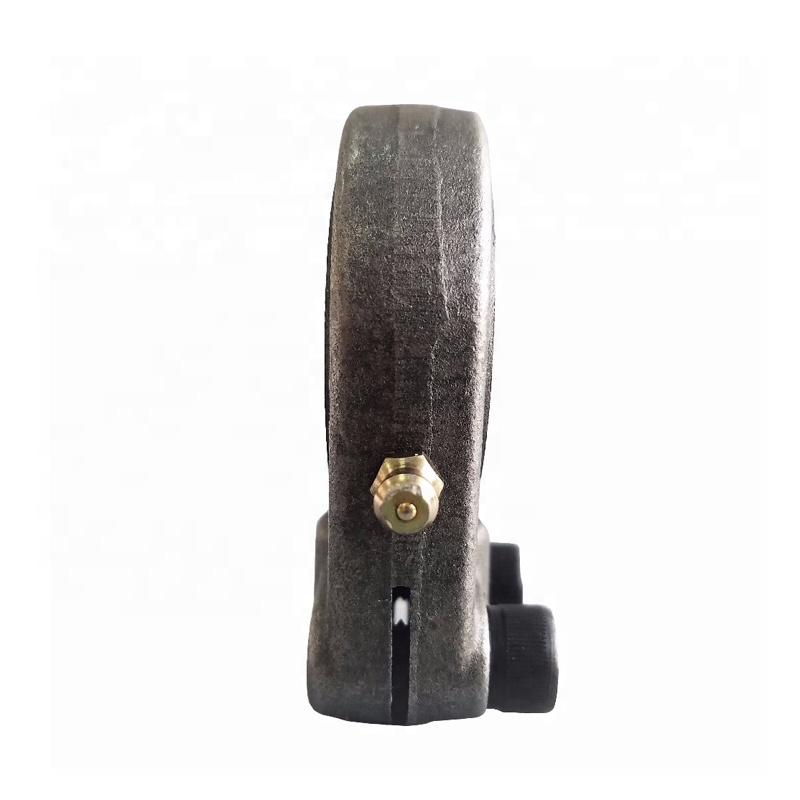

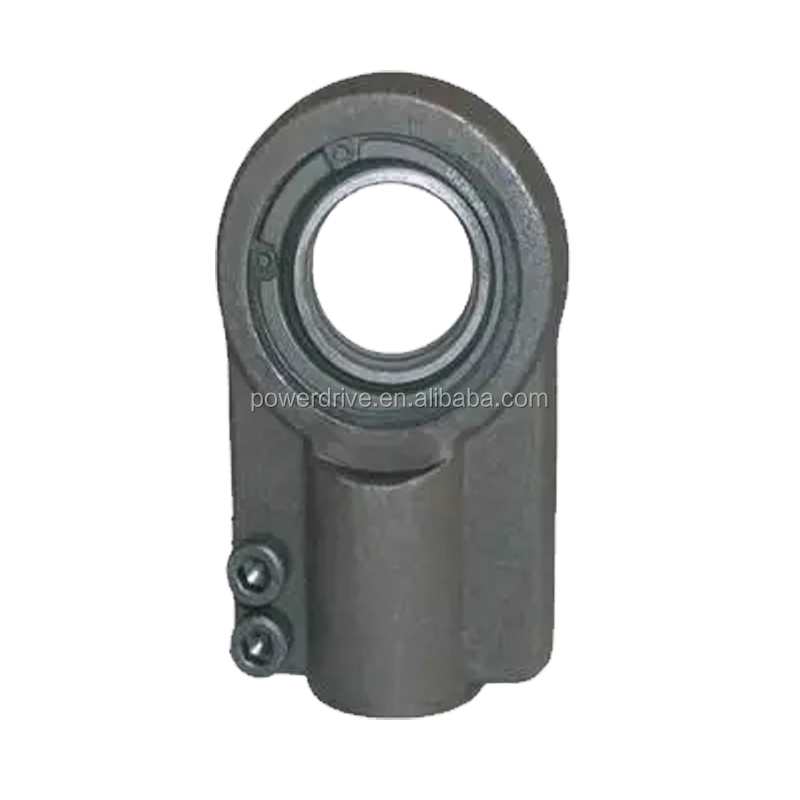

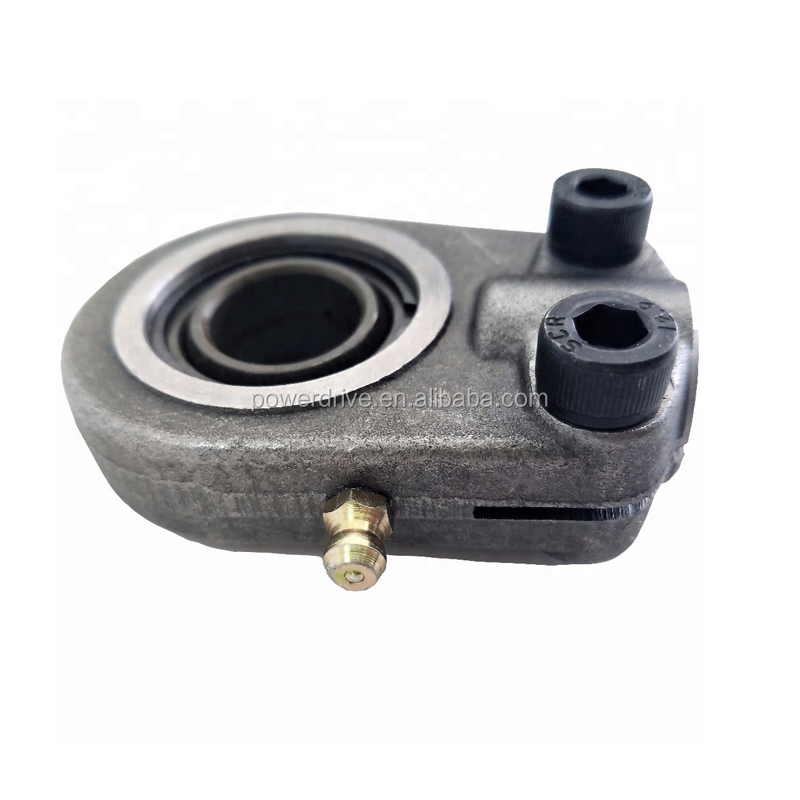

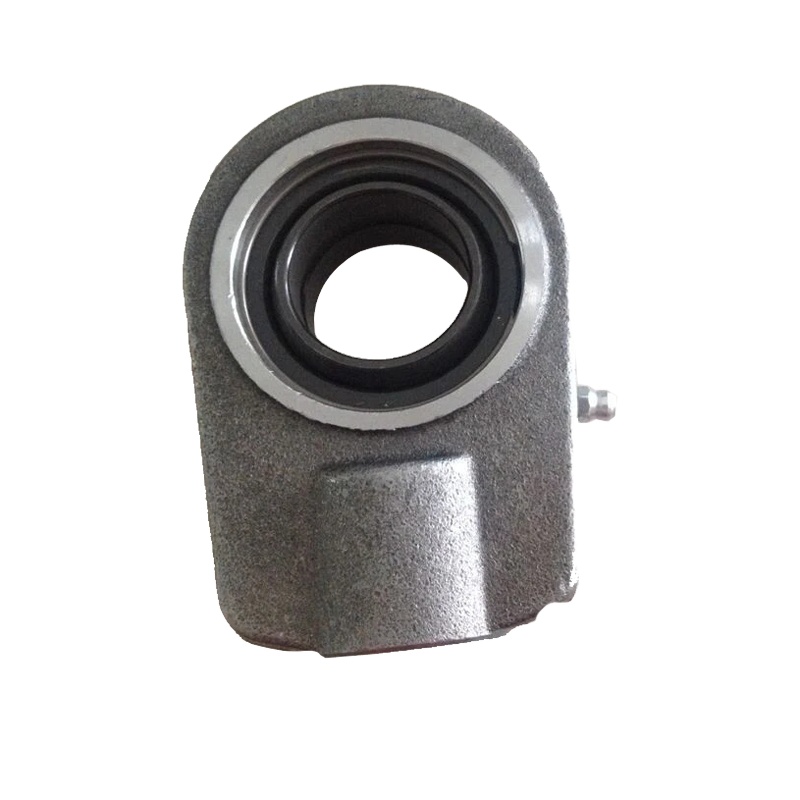

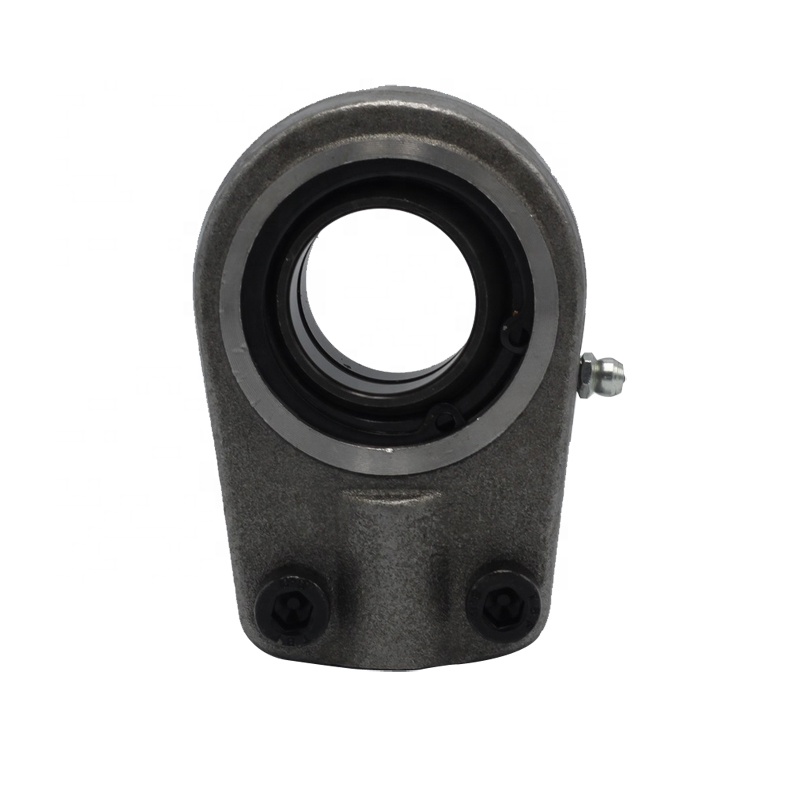

Raydafon Maintenance-free Rod Ends SI..PK

Part No. Dimensions Load ratings Weight d d3 B C1 d2 h1 L4 L3 d5 W d4 L5 a dyn. C stat. Kg 6H min ≈ C0 ≈ SI 5 PK 5 M5X0.8 8 6 19 27 36.5 10 11 9 9 4 12 5.7 6 0.018 SI 6 PK 6 M6X1.0 9 6.7 21 30 40.5 12 13 11 10 5 11 7.2 7.65 0.026 SI 8 PK 8 M8X1.25 12

Send Inquiry

Product Description

Material and surface treatments: -Body:medium carbon steel 45, zinc plating; Steel ball: bearing steel GCr15 without chromium plating; with PTFE; -Body:stainless steel 304, stainless steel 303 or stainless steel 316 is optional with surface passivation Steel ball: alternative bearing steel GCr15 with hard chrome plating or stainless steel 440C. We are Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Raydafon is leading manufacturer of Maintenance-free Rod Ends SI..T/K and Maintenance-free Rod Ends SI..T/K suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Rod Ends SI..T/K are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.

Part No.	Dimensions													Load ratings		Weight
	d	d₃	B	C₁	d₂	h₁	L₄	L₃	d₅	W	d₄	L₅	a	dyn. C	stat.	Kg
	d	6H	B	C₁	d₂	h₁	L₄	min	d₅	W	d₄	L₅	≈	dyn. C	C₀	≈
SI 5 PK	5	M5X0.8	8	6	19	27	36.5	10	11	9	9	4	12	5.7	6	0.018
SI 6 PK	6	M6X1.0	9	6.7	21	30	40.5	12	13	11	10	5	11	7.2	7.65	0.026
SI 8 PK	8	M8X1.25	12	9	25	36	48.5	16	16	14	12.5	5	12	11.6	12.9	0.047
SI 10 PK	10	M10X1.5	14	11	29	43	57.5	20	19	17	15	6.5	12	14.5	18	0.077
SI 10 PKFG	10	M10X1.25	14	11	29	43	57.5	20	19	17	15	6.5	12	14.5	18	0.077
SI 12 PK	12	M12X1.75	16	12	33	50	66.5	22	22	19	17.5	6.5	13	17	24	0.1
SI 12 PKFG	12	M12X1.25	16	12	33	50	66.5	22	22	19	17.5	6.5	13	17	24	0.1
SI 14 PK	14	M14X2.0	19	14	37	57	75.5	25	25	22	20	8	14	24	31	0.16
SI 14 PKFG	14	M14X1.5	19	14	37	57	75.5	25	25	22	20	8	14	24	31	0.16
SI 16 PK	16	M16X2.0	21	15	43	64	85.5	28	27	22	22	8	14	28.5	39	0.22
SI 16 PKFG	16	M16X1.5	21	15	43	64	85.5	28	27	22	22	8	14	28.5	39	0.22
SI 18 PK	18	M18X2.5	23	17	47	71	94.5	32	31	27	25	10	14	42.5	47.5	0.32
SI 18 PKFG	18	M18X1.5	23	17	47	71	94.5	32	31	27	25	10	14	42.5	47.5	0.32
SI 20 PK	20	M20X2.5	25	18	51	77	102.5	33	34	30	27.5	10	14	42.5	57	0.42
SI 20 PKFG	20	M20X1.5	25	18	51	77	102.5	33	34	30	27.5	10	14	42.5	57	0.42
SI 22 PKFG	22	M22X1.5	28	20	55	84	111.5	37	38	32	30	12	15	57	68	0.54
SI 25 PKFG	25	M24X2.0	31	22	61	94	124.5	42	42	36	33.5	12	15	68	85	0.72
