Product Description

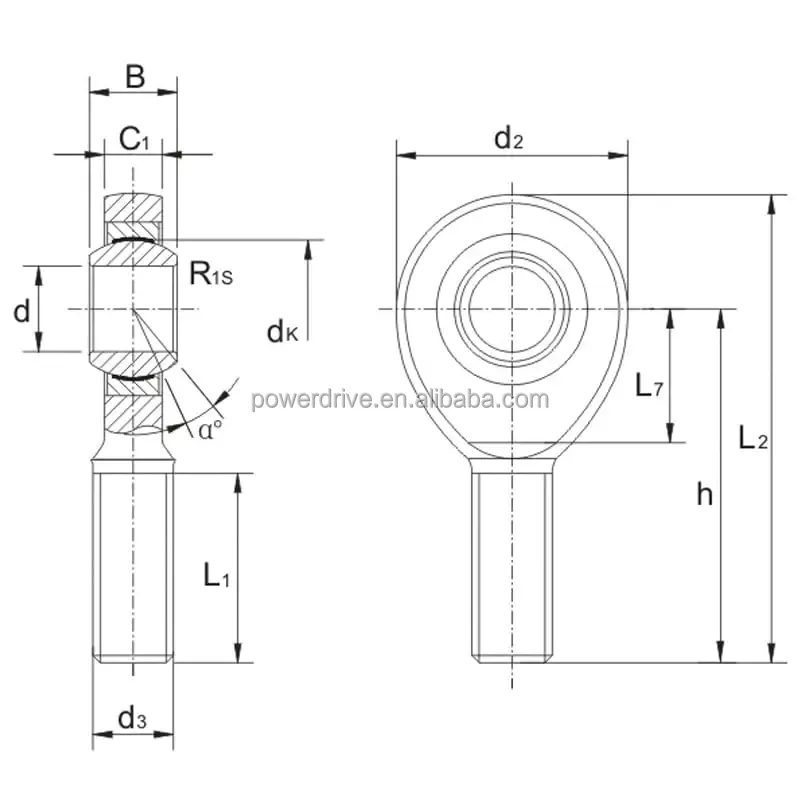

Part No.	Dimensions												Load ratings		Weight
	d	d₃	B	C₁	d₂	L₂	h	L₇	L₁	d_k	R_1s	a	dyn. c	stat. C₀	Kg≈
	d	6g	B	C₁	d₂	L₂	h	L₇	min	d_k	R_1s	≈	dyn. c	stat. C₀	Kg≈
GAR 6 UK	6	M6X1.0	6	4.4	21	46.5	36	12	18	10	0.3	13	3.6	8.15	0.017
GAR 8 UK	8	M8X1.25	8	6	24	54	42	14	22	13	0.3	15	5.85	12.9	0.029
GAR 10 UK	10	M10X1.5	9	7	29	62.5	48	15	26	16	0.3	12	8.65	17.6	0.051
GAR 12 UK	12	M12X1.75	10	8	34	71	54	18	28	18	0.3	11	11.4	24.5	0.086
GAR 15 UK	15	M14X2.0	12	10	40	83	63	20	34	22	0.3	8	17.6	36	0.14
GAR 17 UK(2RS)	17	M16X2.0	14	11	46	92	69	23	36	25	0.3	10	22.4	45	0.19
GAR 20 UK(2RS)	20	M20X1.5	16	13	53	104.5	78	27	43	29	0.6	9	31.5	60	0.31
GAR 25 UK(2RS)	25	M24X2.0	20	17	64	126	94	32	53	35.5	0.6	7	51	83	0.56
GAR 30 UK(2RS)	30	M30X2.0	22	19	73	146.5	110	37	65	40.7	0.6	6	66.5	110	0.89
GAR 35 UK2RS	35	M36X3.0	25	21	82	181	140	42	82	47	0.6	6	112	146	1.4
GAR 40 UK2RS	40	M39X3.0	28	23	92	196	150	48	86	53	0.6	7	140	180	1.8
GAR 45 UK2RS	45	M42X3.0	32	27	102	214	163	52	94	60	0.6	7	180	240	2.6
GAR 50 UK2RS	50	M45X3.0	35	30	112	241	185	60	107	66	0.6	6	220	290	3.4
GAR 60 UK2RS	60	M52X3.0	44	38	135	277.5	210	75	115	80	1	6	345	450	5.9
GAR 70 UK2RS	70	M56X4.0	49	42	160	315	235	87	125	92	1	6	440	610	8.2
GAR 80 UK2RS	80	M64X4.0	55	47	180	360	270	100	140	105	1	6	570	750	12

- It is made up of a maintenance-free radial spherical plain bearing GE..UK or GE..UK 2RS and rod body.

- For bearings d>17, GIR..UK 2RS also available, e.g.GAR 20 UK 2RS.

- For left-hand thread, please add suffix "L" ,e.g.GARL 20UK.

- All with forging part.

- Body: medium carbon steel 45, zinc plating; Inner ring and steel ball: both bearing steel GCr15.

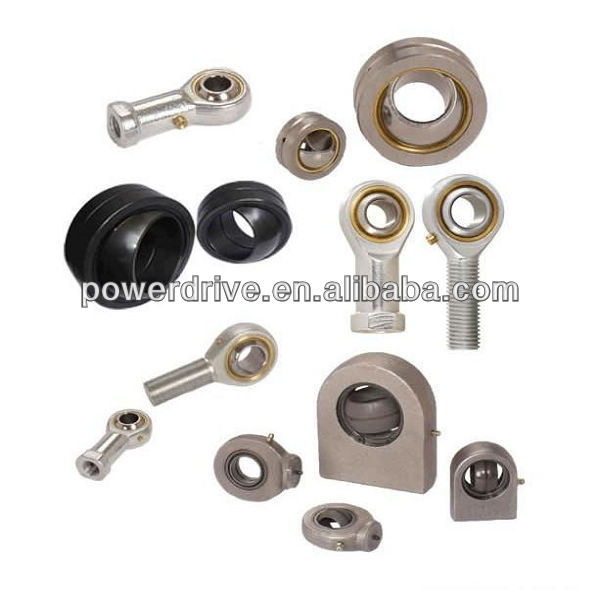

We are Well equipped with more than 300 all kinds of precision machining equipments and professional testing instruments. Raydafon is leading manufacturer of Maintenance-free Rod Ends SI..T/K and Maintenance-free Rod Ends SI..T/K suppliers which specialized in manufacturing mechanical spare parts, farm machinery parts and auto parts like Clevises, Bolts, Clips, Rod Ends, Radial Spherical Plain Bearing, Ball Joints and so on. Non-standard products can be designed and put into production as per samples or drawings accordingly. Factory manufactured Maintenance-free Rod Ends SI..T/K are well welcomed both at home and abroad markets like USA, Europe, Middle East, Southeast Asia, etc. We also wholesale these products worldwide.
