Raydafon Inch Dimensions Injection Molded Rod Ends PNF PNM PXF PXM PMXF PMXM

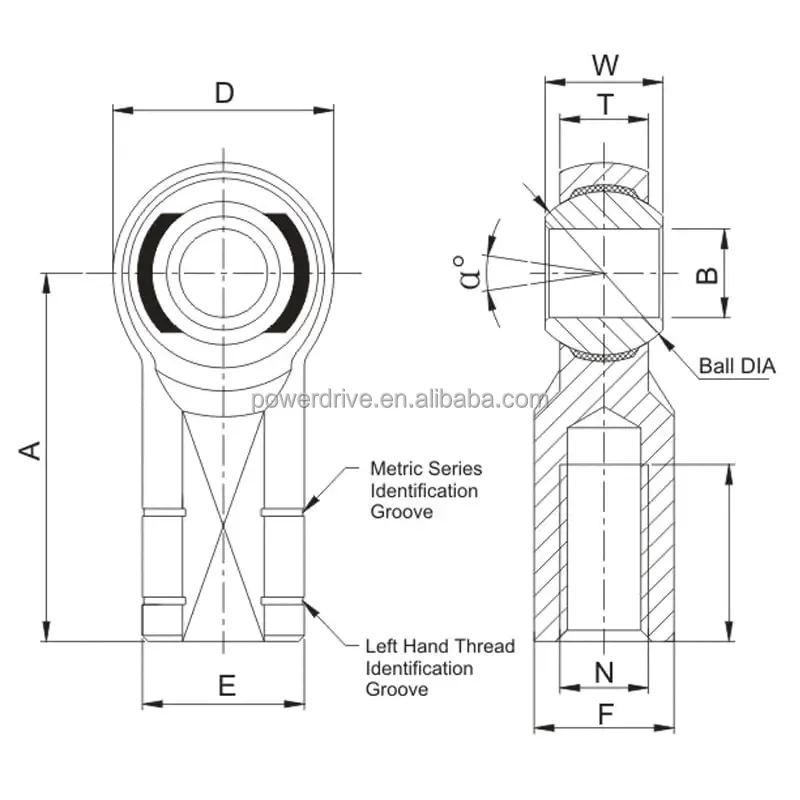

Part No Dimensions Weight N A B C D E F T W Ball DIA a° Kg≈ Thread ±0.015 0.0025 0.062 ±0.010 ±0.010 0.002 ±0.005 0 S∅ REF ANGLE UNF-2B -0.0005 -0.031 -0.01 -0.005 PNF3 10-32 1.062 0.19 0.562 0.625 0.406 0.312 0.25 0.312 0.437 13 0.018 PNF4 2001-4-28

Send Inquiry

Product Description

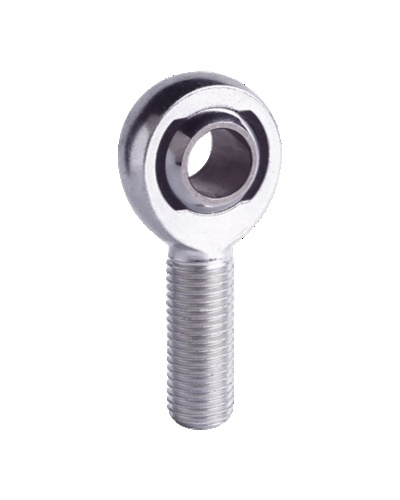

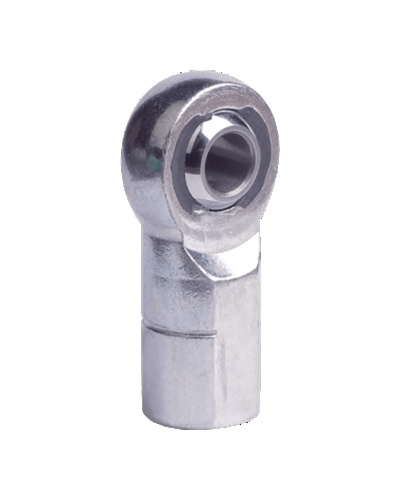

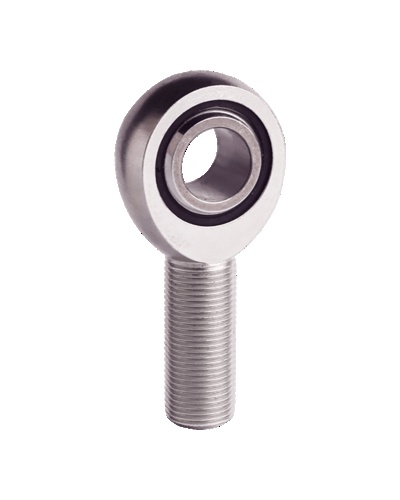

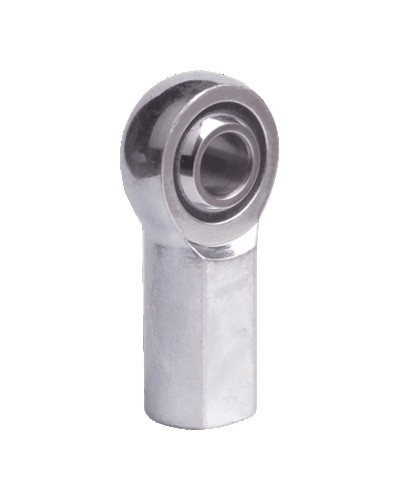

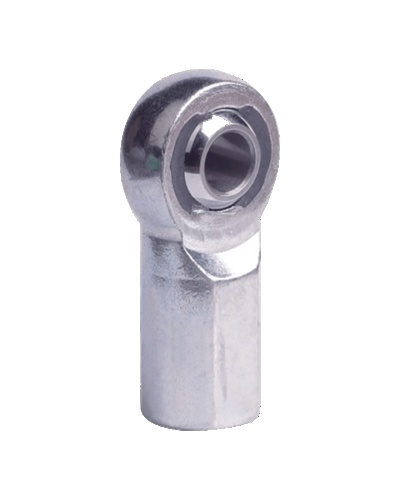

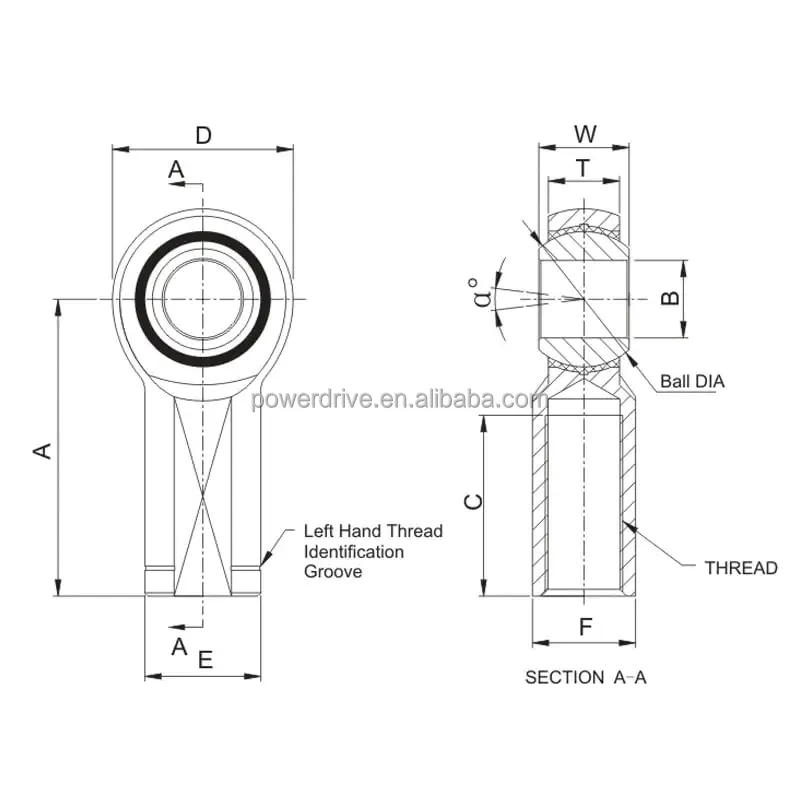

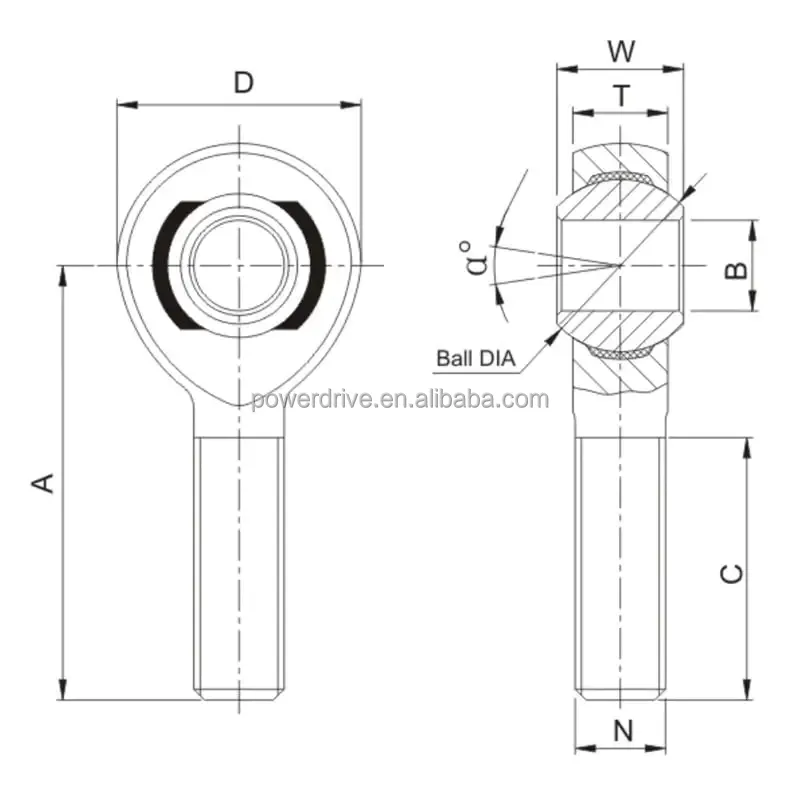

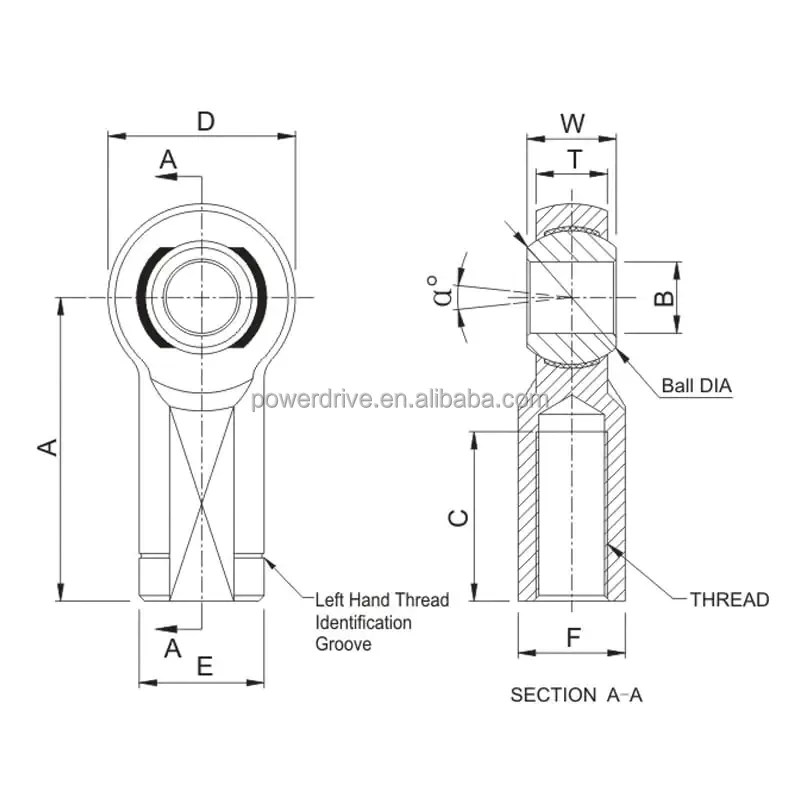

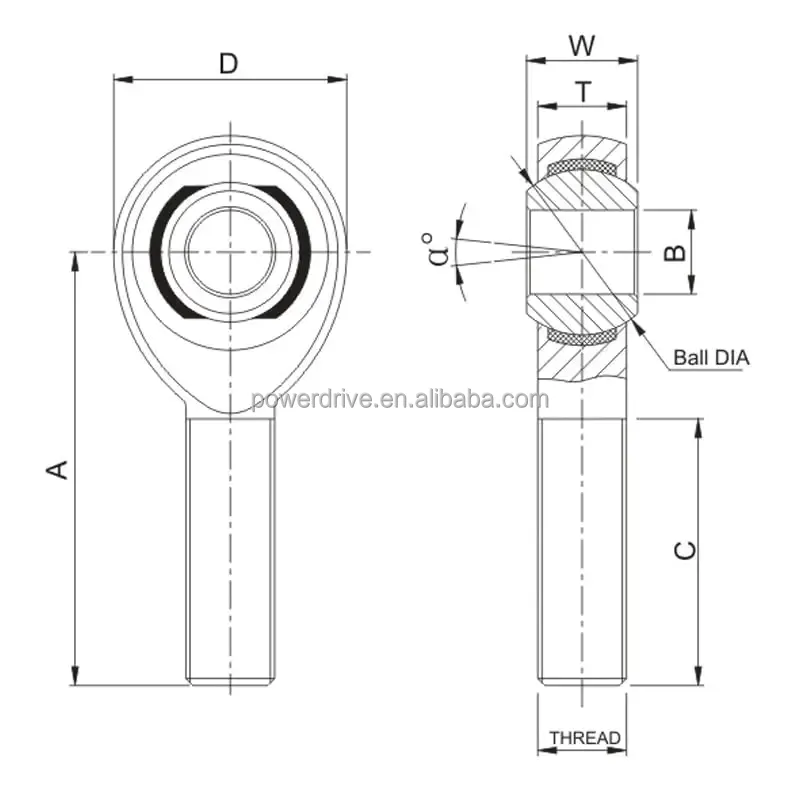

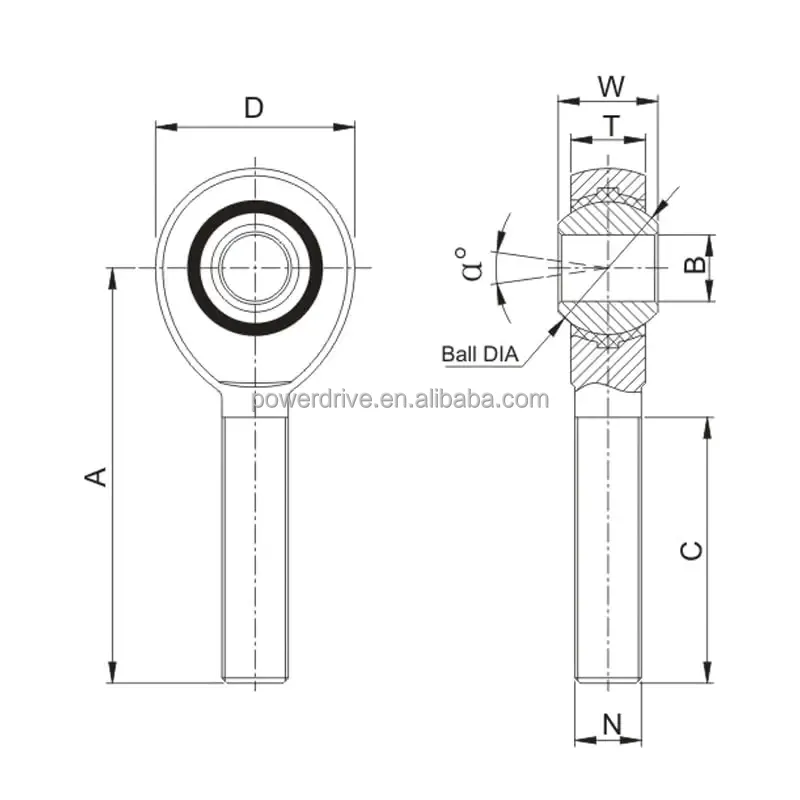

Part No	Dimensions											Weight
	N	A	B	C	D	E	F	T	W	Ball DIA	a°	Kg≈
	Thread	±0.015	0.0025	0.062	±0.010	±0.010	0.002	±0.005	0	S∅ REF	ANGLE
	UNF-2B		-0.0005	-0.031			-0.01		-0.005
PNF3	10-32	1.062	0.19	0.562	0.625	0.406	0.312	0.25	0.312	0.437	13	0.018
PNF4	2001-4-28	1.312	0.25	0.75	0.75	0.469	0.375	0.281	0.375	0.5	16	0.027
PNF5	5/16-24	1.375	0.3125	0.75	0.875	0.5	0.437	0.344	0.437	0.625	14	0.036
PNF6	2003-8-24	1.625	0.375	0.937	1	0.687	0.562	0.406	0.5	0.719	12	0.063
PNF7	7/16-20	1.812	0.4375	1.062	1.125	0.75	0.625	0.437	0.562	0.812	14	0.086
PNF8	2001-2-20	2.125	0.5	1.187	1.312	0.875	0.75	0.5	0.625	0.937	12	0.14
PNF10	2005-8-18	2.5	0.625	1.5	1.5	1	0.875	0.562	0.75	1.125	16	0.204
PNF12	2003-4-16	2.875	0.75	1.75	1.75	1.125	1	0.687	0.875	1.312	14	0.304

Material and surface treatments:

- Body: medium carbon steel 45.Zinc plating.Alternative stainless steel with surface passivation.

- Steel ball: bearing steel GCr15.Hard chrome plating.Alternative stainless steel 440C.

- Race: nylon.

- For left-hand thread, please add suffix“L”,e.g.PNFL 8.
