Raydafon GIHN-K..LO Hydraulic Cylinder Rod End Radial Spherical Plain Bearing

A rod end bearing, alsonamed as a heim joint or rose joint , is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an

Send Inquiry

Product Description

A rod end bearing, also named as a heim joint or rose joint , is a mechanical articulating joint.

Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

Product Description

Introduction:

• sliding contact surface: steel / steel

• housing:carbon steel

• requiring maintenance

• inner ring

—bearing steel

—heat treated HRC 58-64

—phosphating

• outer ring

—bearing steel

—heat treated HRC 54-60

—phosphating

Technology

Raydafon GIHN-K..LO Hydraulic Cylinder Rod End Radial Spherical Plain Bearing

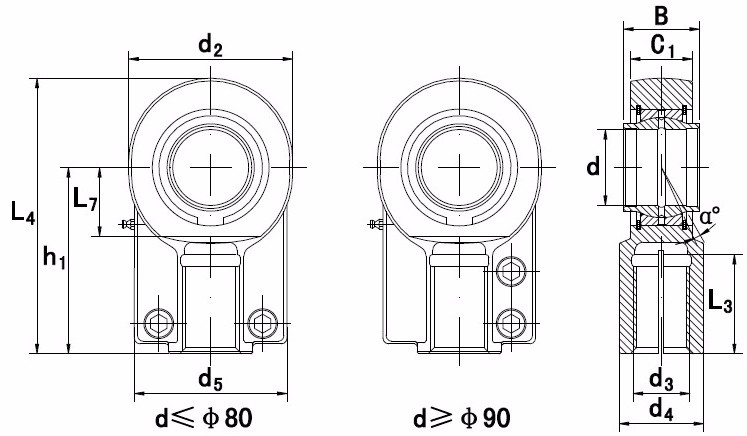

Part No.		Dimension (mm)												Weight(kg)
Right hand	Left hand	d	d3	d4	L3	B	C1	d2	L7	h1	L4	d5	a
Right hand	Left hand	d	6H	d4	min	B	C1	d2	min	h1	L4	d5	≈
GIHN-K 12 LO*	GIHN-KL 12 LO*	12	M12x1.25	16.5	17	12	11	32	14	38	54	32	4	0.1
GIHN-K 16 LO	GIHN-KL 16 LO	16	M14x1.5	21	19	16	14	40	18	44	64	40	4	0.2
GIHN-K 20 LO	GIHN-KL 20 LO	20	M16x1.5	25	23	20	17	47	22	52	77	47	4	0.4
GIHN-K 25 LO	GIHN-KL 25 LO	25	M20x1.5	30	29	25	22	58	27	65	96	54	4	0.66
GIHN-K 32 LO	GIHN-KL 32 LO	32	M27x2.0	38	37	32	28	71	32	80	118.5	66	4	1.2
GIHN-K 40 LO	GIHN-KL 40 LO	40	M33x2.0	47	46	40	33	90	41	97	146	80	4	2.1
GIHN-K 50 LO	GIHN-KL 50 LO	50	M42x2.0	58	57	50	41	109	50	120	179.5	96	4	4.4
GIHN-K 63 LO	GIHN-KL 63 LO	63	M48x2.0	70	64	63	53	136	62	140	213	114	4	7.6
GIHN-K 70 LO	GIHN-KL 70 LO	70	M56x2.0	80	76	70	57	155	70	160	245	135	4	9.5
GIHN-K 80 LO	GIHN-KL 80 LO	80	M64x3.0	90	86	80	67	170	78	180	270.5	148	4	14.5
GIHN-K 90 LO	GIHN-KL 90 LO	90	M72x3.0	100	91	90	72	185	85	195	296	160	4	17
GIHN-K 100 LO	GIHN-KL 100 LO	100	M80x3.0	110	96	100	85	210	98	210	322	178	4	28
GIHN-K 110 LO	GIHN-KL 110 LO	110	M90x3.0	125	106	110	88	235	105	235	364	190	4	32
GIHN-K 125 LO	GIHN-KL 125 LO	125	M100x3.0	135	113	125	103	265	120	260	405	200	4	43
GIHN-K 160 LO	GIHN-KL 160 LO	160	M125x4.0	165	126	160	130	326	150	310	488	250	4	82.5

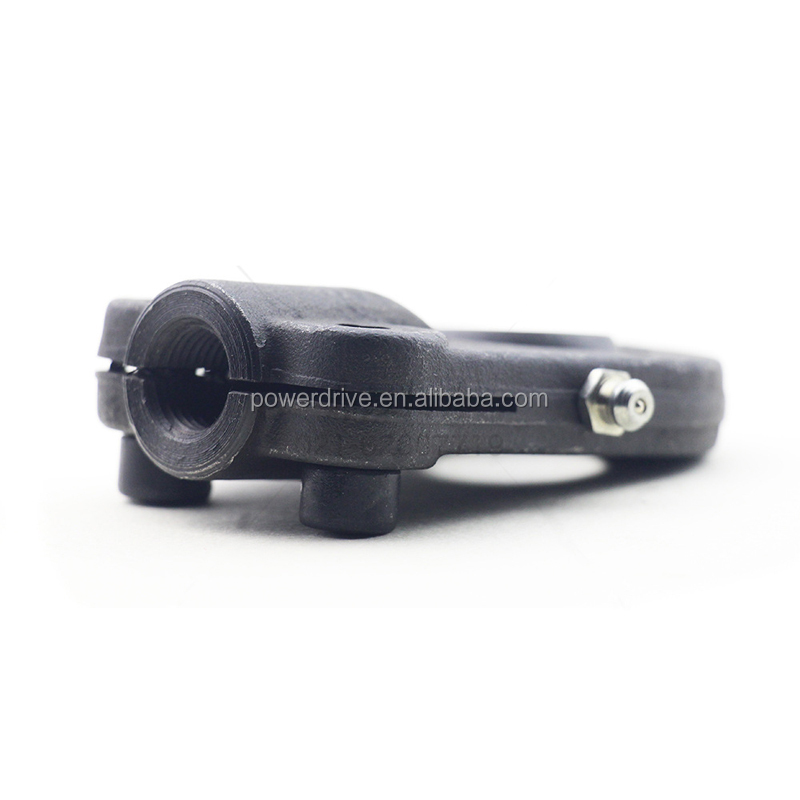

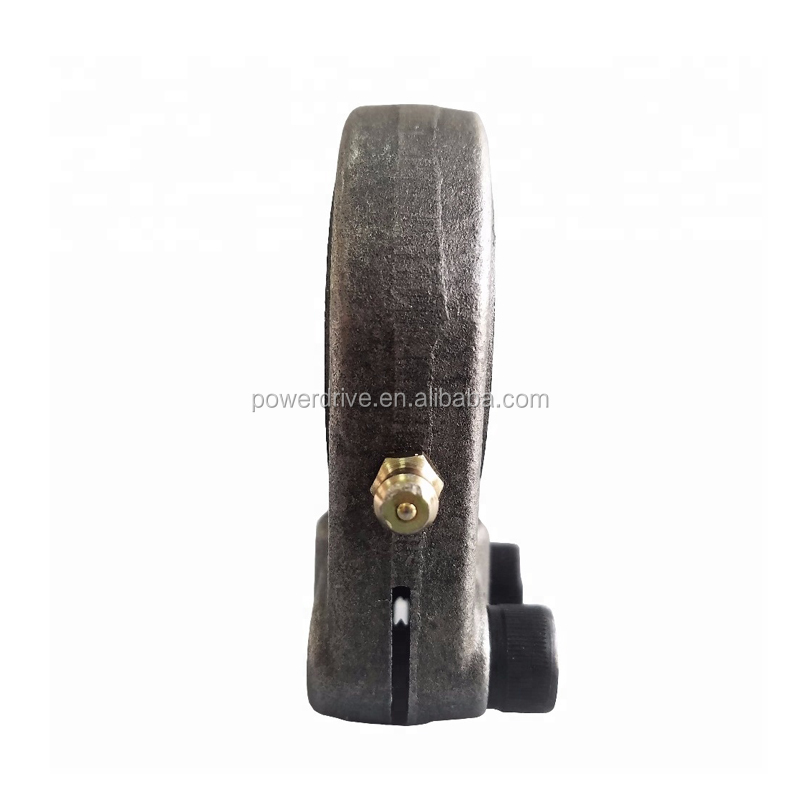

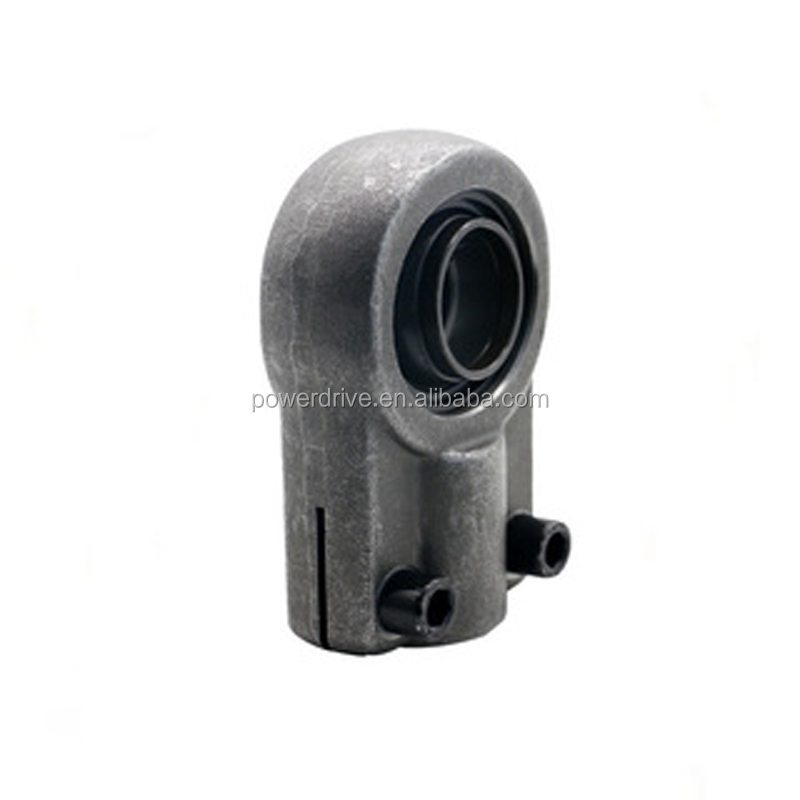

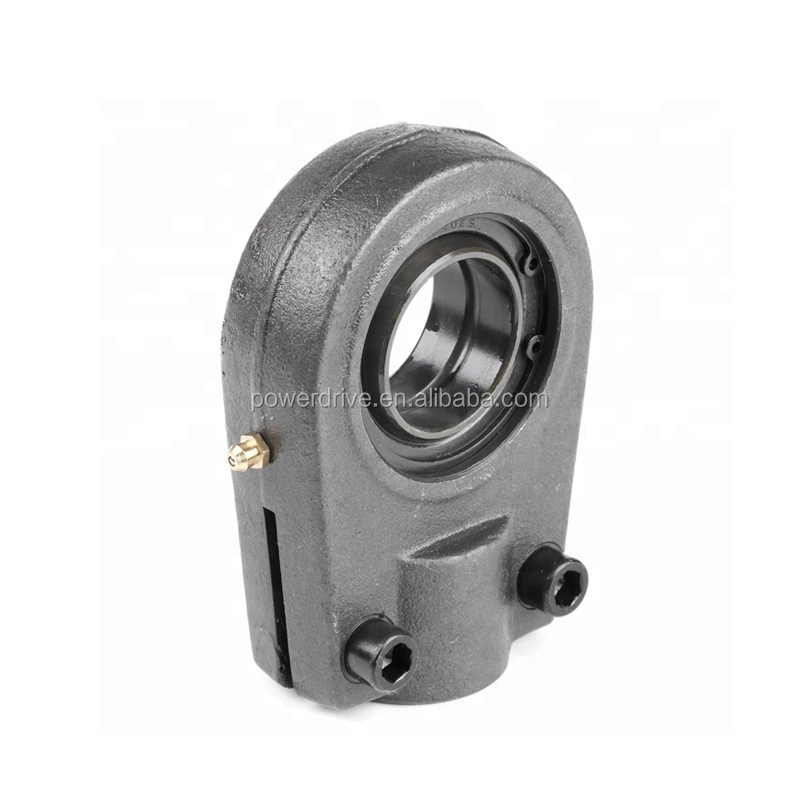

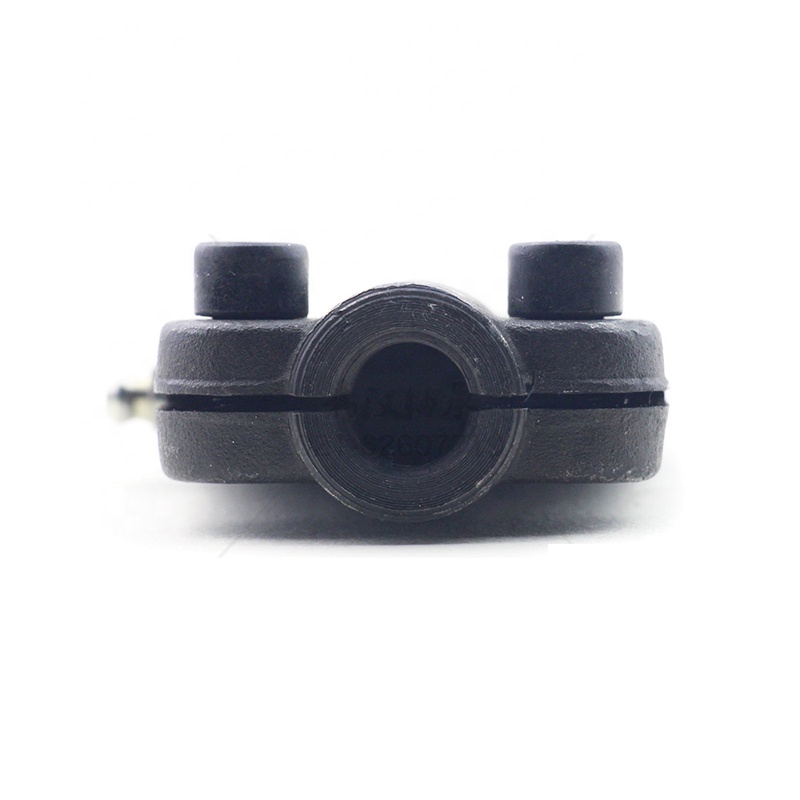

Detailed Images

Raydafon GIHN-K..LO Hydraulic Cylinder Rod End Radial Spherical Plain Bearing

we also can supply other Spherical Plain Bearings:

GE.E(S) /GE.ES-2RS

GEG.E(S)/ GEG.ES-2RS

GEZ.ES/GEZ.ES-2RS

GE.UK/GE.UK-2RS

GE.FW /GE.FW-2RS

GEBK.S, G.PB, G.PW, S.PW, DIN 648(Spherical Plain Bearings DIN ISO 12240-1),etc.

We can also make special rod ends according to your drawings and samples. If anything of interest to you, please feel free to contact us, thanks.
