Standard Material
Mild Steel
Stainless Steel
Delrin
Outside Diameter
Max : 300mm
Min : 8mm
Pitches
4mm, 6mm and 8mm : 1/4", 3/8", 1/2", 3/4" and 1"
Notes

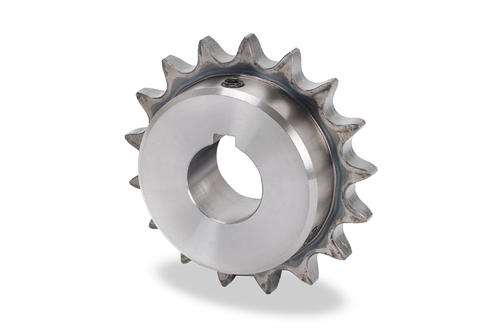

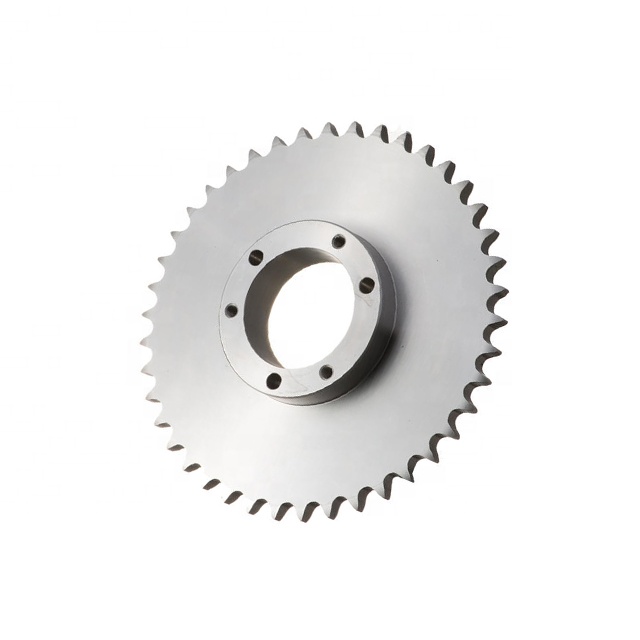

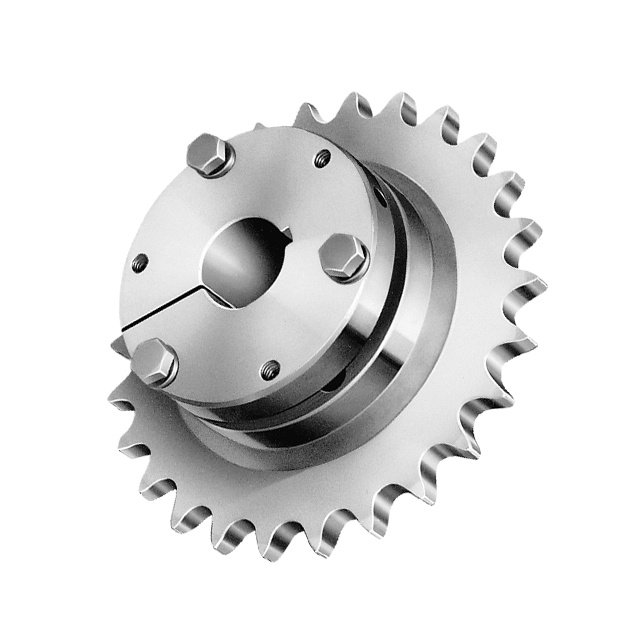

Sprockets made to suit British & American standard roller chains.
Sprockets are available to suit simplex, duplex & triplex chains'
All sprockets come as Standard with or without boss and pilot bored.

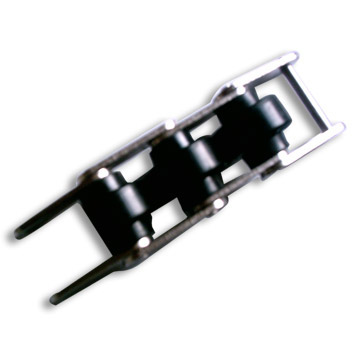

| conveyor chain | Double pitch conveyor chain | ||||||||
| DIN/ISO | ANSI | P | G | L | C1 | C2 | F | d4 | d5 |
| KIN/ISO | ANSI | ||||||||
| Chain | Chain | ||||||||
| No. | No. | mm | mm | mm | mm | mm | mm | mm | mm |
| C205A | C2040 | 25.4 | 19.1 | 9.5 | 13.3 | 14.53 | 20.5 | 4.3 | 4.3 |
| C208AL | g | ||||||||
| C208B | 25.4 | 19.1 | 9.5 | 13.3 | 14.53 | 20.5 | 4.3 | 4.3 | |
| C208BL | |||||||||
| C210A | C2050 | 31.75 | 26.1 | 11.9 | 16.2 | 15.19 | 25 | 5.5 | 5.5 |
| C210AL | C2052 | ||||||||
| C212A | C2060 | 38.1 | 30.1 | 14.3 | 22.82 | 23.1 | 32.9 | 6.4 | 8/6.4 |
| C212AL | C2062 | ||||||||
| C212AH | C2060H | 38.1 | 30.1 | 14.3 | 20.49 | 20.49 | 32.9 | 6.4 | 8/6.4 |
| C212AHL | C2062H | ||||||||
| C216A | C2080 | 50.8 | 40.3 | 19.1 | 30.38 | 30.38 | 43.5 | 6.4 | 8.5/6.4 |
| C216AL | C2082 | ||||||||
| C216AH | C2080H | 5.08 | 40.3 | 19.1 | 30.38 | 30.38 | 43.5 | 6.4 | 8.5/6.4 |
| C216AHL | C2082H | ||||||||
| C220A | C2100 | 63.5 | 49.6 | 23.8 | 35.82 | 35.82 | 50.4 | 9.4 | 9.4 |
| C220AL | C2102 | ||||||||
| C220AH | C2100H | 63.5 | 49.6 | 23.8 | 35.82 | 35.82 | 50.4 | 9.4 | 9.4 |
| C220AHL | C2102H |
|
Short/Double Pitch Conveyor Chains
|
|||||
| 1. BS/DIN Standard Short Pitch Attachment Chains: 08B-24B | |||||
| 2. BS/DIN Standard Double Pitch Conveyor Chains:C208B-C224BL | |||||
| 3. ANSI Standard Short Pitch Attachment Roller Chains:40-160 | |||||
| 4. ANSI Double Pitch conveyor Attachment Chains: 2040-2120 | |||||
| 5. ANSI Double Pitch Conveyor Roller Chains: C2040-C2162H | |||||
| 6. ANSI Double Pitch Conveyor Attachment Chains: C2040-C2122H | |||||
| 7. BS/DIN and ANSI Short Pitch Hollow Pin Chains: 08BHP-12BHP,40HP-80HP | |||||
| 8. ANSI Double Pitch Hollow Pin Chains: C2040HP-C2080HP,C2042HP-C2082HP | |||||
| 9. ISO/BS/DIN Large Pitch Hollow Pin Chains:MC,BS,FVT Series | |||||
| 10. Made-to-Order Hollow Pin Chains: 260 & 262 | |||||
| 11. Side Bow Chains (Special Curved Chains): 08BSB-10BSB,35SB-80SB | |||||
| 12. Free Flow Conveyor Chains: Double plus chain,Triple speed chain and Accumulator chain | |||||
| 13. Side Roller Conveyor Chains: 40PST-100PST,C2040PSR-C2100HPSR | |||||
| 14. Top Roller Conveyor Chains: 40TR-100TR,C2040TR-C2100TR | |||||
|
Large Pitch Conveyor Chains (Long Pitch Engineering Class Conveyor Chains)
|
|||||
| 1. ISO Standard Solid Pin Conveyor Chains (ISO 1977): M,MT | |||||
| 2. ISO Standard Hollow Pin Conveyor Chains (ISO 1977): MC,MCT | |||||
| 3. BS Standard Metric Series Solid Pin Conveyor Chains (BS 4116): E,ET | |||||
| 4. BS Standard Metric Series Hollow Pin Conveyor Chains (BS 4116):EC,ECT | |||||
| 5. BS Standard Imperial Series Solid Pin Conveyor Chains (BS 4116): Z,ZT | |||||
| 6. BS Standard Imperial Series Hollow Pin Conveyor Chains (BS 4116): ZC,ZCT | |||||
| 7. DIN Standard Conveyor Chains (DIN 8167 and DIN 8168): FV,FVH,FVT | |||||
| 8. ANSI Standard Plain Conveyor Chain (ANSI B29.15): 0703-2430 | |||||
| 9. Standard Bucket Elevator Chains: DT150-DT250 | |||||
| 10. Bearing Bush Conveyor Chains | |||||
| 11. Bearing Roller Conveyor Chains | |||||
