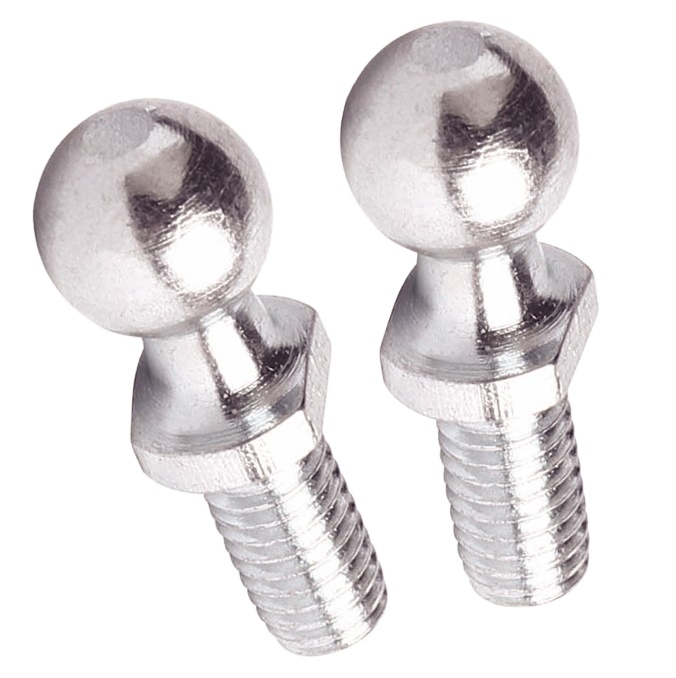

Detail specification.

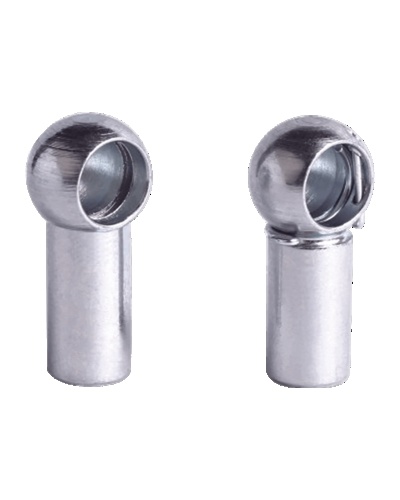

1) Type B with safety clip.
2)Alternative with left-hand thread.
3) Alternative with spanner surface or hexagon surface.
Material and surface treatments:
1) Low carbon steel Q235A.Zinc plating.
2) Alternative stainless steel 304, stainless steel 303 or stainless steel 316.Surface passivation.
Detail dimensions:
| Dimensions | Weight | ||||||||
| Kg/1000 pieces for type | |||||||||
| d1 | d2 | a | d3 | d4 | e | l1 | l2 | A | B |
| ±0.3 | ±0.5 | ±0.5 | min. | max. | ±0.4 | ||||
| 8 | M 5 | 22 | 8 | 12.8 | 10.2 | 15 | 6.3 | 9 | 8.8 |
| 10 | M 6 | 25 | 10 | 14.8 | 11.5 | 17 | 7 | 14.2 | 14.1 |
| 13 | M 8 | 30 | 13 | 19.3 | 14 | 20 | 9.1 | 29 | 28.8 |
| 16 | M 10 | 35 | 16 | 24 | 15.5 | 22 | 11.4 | 57 | 56.8 |
| 16 | M 12 | 35 | 16 | 24 | 15.5 | 22 | 11.4 | 57 | 56.8 |
| 19 | M 14X1.5 | 45 | 22 | 30 | 21.5 | 28 | 12.5 | 125 | 124.8 |
| 19 | M 14X2 | 45 | 22 | 30 | 21.5 | 28 | 12.5 | 125 | 124.8 |
| 19 | M 16 | 45 | 22 | 30 | 21.5 | 28 | 12.5 | 125 | 124.8 |
