Promotional Various XTH20 Weld-On Hubs

Product Description XTH20 welded wheels are made of high-quality steel and are designed for durability. They are available in various sizes and apertures to adapt to different shaft sizes and applications. The XTH20 wheel hub has a tapered hole that

Send Inquiry

Product Description

Product Description

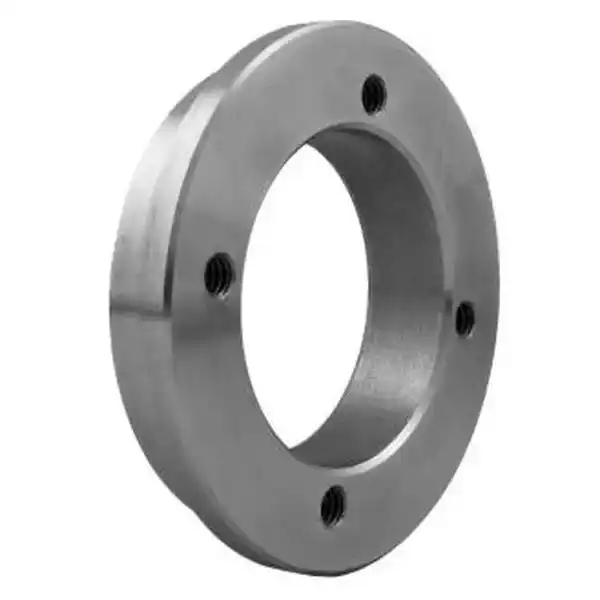

XTH20 welded wheels are made of high-quality steel and are designed for durability. They are available in various sizes and apertures to adapt to different shaft sizes and applications. The XTH20 wheel hub has a tapered hole that can be securely installed on the shaft, and they also have a fixing screw that can be tightened to secure it in place.

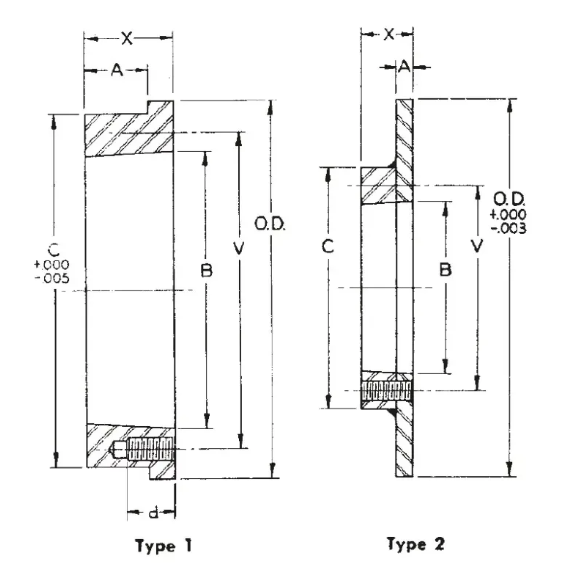

XTH20 Weld-On Hubs Dimensions:

Part No.		XTH20 Hubs
Dimensions	O.D.	4 1/8"
	A	9/16"
	B	2.688"
	C	3 13/16"
	V	3 3/16"
	X	13/16"
	d	13/16"
	No.	4
	Size	5/16" - 18UNC
Wt lbs.		1.5

Features:1.Weld-On Design: Similar to other weld-on hubs, XTH20 weld-on hubs are designed to be welded directly onto a shaft, providing a secure and rigid connection. 2.Material: XTH20 weld-on hubs are typically made from durable materials such as steel or other alloys, ensuring their ability to withstand heavy loads, high torque, and harsh operating conditions. 3.Bore Size: XTH20 weld-on hubs are likely to have a pre-machined bore that matches the diameter of the shaft onto which they will be welded. The bore size is selected to provide a precise fit and optimal concentricity between the hub and the shaft.

Promotional Various XTH20 Weld-On Hubs

How To Select XTH20 Weld-On Hubs?

1.Application Environment: Assess the environmental conditions in which the weld-on hub will be used. Consider factors such as temperature, moisture, chemicals, and potential exposure to corrosion or abrasion. Choose an XTH20 weld-on hub that is designed to withstand these conditions to ensure long-term performance and reliability. 2. Keyway or Set Screw Requirement: Determine if a keyway or set screw feature is necessary for additional torque transmission or to secure the hub in place on the shaft. Confirm whether the XTH20 weld-on hub has the appropriate provisions for these features, if required. 3. Manufacturer and Quality: Consider the reputation and reliability of the manufacturer or supplier of the XTH20 weld-on hubs. Ensure that they have a track record of producing high-quality products and provide good customer support. 4. Customization Options: Check if the XTH20 weld-on hubs can be customized or modified to meet any specific requirements of your application, such as special bore sizes, keyway configurations, or other customization options.

Company Information

Are you looking for high-quality bushings or steel wheels to meet your industrial or agricultural needs? Just take a look at Raydafon and you will know that our comprehensive selection of conical locking bushings, QD bushings, open conical bushings, FHPK bushings, XT bushings, steel wheels for open conical bushings, XH wheels, QD welded wheels, and welded wheels for conical bushings will be suitable for all your typical application needs, including sprocket, pulley, and pulley applications. The basic purpose of the bushing is to connect the components to the shaft. Whether you are facing space, time, or size limitations, our bushings can meet your needs, and due to these reasons, we usually use bushings instead of drilled wheels according to size. In addition, with our extensive inventory of bore diameters, including a large number of standard inch and metric bore bushings, you can be confident that we will provide suitable bushings for your application.

Promotional Various XTH20 Weld-On Hubs

Our company can provide our customers with the taper bush in the following table.

Promotional Various XTH20 Weld-On Hubs

Packaging & Shipping

Promotional Various XTH20 Weld-On Hubs

FAQ

Q: Are you trading company or manufacturer ?

A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?

A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?

A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.
