1)

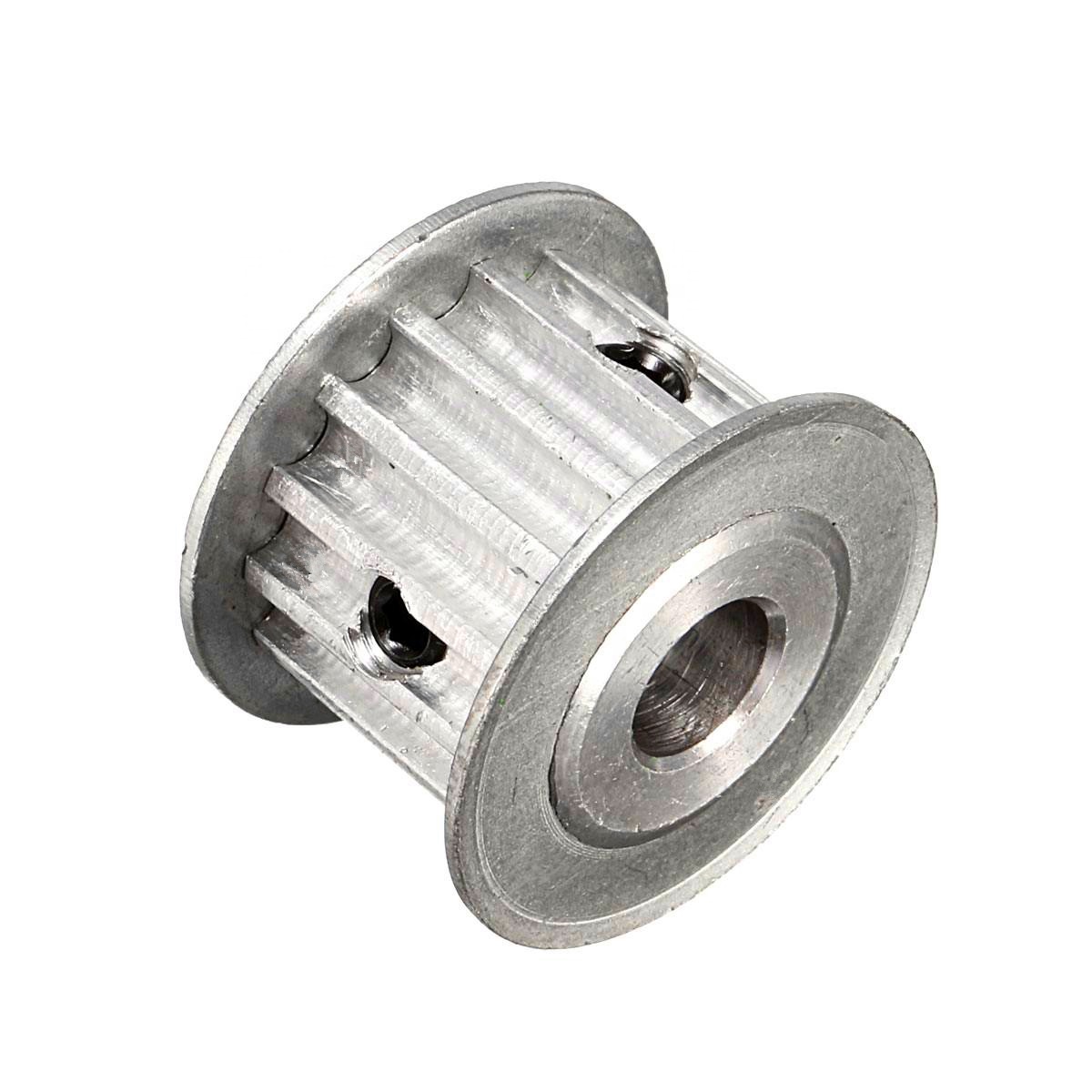

Pulleys & Belts
Standard Materials
Steel
Aluminium
Outside Diameter
Max : 500mm
Min : 8mm
Pulley types available
Synchroflex
2.5mm, 5mm, 10mm, 20mm, 0.08", 0.2", 3/8" and 1/2"
HTD
3mm, 5mm, 8mm and 14mm
Reduced Backlash
5mm, 10mm and 20mm.
V-Pulleys
VB Round Belt Pulleys
2mm, 3mm, 4mm, 5mm, 6mm, 8mm, and 10mm
Ranges
Heavy Duty
Reduced Backlash
V-Pulleys
Round Belt Pulleys
Modifications to Standard Parts
Altered dimensions
Keyways
Anodised
Tooth corrections
Tapped holes
Pin holes
Hardening
Ask for a free quote
Notes
All Belt widths available to suit Pulleys.
Available in Metric and Imperial Sizes. With or without Boss and Pilot Bored.
2)

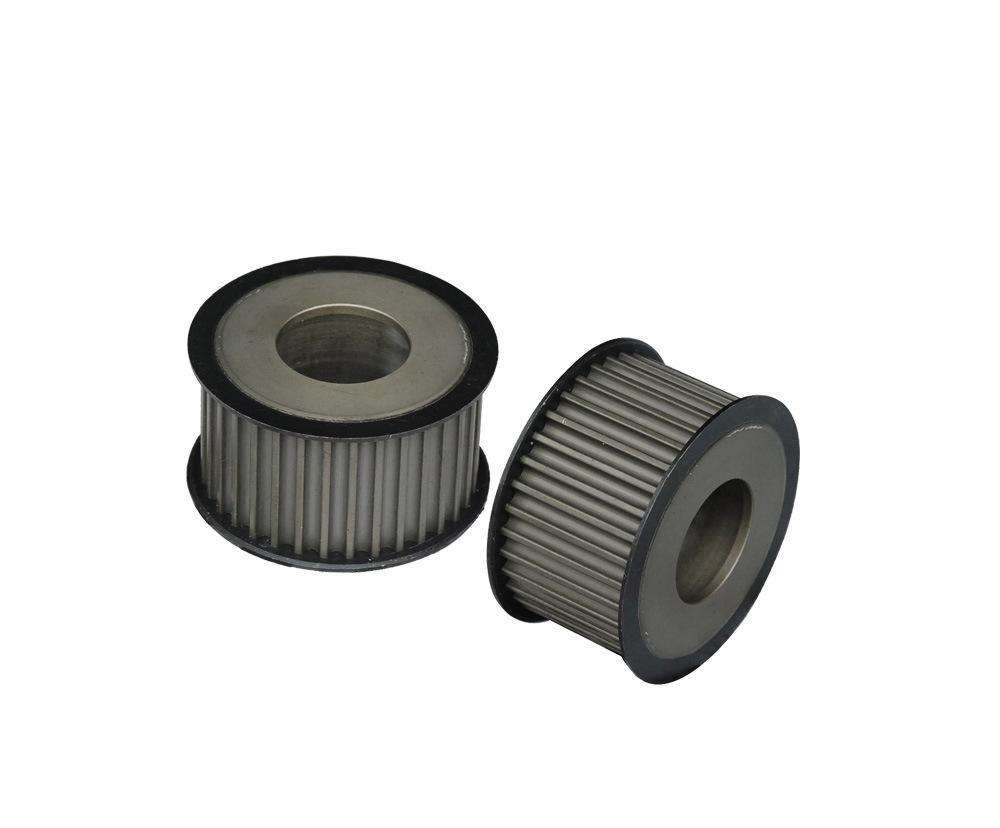

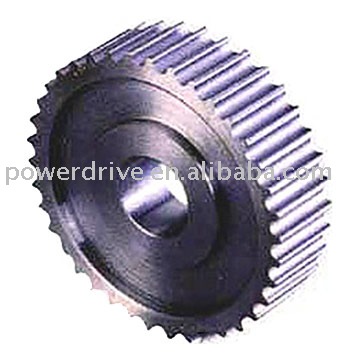

Synchronous Pulleys
Range includes HTD, Classic, and Metric tooth forms
Broad range of sizes
Taper and pilot bored
Manufactured from high grade iron
Balanced to Q6.3
3)
Milock pulleys & bushes
Simple, effective pulley system
Single mounting for two pulleys of differing diameters
Ideal for multi speed drives
Manufactured from high grade iron and balanced to Q6.3
4)
Taper bored V Pulleys
Broad range of sizes
Manufactured from high grade iron
Balanced to Q6.3
Range of variable speed pulleys
