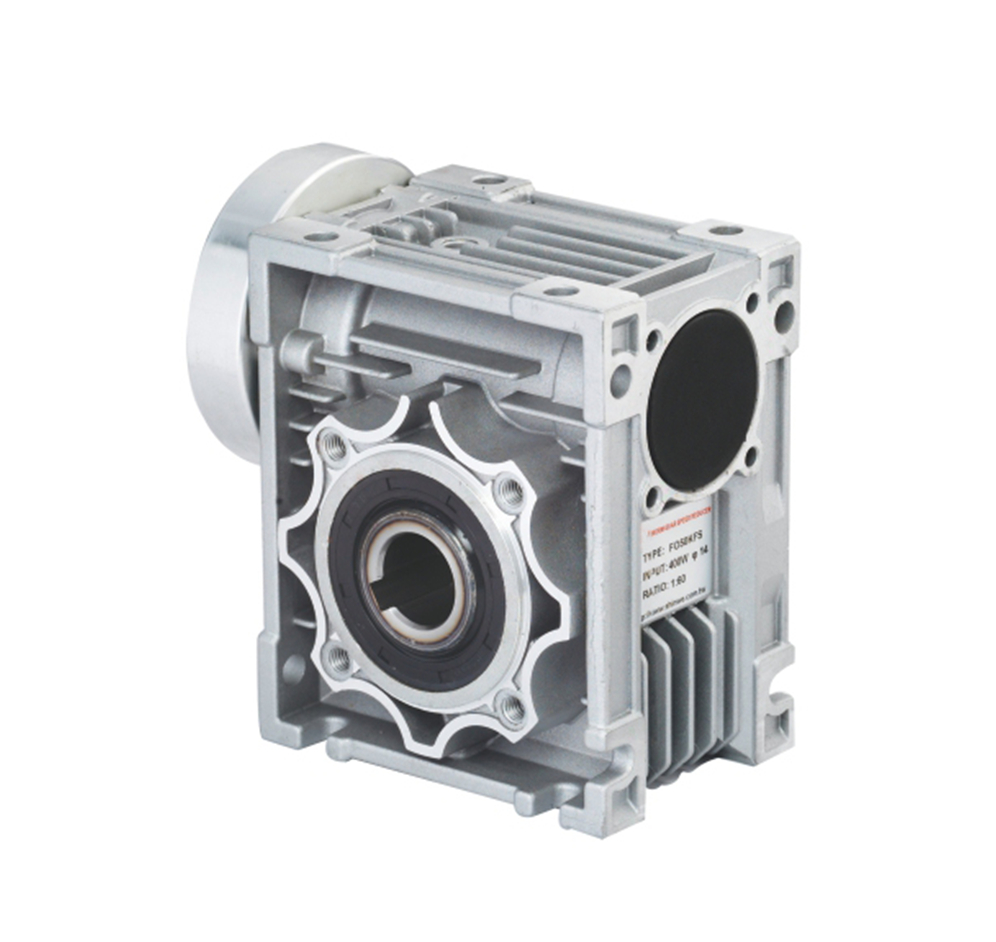

OEM NMRV075 Aluminum Shell Gearbox Worm Gear Speed Reducer

worm gear reducer NMRV075, Aluminum shell Name WORM GEARBOX Model: NMRV025-NMRV150 Ratio: 1:5;1:7.5,10,15,20,25,30,40,50,60,80,100 Output torque: 2.5-3192 N.M Color: Blue/Silveroroncustomerrequest Material: Housing(NMRV025-NMRV090):Die-castaluminumal

Send Inquiry

Product Description

worm gear reducer NMRV075, Aluminum shell

Name	WORM GEARBOX
Model:	NMRV025-NMRV150
Ratio:	1:5;1:7.5,10,15,20,25,30,40,50,60,80,100
Output torque:	2.5-3192 N.M
Color:	Blue/Silver or on customer request
Material:	Housing(NMRV025-NMRV090): Die-cast aluminum alloy Housing(NMRV090-NMRV150): HT200 cast iron Worm gear: 10-1 tin-bronze Iron core: HT200 nodular cast iron Worm: 20CrMn Ti with carburizing and quenching, surface harness is 56-62HRC
Packing:	Carton and wooden case, or as clients’s request
Bearing:	Yongle; C&U bearing
Oil Seal:	NAK
Warranty:	1 Year
Input Power:	0.06KW,0.09KW,0.12KW,0.18KW,0.22KW,0.25KW,0.37KW,0.55KW, 0.75KW,1.1KW,1.5KW,2.2KW,4KW,5.5KW,7.5KW;15KW
Usages:	Industrial Machine: food stuff, ceramics, chemical, packing, dyeing, woodworking, glass, etc.
IEC Flange:	56B5,56B14,63B5,63B14,71B5,71B14,80B5,80B14,90B5,90B14,100B5, 100B14,112B5,112B14;125B5;132B5;160B5
Lubricant:	Synthetic&Mineral
