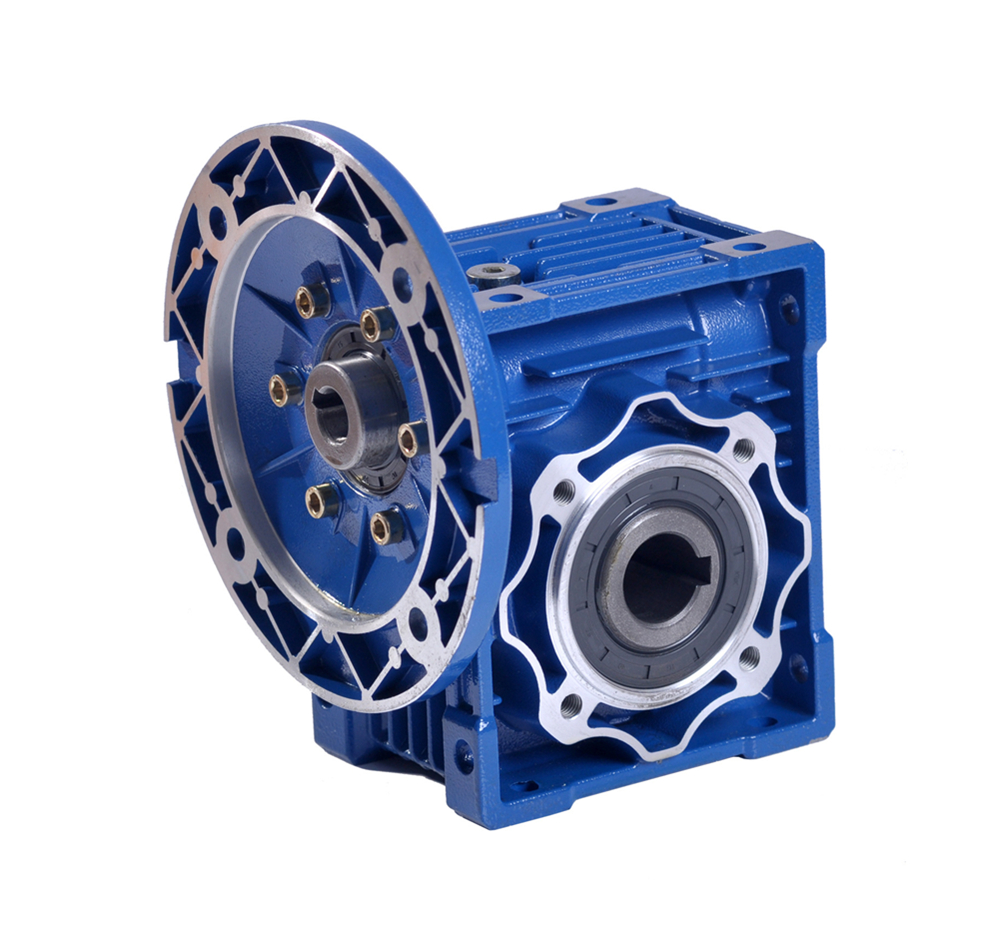

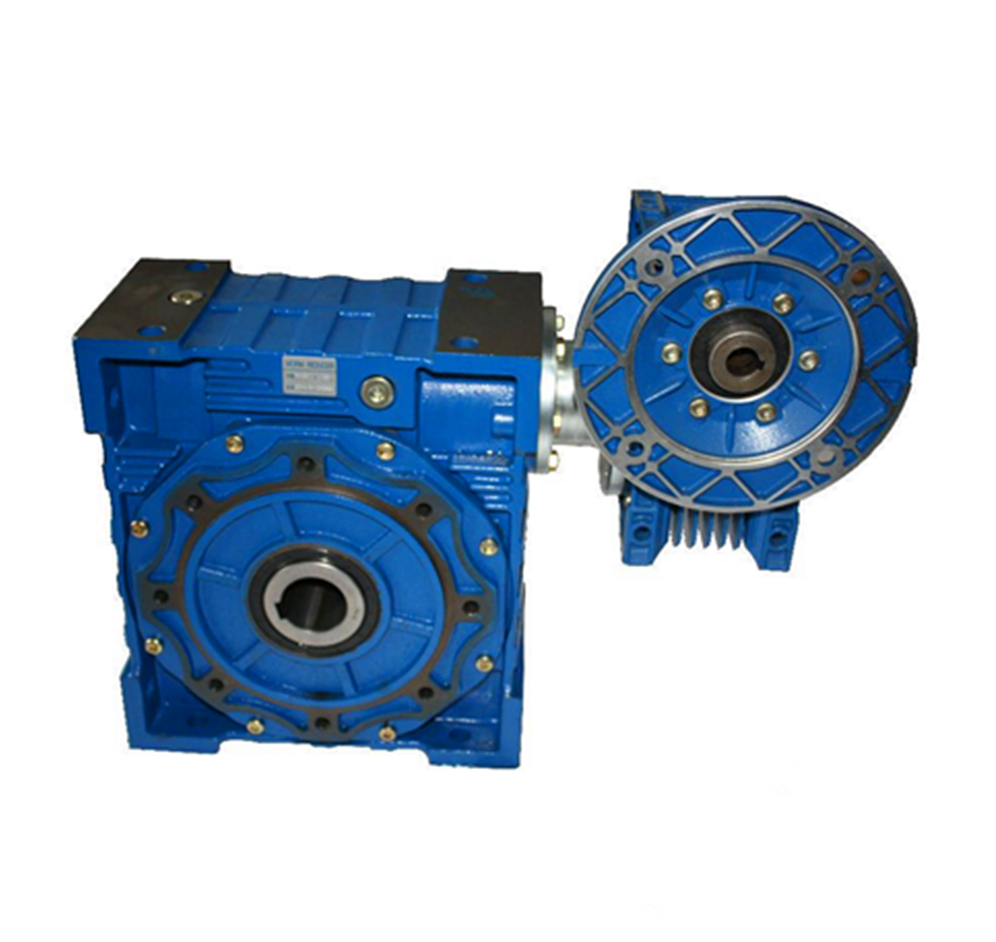

NMRV040 Worm Geared Motor
NMRV030,NMRV040,NMRV050,NMRV060,
Maintenance:
1:After 300-hours operation, please change the oil, and flush the gear uint with suitable detergents.
2: Please do not mix the mineral oil and synthetic oil.
3.No more than 4000m above sea level.
4.Ambient temperature:-25~40degree.
53.Relative humidity ≤95%(at +25degree).
4.The followed temperature rise: no more than 75K(when 1000m above sea level)degree
NMRV mixer gearbox specification:
| Type: | Aluminium Worm reducer |
| Model: | Center Distance:25,30,40,50,63,75,90,110,130 |
| Ratio: | 5,7.5,10,15,20,25,30,40,50,60,80,100 |
| Color: | Blue/Silver White |
| Material: | Aluminium Alloy |
| Worm Gear- Cooper-10-3 | |
| Worm-20CrMnTi with carburizing and quenching, surface hardness is 56-62HRC | |
| Shaft-chromium steel-45 | |
| Packing: | Carton box/per set(With foam board inside) |
| Bearing: | Brand "NSK" Bearing,etc |
| Seal: | NAK Seal from TAIWAN,etc |
| Warranty: | 1 year |
| Input Power: | 0.1kw,0.55kw,0.75kw,1.1kw,1.5kw,2.2kw,4kw,5.5kw,7.5kw |
| Usages: |
In industrial machine: widely used in packing, printing,textile machine,as well as woodworking,glass and plastics,food stuff,ceramics,chemical,etc. |
| IEC Flange: | B5,B14 |
| Lubricant: | Synthetic & Mineral |
