With decades of experience in fluid power technology, our Hydraulic & Pneumatic systems deliver superior performance across various industries. These systems power everything from manufacturing equipment to heavy machinery with precision and reliability.
| Feature | Hydraulic Systems | Pneumatic Systems |
|---|---|---|
| Power Density | High (10x pneumatics) | Moderate |
| Operating Pressure | 1,500-6,000 PSI | 80-250 PSI |
| Speed Control | Precise, variable | Limited adjustment |
| Maintenance Needs | Moderate | Low |
| Initial Cost | Higher | Lower |
What are the main differences between hydraulic and pneumatic systems?
Hydraulic systems use incompressible fluid to transmit power, offering greater force capabilities (typically 10x pneumatic systems) and precise motion control. Pneumatic systems use compressed air, providing faster movement and cleaner operation but with less force. Hydraulics excel in heavy-load applications while pneumatics are ideal for lighter, repetitive tasks.
How often should Hydraulic & Pneumatic systems undergo maintenance?
We recommend quarterly inspections for both system types with full maintenance annually. Hydraulic systems require fluid analysis every 500-1000 operating hours. Pneumatic systems need filter replacements every 2000-4000 hours. Daily visual inspections for leaks and abnormal noises should be standard practice for all fluid power systems.
| Component | Hydraulic Version | Pneumatic Version | Lifespan |
|---|---|---|---|
| Pumps/Compressors | Gear, piston, vane pumps | Reciprocating, rotary screw | 5-10 years |

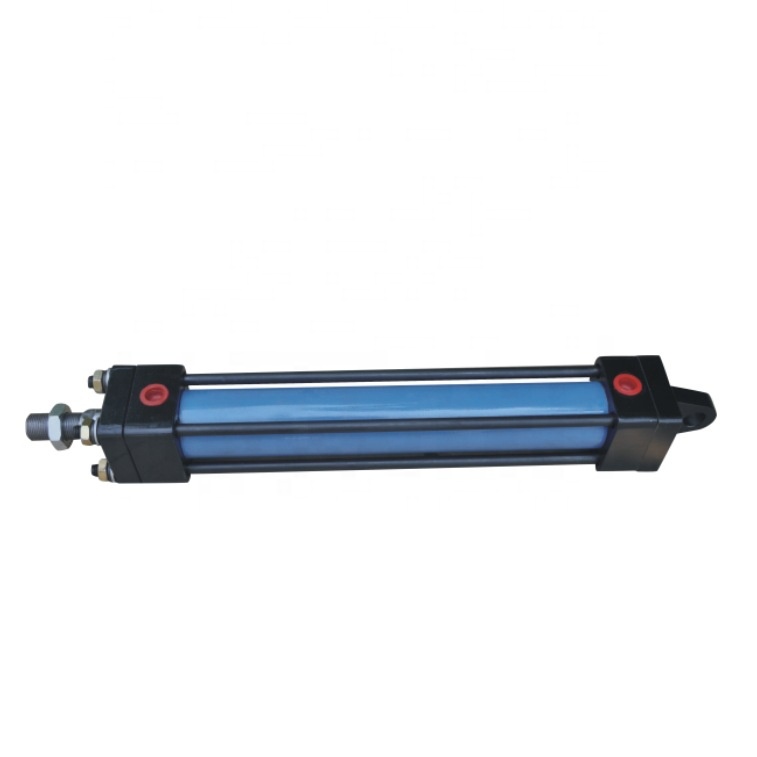

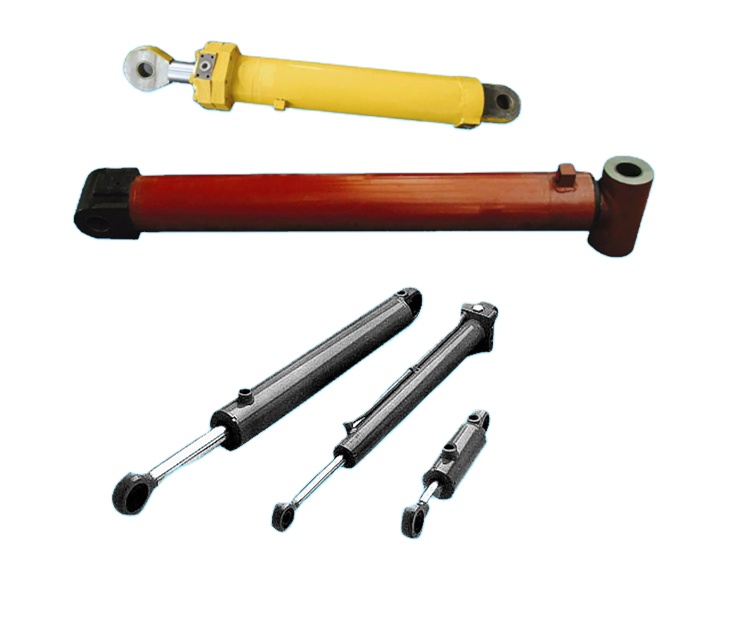

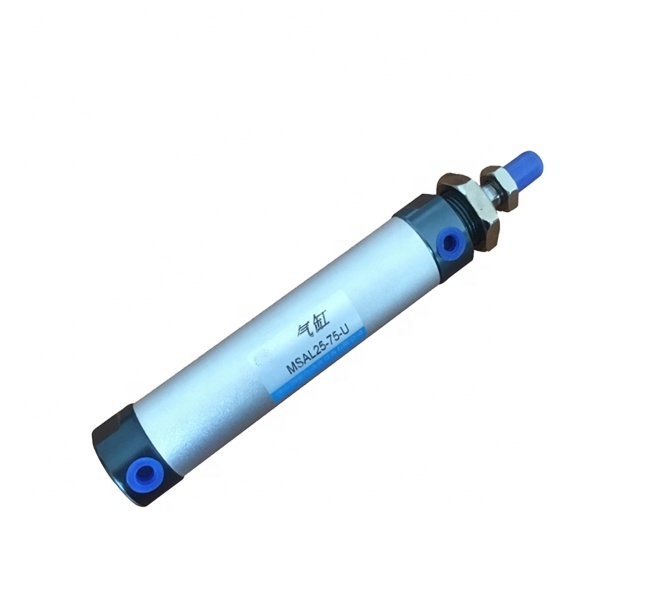

| Cylinders | Welded, tie-rod designs | Compact, aluminum bodies | 1-5 million cycles |
| Valves | Directional, pressure, flow | 3/2-way, 5/2-way | 3-7 years |
| Filters | 10 micron absolute | 40 micron particulate | 3-6 months |
What safety precautions are necessary when working with Hydraulic & Pneumatic systems?
Always depressurize systems before servicing using proper lockout/tagout procedures. Wear PPE including safety glasses and gloves - hydraulic fluid injection injuries require immediate medical attention. For pneumatics, implement mufflers on exhaust ports and secure all tubing. Regular pressure relief valve testing is critical - replace immediately if faulty. Never exceed rated pressure limits.
| Parameter | Hydraulic | Pneumatic | Test Standard |
|---|---|---|---|
| Efficiency | 70-85% | 15-25% | ISO 4409 |
| Response Time | 50-200 ms | 10-50 ms | ISO 1874-2 |
| Noise Level | 75-90 dB | 65-85 dB | ISO 3744 |
| Energy Cost/Year | $3,500-$15,000 | $1,200-$5,000 | DOE Calculations |
Can hydraulic and pneumatic systems be combined in one machine?
Yes, hybrid systems are common in complex machinery. Typically pneumatics handle tool actuation while hydraulics provide the main power. Proper integration requires careful sizing of components - we recommend consulting our engineering team for hybrid applications. Key considerations include separate power units, proper pressure regulation, and contamination prevention between systems.
| Industry | Hydraulic Uses | Pneumatic Uses |
|---|---|---|
| Manufacturing | Presses, injection molding | Assembly tools, clamping |
| Construction | Excavators, cranes | Air tools, braking systems |
| Agriculture | Tractor implements | Spray systems, conveyors |
| Aerospace | Landing gear, flight controls | Cabin pressure systems |
Our Hydraulic & Pneumatic solutions are engineered for maximum reliability and performance. Contact our technical team for customized system recommendations based on your specific application requirements, load calculations, and environmental conditions.
