Product Description

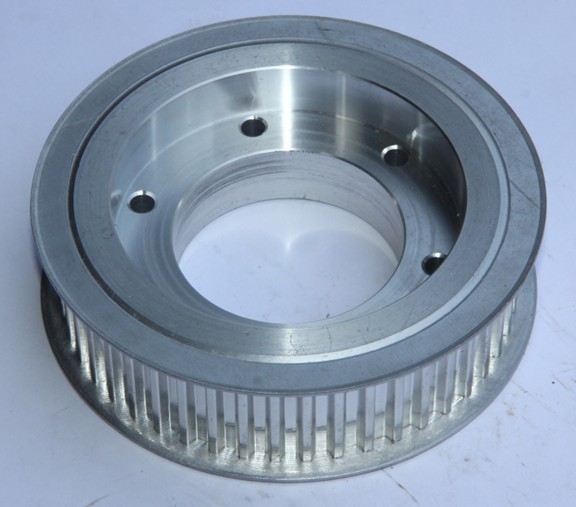

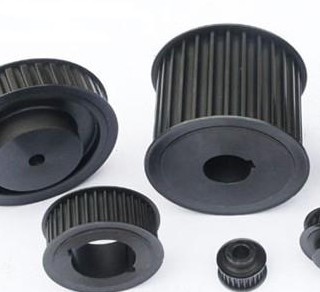

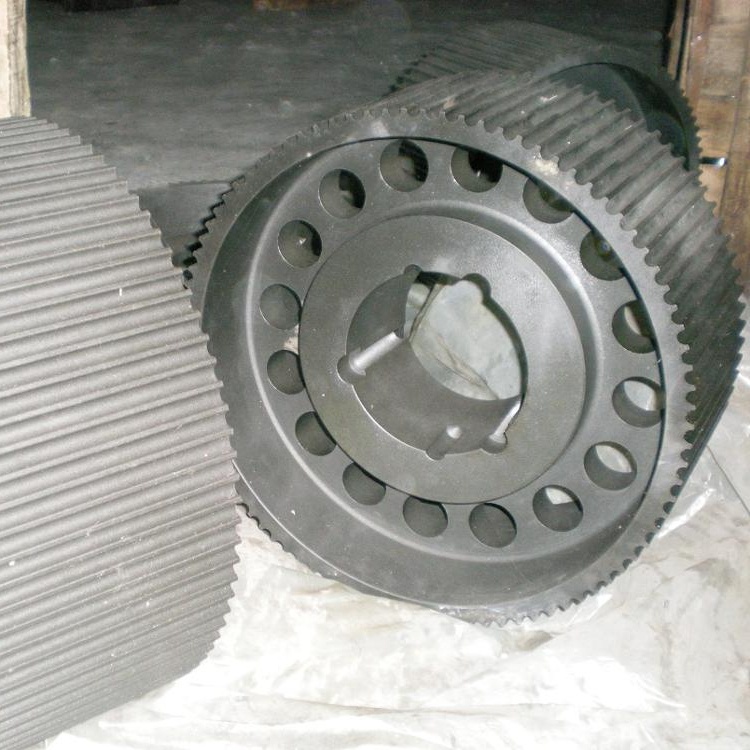

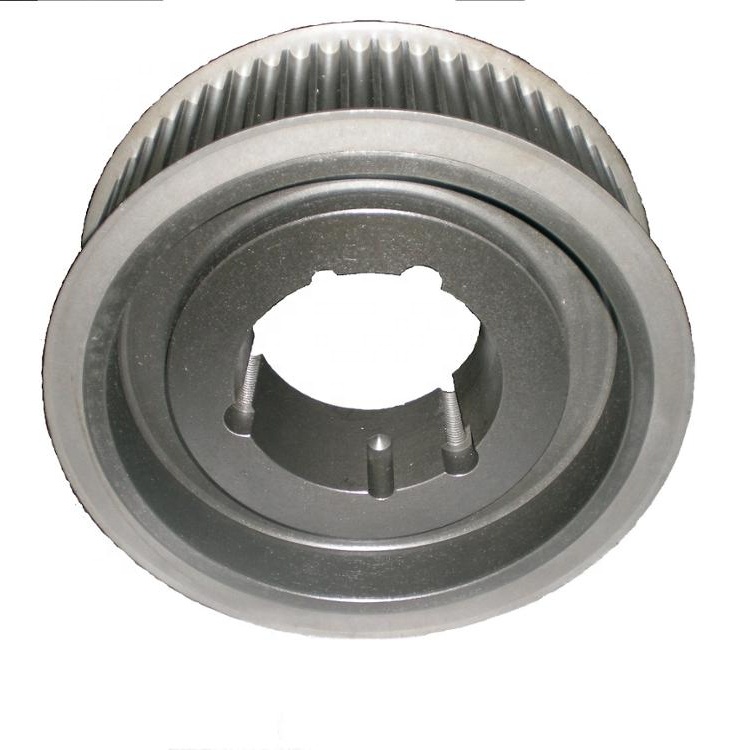

HTD 5M/8M/14M Timing Pulleys

1.Many years' experience;

2.OEM manufacturer;

3.Supply the pulleys acc. to the draws or samples.

HTD 5M/8M/14M Timing Pulley

HTD5M-15
Part Code	Number of Teeth	Type	Bush Number	Dp	De	Df	Dm	Flange Code
TL34-5M-15	34	3F	1008	54.11	52.97	57		20
TL36-5M-15	36	3F	1108	57.3	56.15	60		21
TL38-5M-15	38	3F	1108	60.48	59.34	66.5		24
TL40-5M-15	40	3F	1108	63.66	62.52	71		25
TL44-5M-15	44	3F	1108	70.03	68.89	75		27
TL48-5M-15	48	8F	1210	76.39	75.25	83	59	29
TL56-5M-15	56	8F	1210	89.13	87.39	93	70	33
TL64-5M-15	64	8F	1210	101.86	100.72	106	80	38
TL72-5M-15	72	8	1610	114.59	113.45		92
TL80-5M-15	80	8	1610	127.32	126.18		92
TL90-5M-15	90	8	1610	143.24	142.1		92
TL112-5M-15	112	8	2012	178.25	177.11		110
TL136-5M-15	136	7A	2012	216.45	215.31		110

HTD8M-20 -30 -50 -85
Part Code	Number of Teeth	Type	Bush Number	Dp	De	Df	Flange Code
TL22-8M	22	5F	1108 1610 1615 2012 2517 3020 3525	56.02	54.45	60	53
TL24-8M	24	5F		61.12	59.75	66	69
TL26-8M	26	5F		66.21	64.84	66	61
TL28-8M	30	5F		71.3	70.08	75	79
TL30-8M	30	5F		76.39	75.13	83	73
TL32-8M	32	5F		81.49	80.16	87	76
TL34-8M	34	5F		86.58	85.22	91	66
TL36-8M	36	5F		91.67	90.3	97	68
TL38-8M	38	5F		96.77	95.39	102	70
TL40-8M	40	5F		101.86	100.49	106	77
TL44-8M	44	8F		112.05	110.67	120	75
TL48-8M	48	8F		122.23	120.86	128	78
TL56-8M	56	8F		142.6	141.23	150	85
TL64-8M	64	8WF		162.97	161.6	168	90
TL72-8M	72	8WF		183.35	181.97	192	97
TL80-8M	80	8WF		203.72	202.35
TL90-8M	90	8A/9W		229.18	227.81
TL112-8M	112	8A/9W		285.21	283.83
TL144-8M	144	8A/9A		366.69	365.32
TL168-8M	168	7A		427.81	426.44
TL192-8M	192	7A		488.92	487.55

HTD14M-40 -55 -85 -115 -170
Part Code	Number of Teeth	Type	Bush Number	Dp	De	Df	Flange Code
TL28-14M	28	4F	2012 2517 3020 3525 3535 4040	124.78	122.12	128	153
TL29-14M	29	4F		129.23	126.57	138	154
TL30-14M	30	4F		133.69	130.99	138	154
TL32-14M	32	4F		142.6	139.88	154	160
TL34-14M	34	4F		151.52	148.79	160	166
TL36-14M	36	4F		160.43	157.68	168	168
TL38-14M	38	4F		169.34	166.6	183	172
TL40-14M	40	4F		178.25	175.49	188	162
TL44-14M	44	4F		196.08	193.28	211	175
TL48-14M	48	4F		213.9	211.11	226	180
TL56-14M	56	9WF		249.55	246.76	256	182
TL64-14M	64	9WF		285.21	282.41	296	184
TL72-14M	72	9W		320.86	318.06
TL80-14M	80	9A		356.51	353.71
TL90-14M	90	9A		401.07	398.28
TL112-14M	112	9A		499.11	496.32
TL144-14M	144	9A		641.71	638.92
TL168-14M	168	9A		748.66	745.87
TL192-14M	192	9A		855.62	852.82
TL216-14M	216	7A		962.57	959.76
