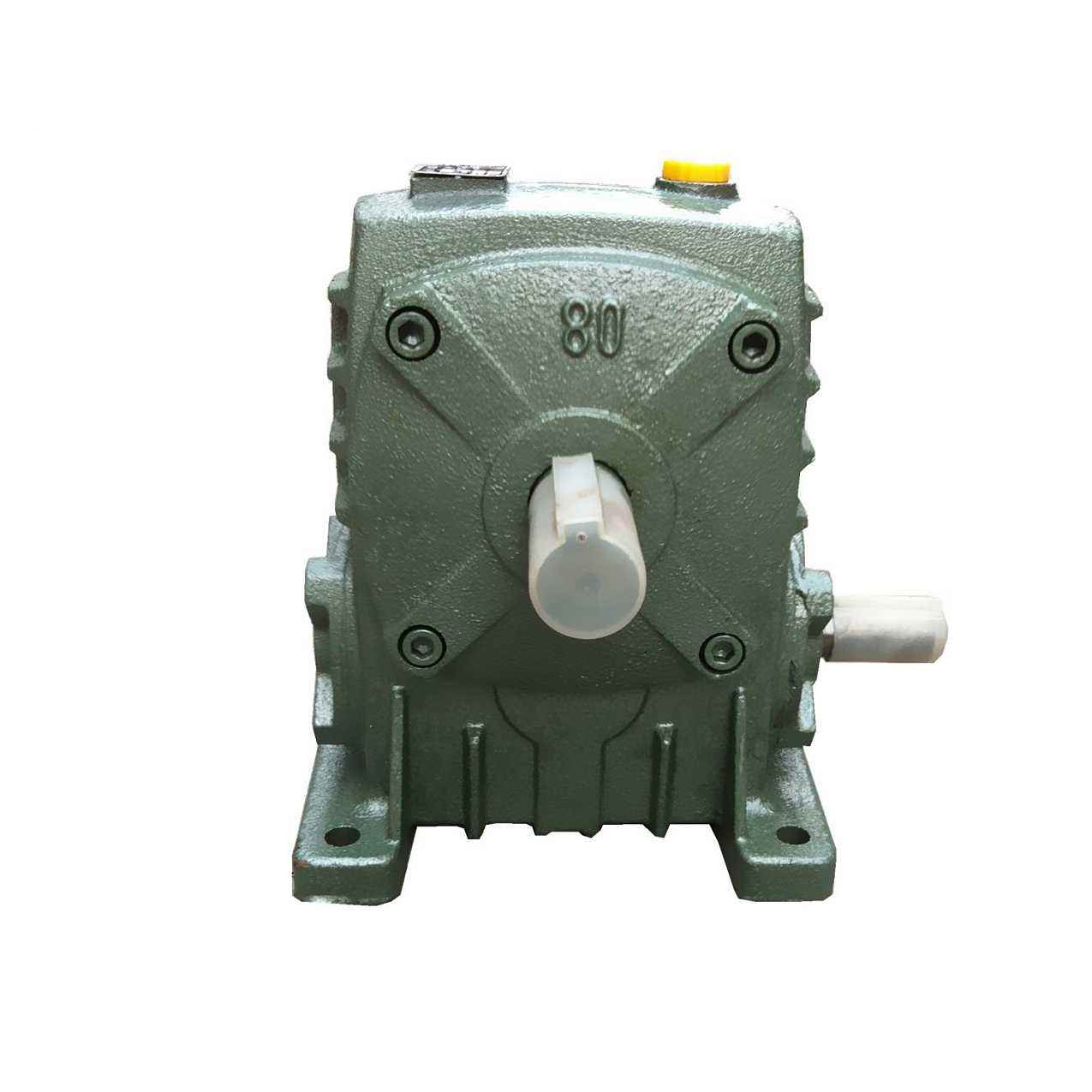

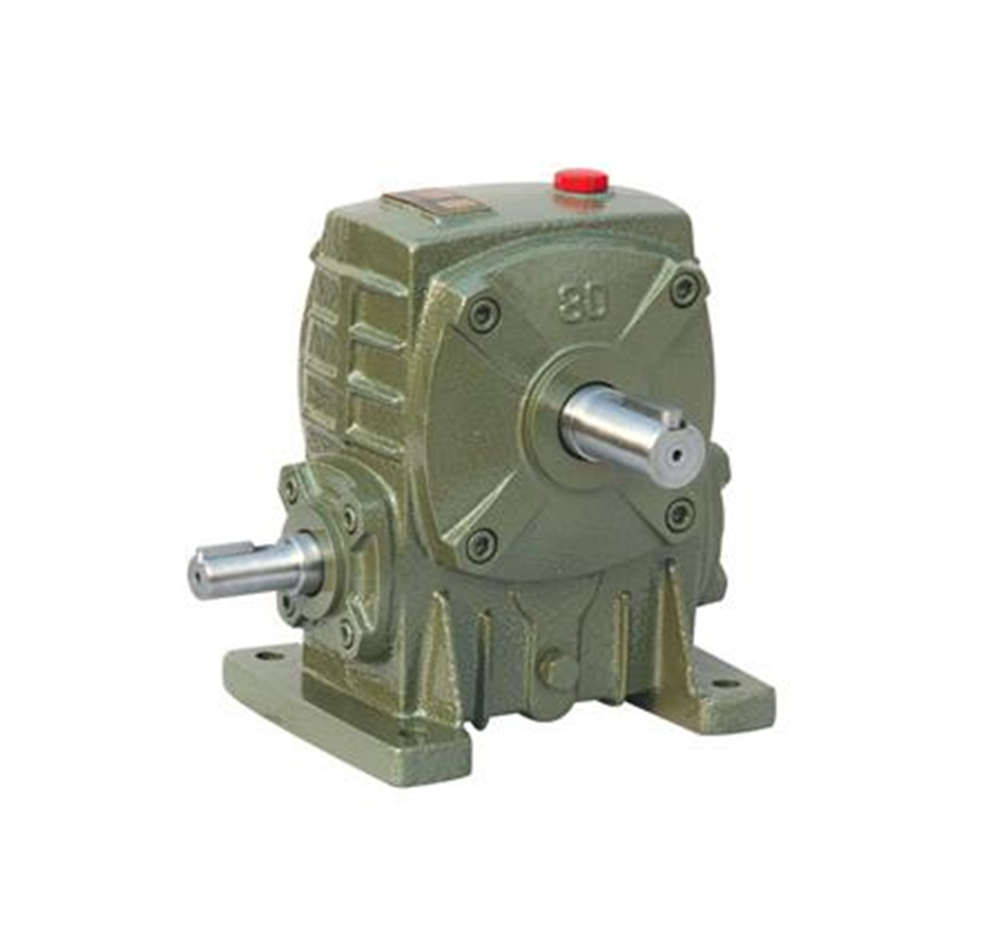

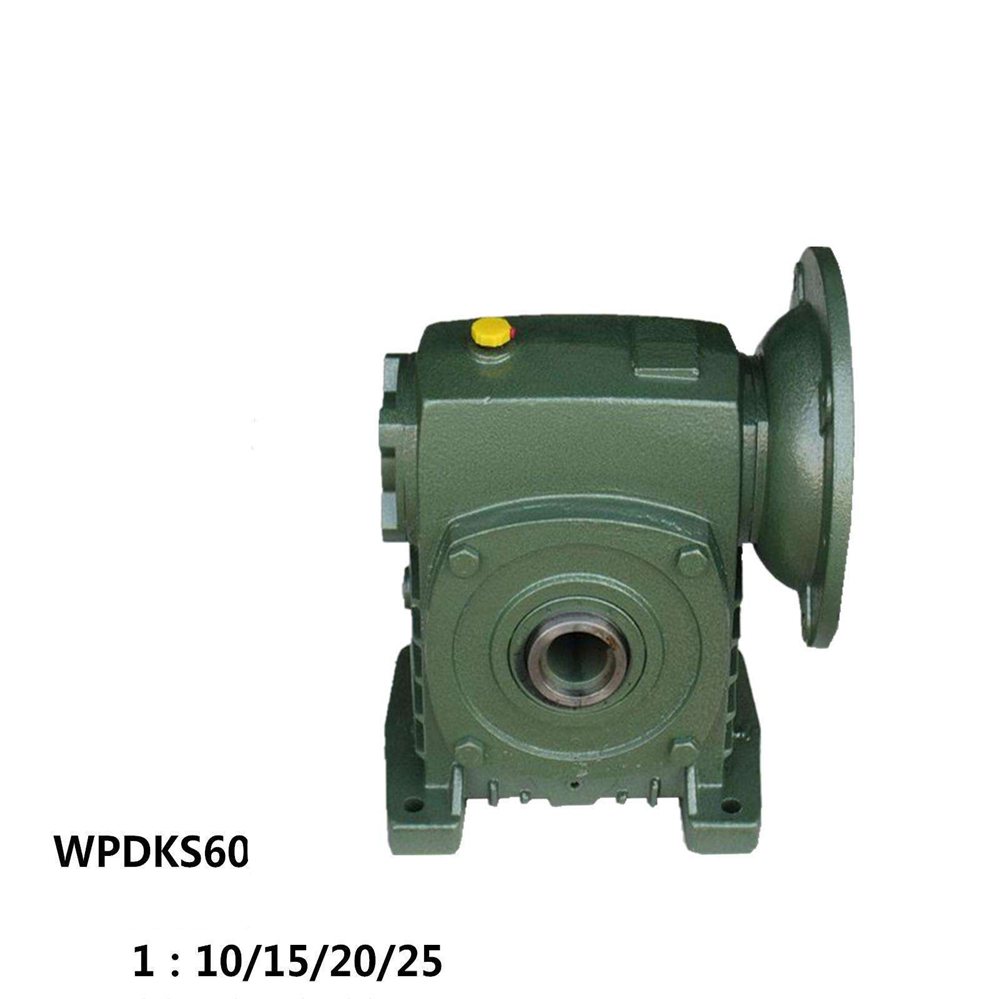

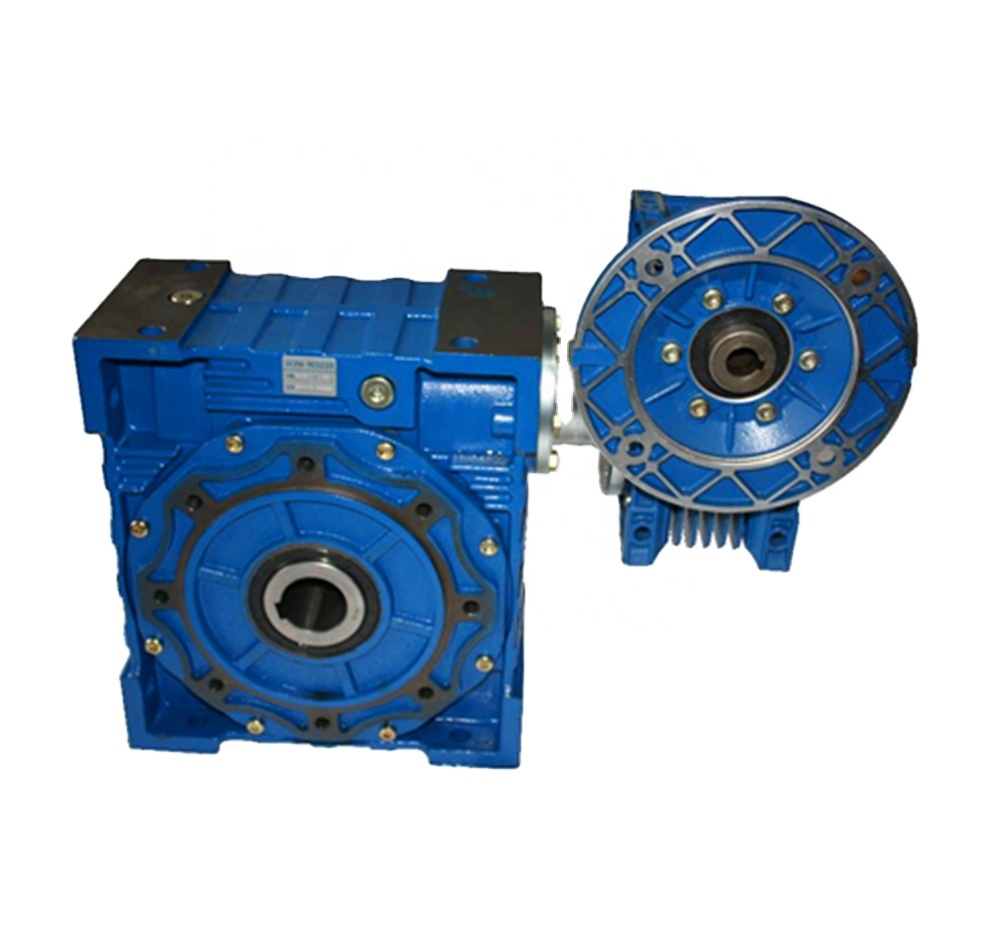

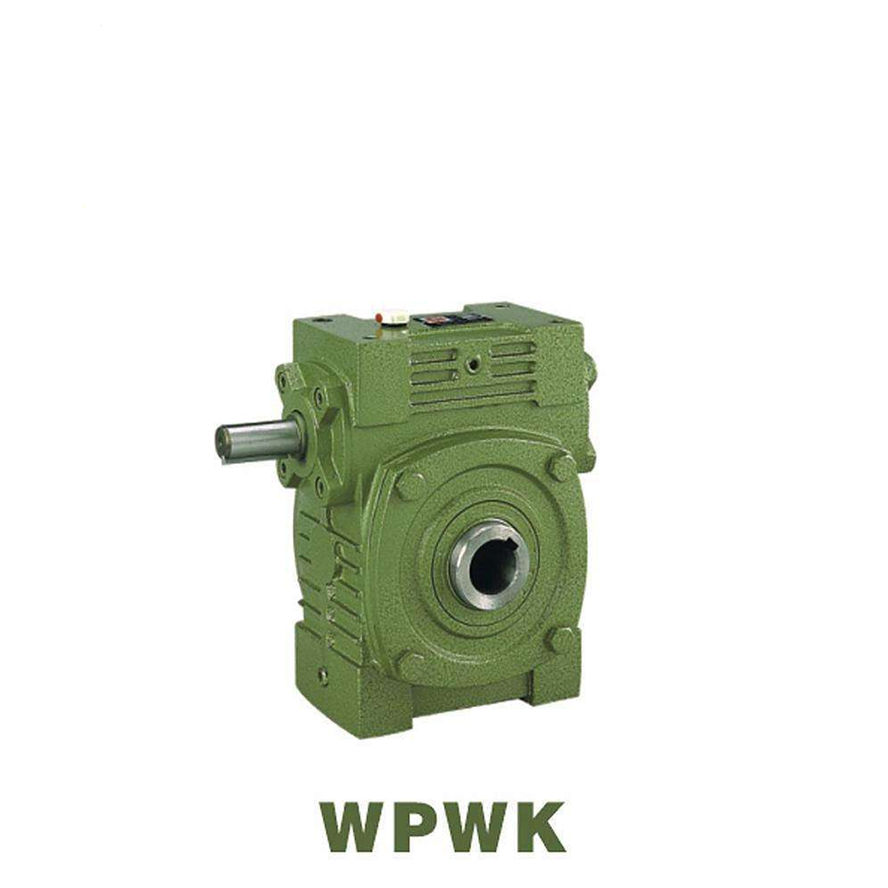

Customized OEM Series W Worm Speed Reducers

Send Inquiry

Product Description

Raydafon Technology Group Co.,Limited is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples.

speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes

SIZE	RATIO	A	AB	AC	B	BB	BD	BE	CC	F	H	HL	LL	Z×L	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	AC	B	BB	BD	BE	CC	F	H	HL	LL	Z×L	HS	U	T×V	LS	S	W×Y	KG
40	1/10 1/20 1/30 1/40 1/50 1/60	148	91	96	122	78	60	42	40	78	125	35	50	M6×15	25	12	4×2.5	28	14	5×3	3.5
50		175	105	115	145	95	70	50	50	85	150	35	65	M6×18	30	12	4×2.5	40	17	5×3	6.0
60		195	120	126	165	110	80	55	60	105	177	42	75	M8×20	40	15	5×3	50	22	7×4	8.5
70		234	140	155	195	130	90	65	70	125	215	55	90	M10×25	40	18	5×3	60	28	7×4	12.5
80		264	160	174	210	140	100	70	80	140	250	65	105	M12×28	50	22	7×4	65	32	10×4.5	20
100		322	190	224	245	163	120	90	100	180	310	80	130	M12×30	50	25	7×4	75	38	10×4.5	33
120		385	230	264	285	185	140	100	120	220	370	95	155	M14×32	65	30	7×4	85	45	12×4.5	50
135		435	260	304	320	210	150	110	135	260	425	105	185	M16×35	75	35	10×4.5	95	55	15×5	77
155		494	302	330	387	252	170	120	155	280	461	103	203	M16×35	85	40	10×4.5	110	60	15×5	100
175		548	325	370	407	262	186	140	175	320	521	123	223	M16×35	85	45	12×4.5	110	65	18×6	140
200		688	350	420	480	305	200	150	200	360	575	130	245	M18×35	95	50	12×4.5	125	70	20×7	200
