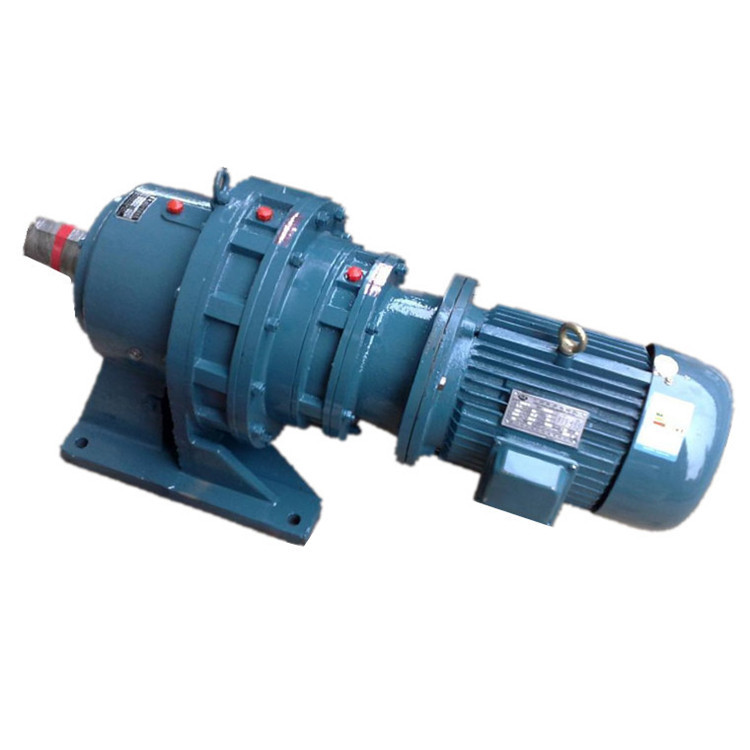

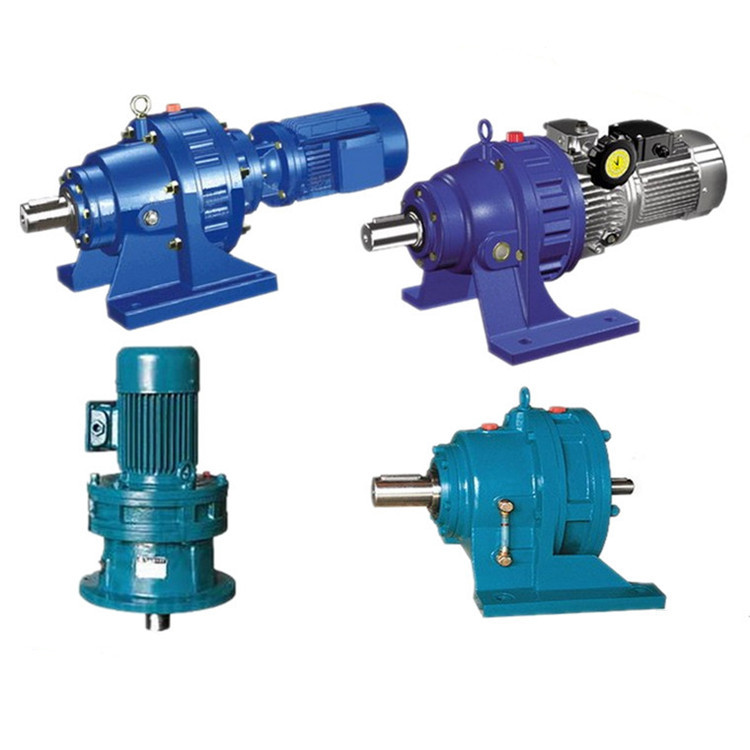

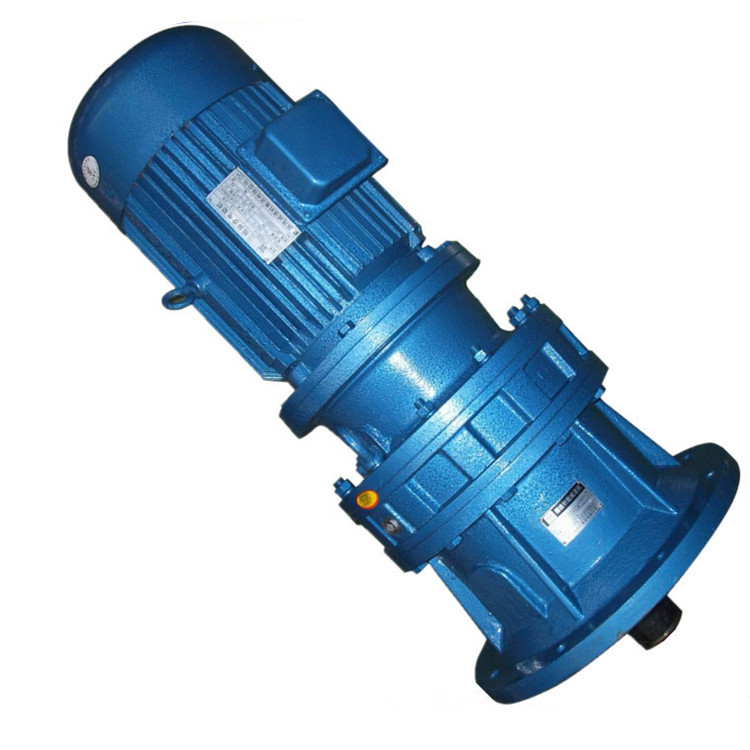

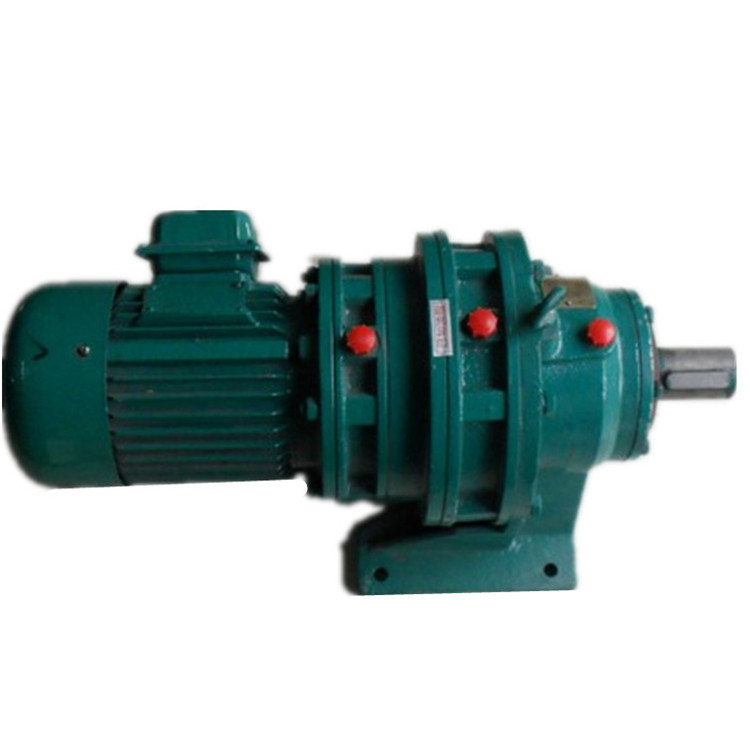

China Factory Variable Planetary Gear Speed Reducer Gearbox

The use of planetary gear drives in the field of power

Transmission is the modern answer to the demand for

Compactness constructive simplicity and product reliability.

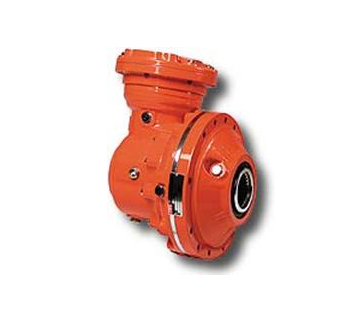

The CB3 series planetary gearbox drives by Raydafon

Transmission Co., Ltd enjoy following features:

Output torque Range: 1000 ... 450000 N.m

Transmissible Mechanical Power: up to 450 kW

Gear Ratios: i=3,3 ... 9000

Gear Unit Versions: In line

Right angle (with a spiral bevel gear set)

Output Configuration:

Foot and flange mounted

Output shaft: solid with key, spline, spline hollow,

hollow with shrink disc

Input Configurations

Flanged axial piston hydraulic motors

Hydraulic orbit motors

IEC and Nema motor adaptors

Solid input shaft

Hydraulic Brake: Hydraulically released parking brake on request

Electric Brake: DC and AC type

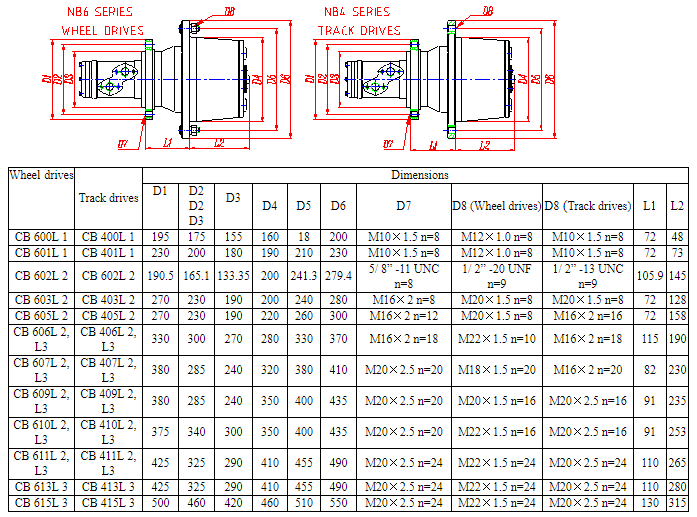

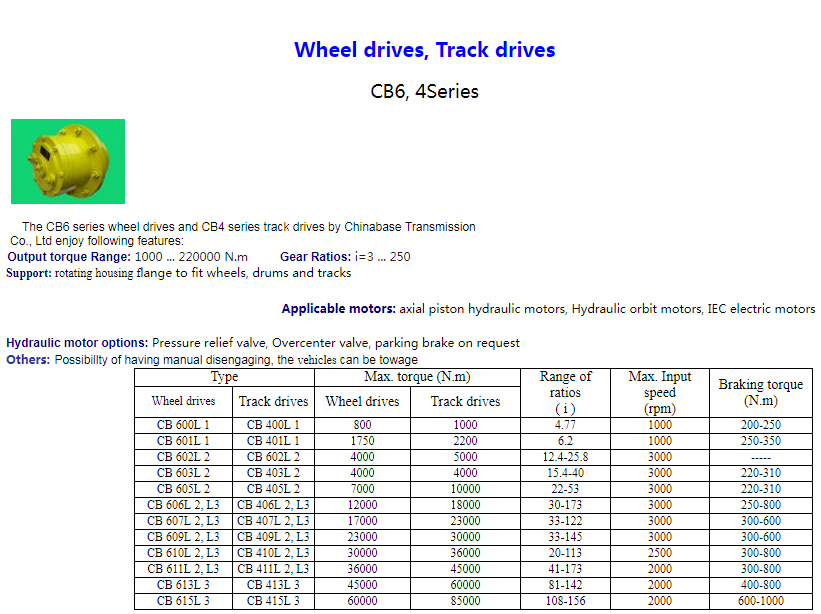

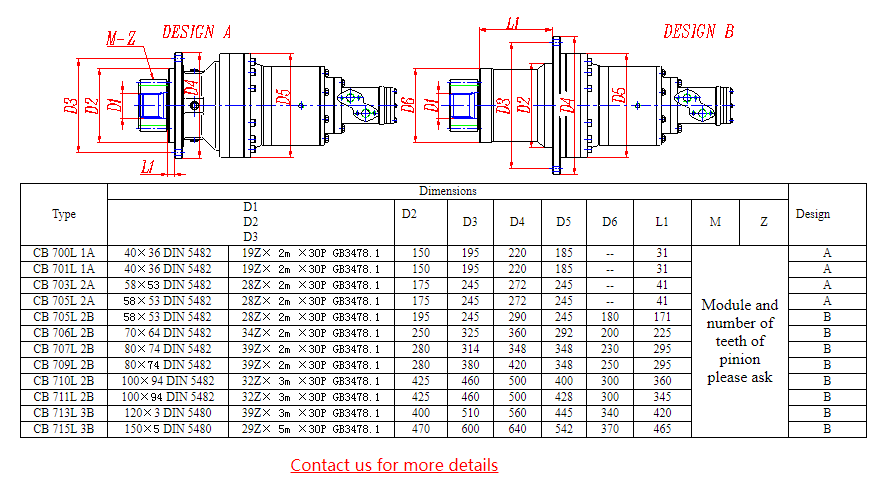

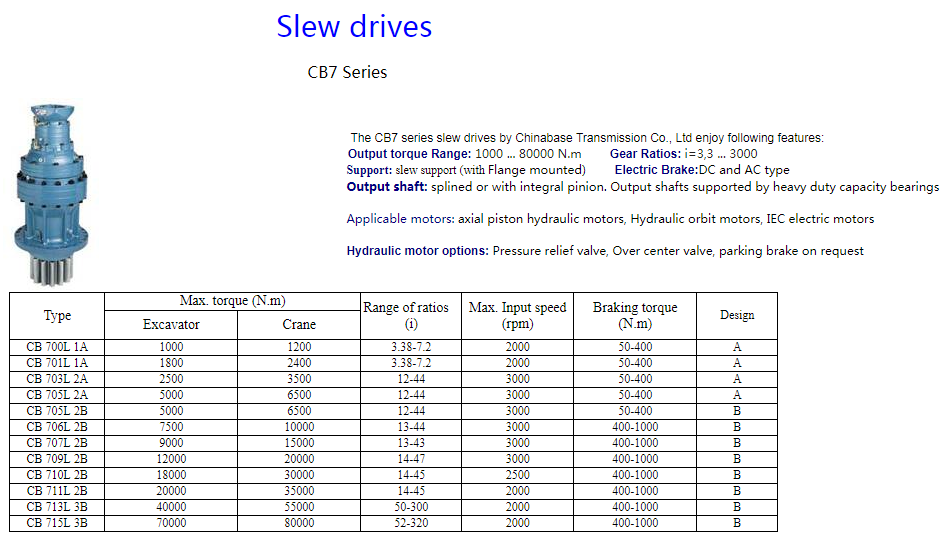

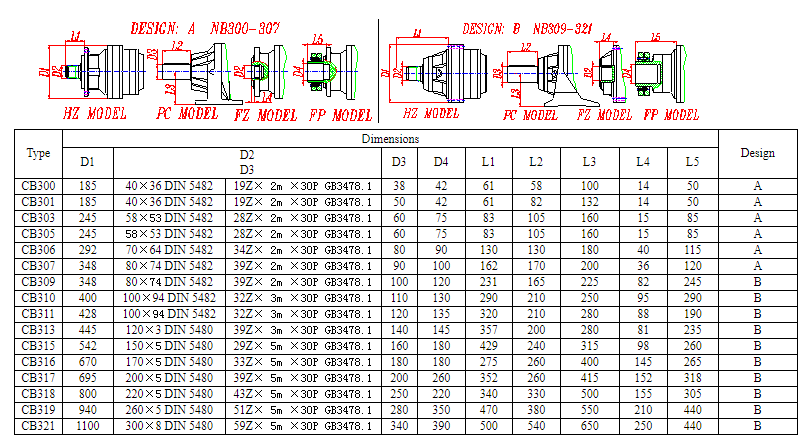

Type

Rated torque (Max.)

(N.m)

Rated power

(KW)

Input speed (Max.)

(rpm)

Range of ratios

Design

Inline

Right angle

Combined with worm gear

CB300

1000

20

3000

3.3-2700

7-800

400-9000

A

CB301

1750

30

3000

3.3-2700

7-800

400-9000

A

CB303

2500

40

3000

3.6-2900

9-900

400-9000

A

CB305

5000

60

3000

3.6-2900

9-900

400-9000

A

CB306

8500

75

2500

3.7-2900

9-900

400-9000

A

CB309

18500

130

2500

3.4-2500

13-800

400-9000

B

CB310

25000

150

2000

3.8-2500

40-900

400-9000

B

CB313

50000

200

2000

4-2200

18-800

400-9000

B

CB316

105000

270

1500

4-2000

50-600

400-9000

B

CB318

200000

340

1000

4-1100

200-700

400-9000

B

CB319

300000

380

500

4-1400

300-800

1000-9000

B

CB321

450000

450

300

4-1100

300-800

1000-9000

B
