Product Description

BWD BLD XLD BWED XWED BLED XWD XLED

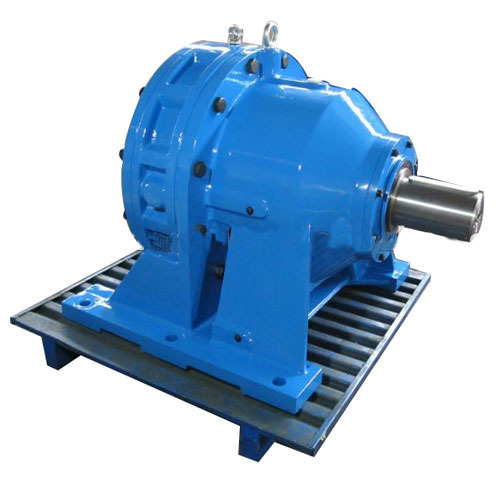

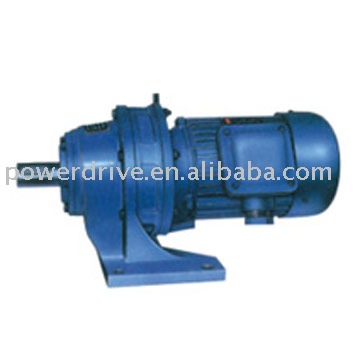

Cyclo Gearbox Cycloidal Geared Motor Cyclo Drive Speed Reducer

Cyclo Drive Reducer & Geared Motors


BWD TYPE	BLD TYPE	XLD TYPE

BWED TYPE	XWED TYPE	BLED TYPE
		Product Catelogue (click) ↓↓↓↓↓
XWD TYPE	XLED TYPE	Product Catelogue (click) ↓↓↓↓↓

BWD BLD XLD BWED XWED BLED XWD XLED Cyclo Gearbox Cycloidal Geared Motor Cyclo Drive Speed Reducer

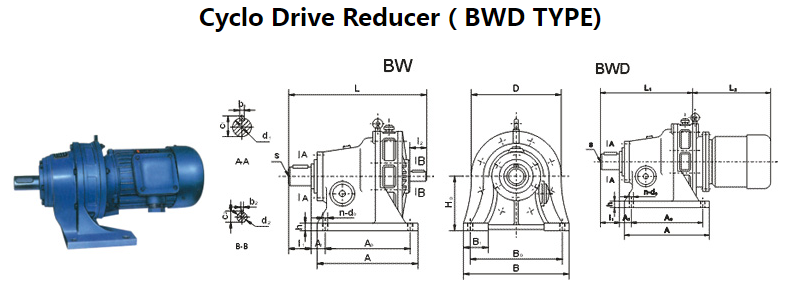

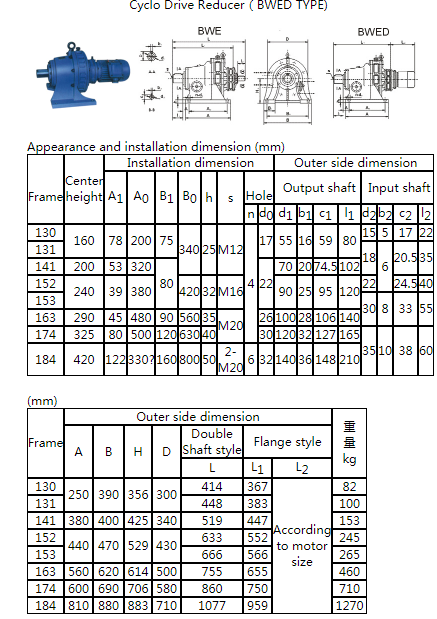

Appearance and installation dimension (mm)

Frame	Center height	Installation dimension								Shaft end dimension
		A₁	A₀	B₁	B₀	h	s	Hole		Output shaft				Input shaft
		A₁	A₀	B₁	B₀	h	s	n	d₀	d₁	b₁	c₁	l₁	d₂	b₂	c₂	l₂
09	80	17	76	30	120	12	M8	4	11	22	6	24.5	30	15	5	17	25
10	100	58	90	35	150	14			11	30	8	33	35	15	5	17	22
11	120	69	110	55	240	16			16	35	10	38	56	18	6	20.5	35
12	140	73	150	60	280	20	M10		16	45	14	48.5	71	22	6	24.5	40
13	160	78	200	75	340	25	M12		17	55	16	59	80	30	8	33	55
14	200	53	320	90	340	25	M12		22	70	20	74.5	102	35	10	38	60
15	240	39	380	90	420	32	M16		22	90	25	95	120	45	14	48.5	70
16	290	45	480	80	560	35	M20		26	100	28	106	140	50		53.5	82
16A	280	45	440	80	500	35			26	100	28	106	140	50		53.5	82
17	325	80	500	120	630	40			30	120	32	127	165	55	16	59	100
18	420	122	330×2	160	800	50	2-M20	6	32	140	36	148	210	70	20	74.5	120

(mm)

Frame	Outer side dimension								Weight kg
	A	B	H	D	Double Shaft style	Flange style
	A	B	H	D	L	L₁	L₂	B₂
09	100	144	160	140	203	142	According to motor size		6.5
10	120	185	184	168	215	155			14
11	160	280	240	200	269	191			29
12	200	320	275	240	340	255			45
13	250	390	356	300	409	294			80
14	380	400	425	340	487	369			135
15	440	470	529	430	581	440			210
16	560	620	614	500	676	443			400
16A	520	560	614	500	724	443			400
17	600	690	706	580	795	639			660
18	810	880	883	710	1030	819			1180

Note:Matching tolerance of shaft d₁/d₂is h6

BWD BLD XLD BWED XWED BLED XWD XLED Cyclo Gearbox Cycloidal Geared Motor Cyclo Drive Speed Reducer

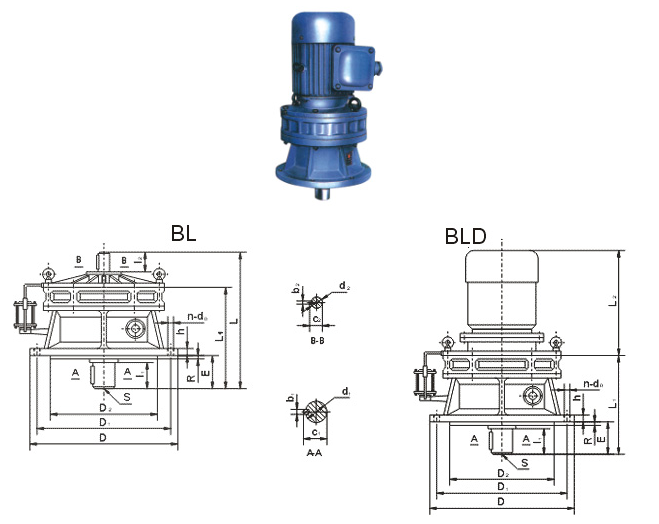

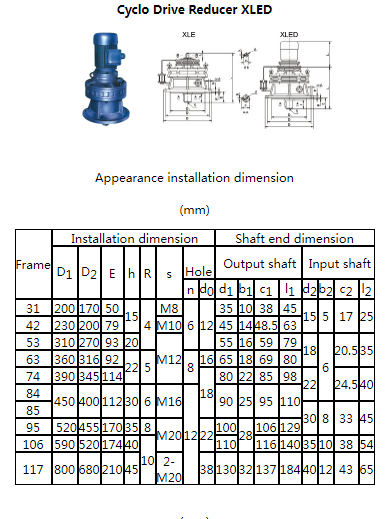

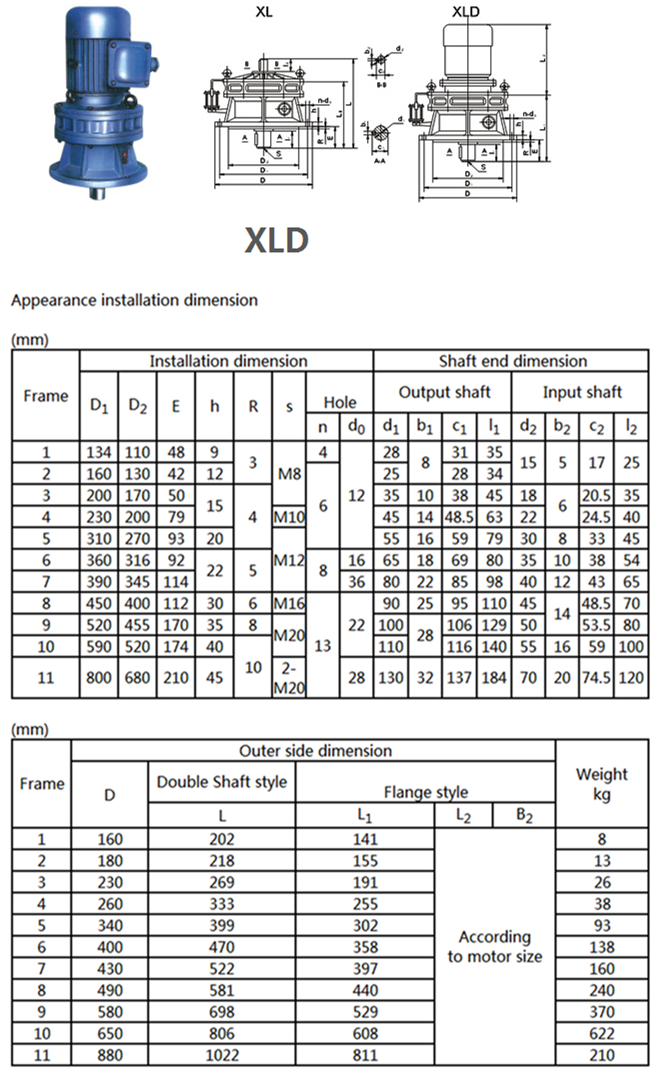

Appearance installation dimension
(mm)

Frame	Installation dimension								Shaft end dimension
	D₁	D₂	E	h	R	s	Hole		Output shaft				Input shaft
	D₁	D₂	E	h	R	s	n	d₀	d₁	b₁	c₁	l₁	d₂	b₂	c₂	l₂
09	134	110	35	10	3	M8	4	11	22	6	24.5	30	15	5	17	25
10	160	140	40	10	3		4		30	8	33	35	15	5	17	22
11	200	170	60	12	4		6		35	10	38	45	18	6	20.5	35
12	230	200	70	15	4	M10			45	14	48.5	64	22	6	24.5	40
13	310	270	80	20	5	M12		13	55	16	59	75	30	8	33	55
14	360	320	99	22		M12	8	15	70	20	74.5	92	35	10	38	60
15	450	400	115	30		M16	12	18	90	25	95	108	45	14	48.5	70
16	520	455	173	35	8	M20		22	100	28	106	130	50	14	53.5	80
17	590	520	180	40	10	M20		24	120	32	127	165	55	16	59	100
18	800	680	215	45	10	2-M20		34	140	36	148	200	70	20	74.5	120

(mm)

Frame	Outer side dimension					Weight kg
	D	Double Shaft style	Flange style
	D	L	L₁	L₂	B₂
09	160	202	141	According to motor size		6
10	190	215	155			13
11	230	274	191			22
12	260	321	255			40
13	340	310	302			75
14	400	469	358			120
15	490	584	443			180
16	580	701	527			380
17	650	806	608			611
18	880	1042	811			1170

Note:Matching tolerance of shaft d₁/d₂ is h6
