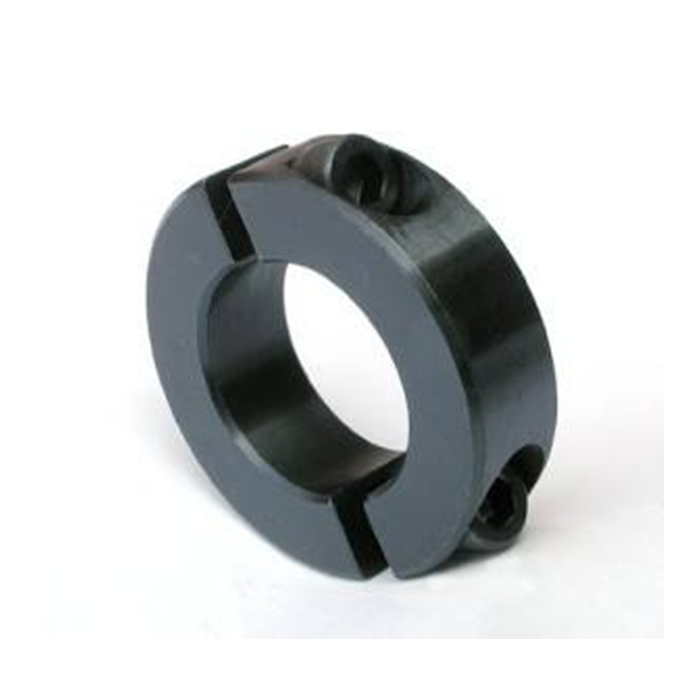

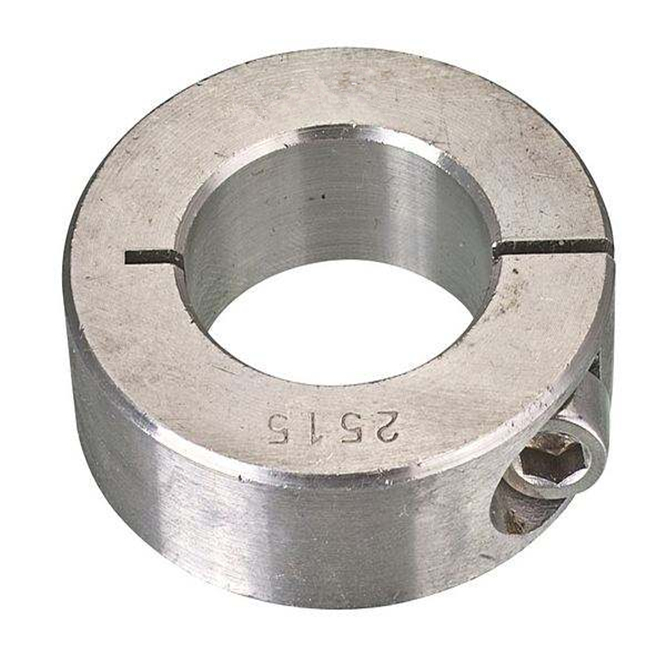

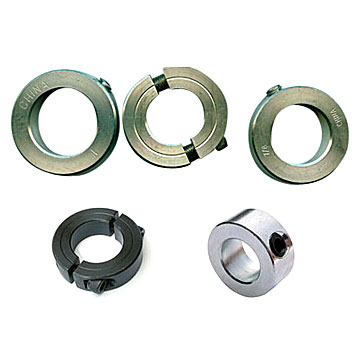

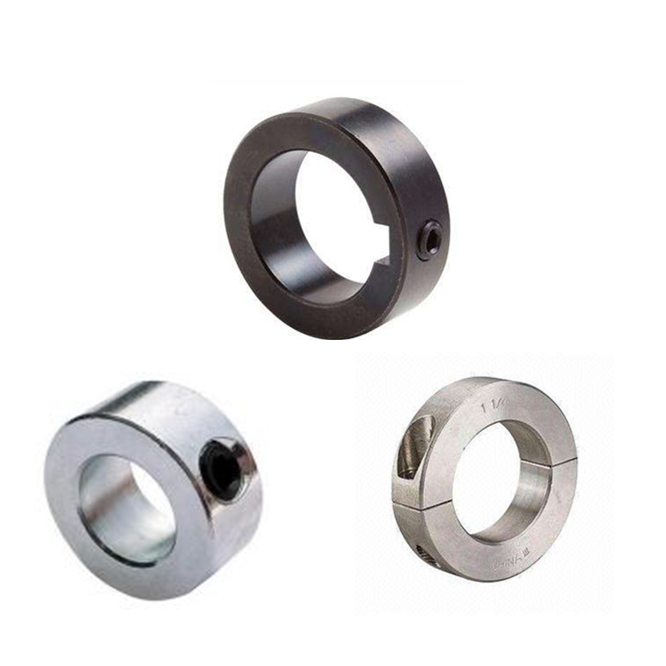

Threaded Set Screw Clamping Shaft Stop Collar

one-piece, two piece threaded clamping collars

ISTC, TC series.

high precision shaft collars / plastic shaft collars / nylon shaft collars / stainless steel shaft collars / Set Screw Shaft Collars / Custom Set Screw Shaft Collars / Shaft locking Collars / Shaft mounting collars are the most effective when used on a shaft made of a material which is softer than the set screw.

Collar Material: Plastic (nylon), Steel, Stainless Steel, Brass, Aluminum, etc

Collar Finish: Zinc, Nickel, Black, Plain, etc

Collar Inner Diameter: Custom

Collar Outer Diameter: Custom

Collar Width: Custom

Screw Length: Custom

Screw Material: Steel

Screw Size: Custom

Screw Type: Socket Set Screw

Type: Solid Clamping Collar

Notes:Zinc Plated Steel Set Screw Collar. Traditional cost effective collar design

Basic Information

Zhejiang,China

EXW,FOB,CIF,CFR etc

10pcs

Sample: within 10 days. Mass Production: within 10-25 days after receiving the deposit Rush Services Available

*a. pp bags + carton + pallet *b. according to customers' requirements *c. negotiable

*T/T : 30% beforehand, balanced 70% before shipping *paypal

*Punctual deivery *Reliable and cheap freight company *Good after-sale services



2.Technical specifications of cnc machining parts:

certification	ISO9001:2008
Machining equipments	CNC maching,CNC Turning, CNC Milling ,CNC center machine,auto lathe machine, Wire-cutting Machine ,CNC Laser cutting machines,CNC bending machines, CNC punching machines, CNC bending machines CNT stamping machine, CNC/auto lathe machine , Drilling machine, Hydraulic machine,Riveting machine , Tapping machine, welding machine, Film attaching machine,etc.
Materials	Aluminum, Steel, SPCC, SGCC,SECC,SPTE,Stainless steel, Brass, Copper, Bronze, ABS, PC, PO, POM, Nylon, Teflon etc.
Surface finish	Anodized, Oxide, Plating, Brushing, Polishing, Blackened, Powder coating, Sandblasting, Laser engraving Zn-plating, Ni-plating, Cr-plating, Tin-plating, copper-plating, the wreath oxygen resin spraying, the heat disposing, hot-dip galvanizing, black oxide coating, painting, powdering, color zinc-plated, blue black zinc-plated,rust preventive oil, titanium alloy galvanized, silver plating, plastic, electroplating, anodizing etc.
Inspection Equipment	CMM, Projection, Calipers, Micro caliper, Thread Micro caliper, Pin   gauge, Caliper gauge, Pass meter, Pass meter etc.
Drawing formation	PDF, CAD/DWG/DXF, IGS/STP etc



3. Product Application Details:

Industry Focus	Appliance/ Automotive/ Agricultural Electronics/ Industrial/ Marine Mining/ Hydraulics/ Valves Oil and Gas/ Electrical/ Construction/ machinery/ furniture/ toy/ woodboard/ wall/ agricultural
Intended Application	Automotive industry;Appliance parts;mechanical industry;electronic industry;IT industry; ;Toy parts;Furniture ;Construction industry,Desktop computer ; Electrial Cabinet/box  ; Electronic product;Network chassis ; Servers rack; Medicine cabinet ; industrial manipulative computer; Machine enclosure and Frame; Tool Cabinet and chest ; Mountain /wall bracke ;Precision stamping Brackets;Automotive part;Battery spring panel;
Lead Times Available	Max: 2 Weeks (On Initial Order) Rush Services Available
Additional Capabilities	CAD Design Services CAM Programming Services Coordinate Measuring Machines (CMM) Reverse Engineering
Tolerance	±0.0002mm
