Material: steel,stainless steeland so on,according to drawing

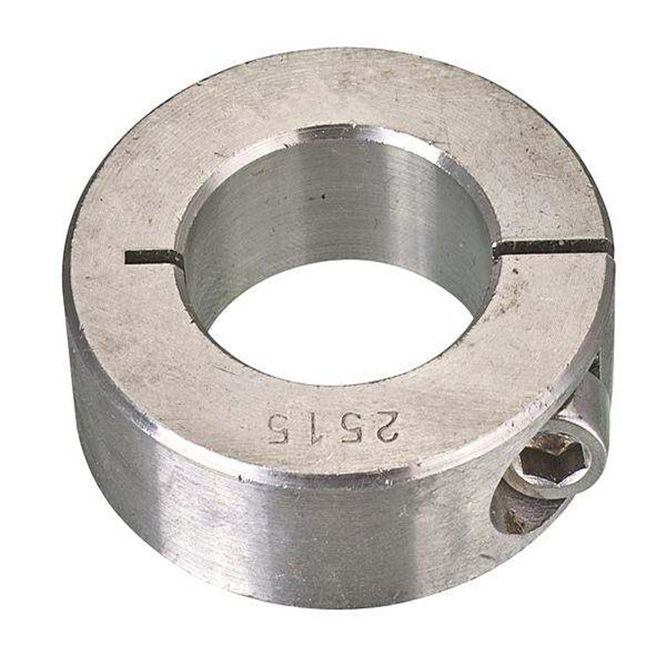

shaft collar with screwshaft collars:

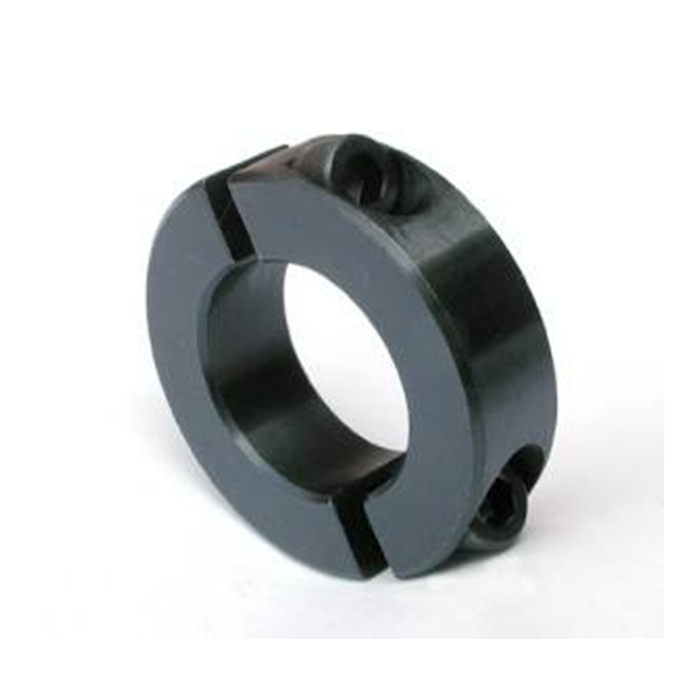

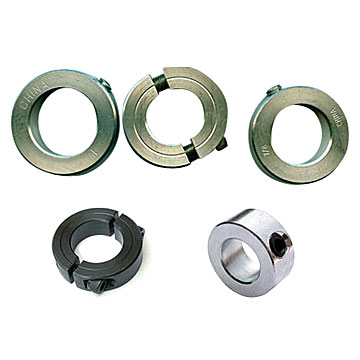

we are the manufacturer for all kinds of collars,shaft collars,split collars,doubleor single split collars.
we are also the professional manufacturer for all kinds of sprockets, European standard series and American standard series.
| Set Screw Style Collar High Precision shaft collars | |
|
Origin Country |
China |
|
Trade Terms |
EXW,FOB,CIF,CFR etc |
|
MOQ |
100pcs |
|
Lead Time |
Sample: within 15 days. Mass Production: within 30·45 days after receiving the deposit
|
|
Package |
*a. pp bags + carton + pallet *b. according to customers' requirements *c. negotiable |
|
Payment Terms |
*T/T : 30% inadvance, balanced 70% before shipping *paypal |
|
Service |
*Punctual deivery *Reliable and cheap freight company *Good after-sale services |

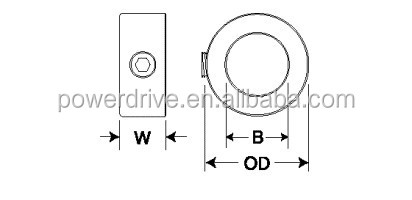

| PART NUMBER STEEL | PART NUMBER ALUMINUM | PART NUMBER STAINLESS STEEL | BORE B (in) | OUTER DIAM. OD (in) | WIDTH W (in) | FORGED SET SCREW |
| C-3-F | C-3-A | C-3-SS | 0.1875 | 7/16 | 0.25 | 8-32X1/8 |
| C-4-F | C-4-A | C-4-SS | 0.25 | 1/2 | 0.281 | 8-32X1/8 |
| C-5-F | C-5-A | C-5-SS | 0.3125 | 5/8 | 0.344 | 10-32X5/32 |
| C-6-F | C-6-A | C-6-SS | 0.375 | 3/4 | 0.375 | 1/4-20X3/16 |
| C-7-F | C-7-A | C-7-SS | 0.4375 | 7/8 | 0.438 | 1/4-20X1/4 |
| C-8-F | C-8-A | C-8-SS | 0.5 | 1 | 0.438 | 1/4-20X1/4 |
| C-9-F | C-9-A | C-9-SS | 0.5625 | 1 | 0.438 | 1/4-20X1/4 |
| C-10-F | C-10-A | C-10-SS | 0.625 | 1.125 | 0.5 | 5/16-18X1/4 |
| C-11-F | C-11-A | C-11-SS | 0.6875 | 1.25 | 0.563 | 5/16-18X1/4 |
| C-12-F | C-12-A | C-12-SS | 0.75 | 1.25 | 0.563 | 5/16-18X1/4 |
| C-13-F | C-13-A | C-13-SS | 0.8125 | 1.3125 | 0.563 | 5/16-18X1/4 |
| C-14-F | C-14-A | C-14-SS | 0.875 | 1.5 | 0.563 | 5/16-18X5/16 |
| C-15-F | C-15-A | C-15-SS | 0.9375 | 1.625 | 0.563 | 5/16-18X5/16 |
| C-16-F | C-16-A | C-16-SS | 1 | 1.625 | 0.625 | 5/16-18X5/16 |
| C-17-F | C-17-A | C-17-SS | 1.0625 | 1.75 | 0.625 | 5/16-18X5/16 |
| C-18-F | C-18-A | C-18-SS | 1.125 | 1.75 | 0.625 | 5/16-18X5/16 |
| C-19-F | C-19-A | C-19-SS | 1.1875 | 2 | 0.688 | 3/8-16X3/8 |
| C-20-F | C-20-A | C-20-SS | 1.25 | 2 | 0.688 | 3/8-16X3/8 |
| C-21-F | C-21-A | C-21-SS | 1.3125 | 2.125 | 0.688 | 3/8-16X3/8 |
| C-22-F | C-22-A | C-22-SS | 1.375 | 2.125 | 0.75 | 3/8-16X3/8 |
| C-23-F | C-23-A | C-23-SS | 1.4375 | 2.25 | 0.75 | 3/8-16X3/8 |
| C-24-F | C-24-A | C-24-SS | 1.5 | 2.25 | 0.75 | 3/8-16X3/8 |
| C-25-F | C-25-A | C-25-SS | 1.5625 | 2.5 | 0.813 | 3/8-16X3/8 |
| C-26-F | C-26-A | C-26-SS | 1.625 | 2.5 | 0.813 | 3/8-16X3/8 |
| C-27-F | C-27-A | C-27-SS | 1.6875 | 2.5 | 0.813 | 3/8-16X3/8 |
| C-28-F | C-28-A | C-28-SS | 1.75 | 2.75 | 0.875 | 1/2-13X1/2 |
| C-29-F | C-29-A | C-29-SS | 1.8125 | 2.75 | 0.875 | 1/2-13X1/2 |
| C-30-F | C-30-A | C-30-SS | 1.875 | 2.75 | 0.875 | 1/2-13X1/2 |
| C-31-F | C-31-A | C-31-SS | 1.9375 | 3 | 0.875 | 1/2-13X1/2 |
| C-32-F | C-32-A | C-32-SS | 2 | 3 | 0.875 | 1/2-13X1/2 |
| C-33-F | C-33-A | C-33-SS | 2.0625 | 3 | 0.875 | 1/2-13X1/2 |
| C-34-F | C-34-A | C-34-SS | 2.125 | 3 | 0.875 | 1/2-13X1/2 |
| C-35-F | C-35-A | C-35-SS | 2.1875 | 3.25 | 0.938 | 1/2-13X1/2 |
| C-36-F | C-36-A | C-36-SS | 2.25 | 3.25 | 0.938 | 1/2-13X1/2 |
| C-37-F | C-37-A | C-37-SS | 2.3125 | 3.375 | 0.938 | 1/2-13X1/2 |
| C-38-F | C-38-A | C-38-SS | 2.375 | 3.5 | 0.938 | 1/2-13X1/2 |
| C-39-F | C-39-A | C-39-SS | 2.4375 | 3.5 | 1 | 1/2-13X1/2 |
| C-40-F | C-40-A | C-40-SS | 2.5 | 3.75 | 1 | 1/2-13X1/2 |
| C-41-F | C-41-A | C-41-SS | 2.5625 | 3.75 | 1.125 | 1/2-13X9/16 |
| C-42-F | C-42-A | C-42-SS | 2.625 | 3.75 | 1.125 | 1/2-13X9/16 |
| C-43-F | C-43-A | C-43-SS | 2.6875 | 4 | 1.125 | 1/2-13X5/8 |
| C-44-F | C-44-A | C-44-SS | 2.75 | 4 | 1.125 | 1/2-13X5/8 |
| C-45-F | C-45-A | C-45-SS | 2.8125 | 4.25 | 1.125 | 1/2-13X5/8 |
| C-46-F | C-46-A | C-46-SS | 2.875 | 4.25 | 1.125 | 1/2-13X5/8 |
| C-47-F | C-47-A | C-47-SS | 2.9375 | 4.25 | 1.125 | 1/2-13X5/8 |
| C-48-F | C-48-A | C-48-SS | 3 | 4.25 | 1.125 | 1/2-13X5/8 |
| C-49-F | C-49-A | C-49-SS | 3.0625 | 4.5 | 1.125 | 1/2-13X5/8 |
| C-50-F | C-50-A | C-50-SS | 3.125 | 4.5 | 1.125 | 1/2-13X5/8 |
| C-51-F | C-51-A | C-51-SS | 3.1875 | 4.5 | 1.125 | 1/2-13X5/8 |
| C-52-F | C-52-A | C-52-SS | 3.25 | 4.5 | 1.125 | 1/2-13X5/8 |
| C-53-F | C-53-A | C-53-SS | 3.3125 | 4.75 | 1.125 | 1/2-13X5/8 |
| C-54-F | C-54-A | C-54-SS | 3.375 | 4.75 | 1.125 | 1/2-13X5/8 |
| C-55-F | C-55-A | C-55-SS | 3.4375 | 4.75 | 1.125 | 1/2-13X5/8 |
| C-56-F | C-56-A | C-56-SS | 3.5 | 4.75 | 1.125 | 1/2-13X5/8 |
| C-57-F | C-57-A | C-57-SS | 3.5625 | 5 | 1.125 | 1/2-13X5/8 |
| C-58-F | C-58-A | C-58-SS | 3.625 | 5 | 1.125 | 1/2-13X5/8 |
| C-59-F | C-59-A | C-59-SS | 3.6875 | 5 | 1.125 | 1/2-13X5/8 |
| C-60-F | C-60-A | C-60-SS | 3.75 | 5 | 1.125 | 1/2-13X5/8 |
| C-61-F | C-61-A | C-61-SS | 3.8125 | 5.25 | 1.125 | 1/2-13X5/8 |
| C-62-F | C-62-A | C-62-SS | 3.875 | 5.25 | 1.125 | 1/2-13X5/8 |
| C-63-F | C-63-A | C-63-SS | 3.9375 | 5.25 | 1.125 | 1/2-13X5/8 |
| C-64-F | C-64-A | C-64-SS | 4 | 5.25 | 1.125 | 1/2-13X5/8 |
