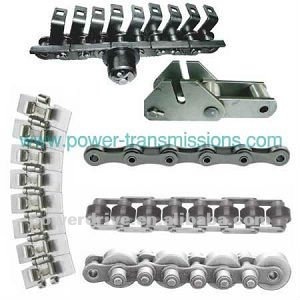

Stainless Steel Conveyor Chain

Stainless steel conveyor chain

Our ansi roller chain meet ot exceed DIN,ANSI,ISO, BS,JS standard,and our chians stand up to the toughest working environments with years of trouble-free performance.

Sourcing from us brings you profit, and your OEM/ODM items are always welcomed,looking forward to establish win-win business relations with you in the near future.

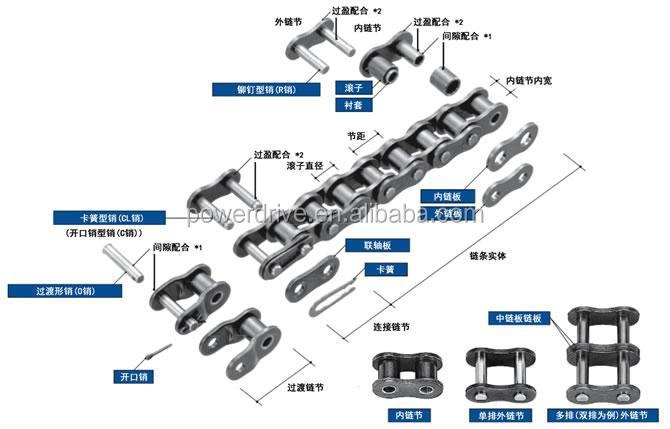

ROLLER

Solid Roller

Material 1035,1045 or 1050

Through harden with surface and core 40-45HRC

Shot peening per the spec

BUSHING

Solid or Split Bushing per the spec

Material 1019M or 1022,stainless steel,etc.

Case harden(Carburized) 89HR 15Minimum

Hardness total case depth per the spec

CASE HARDENED PIN

Material 10B21 fine grain, 4118 or 8620

Case harden(Carburized) 89HR 15Minimum

Hardness total case depth per the spec

PLATE(Connectors, Links and Sides )

Material 1045 or 1050

Through harden with surface and core 39-45HRC

Shot peening per the spec

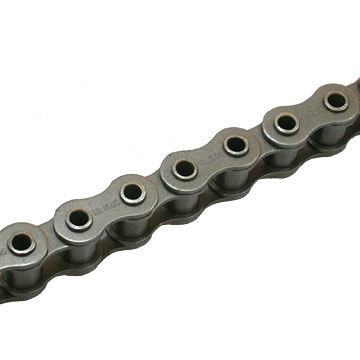

ANSI standard roller chain

high quality and low price
pls feel free to contact with us if you have any problem

ANSI and B/S standard roller chains in carbon steel and stainless steel.

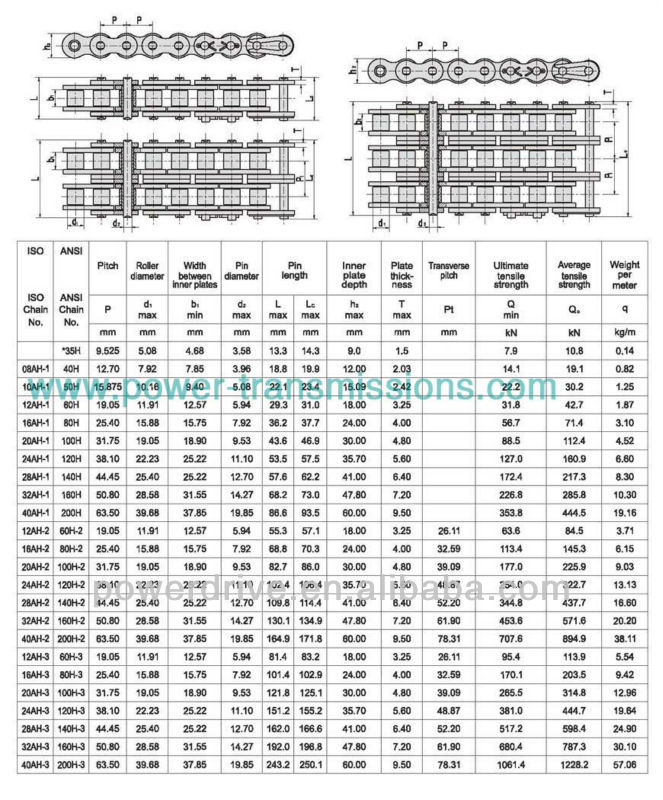

specifications:25,35,41,40,50,60,80,100,120,140,160,180,200,240,04B,05B,06B,08B,10B,12B,16B,20B,24B,28B,32B,40B,48B,56B,64B,72B.

The straight side plate and heavy duty(reinforced) chains are also available.

roller chains,transmission chains,industrial chains

driving chain,heavy duty chain:
1advanced technology, advanced equipment
2high technical capabilities
3employ experienced technical and management personnel
4)through the efforts of the entire company
5)environmengtally-friendly
6)our products are exported to Europe,America and other countries.
7) IS9001 certification
8)reasonable prices and lead time,satisfactory after-saless service
9)Mutual development,mutual benefits.
