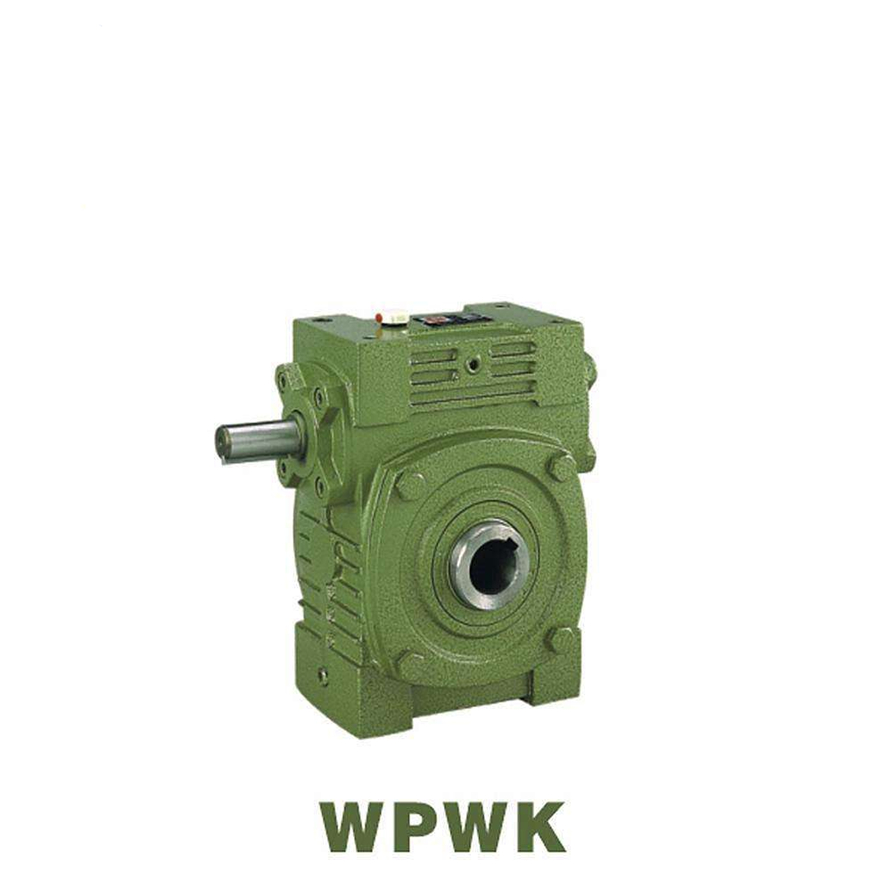

Series WY WPWK Reducer Right Angle Gearbox Worm Gearboxes

Detailed Product Description worm gearboxes series WY speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes SIZE RATIO A A1 AB AC B BB BD BE BF CC H HL LL Z L 40 5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1 2.58 3.78 3.94

Send Inquiry

Product Description

Detailed Product Description

worm gearboxes series WY

speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes

SIZE	RATIO	A	A₁	AB	AC	B	BB	BD	BE	BF	CC	H	HL	LL	Z	L
40	5:1 10:1 15:1 20:1 30:1 40:1 50:1 60:1	2.58		3.78	3.94	1.85	3.31	2.68	2.13	3.15	1.575	5.00	1.34	2.09	5/16-18	0.63
50		2.85		4.13	4.48	2.08	3.82	2.72	1.97	3.54	1.969	5.91	1.38	2.56	5/16-8	0.63
60		3.15		4.72	5.00	2.20	4.33	2.99	2.13	3.94	2.362	6.97	1.65	2.95	3/8-16	0.75
63		3.37		5.08	5.51	2.36	4.45	3.46	2.69	4.87	2.480	7.32	1.89	2.95	3/8-16	0.75
70		3.76		5.51	6.10	2.52	5.12	3.31	2.56	4.92	2.756	8.46	2.16	3.54	3/8-16	0.75
80		4.11		6.30	6.69	2.85	5.51	3.94	2.76	5.51	3.150	9.84	2.56	4.13	3/8-16	0.75
100		4.78		7.00	8.03	3.33	6.42	4.49	3.54	7.09	3.937	12.20	3.15	5.12	1/2-13	0.94
120		6.10	8.26	9.06	10.24	3.94	7.28	5.04	3.94	8.66	4.724	14.57	3.74	6.10	1/2-13	0.94
135		6.89	9.06	10.24	11.65	4.33	8.27	5.91	4.33	10.24	5.315	16.73	4.13	7.28	5/8-11	1.13
155		7.64	10.24	11.89	12.99	5.20	9.92	6.69	4.72	11.02	6.102	18.15	4.05	7.99	5/8-11	1.13
175		8.78	11.42	12.80	14.57	5.71	10.31	7.32	5.51	12.60	6.890	20.51	4.84	8.78	3/4-10	1.38
200		9.61	12.60	13.78	16.30	6.89	12.01	9.06	5.91	14.17	7.874	22.64	5.12	9.65	3/4-10	1.38

China Hangzhou Raydafon speed reducer(gearbox) Co.,Ltd.

is one of leading manufacturers and suppliers of speed reducer (gearbox) in China, we specialize in worm gear, NRV worm gearbox ( NMRV worm geared motors), Casting iron worm speed reducers, gear operator, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, tractor gearboxes, auto gearboxes, planetary speed reducer, speed variator, gear motor, electric motors and many other products. OEM inquiries are also welcome.
