Product Description

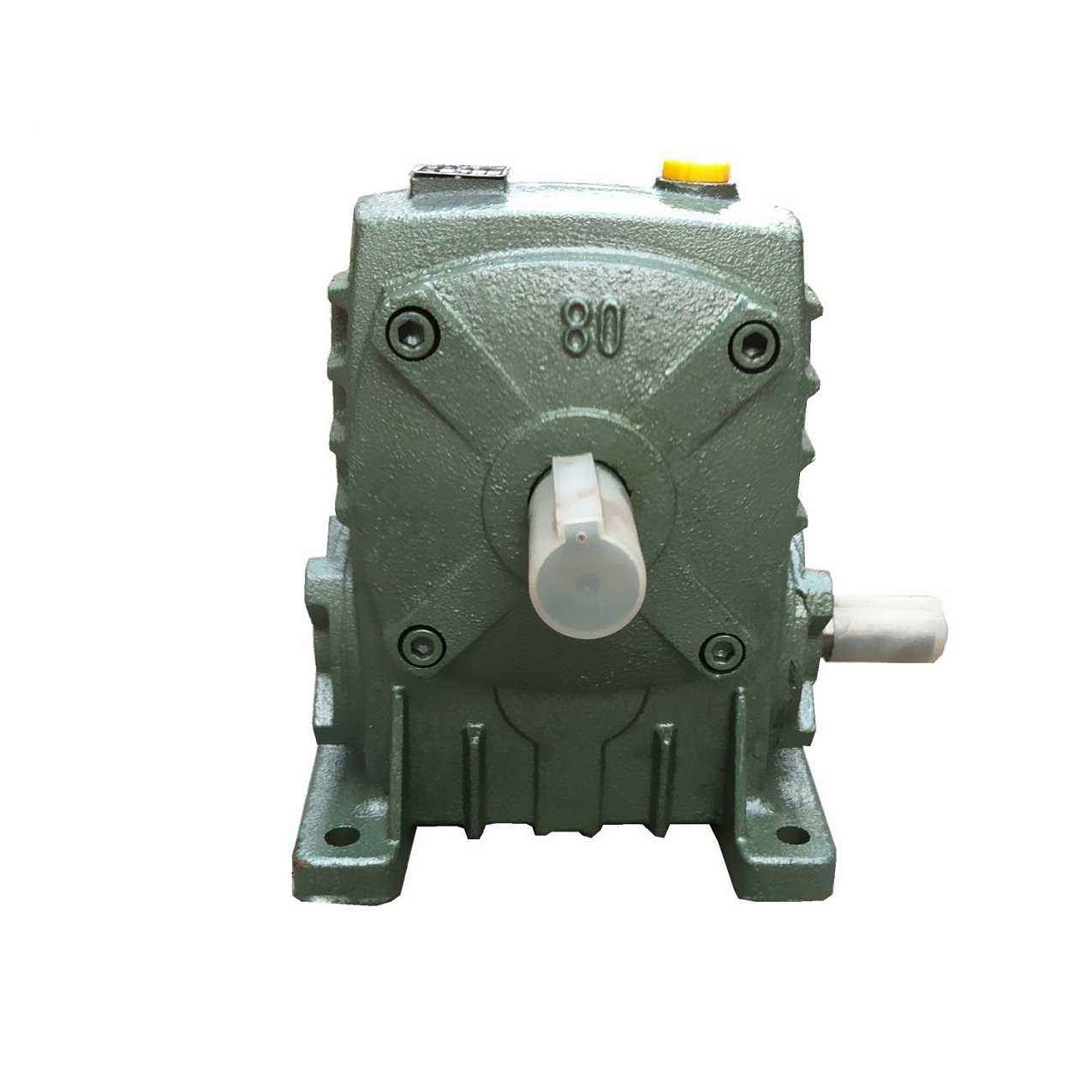

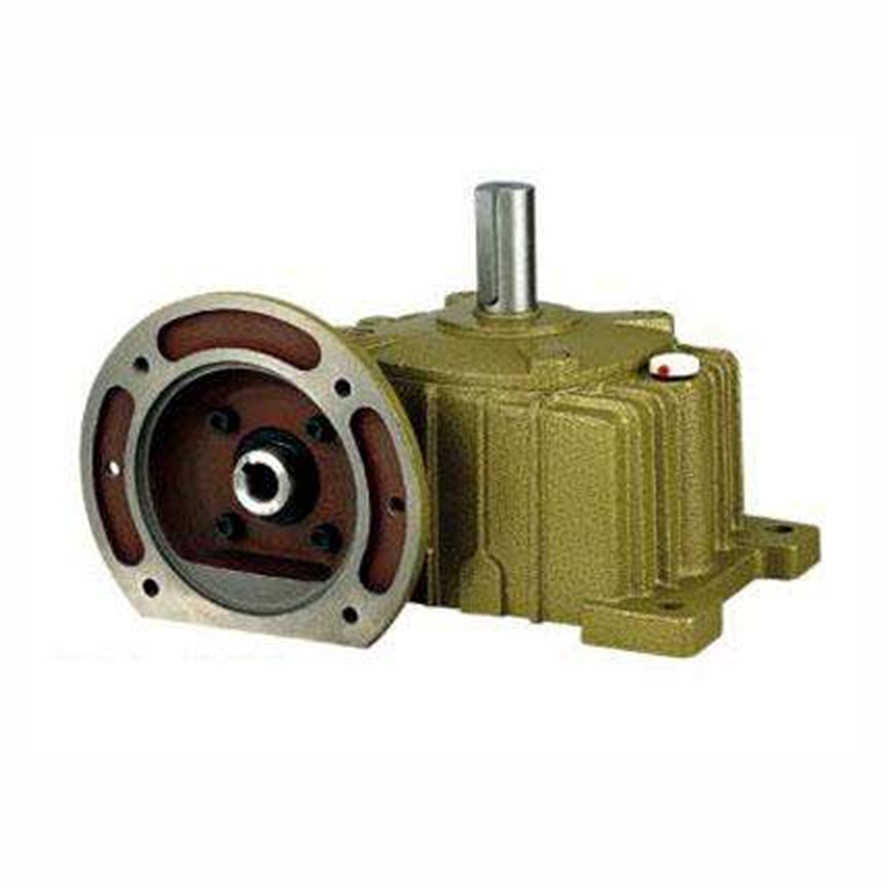

series DO Worm speed reducers

speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes

SIZE	KW	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	G	M	N	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT			KG
																	LA	LB	LC	LE	LG	LZ	Q	U	T×V	LS	S	W×Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	165	95	145	95	50	106	50	93	102	90	14	220	116	11	115	95	140	5	10	M8	25	11	4×12.5	40	17	5×3	7
60	0.37		185	105	165	110	55	123	60	105	120	100	15	260	126	11	130	110	160	5	12	M8	35	14	5×16.3	50	22	7×4	10
70	0.37		209	115	195	130	65	140	70	120	135	120	20	295	156	15	130	110	160	5	12	M8	35	14	5×16.3	60	28	7×4	15
	0.75																165	130	200		15	M10	45	19	6×21.8
80	0.75		242	135	210	140	70	150	80	130	150	140	20	320	176	15	165	130	200	5	15	M10	45	19	6×21.8	65	32	10×4.5	23
	1.5																						55	24	8×27.3
100	1.5		310	175	245	155	90	175	100	155	180	190	30	375	226	15	165	130	200	5	15	M10	55	24	8×27.3	75	38	10×4.5	36
120	2.2		361	205	285	185	100	210	120	185	215	220	30	450	266	18	215	180	250	5	18	M12	65	28	8×31.3	85	45	12×4.5	55
	3.0
135	3.0		412	235	320	210	110	235	135	210	235	260	35	495	306	18	215	180	250	5	18	M12	65	28	8×31.3	95	55	15×5	80
	4.0
155	5.5		442	250	392	252	140	270	155	245	295	290	45	590	350	20	265	230	300	5	22	M12	85	38
