Raydafon HTD 5M-15 8M-20 Timing Blet Pulleys Wheel

HTD 5M-15/8M-20 Timing Pulleys 1.Many years' experience; 2.OEM manufacturer; 3.Supply the pulleys acc. to the draws or samples. Product Name HTD 5M-15/8M-20 Timing Pulleys Teeth profile Trapezoidal toothed Trapezoidal toothedMXL, XXL, XL, L, H, XH, X

Send Inquiry

Product Description

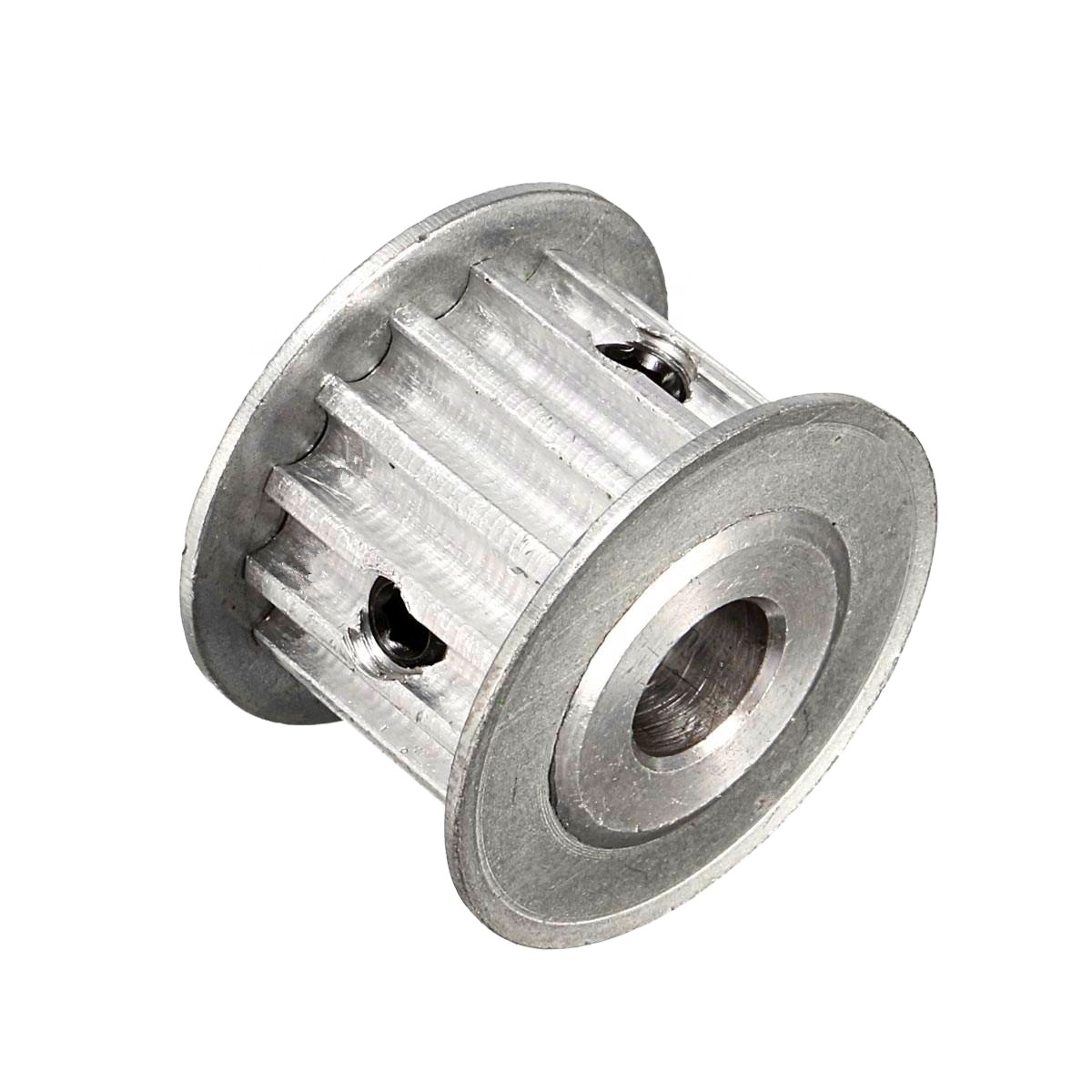

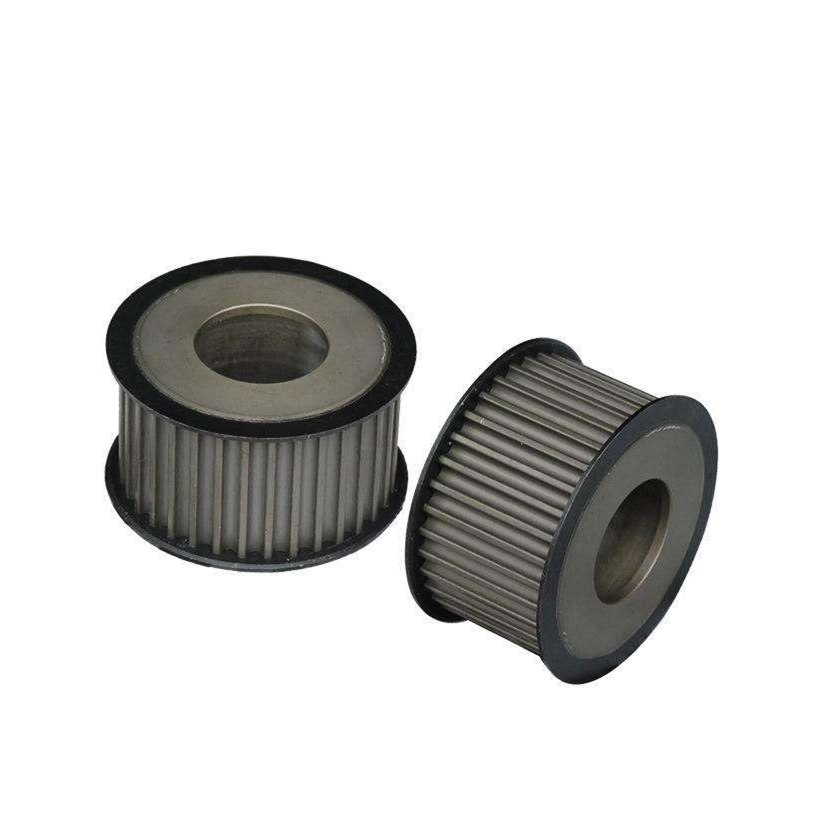

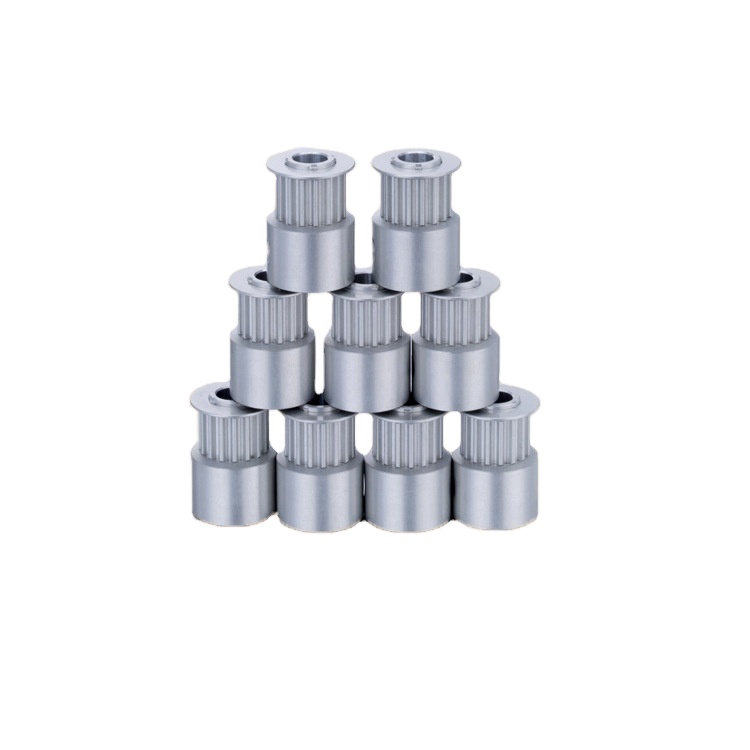

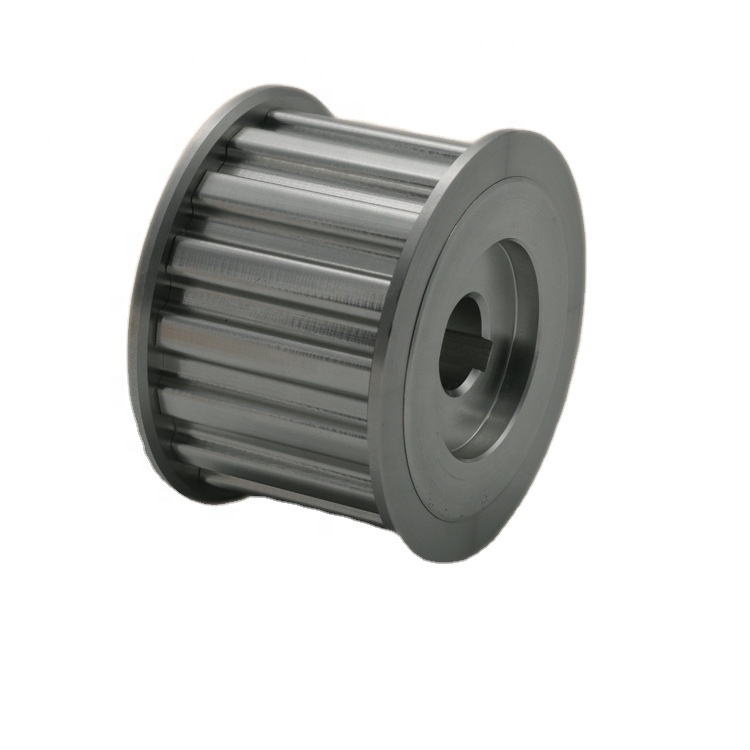

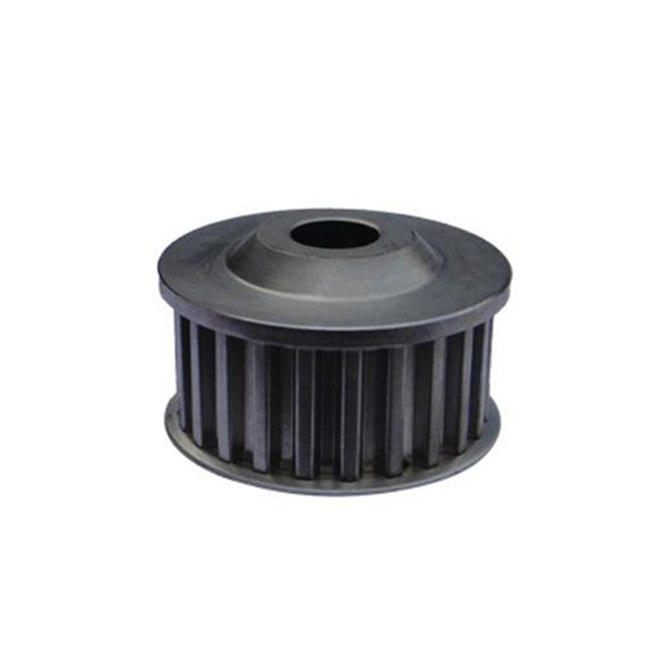

HTD 5M-15/8M-20 Timing Pulleys

1.Many years' experience;

2.OEM manufacturer;

3.Supply the pulleys acc. to the draws or samples.

Product Name	HTD 5M-15/8M-20 Timing Pulleys
Teeth profile	Trapezoidal toothed	Trapezoidal toothedMXL, XXL, XL, L, H, XH, XXH
	T-toothed	T2.5, T5, T10, T20
	Arc toothed	HTD3M, HTD5M, HTD8M, HTD14M, HTD20M, Gt2, Gt3, Gt5
	S-toothed	S2M, S3M, S4.5M, S5M, S8M, S14M
	Parabolic-toothed	P2M, P3M, P5M, P8M, P14M
	Y-toothed	G2M, G3M, G5M, Y8M
Teeth Quantity	10-150 teeth or customized
Inner Bore	2-200mm H7 precision or customized
Belt width	4mm, 6mm, 9mm, 10mm, 12mm, 15mm, 20mm, 25mm, 30mm, 40mm, 50mm, 1/4'', 5/16'', 3/8'', 1/2'', 3/4'', 1'', 1.5'', 2''or customized
Accessories	We can provide the service of assembling setscrews, bearings, shafts or taper bush
Surface treatment	Anodize,Black Oxide,Phosphate and Galvanization
Drawing Format	Timing belt pulley cad drawing,timing belt pulley UG drawing,Timing belt Pulley Soliwork drawing,Timing Pulley PDF drawing

Raydafon HTD 5M-15 8M-20 Timing Blet Pulleys Wheel
