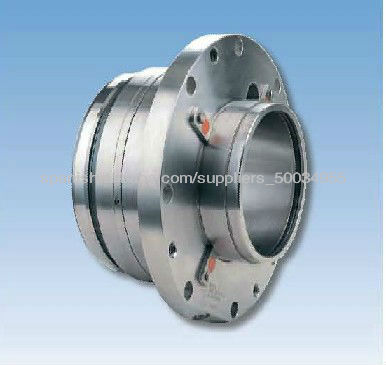

| Single seal Balanced Independent of direction of rotation Spring product Protected To EN12756 (DIN24960) BGMHJ92 series mechanical seal is suitable for high viscosity and solids containing medium in sugar industry, paper-making industry and waste water treatment. Its spring does not come into contact with the medium so that the seal can be used reliably and safely due to free of bonding and friction. Combination of materials Sealing face Graphite, Silicon carbide, Tungsten carbide,Aluminum oxide Secondary sealing Acrylonitrile rubber, Fluorine rubber, Ethylene propylene rubber,Silicon rubber,PTFE Metal component Stainless steel Operating limits Specification: 18mm-100 mm Pressure: ≤2.5 Mpa Temperature: -20°C- 220°C Linear speed: ≤20 m/s Axial movement: ±0.5 mm |
|
    |
