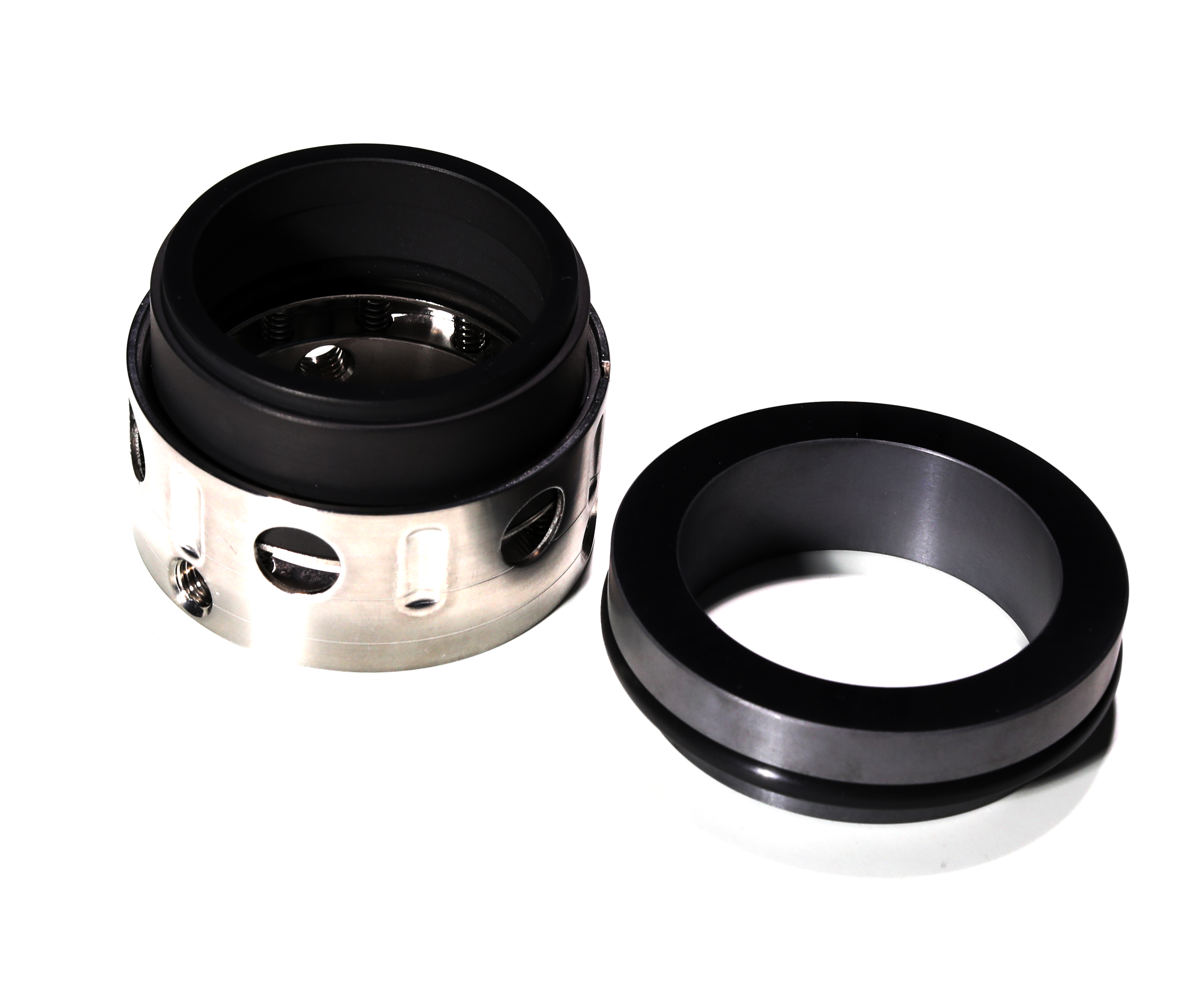

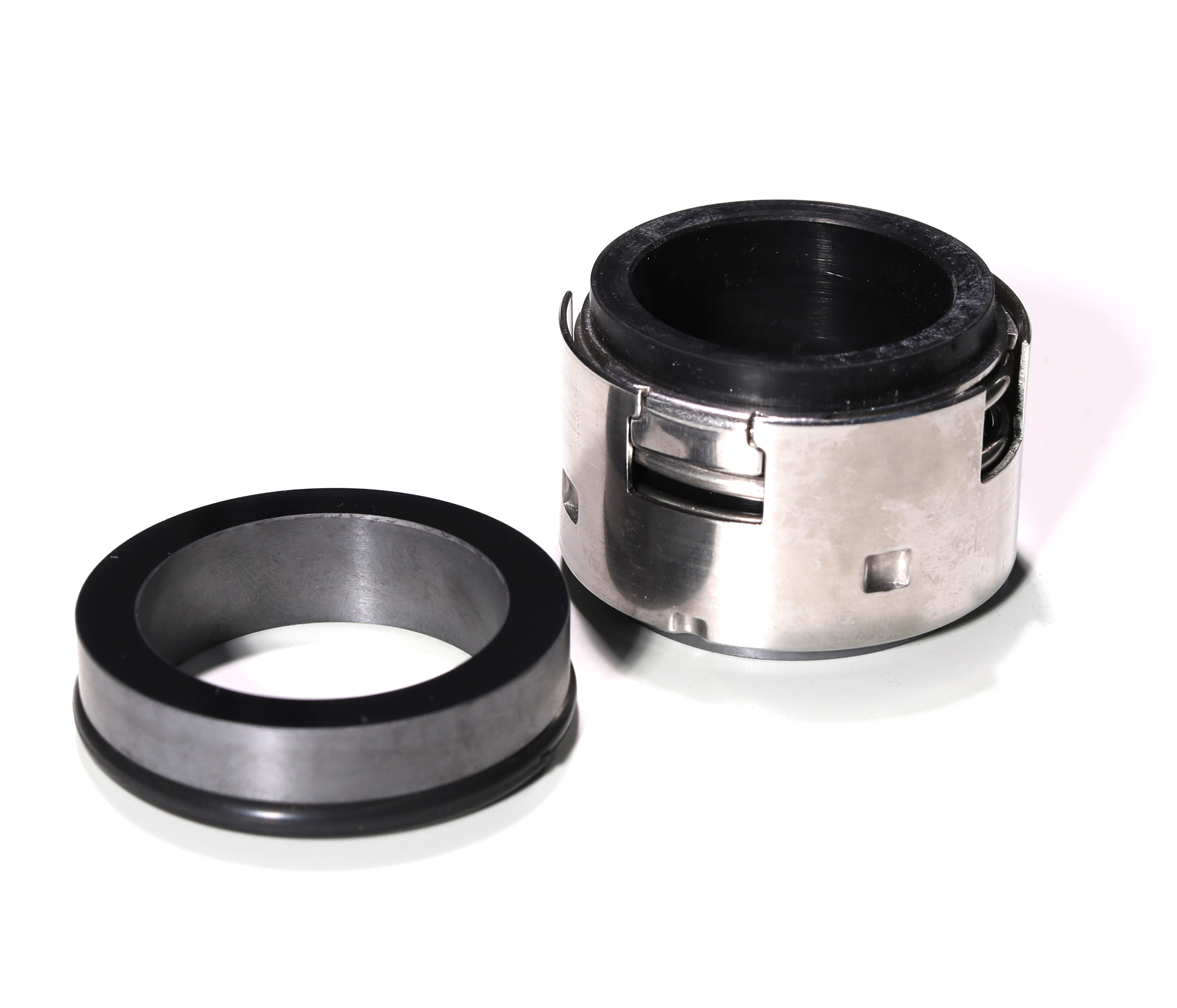

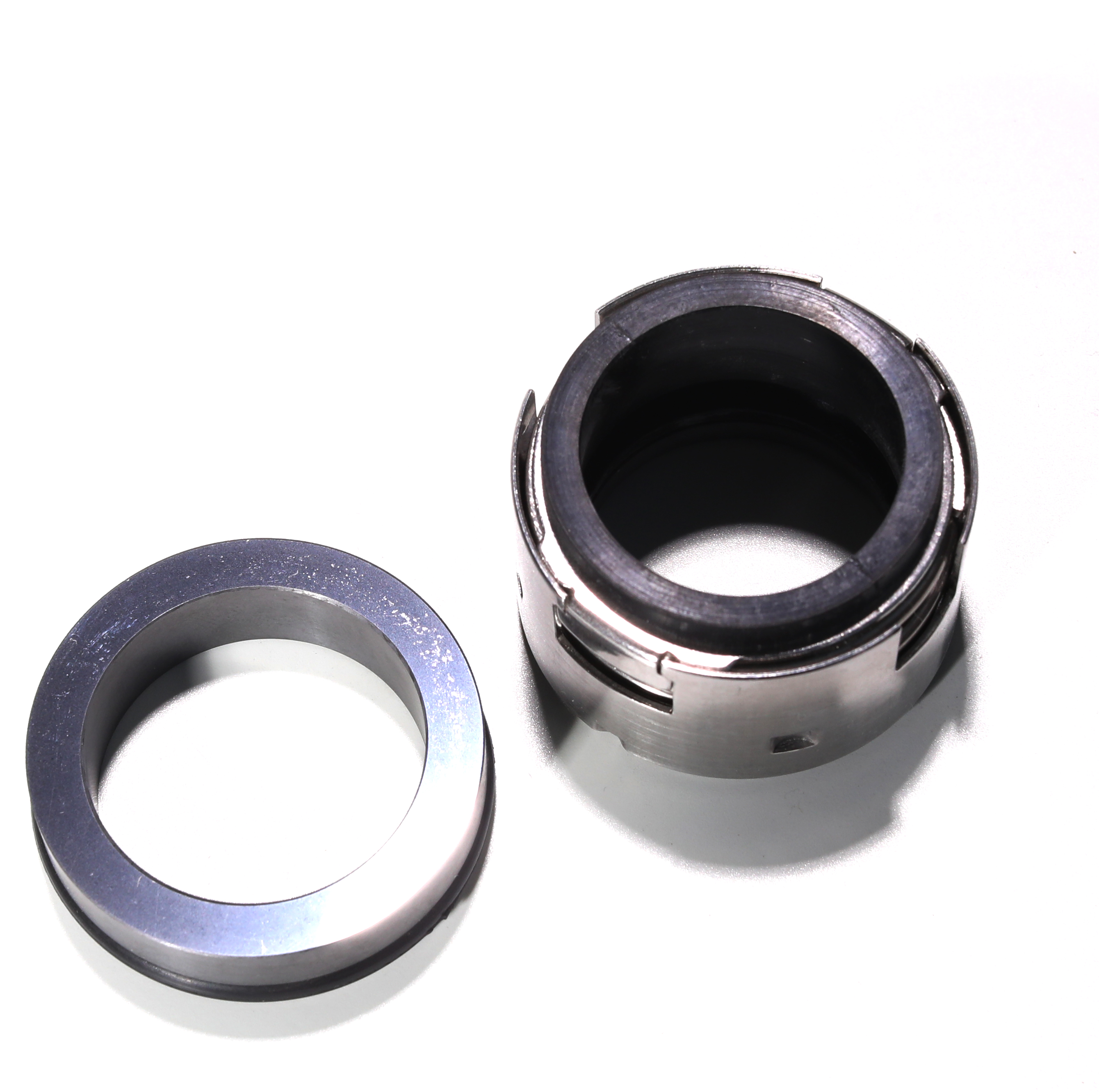

Raydafon 502 Series Elastomer Bellow Mechanical Seal

502 series Elaster bellow mechanical seal

Mechanical Seal Type 502 is one of the best performing bellows seal,it is ideal for use in hot water pumps, industrial pumps and petroleum chemical industry.

Features:
1,With full enclosed elastomer bellows design
2,Insensitive to shaft play and run out
3,Bellows should not twist due to bi-directional and robust drive
4,Single seal and single spring
5,Conform with DIN24960 and EN12756 standard

Recommended Applications

Petroleum chemical industry

Industrial pumps
Process pumps
Other Rotating Equipment

Operating range
Shaft diameter: d1=14...100 mm

Pressure:p=-0....2.8Mpa(406psi)
Temperature: t = -40 °C ..+200 °C(-40°F to 392°F)
Slidingvelocity:Vg≤13m/s(42.60ft/m)

Notes: The range of preesure, temperature and sliding velocity is depend on seals combination materials.
