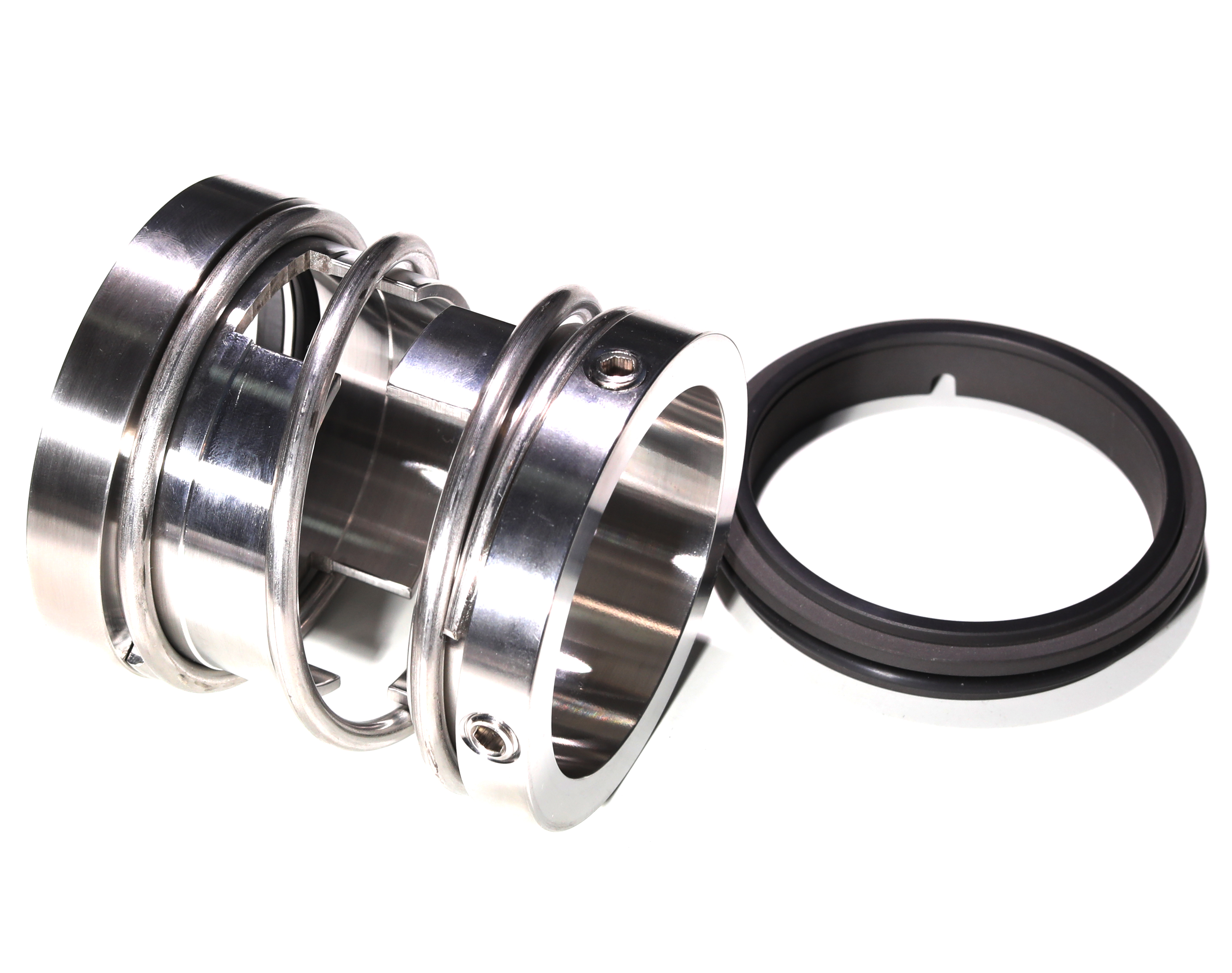

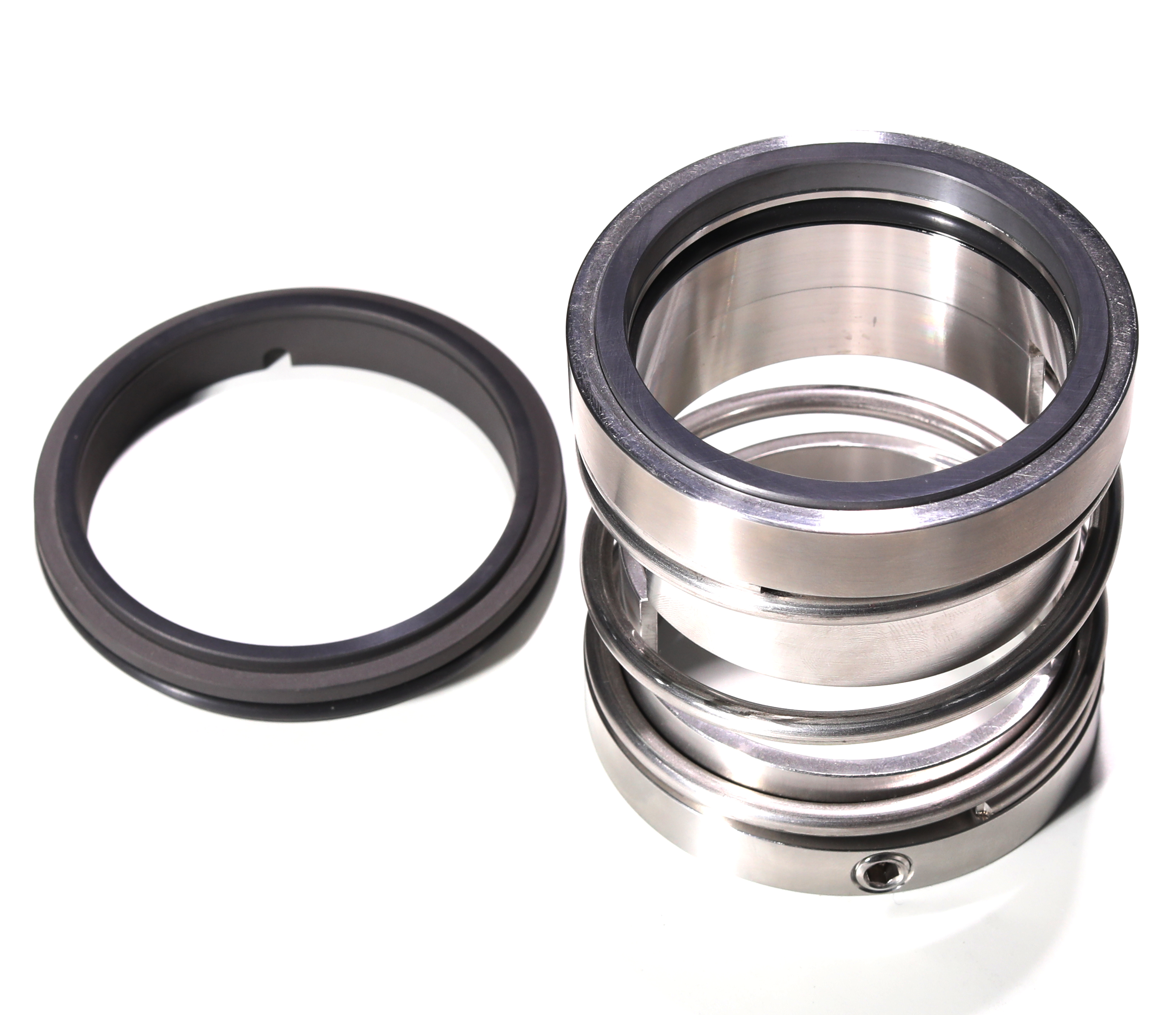

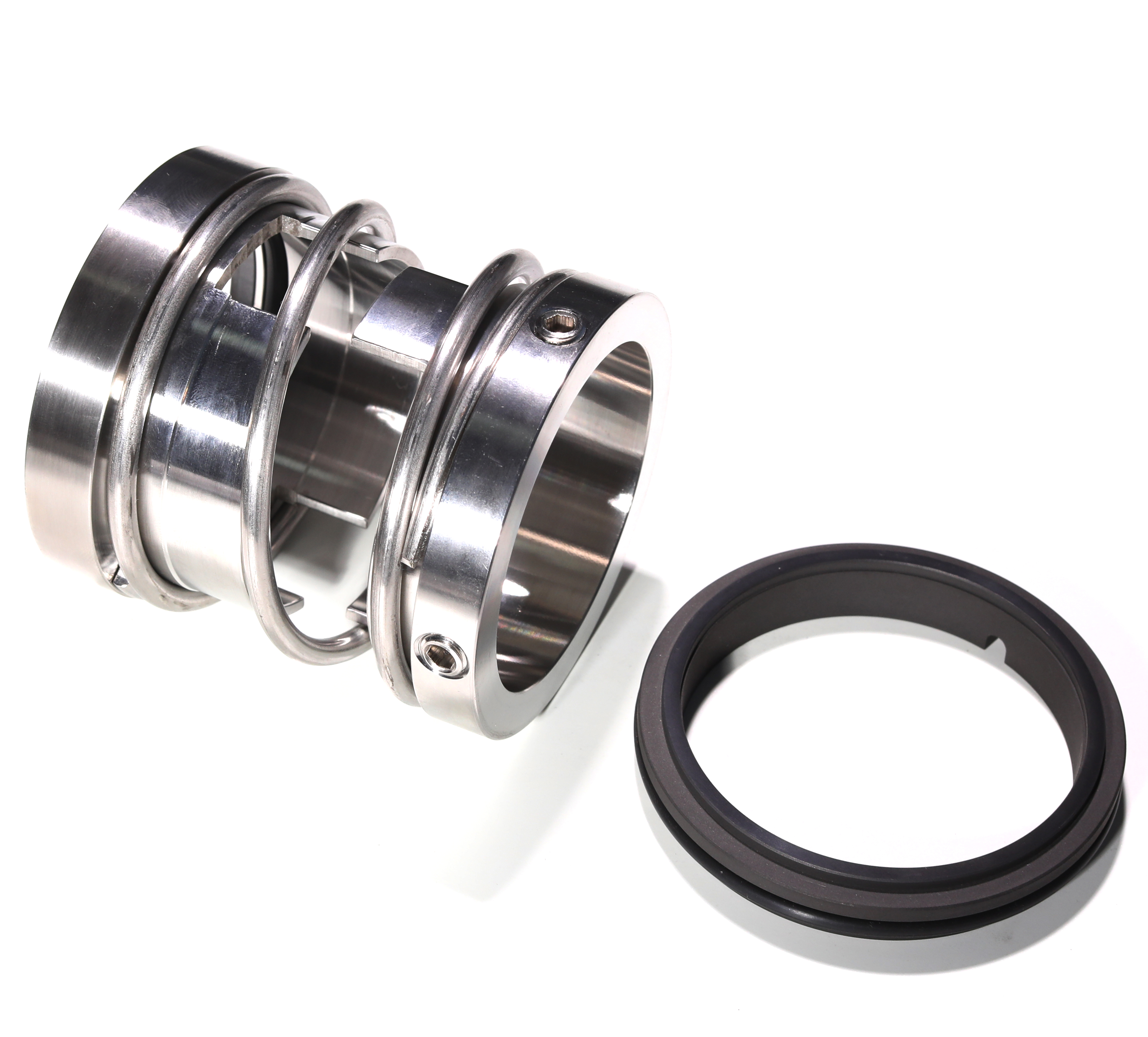

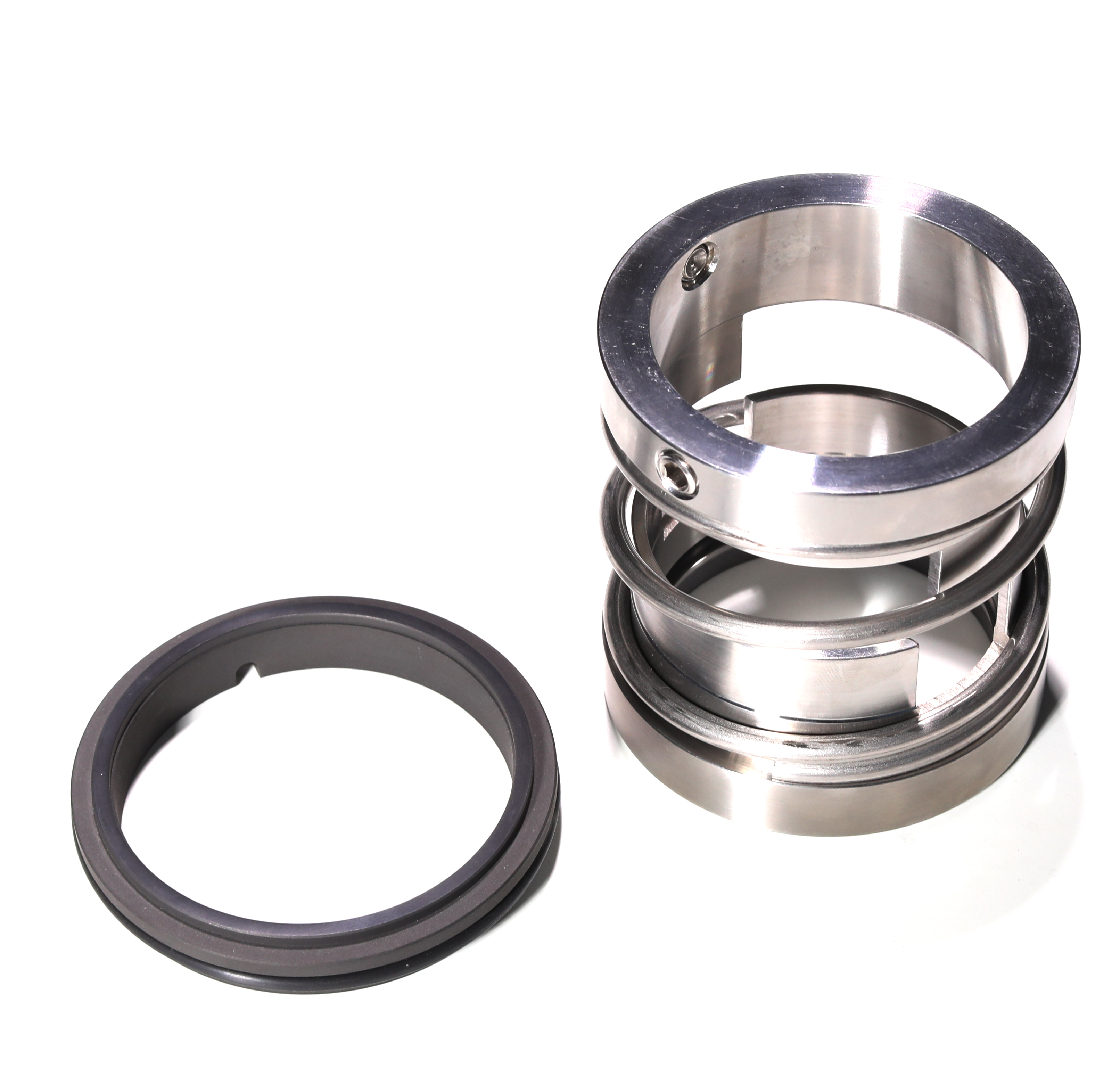

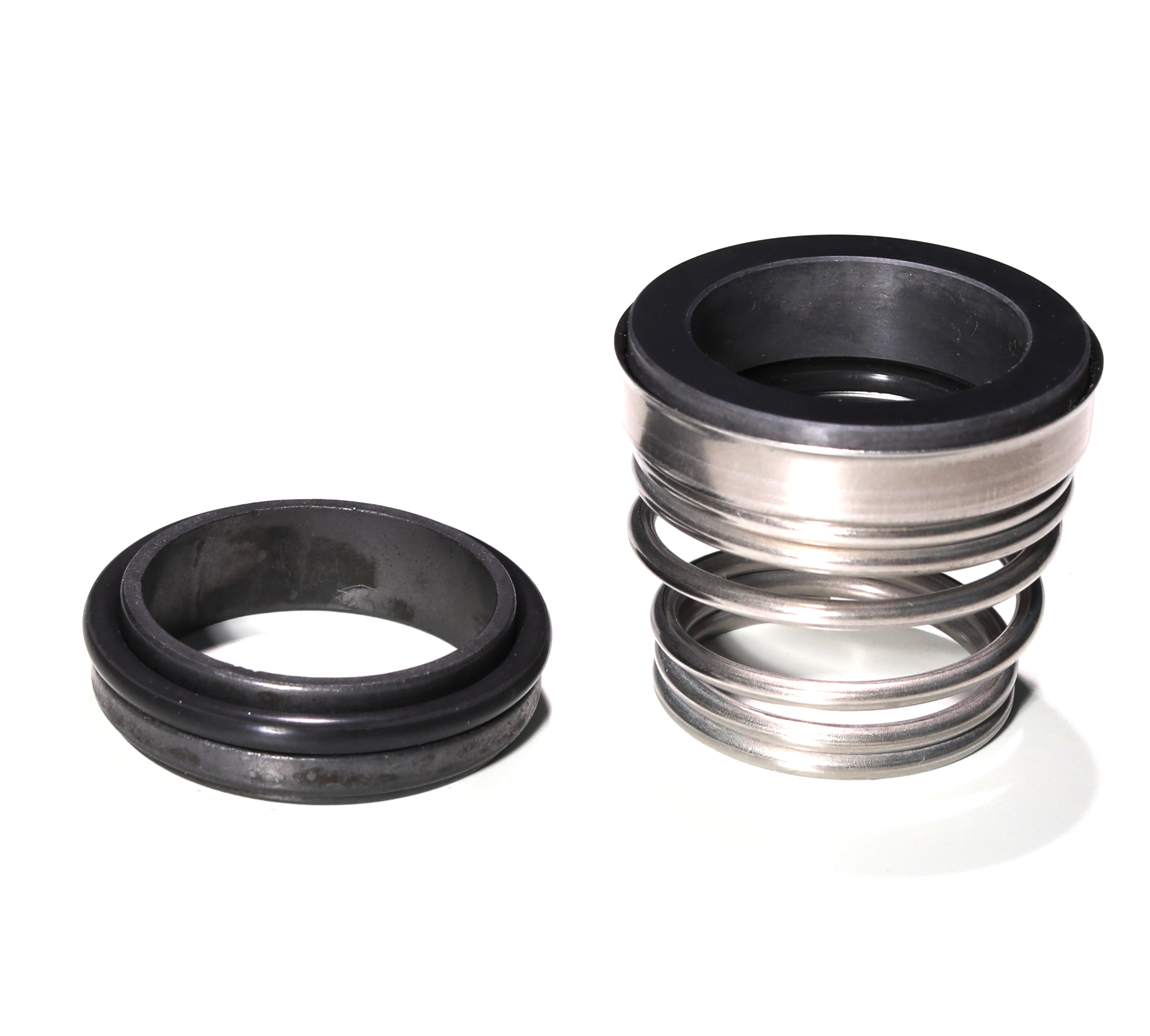

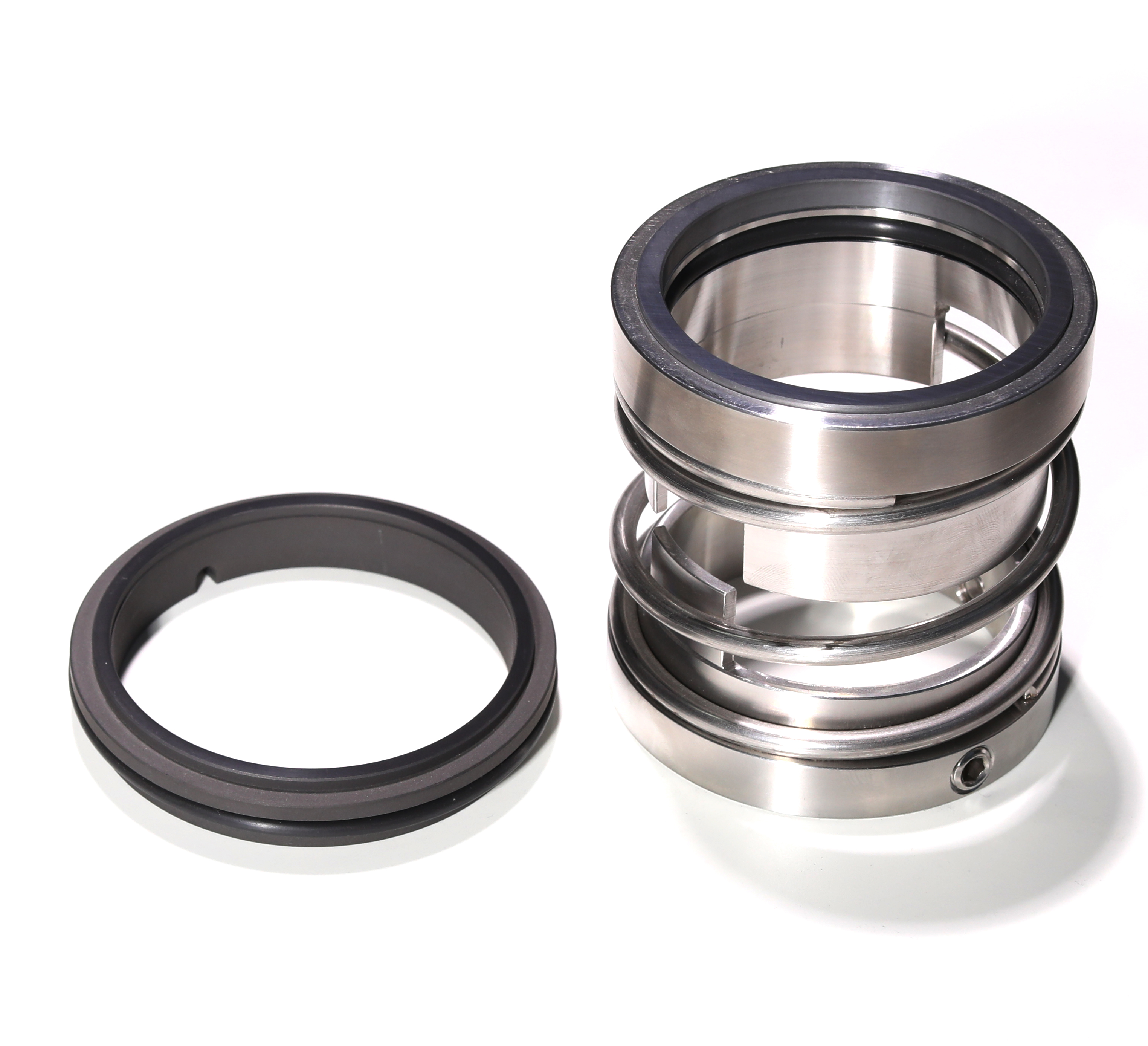

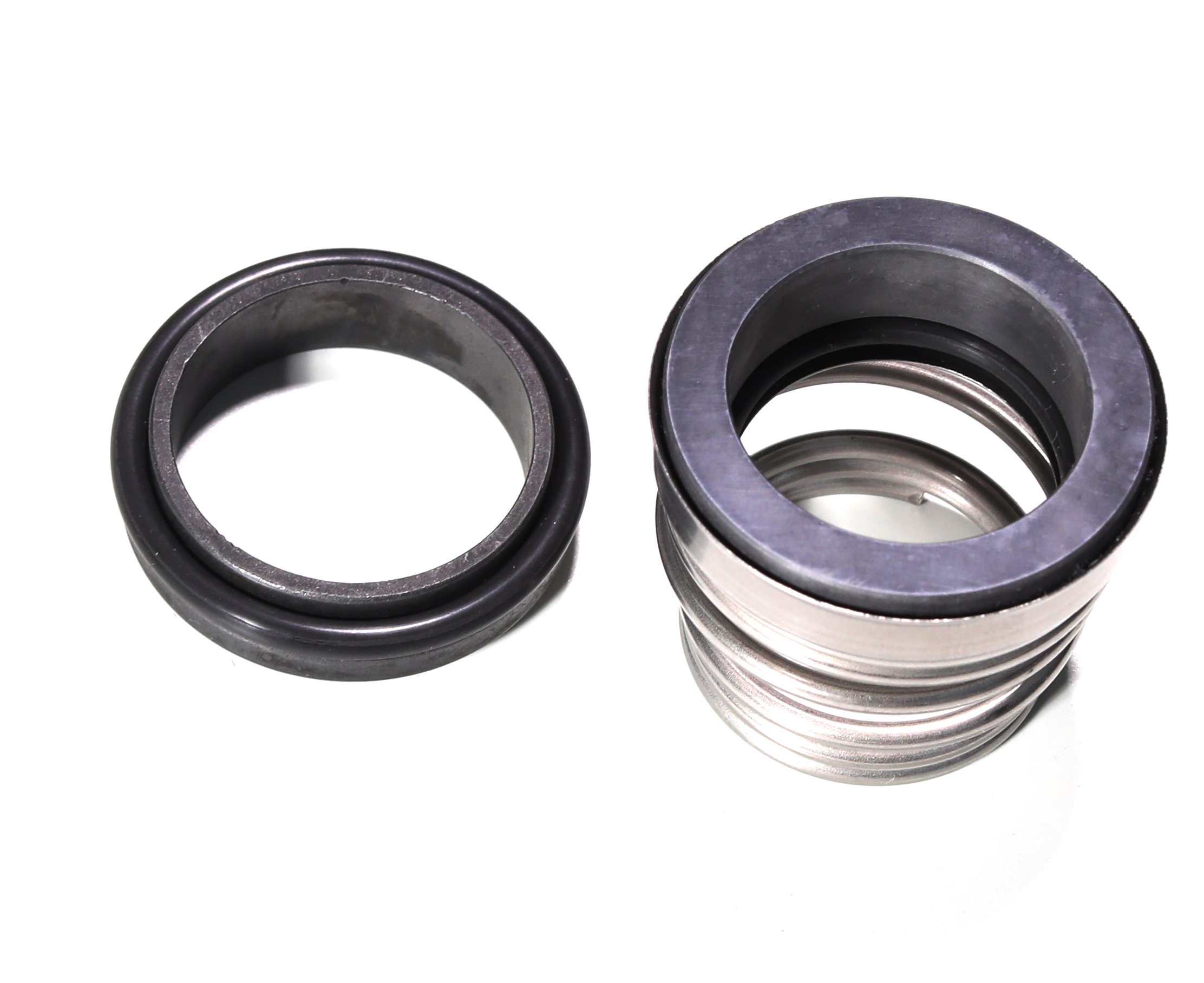

Raydafon 250 Series Mechanical Seal for Chemical Pump

1. Operational Conditions: Temperature: -20ºC to +180ºCPressure: ≤1.0MPaSpeed: ≤15m/s2. Materials: Stationary Ring: SIC, SSIC,TC,Carbon,CeramicRotary Ring: Sic,SSIC, TCSecondary Seal: NBR, EPDM, VitonSpring and Metal Parts: Steel3. Applications: Clea

Send Inquiry

Product Description

1. Operational Conditions:
Temperature: -20ºC to +180ºC
Pressure: ≤1.0MPa
Speed: ≤15m/s
2. Materials:
Stationary Ring: SIC, SSIC,TC,Carbon,Ceramic
Rotary Ring: Sic,SSIC, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: Steel
3. Applications: Clean water, sewage water, oil and other moderately corrosive fluids

Description

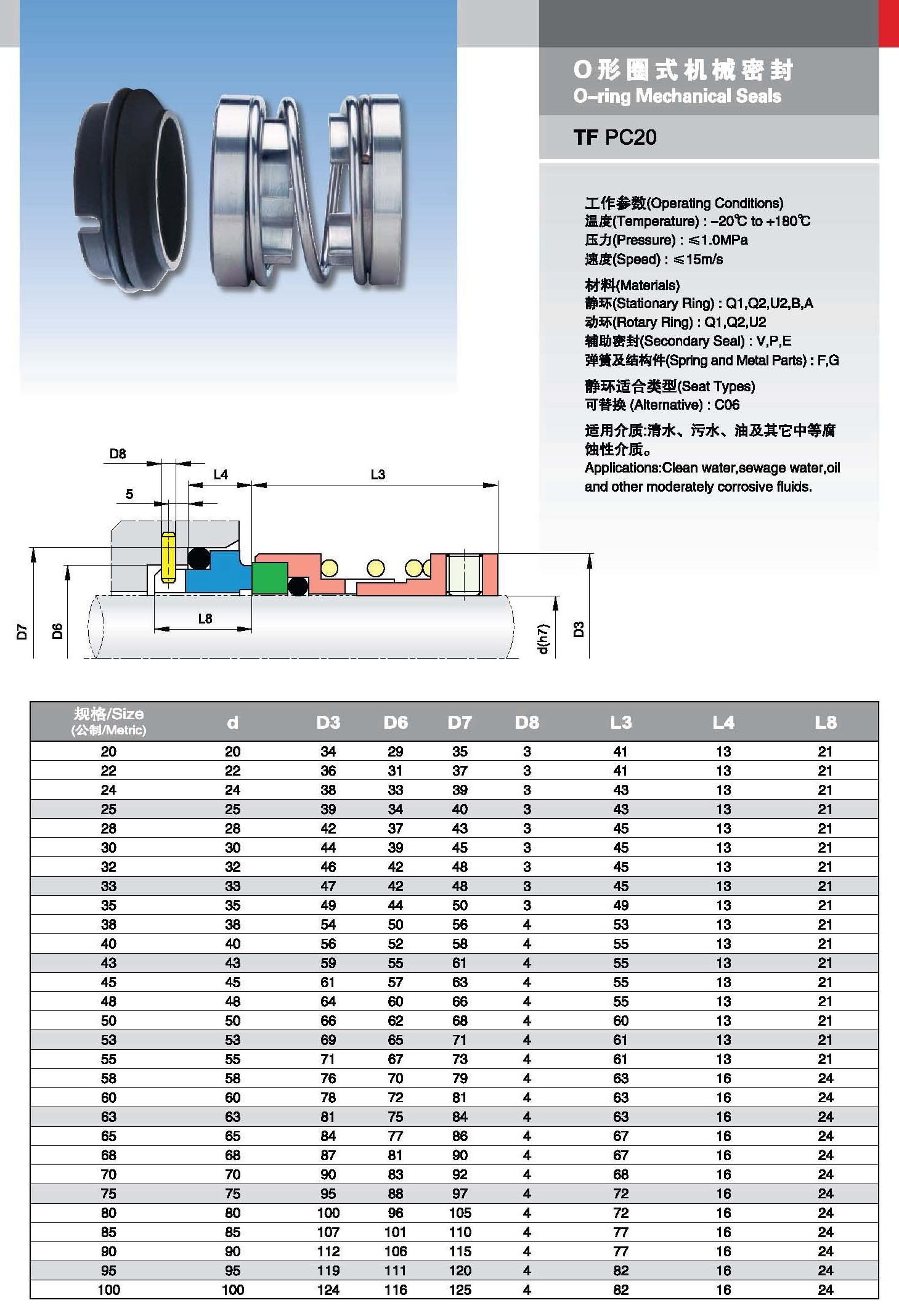

PC20 series is suitable for water, oil and other weak acid or base medium. The torque and compensational force are mainly transmitted by the spring. Proper attention shall be paid on the direction of rotation during installation.

Working Conditions:
Pumps:Water pumps, circuation pumps,etc.
Temperature:-20^oC~200^oC
Pressure: ≤0.8Mpa
Speed: ≤ 10 m/Sec

Combined Materials:
Stationary Ring(Carbon/SiC/TC)
Rotary Ring(Ceramic/SiC/TC)
Secondary Seal(NBR/EPDM/Viiton)
Spring and Punched Parts(Steel)
