Product Description

Helical Gearboxes/Helical Gear Reducers

product description:
1, F series reducer with international technical requirements, with high technological content.
2, save space, reliable and durable, with high overload capacity, power up to 90KW.
3, F series parallel shaft helical gear reducer low energy consumption, superior performance, efficiency up to 95%.
4, parallel shaft helical gear reducer vibration, low noise, high energy efficiency, the selection of high-quality steel, steel castings, gear surface after high-frequency heat treatment.
5, after precision machining, to ensure the parallelism and positioning accuracy of the axis, all of which constitute a gear drive assembly reducer equipped with various types of motor, the formation of a mechatronic, fully guarantee the use of gear motor product quality characteristics.
Features:
1, parallel output, compact structure, transmission torque, stable work, low noise, long life.
2, Installation: base installation, hollow shaft installation, flange installation, torque arm installation, small flange installation.
3, the basic two-level input and output rotation in the same direction, the three opposite; F / R combination of consultation.
4, the output mode: hollow shaft output or solid shaft output.
5, the average efficiency: two 96 percent, three 94percent, F series / R series combination of the average efficiency of 85percent.
Technical Parameters:

For more information,please contact us

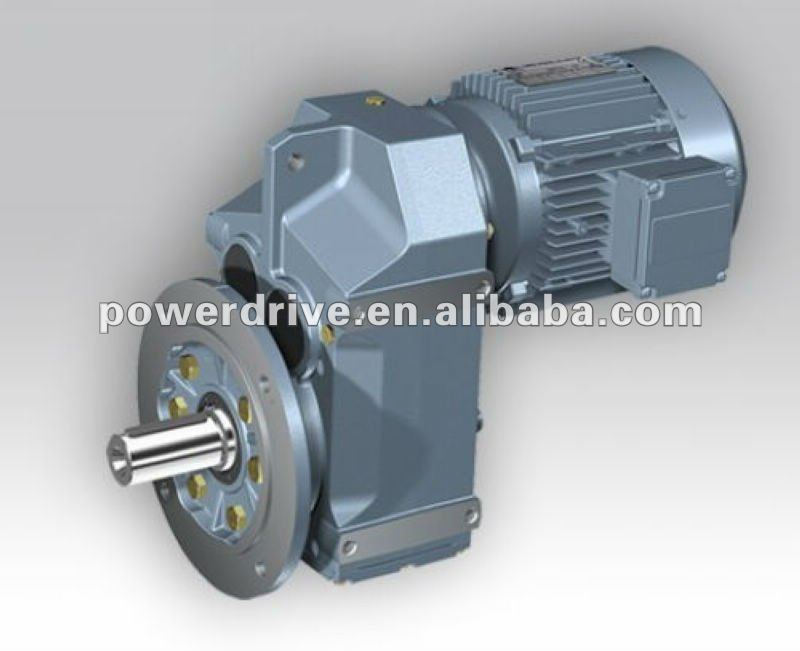

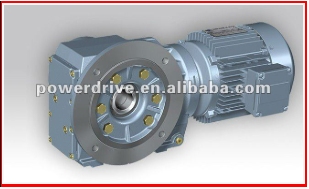

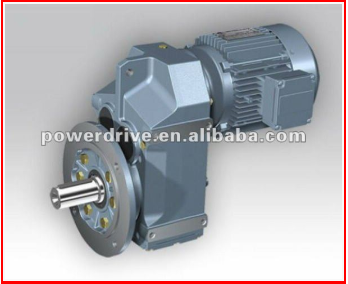

F Series	K Series

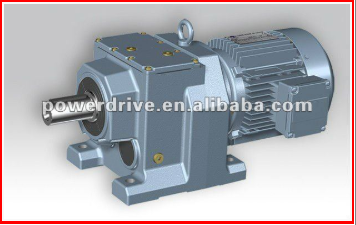

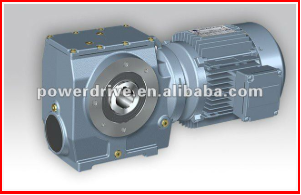

R Series	S Series

Parallel Shaft F K R S Series Helical Bevel Gearbox Reducer Straight Bevel Gearbox

structure type:
F-shaft extension, foot-mounted FF-shaft extension, flange connection
S-axis input FA-shaft mounted coupling

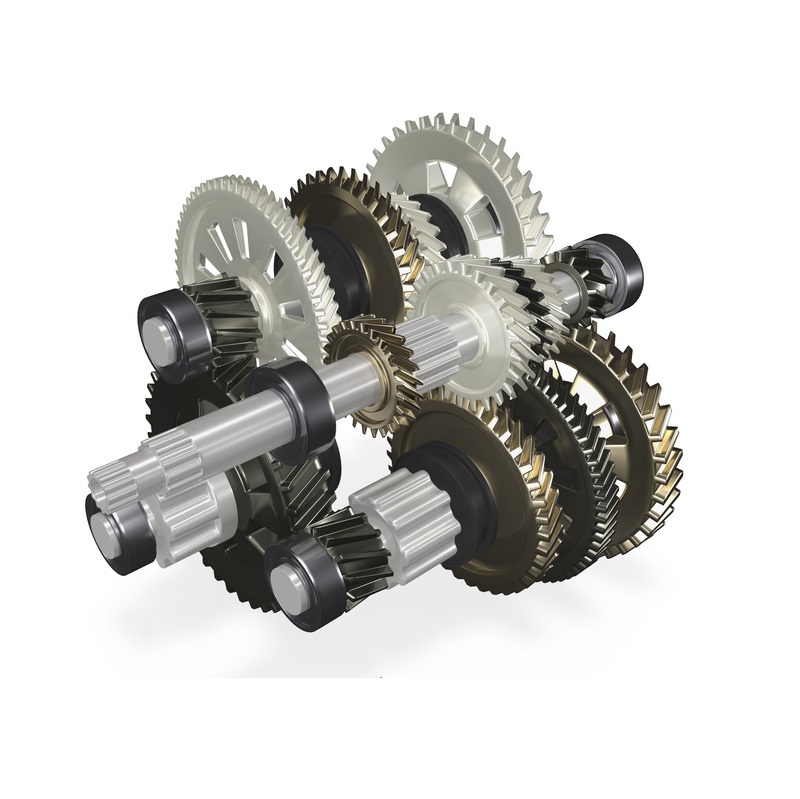

All gear materials used 20CrMnTi, carburized, tooth surface hardness of 58-62HRC, after grinding teeth up to 6 accuracy, to ensure product reliability and low noise. Reducer reducer from 0.09KW-160KW, the output torque up to 20N.M-15000N.M, speed ratio from (with 4-pole motor) 4.3-273, can be divided into two-stage transmission (transmission efficiency up to 96percent), Three-stage transmission (transmission efficiency of up to 94percent); with 6-pole or 8-pole motor can get lower output speed; For lower output speed can be used in combination of two-stage reducer, you can get a lower Output speed (more than ten thousand speed ratio). Above, such as the input coupled with continuous variable speed transmission can achieve more requirements. There are two types of vertical and horizontal installation, the output shaft form solid mandrel, hollow shaft (or non-standard production), can be installed in different directions to use, can be used. In addition can be equipped with different types of motor (ordinary motor, single-phase motor, explosion-proof motor, variable frequency motor, brake motor, etc.). F series parallel shaft helical gear reducer is widely used in food grain machinery, printing and packaging machinery, three-dimensional garage equipment, environmental protection machinery, transportation equipment, chemical equipment, metallurgical mining equipment, steel power equipment, etc.

KAF-shaft, flange mounting

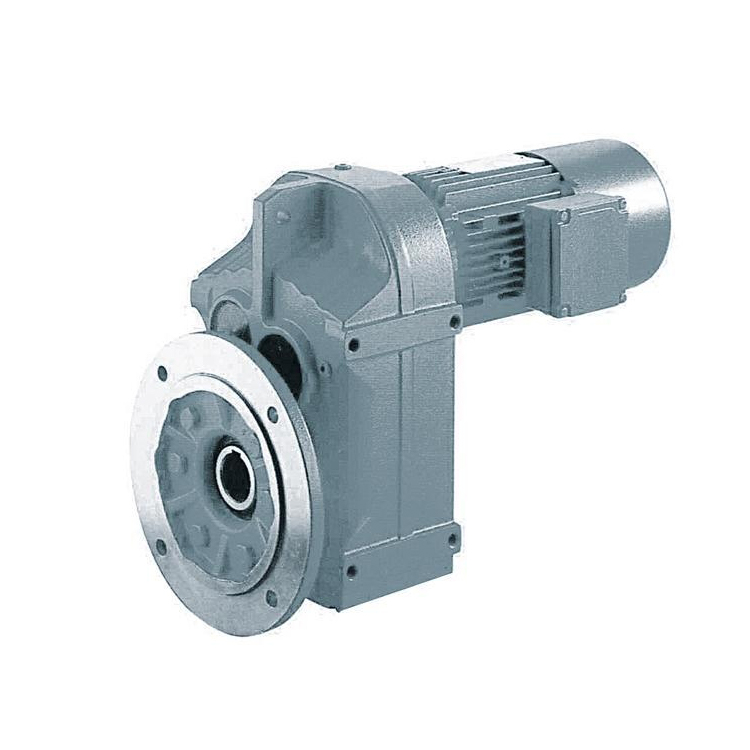

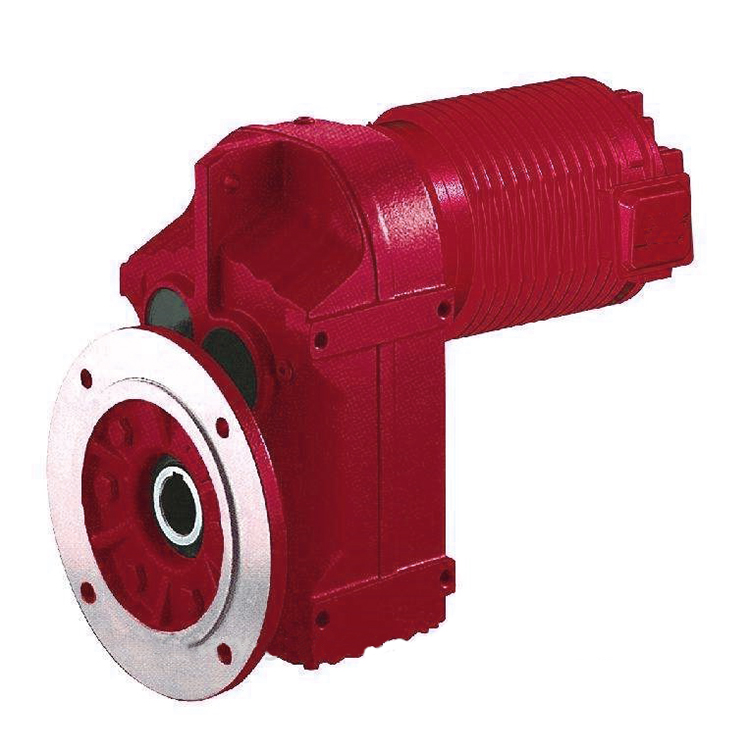

F series parallel shaft helical gearbox
1.Parallel Output
2.compact structure
3.wide transmission torque

ARA series helical bevel gearbox straight bevel gearbox
High efficiency
Competitive price
Wide range of ratio

ARA series helical bevel gearbox straight bevel gearbox

90 Right Angle Bevel Gear Reducer

ARA series helical bevel gearbox straight bevel gearbox

hollow shaft bevel gearbox

aluminum bevel gearbox

Ratio: 1:1,1.5:1 ,2:1 , 2.5:1 ,3:1 ,4:1 , 5:1
Helical Gear Material: 20crmntih and 17crnimo6
Shaft Material: 40cr Forged Steel
Helical Gear Hardness: Hrc58-62
Gear Housing: Cast Iron(Ht250 or Qt450)
Weight: 2-488KG
Product Features:

1, chassis: high rigidity cast iron FC-25;

2, gear: high-quality high-purity alloy quenched 50CrMnT processing by carburizing and grinding together;

3, the spindle: high quality alloy steel 40Cr quenched high purity processing, with hanging load capacity.

4, bearing: with a heavy load capacity tapered roller bearings;

5, Seal: imported oil seal lips, with a high dust and anti-spill.

Features:

ARA series of spiral bevel gearboxes characteristics: small , full installation , light weight, aluminum alloy shell, shaft requires the use of corrosion-resistant steel when ordering . Lubricant has been added at the factory .

ARA Series modular steering box using scientific design, features significant transmission equipment industry is an indispensable product . ARA series steering box excellent performance, light weight , small size, containing material ; rugged, high quality aluminum alloy die casting ; appearance, reasonable design, reverse operation , input and output using multi-dimensional structure, and the output diverse ways . For a wide range of torque, low noise , long life.

Technical parameters:

Power : 0.018KW ~ 4.94KW

Torque : 6.95 ~ 46.8Nm

Transmission ratio : 1:1, 2:1

As a leader manufacturer of industrial motors, speed reducers, drives etc in China, our company hangzhou chainabase has always been adhering to the " leading technology innovation, achieving excellent quality" concept, the main products are: Micro gear motors, medium-size gear motors, Brake speed regulating motors, torque motors, DC motors, NMRV worm motor, helical bevel gear motors, WP RV series worm reducer, rigid tooth flank helical gear units, Helical worm gear units, Parallel shaft helical gear units, Spiral bevel gear units, SWL& JW Worm screw jack, Rigid tooth flank gear units, Planetary gear units etc transmission products, which are widely used in various industrial production lines, Such as transportation machinery, food machinery, medical machinery, printing machinery, textile machinery, packaging machinery, office equipment, instrumentation and other fields, is the preferred supporting products for automation equipments.
