Original Design Manufacturing Grain Harvester Machine Forward Gearbox Marine Reversing Bevel Gearboxes

Harvester Gearbox Reversing Bevel Gearbox

Harvester Gearbox Reversing Bevel Gearbox

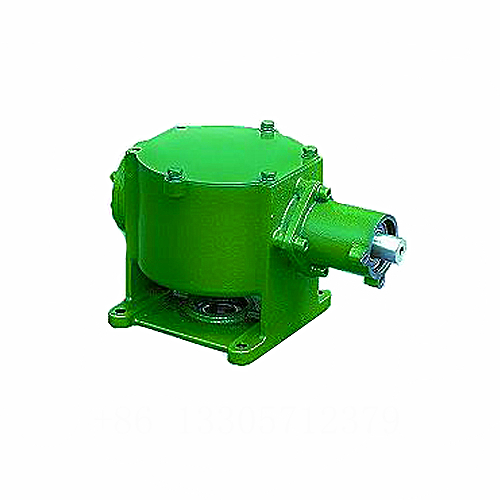

Reversing Bevel Gearbox (used in Grain Harvester Machine)
could offer proper reversing bevel gearbox for customer's grain harvester machine if the application, dimension and input speed and gear ratio are offered by customers.
ODM (original design manufacturing) service is provided when manufacturing reversing bevel gearbox.

The followings are its technical parameters:
Brand Name: Raydafon
Model Number: CB9023
Gearing Arrangement: Bevel I Miter
Output Torque: 81 NM
Rated Power: 15HP
Input Speed: 1300rpm
Output Speed: 1300rpm
Ratio: 1:1
Weight: 1 Skg
Input torque: 81 NM
Housing Material: HT200
Gear Shaft: 40CrMnTi
Input description: Key way shaft
Mould No: 3.5

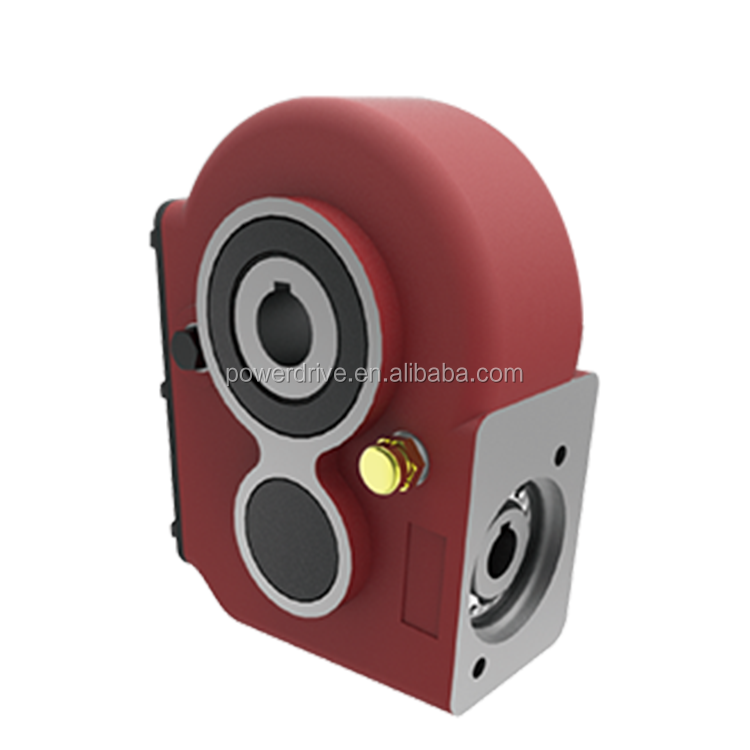

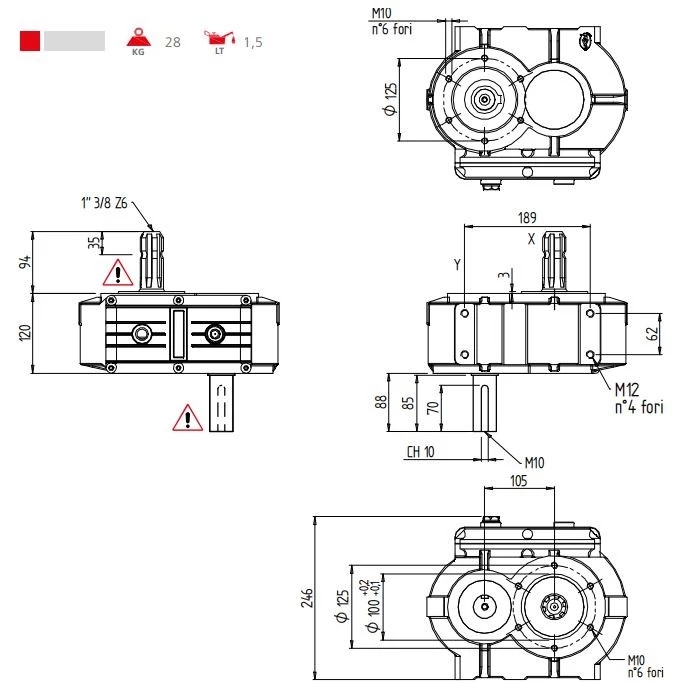

Hydraulic PTO Drive Gearbox Speed Increaser

P.T.O TRACTOR GEARBOXES
The gearboxes series are used mainly for connecting hydraulic pumps to the power take-offs of agricultural tractors. PTO output, standardized at either 540 or 1,000 rpm, is, in this way, increased to optimum operating speeds for the hydraulic pumps. RD series of gearboxes are used to reduce hydraulic motor speed.
ML and B series gearboxes provide the connection for hydraulic pumps to low speed tractor power take off. The standard power take off speed of 540 rpm, is increased by the gearbox ratio to optimal speed conditions required for the pump. Different inputs are accepted under condition that the output speeds don't go over 3000 rpm.Hydraulic PTO driven gearbox for tractor
The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO). Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps. Different input running speeds can also be suitable,provided that the gearbox output speed does not exceed 3000 rpm.

Housing
Made in shell-cast aluminum or in high mechanical resistance cast iron.
Gears
Made in Steel UNI 18 PCR M03.Stub teeth guarantee very high resistance and run very quietly.
Shafts
Made in steel UNI 16 CRN4.They are coupled with gears via splined parts and are thus more suitable to stand the torques stated in the catalogue.
Torques
The torque figures mentioned in the technical charts of all the PTO Gearboxes refer to continuous duty cycles. Torques under intermittent working conditions can be exceeded by 20%.
Lubrication

Detailed Product Description
