Product Description

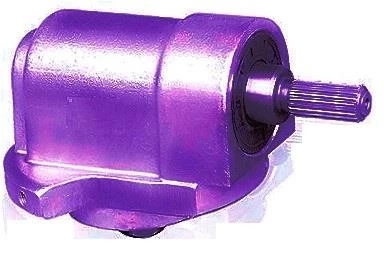

Grain Auger Gearboxes

Auger gearboxes
Auger Boxes. Gearboxes especially designed for use on grain augers
This selection of gearboxes, are designed specifically for use on grain handling augers. But can be used in other situations.
The range includes standard fixed T designs, forward reverse models for direction change and a 45 degree angled box suitable for use on field bins.
Boxes from the genaral purpose section may also suit some applications.
Size for exsamples for items please send us inquire!

design offers:
- Increased HP rating. Now 30 HP @ 540RPM.
- Improved gear selector and shaft assembly.
- Improved internal gear mechanism.
- Mounting holes for safety covers.

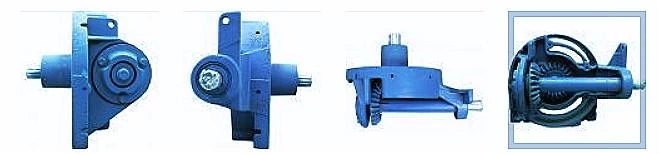

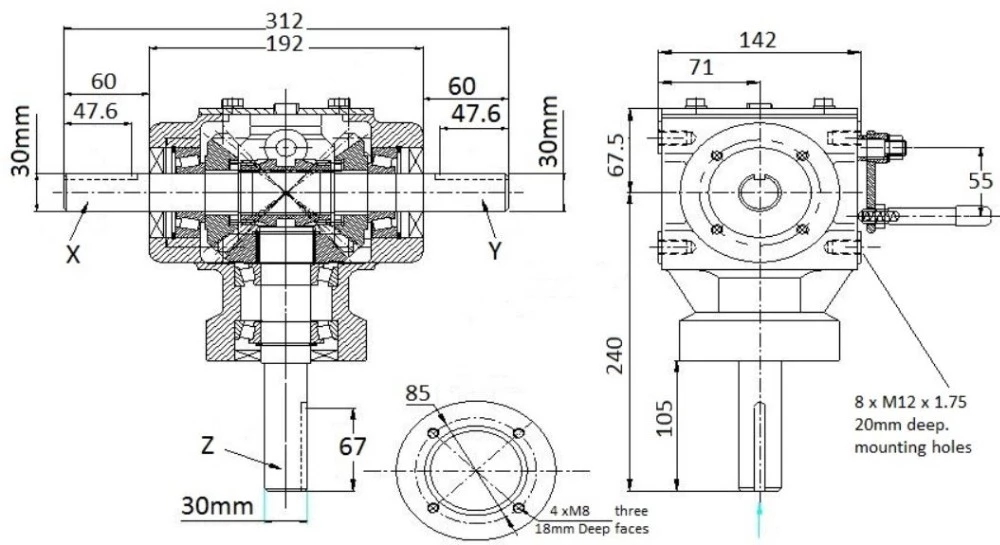

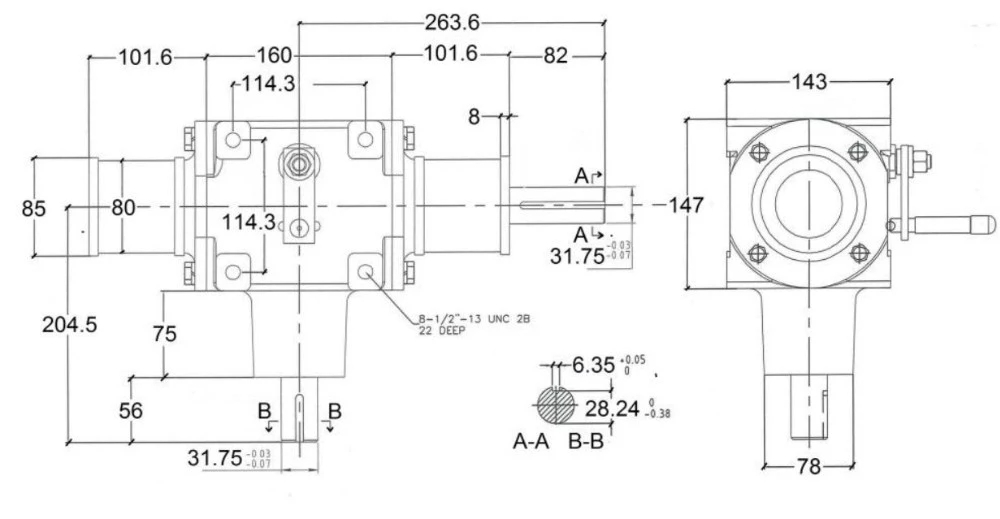

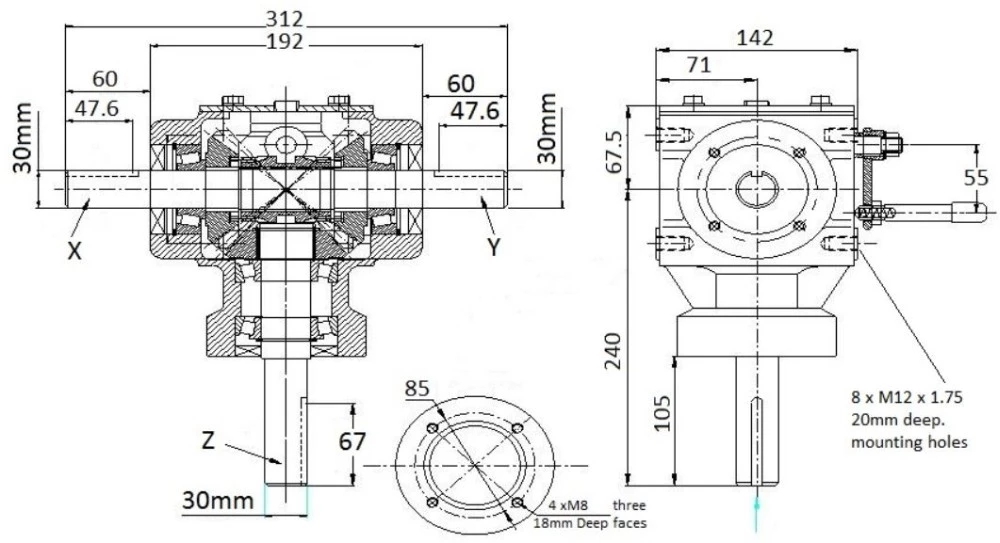

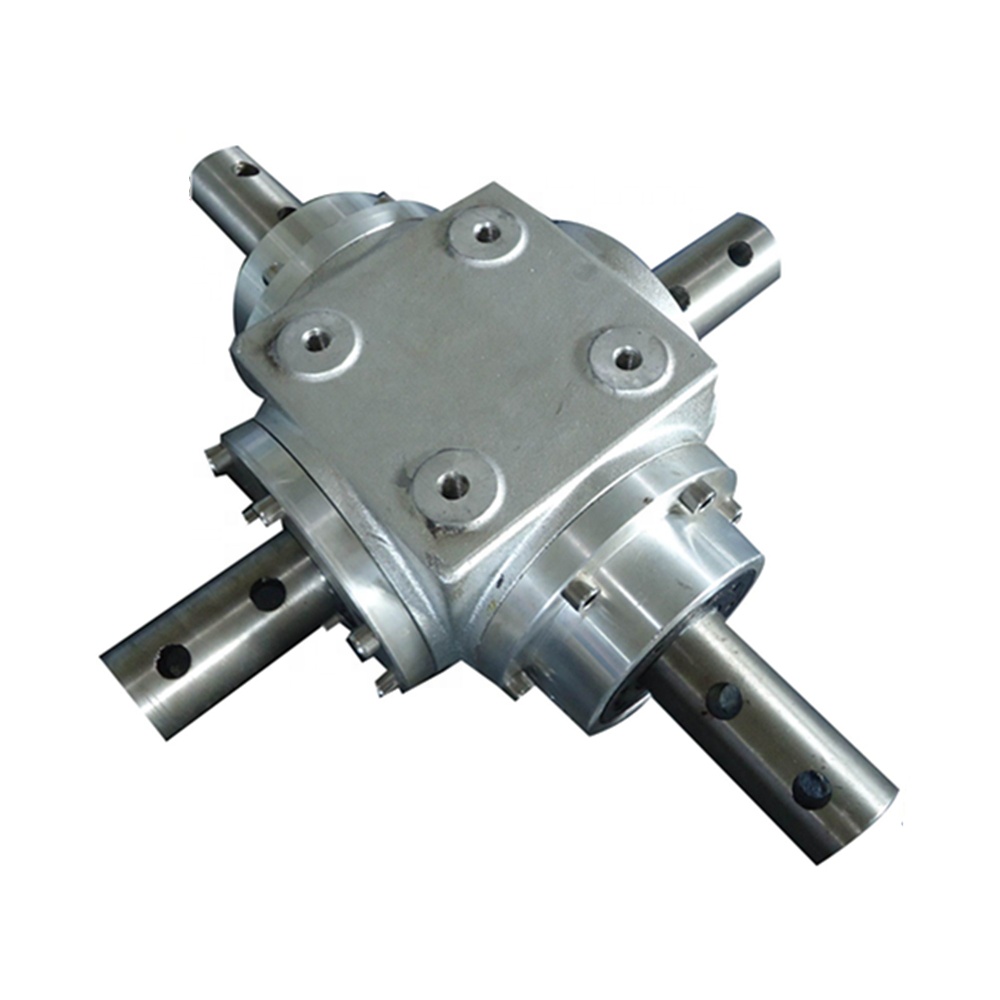

Reversing Gearbox (used In Grain Unloading System)
We could offer proper reversing bevel gearbox for customer's grain unloading system if the application, dimension and input speed and gear ratio are offered by customers.
ODM (original design manufacturing) service is provided when manufacturing 3.5L grain harvester reversing gearbox.

For size please send us inquire!
For Combines - 9400, 9410, 9450, 9500, 9510, 9550, 9560STS, 9600, 9610, 9650, 9650CTS, 9650STS, 9660, 9660CTS, 9660STS, 9750STS, 9760STS, 9860STS and more brand please inquire us!

Especially Designed Speed Reducer Grain Auger Agricultural Gearboxes

Technical parameters
The followings are its technical parameters:
Brand Name:Raydafon
Model Number:EP0083
Application:Agricultural
Material:Iron
Dimensions:Customer Required
Ratio:1:1
Module:Raydafon0083
Housing material:QT450
Gear material:20CrMnTi
Input Speed:customized
Noise:BOdb at lmeter
Transmission power:2.5KW

Detailed Product Description

speed reducer, speed reducers, worm reducers, worm reducer, worm gearbox, worm gearboxes

SIZE	KW	RATIO	A	AB	B	CC	E	F	H	HL	LL	M	N	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																LA	LB	LC	LE	LG	LZ	Q	U	T×V	S	W×Y
50	0.18	1/10 1/20 1/30 1/40 1/50 1/60	155	84	107	50	95	110	180	50	100	120	140	15	11	115	95	140	5	10	M8	25	11	4×12.8	20	6×22.8	8
60	0.37		170	92	117	60	105	120	210	60	120	130	150	20	11	130	110	160	5	12	M8	35	14	5×16.3	25	8×28.3	10.5
70	0.37		206	110	131	70	115	150	243	70	140	150	190	20	15	130	110	160	5	12	M8	35	14	5×16.3	30	8×33.3	17
	0.75															165	130	200		15	M10	45	19	6×21.8
80	0.75		232	128	144	80	135	180	273	80	160	170	220	20	15	165	130	200	5	15	M10	45	19	6×21.8	35	10×38.3	26
	1.5																					55	24	8×27.3
100	1.5		266	145	175	100	155	220	340	100	200	190	260	25	15	165	130	200	5	15	M10	55	24	8×27.3	40	12×43.3	38
120	2.2		340	182	200	120	180	260	405	120	240	230	320	30	18	215	180	250	5	18	M12	65	28	8×31.3	45	14×48.8	60
	3.0
135	3.0		375	200	212	135	200	290	455	135	270	250	350	30	18	215	180	250	5	18	M12	65	28	8×31.3	60	18×64.4	85
	4.0
155	5.5		442	236	312	155	220	320	490	135	290	280	390	38	20	265	230	300	5	20	M12	85	38	10×41.3	70	20×74.9	120
175	7.5		465	240	334	175	250	350	565	160	335	310	430	40	20	265	230	300	6	18	M12	85	38	10×41.3	80	22×85.4
