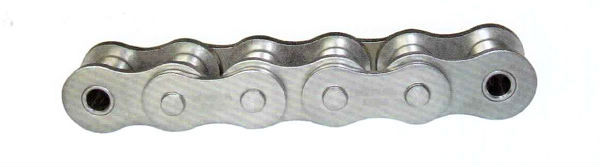

Double pitch Stainless Steel Alloy conveyor roller Chain
| DIN/ISO | ANSI | P | G | L | C1 | C2 | F | d4 | d5 |
| KIN/ISO | ANSL | ||||||||
| Chain | Chain | ||||||||
| No. | No. | mm | mm | mm | mm | mm | mm | mm | mm |
| C205A | C2040 | 25.4 | 19.1 | 9.5 | 13.3 | 14.53 | 20.5 | 4.3 | 4.3 |
| C208AL | C2042 | ||||||||
| C208B | 25.4 | 19.1 | 9.5 | 13.3 | 14.53 | 20.5 | 4.3 | 4.3 | |
| C208BL | |||||||||
| C210A | C2050 | 31.75 | 26.1 | 11.9 | 16.2 | 15.19 | 25 | 5.5 | 5.5 |
| C210AL | C2052 | ||||||||
| C212A | C2060 | 38.1 | 30.1 | 14.3 | 22.82 | 23.1 | 32.9 | 6.4 | 8/6.4 |
| C212AL | C2062 | ||||||||
| C212AH | C2060H | 38.1 | 30.1 | 14.3 | 20.49 | 20.49 | 32.9 | 6.4 | 8/6.4 |
| C212AHL | C2062H | ||||||||
| C216A | C2080 | 50.8 | 40.3 | 19.1 | 30.38 | 30.38 | 43.5 | 6.4 | 8.5/6.4 |
| C216AL | C2082 | ||||||||
| C216AH | C2080H | 5.08 | 40.3 | 19.1 | 30.38 | 30.38 | 43.5 | 6.4 | 8.5/6.4 |
| C216AHL | C2082H | ||||||||
| C220A | C2100 | 63.5 | 49.6 | 23.8 | 35.82 | 35.82 | 50.4 | 9.4 | 9.4 |
| C220AL | C2102 | ||||||||
| C220AH | C2100H | 63.5 | 49.6 | 23.8 | 35.82 | 35.82 | 50.4 | 9.4 | 9.4 |
| C220AHL | C2102H |
C2042SS C208BLSS C2052SS C2062SS C2062HSS C2082SS C2082HSS C2102SS C2102HSS
