Customized OEM ODM the Specifications of Roller Transmission Chain

The Specifications of roller transmission chain

• BICYCLE CHAIN: 408,410,415
• MOTORCYCLE CHAIN: 04C, 25H, 06C, T3, 270H,415H, 420, 420L, 425, 428, 428H, 520, 525, 530
• ASA ROLLER CHAIN: 35, 40, 41, 50, 60, 60H, 80, 80H, 100, 120, 140, 160, 200, 240 (Catalog)
• CHAIN (BRITISH STANDARD): 05-B, 06-B, 08-B, 10-B, 12-B, 16-B, 20-B, 24-B, 28-B, 32-B, 40-B (Catalog)
• LARGE PITCH CHAIN: 100, 100H, 120, 120H, 140, 140H, 160, 160H, 180, 200, 240
• EXTEND-PITCH PRECISION ROLLER CHAINS: 208A, 208B, 210A, 210B, 212A, 212B, 216A, 216B,220A,220B,224A,224B,228B,232B
• ROLLER CHAINS FOR BEER BOTTLINET CONVEYORS: CK-70S,CK-100S,CK-100SA,CK-100SC,CK-133XA, CK-140X, CK-140XA,CK-150X,CK-150S,CK-154X,CK-155X,CK-155XA,CK-160X,CK-160XA,CK-160XB,CK-160XC,CK-165X, CK-165XA, CK-169, CK-180X,CK-180XA,CK-200S,CW-102,CW-127
• IMPLEMENT ROLLER CHAINS FOR CONVEYORS: 81X, 81XH,81XHH,CA550,CA555,CA620

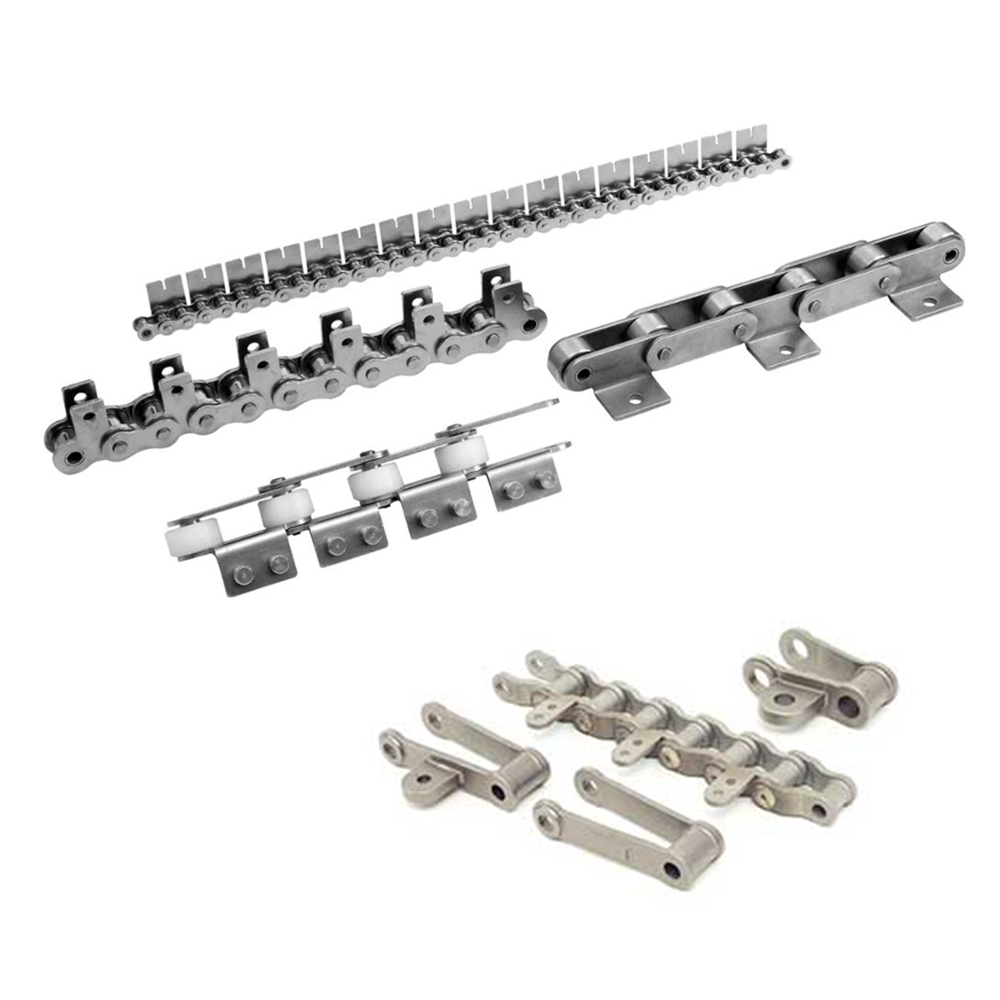

• MULTI STRAND SIZES AVAILABLE; UP TO 5 STRANDS, FOR SELECT SIZES STANDARD ATTACHMENTS AVAILABLE

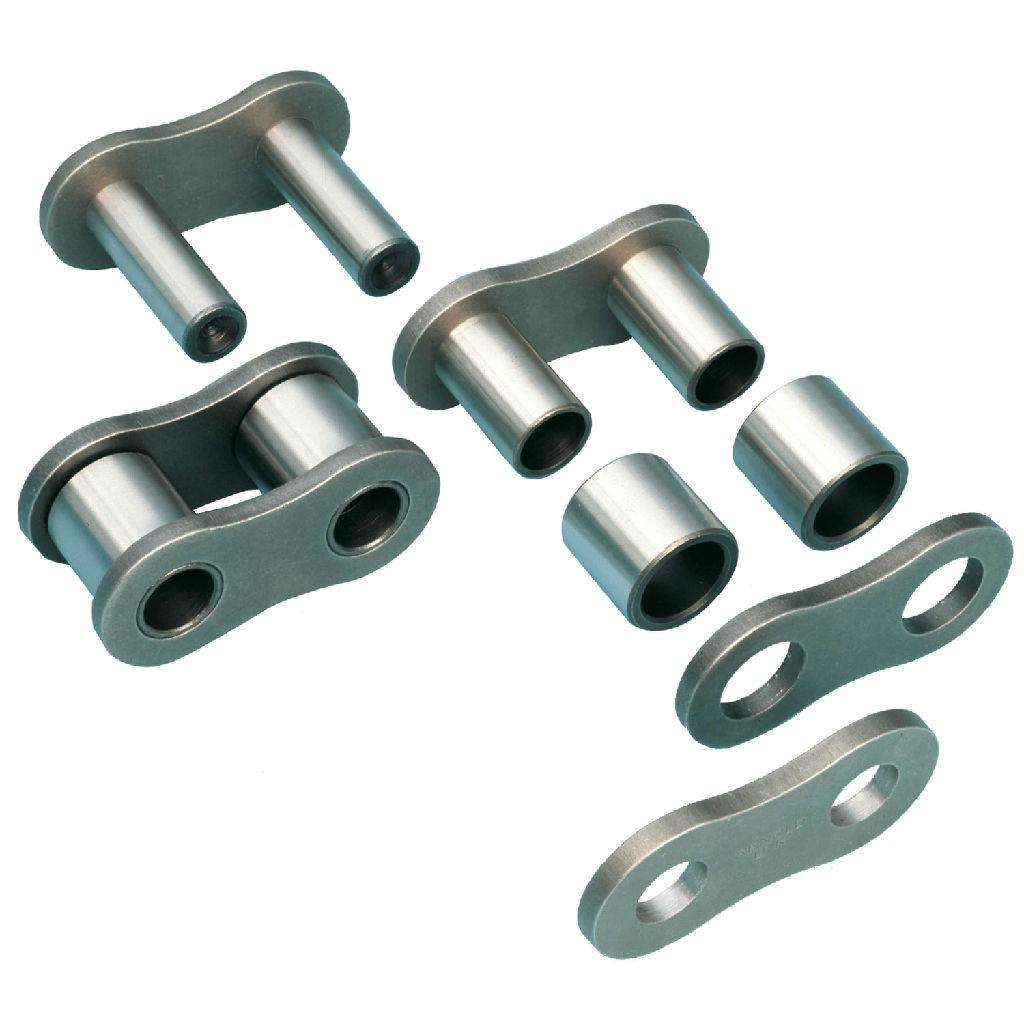

• CHAINS FROM 04B~16B ARE WITH SPRING CLIPS, OTHERS ARE RIVETED; COTTERED DESIGN IS AVAILABLE FOR SIZES 80 to 240
• STAINLESS STEEL AND NICKEL PLATED CHAIN IS AVAILABLE; SPECIAL DESIGN ALSO AVAILABLE (i.e., OVEN CONVEYOR)
• Special Chain size 205, 662, 667H, 667X, 667XC, 667K, 667KC, 667XH, 88K

The above represents some of the common chain sizes offered. Other chain sizes can be considered upon request.

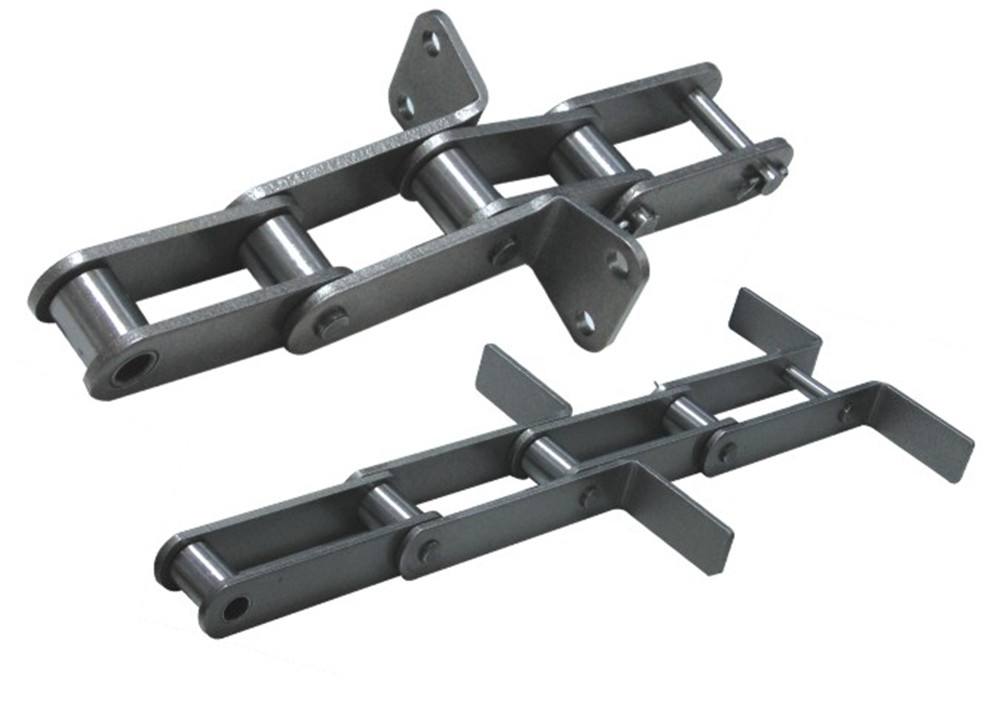

ENGINEERED CHAINS
. offers a full range of both precision roller chain and engineered.

Applications are varied and range from conveyor, elevator transfer to broad general industrial power transmission specialty applications with attachments and/or special materials are also available.

STEEL CHAINS

LEAF CHAINS (LH SERIES)
BL422,BL423,BL434,BL444,BL446,BL466,BL488,BL522,BL523,BL534,BL544,BL546,BL566,BL588,BL622,BL623, BL634,BL644,BL646,BL666,BL688,BL822,BL823,BL834,BL844,BL846,BL866,BL888,BL1022,BL1023,BL1034, BL1044,BL1046,BL1066,BL1088,BL1222,BL1223,BL1234,BL1244,BL1246,BL1266,BL1288,BL1422,BL1423, BL1434,BL1444,BL1446,BL1466,BL1488,BL1622,BL1623,BL1234,BK1644,BL1646,BL1666,BL1688,

LEAF CHAINS (LL SERIES)
LL0822,LL0844,LL0866,LL1022,LL1044,LL1066,LL1222,LL1244,LL1266,LL1622,LL1644,LL1666,LL2022,LL2044, LL2066,LL2422,LL2444,LL2466,LL2822,LL2844,LL2866,LL3222,LL3244,LL3266

HOLLOW PIN CHAINS
40HP,08BHP,50HP,60HP,80HP,2052HP,2062HP,2082HP

TOOTHEN CHAIN
SC3,SC4,SC5,SC6,SC8,SC10

SHORT PITCH TRANSMISSION BUSH CHAINS
04C, 06C

HEAVY DUTY CRANKED LINK CHAINS
2010,2512,2814,3315,3618,4020,4824,1111,1120,1115,1116,1117

SLEEVE CHAINS
04C,06C

BUSH CHAIN FOR MOTO CYCLES CHAINS
25H, 05MC

BUSHED ROLLER CHAIN (PITCH 2.609" to 6.00")
81X, 81XH, 81-XXH, 81-XHH,
990,996,1116,1617,3013,4013,4019,6018,6238

BUSHED STEEL (PITCH 2.609" to 6.00")
5102B, 5110, 5111, 5131, 5150, 5150, 5188

OFFSET DRIVE (PITCH 2.50" to 7.00")
2010,881,2512,2814,3315,3618,4020,4824,5628

RIVETLESS FORGED (PITCH 3.031" to 9.031")
X348, X458, X678, DRIVE DOG ANSI 160

COMBINATION (PITCH 1.631" to 6.050")
C55, C60, C77, Cl02B, Cl10, Cl11, Cl32, Cl88

WELDED (PITCH 2.069" to 6.05")
78, 82, 106, 110, 124, 132,
BOTH "W" AND "WH" SERIES AVAILABLE

DETACHABLE (PITCH 0.904" to 4.06")
25, 32, 42, 45, 51, 52, 55, 62, 62H, 67H, 72;

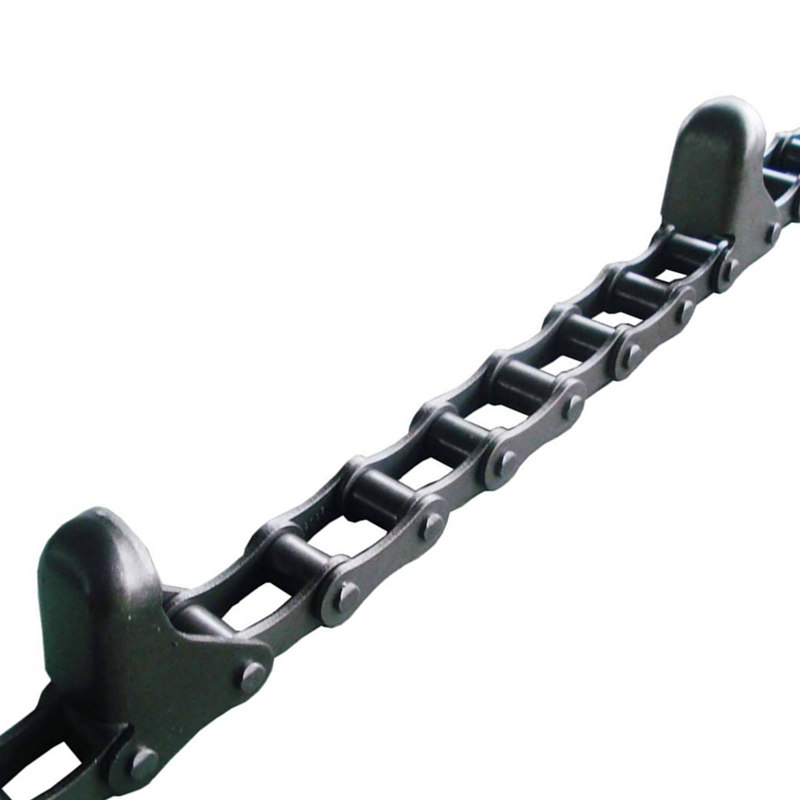

T BAR CHAIN FOR AG APPLICATION

"H" MILL REFUSE AND TRANSFER CHAIN

"H" MILL (PITCH 2.308" to 4.00")
H60, H74, H78, H82, H124
"H" REFUSE (PITCH 5.0" to 8.0")
H102,H1O4,H11O,H112,H12O,H18O
"H" TRANSFER (PITCH 2.308" to 4.06")
H60, H78B, H82, H124, H130, H131, H138
COMBINATION TRANSFER (PITCH 1.631")
C55A,C55B,C55

PINTLE CHAIN

400 CLASS (PITCH 1.375" to 3.075")
442,445,452,462,488,4103
700 CLASS (PITCH 2.970" to 6.00")
720, 7205, 730, W730
900 CLASS (PITCH 2.970" to 3.170")
901,902,907

Malleable cast iron chains:

C class: C55,C55A,C55B,C55D,C77,C102B,C102B-K2,C131,C188,C188-K2,BRH188
H class:H60,H78,H78A,H78B,H82,H130,H138
4 class:462,477,488,488K1,488K1-K2,4103,4103-F29
7 class:720
9 class:907-E51
Detachable Chains: 103
Welded Steel Chains:SS188-A1;SS188;WH78

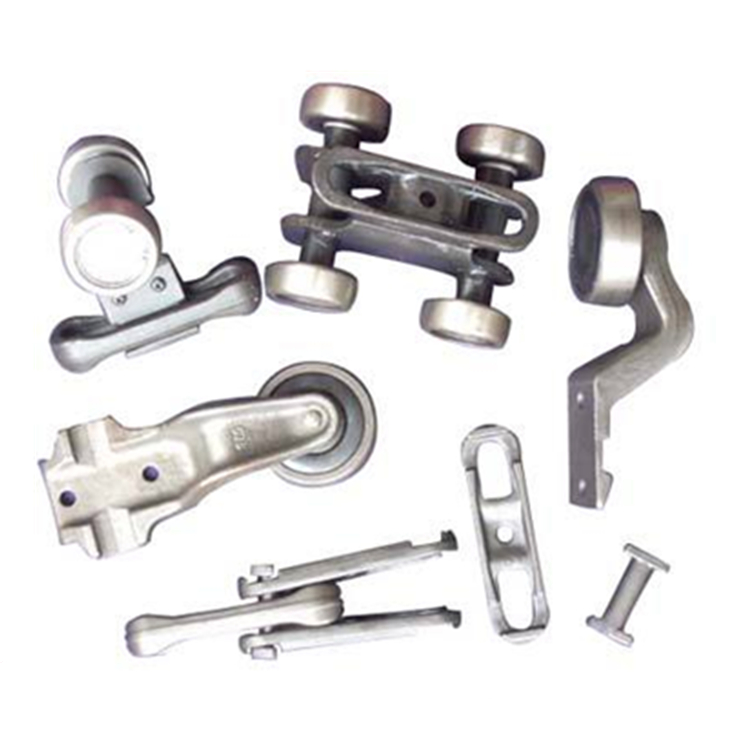

Drop Forged Chains:NR348
Others:CC600;C188-CP
