ANSI standard stainless steel roller chain for power transmission
Our ansi roller chain meet ot exceed DIN,ANSI,ISO, BS,JS standard,and our chians stand up to the toughest working environments with years of trouble-free performance.
Sourcing from us brings you profit, and your OEM/ODM items are always welcomed,looking forward to establish win-win business relations with you in the near future.
ANSI standard roller chain
high quality and low price
pls feel free to contact with us if you have any problem
ANSI and B/S standard roller chains in carbon steel and stainless steel.

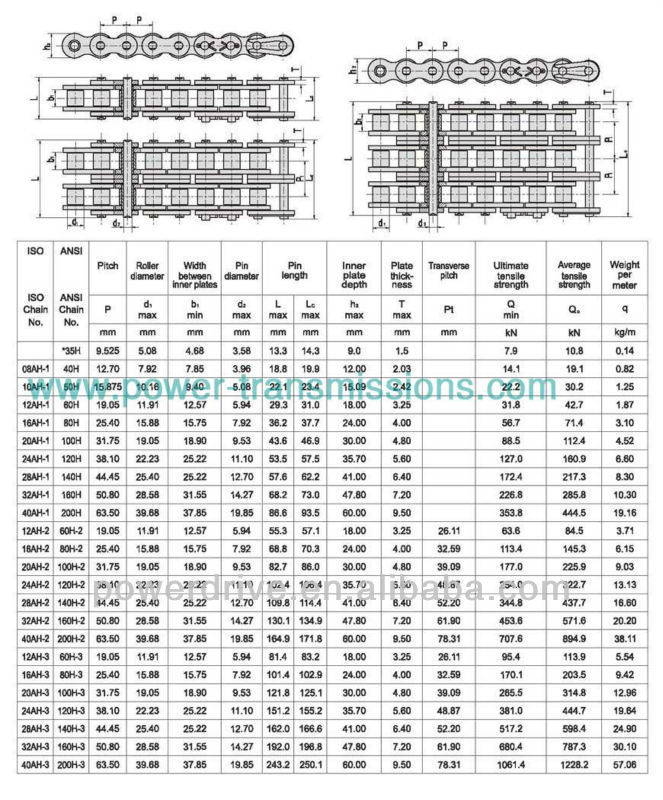

specifications:25,35,41,40,50,60,80,100,120,140,160,180,200,240,04B,05B,06B,08B,10B,12B,16B,20B,24B,28B,32B,40B,48B,56B,64B,72B.
The straight side plate and heavy duty(reinforced) chains are also available.
roller chains,transmission chains,industrial chains
driving chain,heavy duty chain:
1advanced technology, advanced equipment
2high technical capabilities
3employ experienced technical and management personnel
4)through the efforts of the entire company
5)environmengtally-friendly
6)our products are exported to Europe,America and other countries.
7) IS9001 certification
8)reasonable prices and lead time,satisfactory after-saless service
9)Mutual development,mutual benefits.
ROLLER
Solid Roller
Material 1035,1045 or 1050
Through harden with surface and core 40-45HRC
Shot peening per the spec
BUSHING
Solid or Split Bushing per the spec
Material 1019M or 1022
Case harden(Carburized) 89HR 15Minimum
Hardness total case depth per the spec
CASE HARDENED PIN
Material 10B21 fine grain, 4118 or 8620
Case harden(Carburized) 89HR 15Minimum
Hardness total case depth per the spec
PLATE(Connectors, Links and Sides )
Material 1045 or 1050
Through harden with surface and core 39-45HRC
Shot peening per the spec
With over 20 years experience in mechanical line, Raydafon Technology Group Co.,Limited has been outstanding us from other suppliers in China by our advantages in unbeatable price-quality ratio, punctual delivery, fast responses, on-hand engineering support and good after-sales services. Additionally, all Raydafon production procedures are in compliance with ISO9002 Quality Management System, ISO9001 Quality Management System, API certificate, ISO/TS16949:2002 and ISO10012 measurement management system.
| Raydafon Technology Group Co.,Limited is a group of factories, give customer one stop solution of power transmission and industrial products. We are in the position to supply wide range of products, including chains, sprockets, v-belt and v-belt pulleys, timing belt and timing belt pulleys, gears, speed reducers, motors, racks, couplings, and many other parts, like locking assembly, taper bushing, Chain guide, shaft collar, torque limiter, cam clutch, universal joint, motor base and motor slide, rod end, clevis, rubber mount, etc. We make special parts according to drawings and/or samples. |
