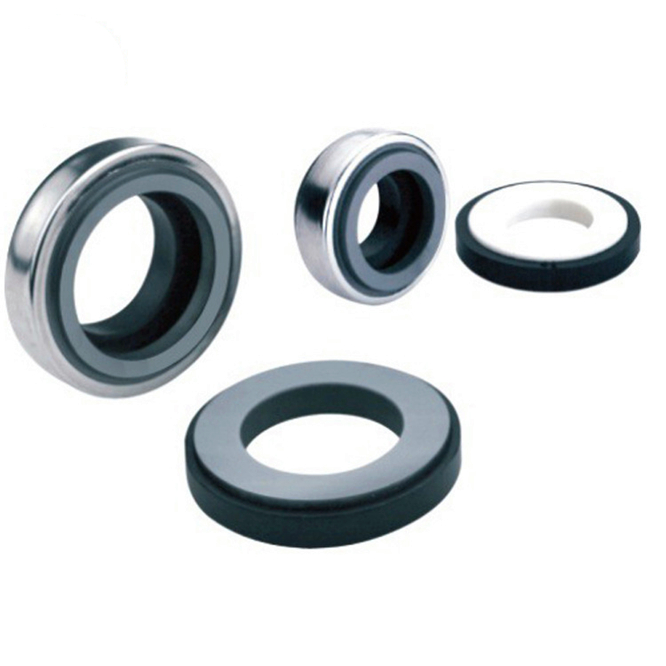

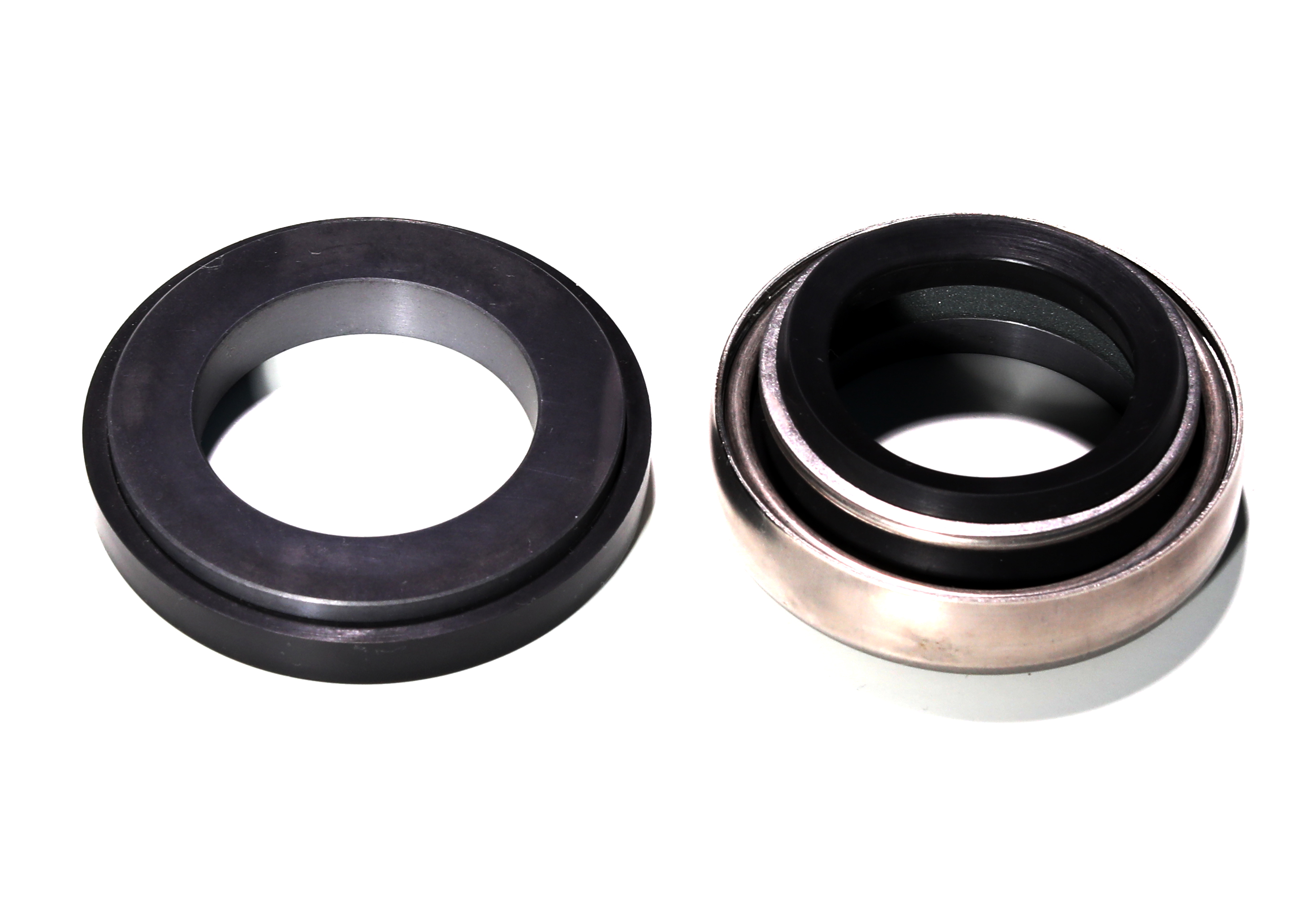

301 Series Water Pump Mechanical Seals

Temperature: -30°C~200°C
Pressure: ≤0.6Mpa
Linear velocity: 10m/s

Materials for Mechanical Seals:
*Face Materials: Carbon Graphite / Silicon Carbide/ Tungsten Carbide
*Secondary Seal Components: NBR/VIITON/EPDM
*Spring and Construction Materials: Stainless Steel

The 301 seal is named BT-AR in Burgmann, The BT-AR combines a spring loaded ceramic face with the tradition of the pusher mechanical seals, the competitive price and the wide range of application have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening

The wide range of application have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening.

FLEX MECH-SEAL(CHINA) Co.,Ltd. is subsidiary of Raydafon Technology Group Co.,Limited, specialized in mechanical seals products including for auto cooling pump mechanical seals, for automobile air-compress mechanical seals,for pump mechanical seals and for industry pump mechanical seals. We consistently demonstrated our passion for its reputation as a reliable and stable manufacturer of superior quality products and passed ISO9001, ISO14001 & ISO/TS16949, becoming the appointed OEM suppliers of famous domestic and overseas enterprises, 80% products are exported to outside and receive respected honor.
