Bevel Gear Drives Raydafon gearboxes are designed to be interchangeable with others. . . only better.Our aluminum split case design provides significantly lower weight, improves heat dissipation and reduces costs.In addition, our right angle gear drives feature taper roller bearings and AGMA Class 8 precision forged gears, which are stronger and tend to run quieter than those found in typical bevel gear drives.You also receive better than competitive pricing, and same day shipment on selected gearboxes.

These features make product and economic advantages possible, while enhancing overall quality. Shims are unnecessary Bearing preload and endplay are predetermined and preset Gear lash and gear mesh are preset Stronger aluminum gearcase Aluminum housings increase thermal capacity Stronger gears and shafting 100% final inspection Engineered with the latest industry software

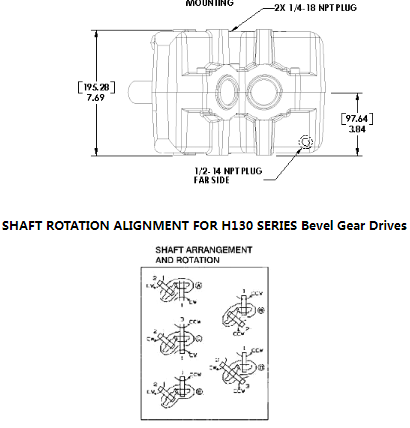

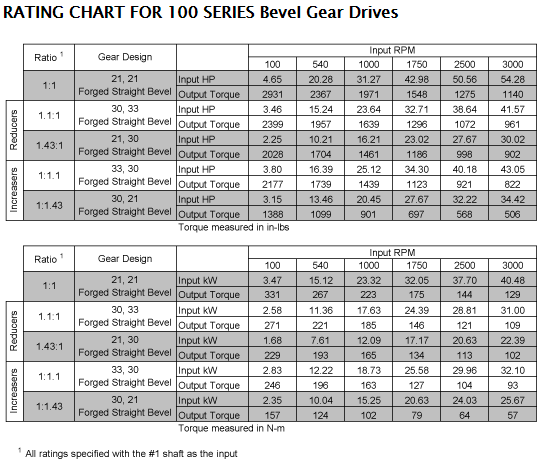

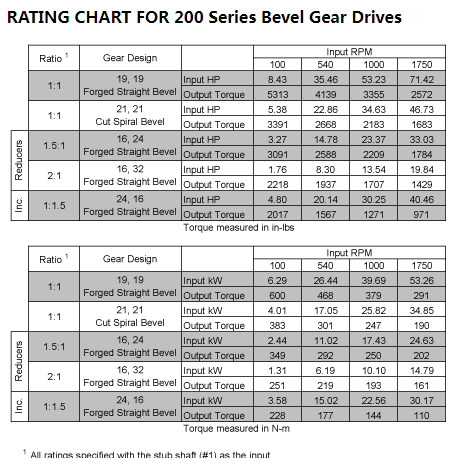

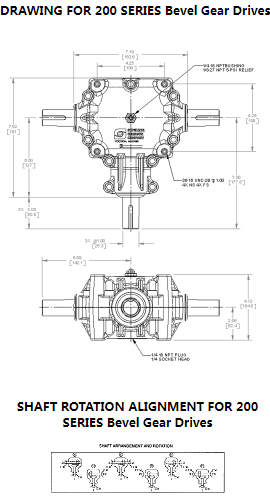

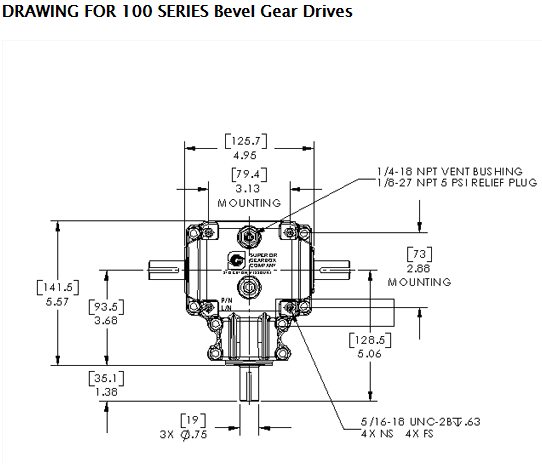

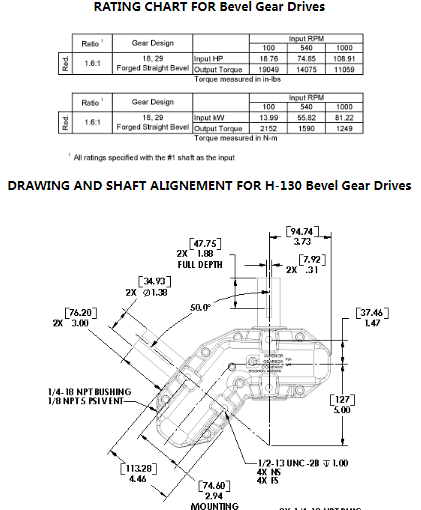

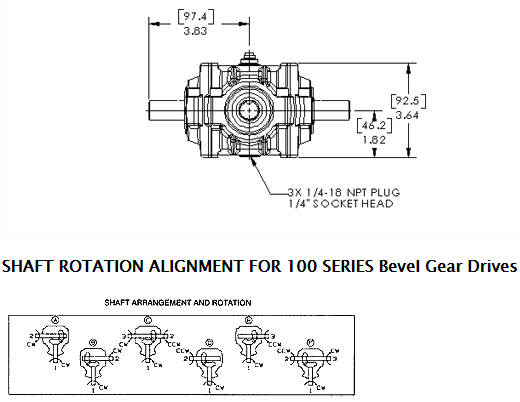

100 SERIES Bevel Gear Drives 200 SERIES Bevel Gear Drives 500 SERIES Bevel Gear Drives 600 SERIES Bevel Gear Drives 700 SERIES Bevel Gear Drives H130 SERIES Bevel Gear Drives

500 Series Bevel Gear Drives

Features:

• Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
• Precision machined for exact gear mesh and bearing preload
• Precision forged gears are offered in four ratios: 1:1, 1.35:1, 1.5:1 and 2:1
• Spiral bevel available in 1:1
• Tapered roller bearings provide increased load capacity and bearing life
• 1.375" shaft made of high strength steel standard
• Filled with 80W90 gear lubricant and leak tested before shipment
• The 500 Series weighs 25/30 lbs. including oil
• Contact Raydafon Gearbox for your special requirements

600 Series Bevel Gear Drives

Features:

• Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
• Precision machined for exact gear mesh and bearing preload
• Precision forged gears are offered in six ratios: 1:1, 1.18:1, 1.35:1, 1.5:1, 1.86:1 and 2:1
• Tapered roller bearings provide increased load capacity and bearing life
• 1.75" shaft made of high strength steel standard
• Filled with 80W90 gear lubricant and leak tested before shipment
• The 600 Series weighs 60/70 lbs. including oil
• Contact Raydafon Gearbox for your special requirements

700 Series Bevel Gear Drives

Features:

• Two-piece aluminum housing for high strength, corrosion resistance, and thermal capacity
• Precision machined for exact gear mesh and bearing preload
• Precision forged gears are offered in a 3:1 ratio
• Tapered roller bearings provide increased load capacity and bearing life
• 1.75" input shaft and 2.75" output shaft made of high strength steel standard
• Filled with 80W90 gear lubricant and leak tested before shipment
• The 700 Series weighs approximately 120 lbs. including oil
• Contact Raydafon Gearbox for your special requirements
