OEM ODM Acceptable Bike Motorcycle Roller Chains

Bicycle and Motorcycle chains 04C 04CH 219H T8F 270H T3F 475 410 415 415H 420 420H 428 428H 520 520H 525 525H 530 530H 630 630H Made to ANSI B 29.3 specifications. These are characterized by the figure 8 contour link plates and are similar to the bas

Send Inquiry

Product Description

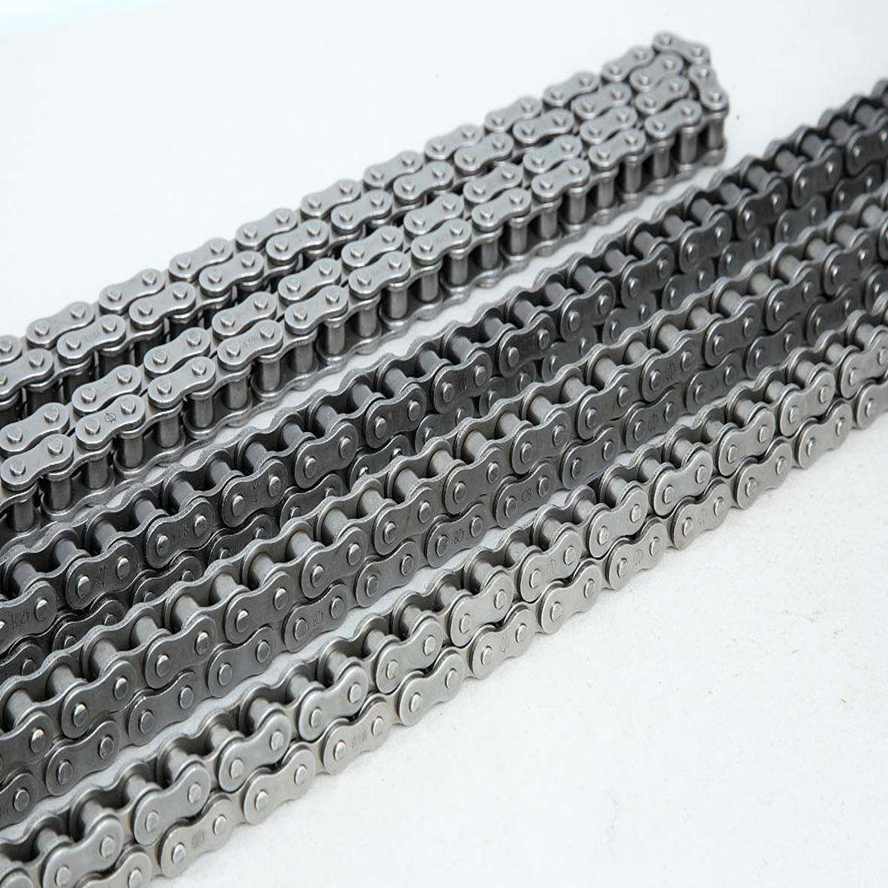

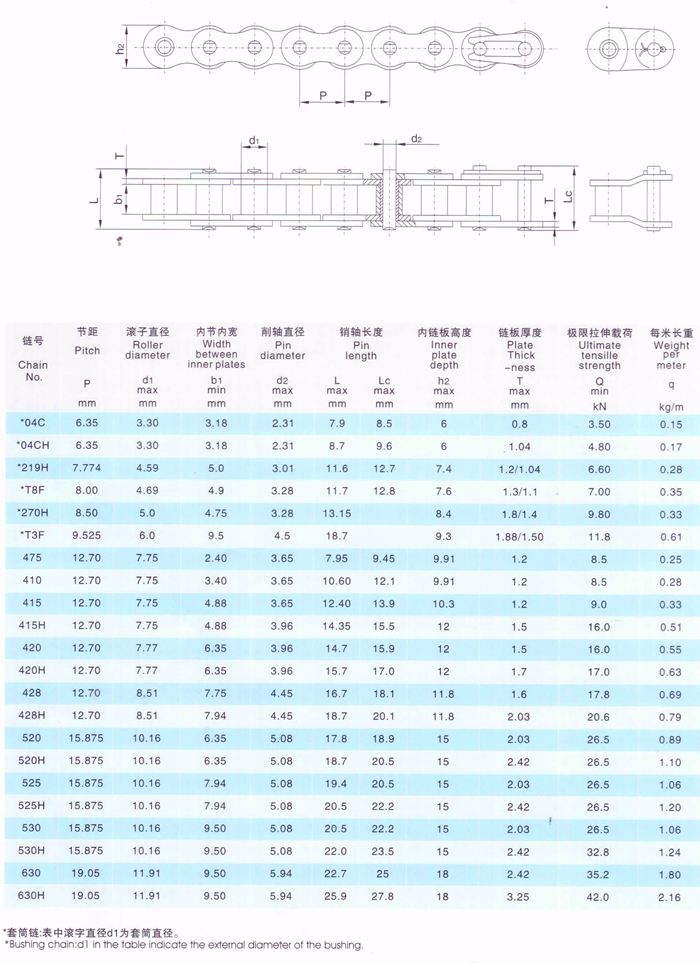

Bicycle and Motorcycle chains

04C	04CH	219H	T8F	270H	T3F	475	410
415	415H	420	420H	428	428H	520	520H
525	525H	530	530H	630	630H

OEM ODM Acceptable Bike Motorcycle Roller Chains

Made to ANSI B 29.3 specifications. These are characterized by the figure 8 contour link plates and are similar to the basic series roller chains dimensionally except that the pitch is double.

ANSI Chain Number	Chain Pitch P	Inner Width W	Roller Dia. D	d	L1	L2	Link Plate Thickness T	Approx. Weight (lbs./ft)	Tensile Strength Ave.(lbs.)	ANSI Chain Number
A2040	1	5/16	.312	.156	.68	.76	.060	.28	3700	A2040
A2050	1-1/4	3/8	.400	.200	.84	.92	.080	.52	6100	A2050
A2060	1-1/2	1/2	.469	.234	1.05	1.11	.094	.72	8500	A2060
A2080	2	5/8	.625	.312	1.32	1.44	.125	1.13	14500	A2080
