Product Description

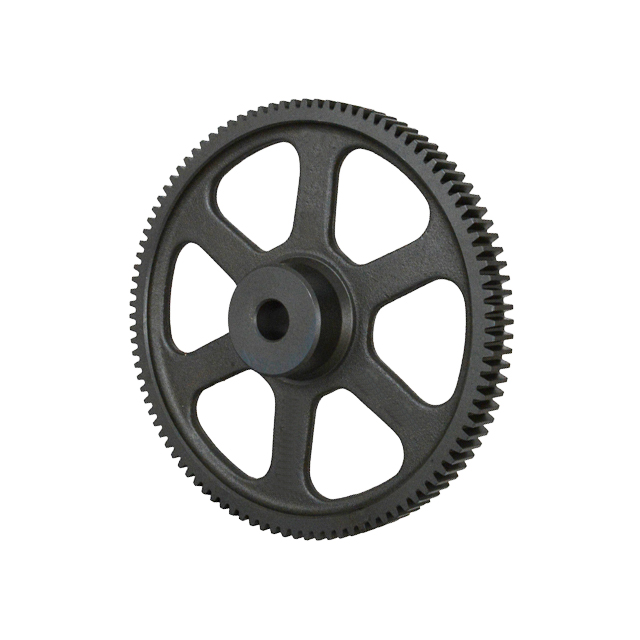

Cast Iron Sprocket/Cast Iron Chain Wheel

06B-1-2-3	081B-1	083B-1	084B-1	085B-1	086B-1
08B-1-2-3	10B-1-2-3	12B-1-2-3	16B-1-2-3	20B-1-2-3	24B-1-2-3

Hangzhou Raydafon has passed all tests laid down by ISO 9001 and all the products are according to din regulations, such as DIN 8187; DIN 8188; ISO/R 606 and ANSI B 29.1.

We specialize in: chain sprocket, taper lock sprockets, casting sprockets, chains wheels and so on.

Any needs for European Series Sprockets, American Series Sprockets or Japan Series Sprockets please send email to us.

Custom orders are also welcome.

European Standard Cast Iron Sprocket,Cast Iron Chain Wheel

european standard sprockets	DIN stock bore sprockets & plateheels	03B-1 04B-1 05B-1-2 06B-1-2-3 081B-1 083B-1/084B-1 085B-1 086B-1 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3 28B-1-2-3 32B-1-2-3
	DIN stock bore sprockets & plateheels	03A-1 04A-1 05A-1-2 06A-1-2-3 081A-1 083A-1/084A-1 085A-1 086A-1 08A-1-2-3 10A-1-2-3 12A-1-2-3 16A-1-2-3 20A-1-2-3 24A-1-2-3 28A-1-2-3 32A-1-2-3
	DIN finished bore sprockets	06B-1 08B-1 10B-1 12B-1 16B-1 20B-1
	stainless steel sprockets	06B-1 08B-1 10B-1 12B-1 16B-1
	taper bore sprockets	3/8"×7/32" 1/2"×5/16" 5/8"×3/8" 3/4"×7/16" 1"×17.02mm 1 1/4"×3/4"
	cast iron sprockets	06B-1-2-3 081B-1 083B-1/084B-1 085B-1 086B-1 08B-1-2-3 10B-1-2-3 12B-1-2-3 16B-1-2-3 20B-1-2-3 24B-1-2-3
	platewheels for conveyor chain	20×16mm 30×17.02mm P50 P75 P100
	table top wheels	P38.1
	idler sprockets with ball bearing	8×1/8" 3/8"×7/32" 1/2"×1/8" 1/2"×3/16" 1/2"×5/16" 5/8"×3/8" 5/8"×3/8" 5/8"×3/8" 3/4"×7/16" 3/4"×7/16" 1"×17.02mm 1 1/4"×3/4"
	double simplex sprockets	06B-1 08B-1 10B-1 12B-1 16B-1
american standard sprockets	ASA stock bore sprockets	25 35 35-2 35-3 41 40 40-2 40-3 50 50-2-50-3 60 60-2 60-3 80-80-2 80-3 100 100-2 100-3 120 120-2 120-3 140 140-2 160 160-2 180 200 200-2 240
	finished bore sprockets	35 41 40 50 60 80 100
	stainless steel sprockets	25 35 40 50 60
	double single sprockets&single type Csprockets	40 50 60 80
	taper bore sprockets	35 35-2 41 40 40-2 50 50-2 60 60-2 80 80-2 100 120 140 160
	double pitch sprockets	2040/2042 2050/2052 2060/2062 2080/2082
	sprockets with split taper bushings	35 41 40 40 40-2 40-3 50 50-2 50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 120 120-2 140 160 200
	sprockets with QD bushings	35 35-1 35-2 41 40 40-2 40-3 50 50-2 50-3 60 60-2 60-3 80 80-2 80-3 100 100-2 100-3 120 140 160 200
japan standard sprockets	JIS stock sprockets	25 35 40 50 60 80 100 120 140 160
	finished bore sprockets	FB25B FB35B FB40B FB50B FB60B FB80B FB100B FB120B
	double single sprockets	40SD 50SD 60SD 80SD 100SD
	double pitch sprockets	2042 2052 2062 2082 2040 2050 2060 2080
	speed-ratio sprockets	C3B9N C3B10N C4B10N C4B11 C4B12 C5B10N C5B11 C5B12N C6B10N C6B11 C6B12
	idler sprockets	35BB20H 40BB17H 40BB18H 50BB15H 50BB17H 60BB13H 60BB15H 80BB12H
	table top sprockets	P38.1

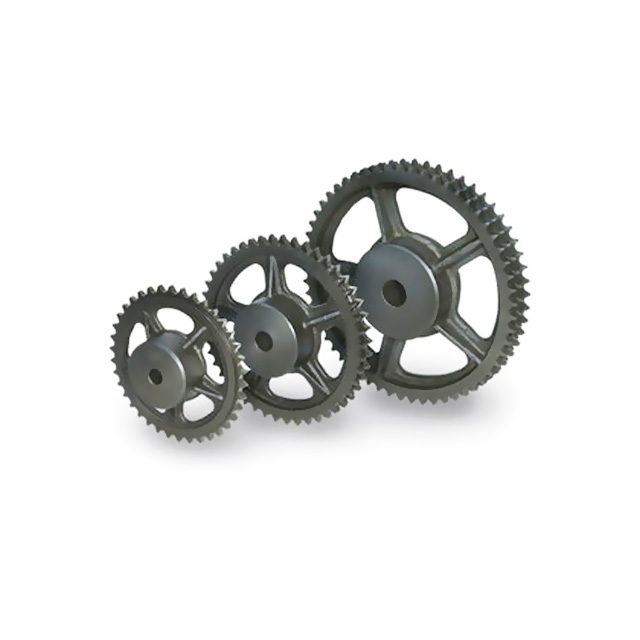

Cast Iron Sprockets
Cast iron wheels represent the right solution in case big sprockets are needed. here following the complete range of cast iron wheels divided by different pitch.

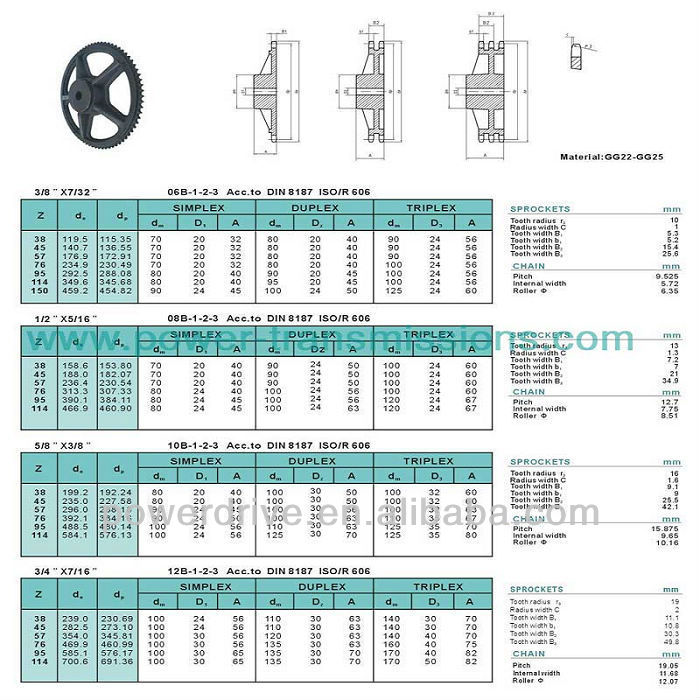

3/8"x7/16" (ISO 06B-1; 06B-2; 06B-3)
1/2″x5/16" (ISO 08B-1; ISO 08B-2; ISO 08B-3)
5/8"x3/8" (ISO 10B-1; 10B-2; 10B-3)
3/4″x7/16" (ISO 12B1; 12B2; 12B-3)

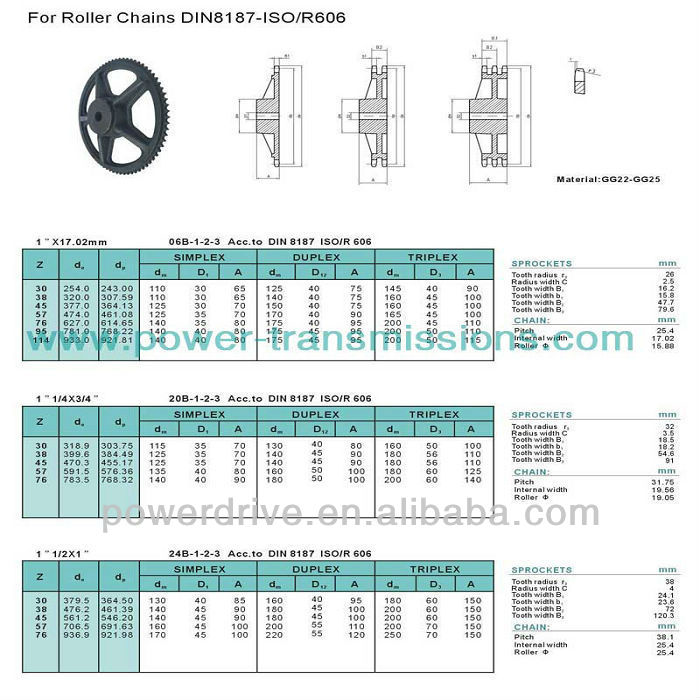

1"x17,02 mm (ISO 16B-1; 16B-2; 16B-3)
1"1/4×3/4" (ISO 20B-1; 20B-2; 20B-3)
1"1/2×1" (ISO 24B-1; 24B-2; 24B-3)

The type of bushes varies according to the dimension and power transmission of the cast iron wheel and it is included in the following range:

2012
2517
2525
3020
3030
3535
4040
4545
5050
