Product Description

GUP nylon inserted nut Groove nuts GNM DIN70825

Precision locknuts KMTA For axial locking	Slotted round nut SPM DIN1804	Precision locknuts KMT For axial locking	Groove nuts GNM DIN70825
ZM,ZMA radial locking LOCKNUTS	HMZ LOCKNUTS	zmv Precision lock nuts	DZM Precision lock nuts
Locknuts KM DIN981	Nylon self locknuts GUK	BSR(MSR)/BSK(YSK)	Precision locknuts KMTA

GUP Nylon Insert Locking Nuts are suitable for similar applications as the ‘KM Series’ locknut.The addition of the nylon insert, located towards the top of the nut, deforms over the mating thread and captures the bolt or stud. This provides a locking feature, causing resistance – or prevailing torque – keeping the nut locked into position and resistant to vibration.In addition to the polyamide insert locking feature, GUP Locking Nuts have four equally spaced slots machined into the outer diameter of the nut, which enable the nut to be secured into position using the appropriate tab washer, by bending the tab into the slots.These locknuts are not suitable in applications with high temperatures.

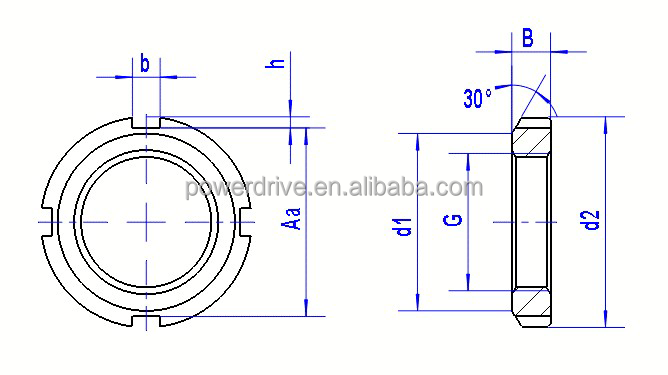

size	d2	d 1	h	m	b	t	slot NO.
M 20x1	32	27	13,2	9,6	4	2,5	4
M 25x1,5	38	33	14,2	10	5	2,5	4
M 30x1,5	44	38	14,2	10	5	3	4
M 35x1,5	50	44	15,2	10,6	5	3	4
M 40x1,5	56	50	16,7	11,9	6	3	4
M 45x1,5	62	55	16,7	11,9	6	3,5	4
M 50x1,5	68	61	18,7	13,9	6	3,5	4
M 55x2	75	68	18,7	12,9	7	3,5	6
M 60x2	80	73	18,7	12,9	7	3,5	6
M 65x2	85	77	19,7	13,9	7	4	6
M 70x2	92	84	19,7	13,9	8	4	6
M 75x2	98	89	20,7	14,9	8	4,5	6
M 80x2	105	96	20,7	14,9	10	4	8
M 85x2	110	100	21,7	15,9	10	5	8
M 90x2	120	110	21,7	15,9	10	5	8
M 95x2	125	115	22,2	17,1	10	5	8
M 100x2	130	120	24,2	18,4	10	5	8
