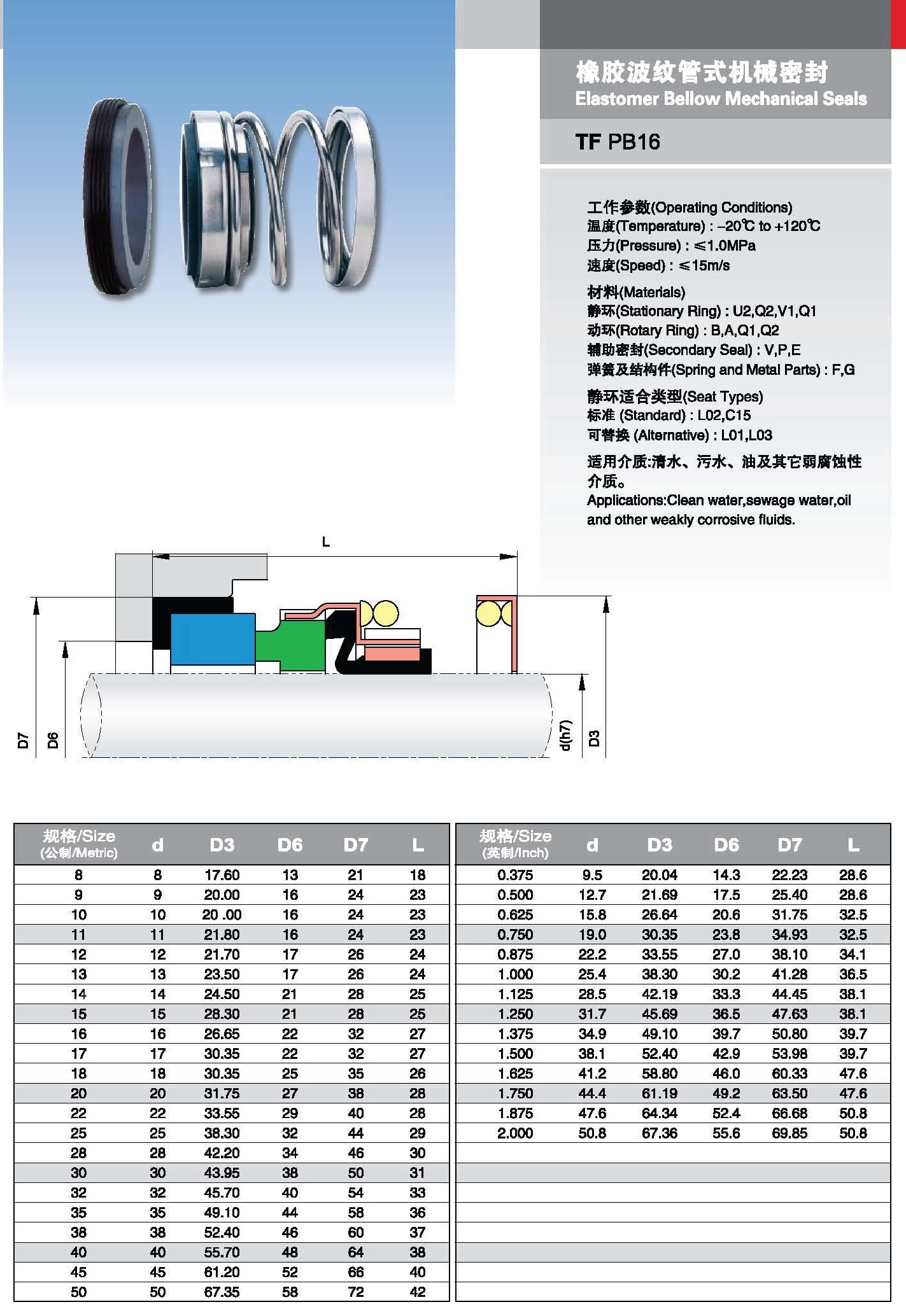

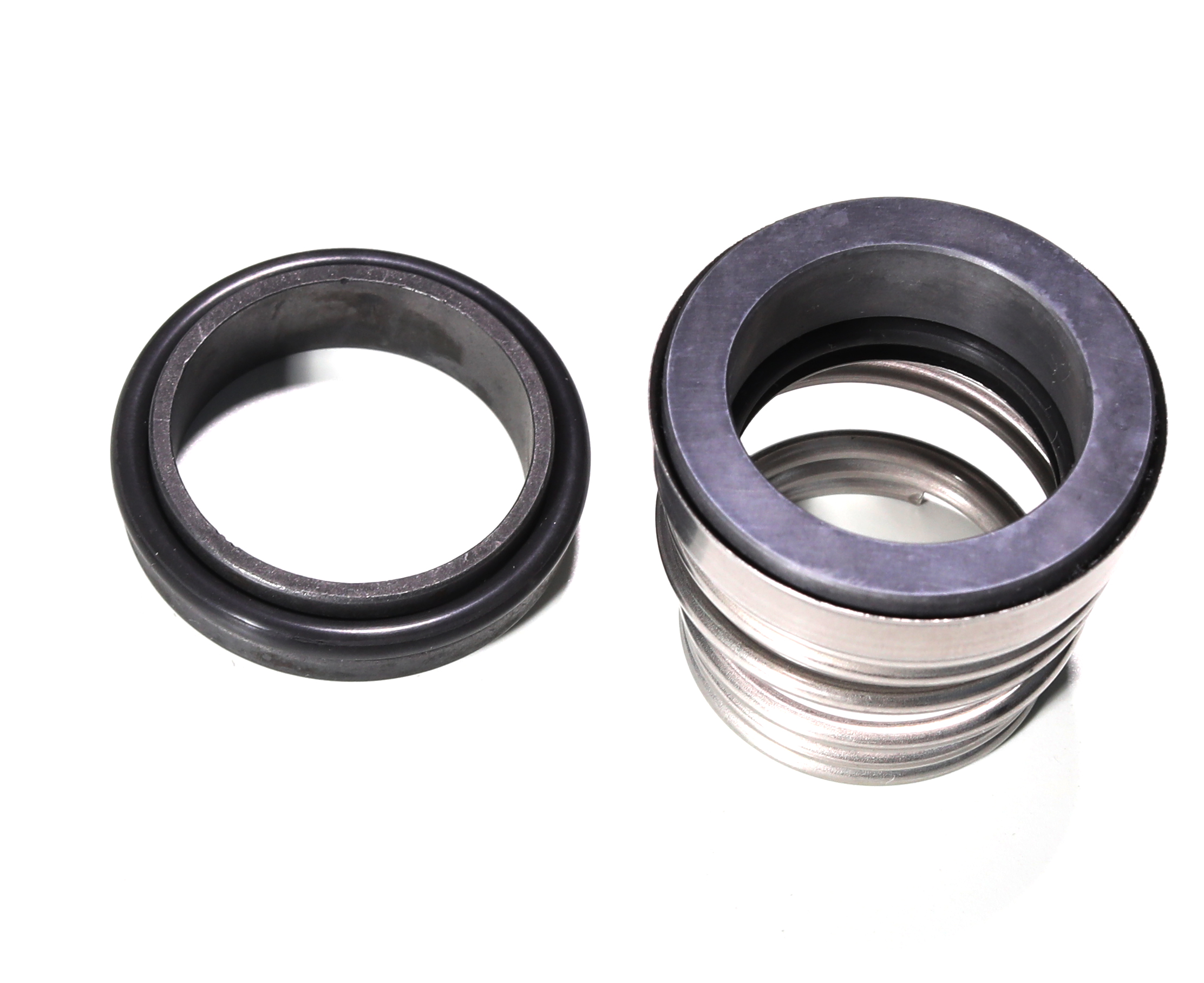

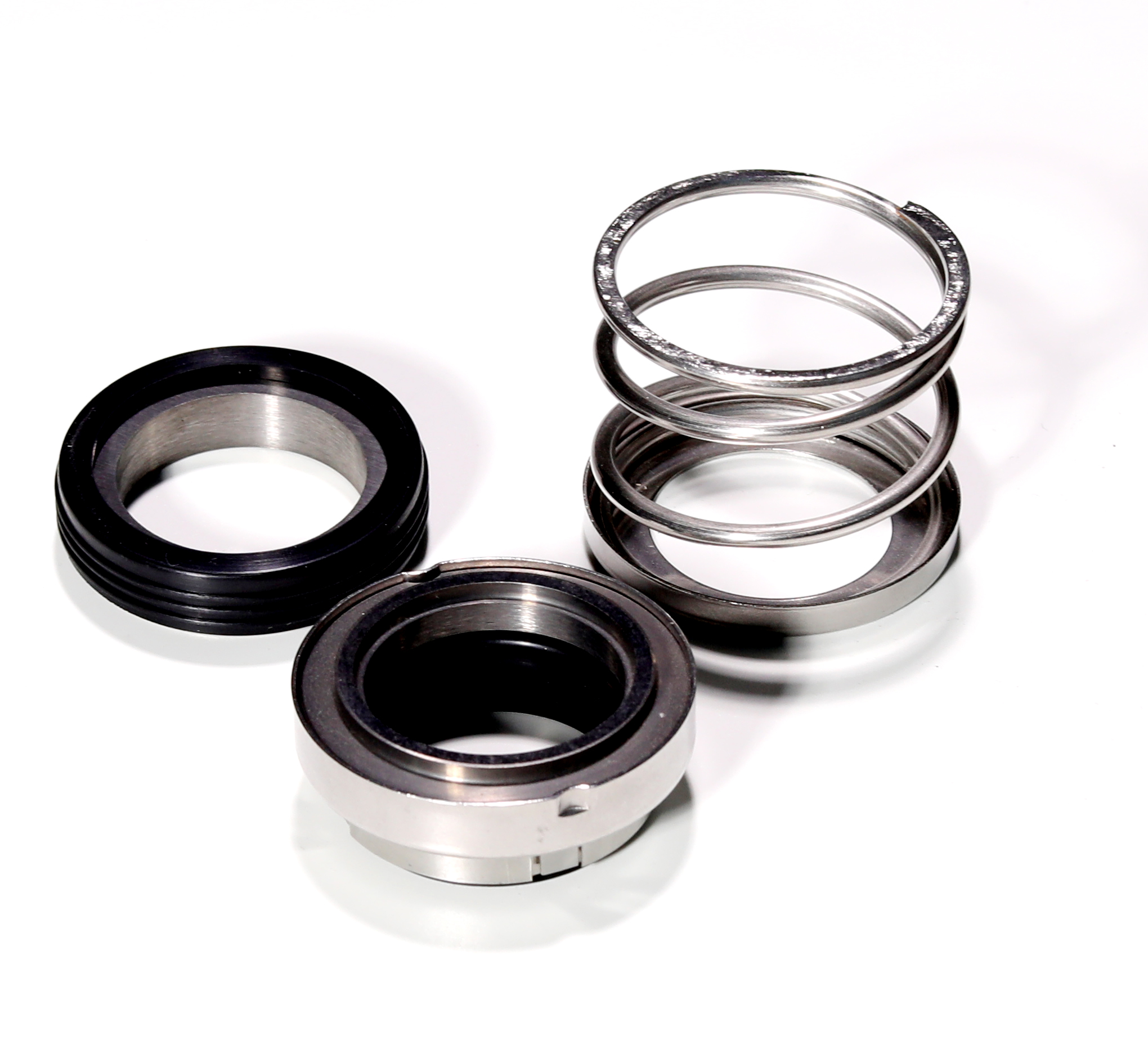

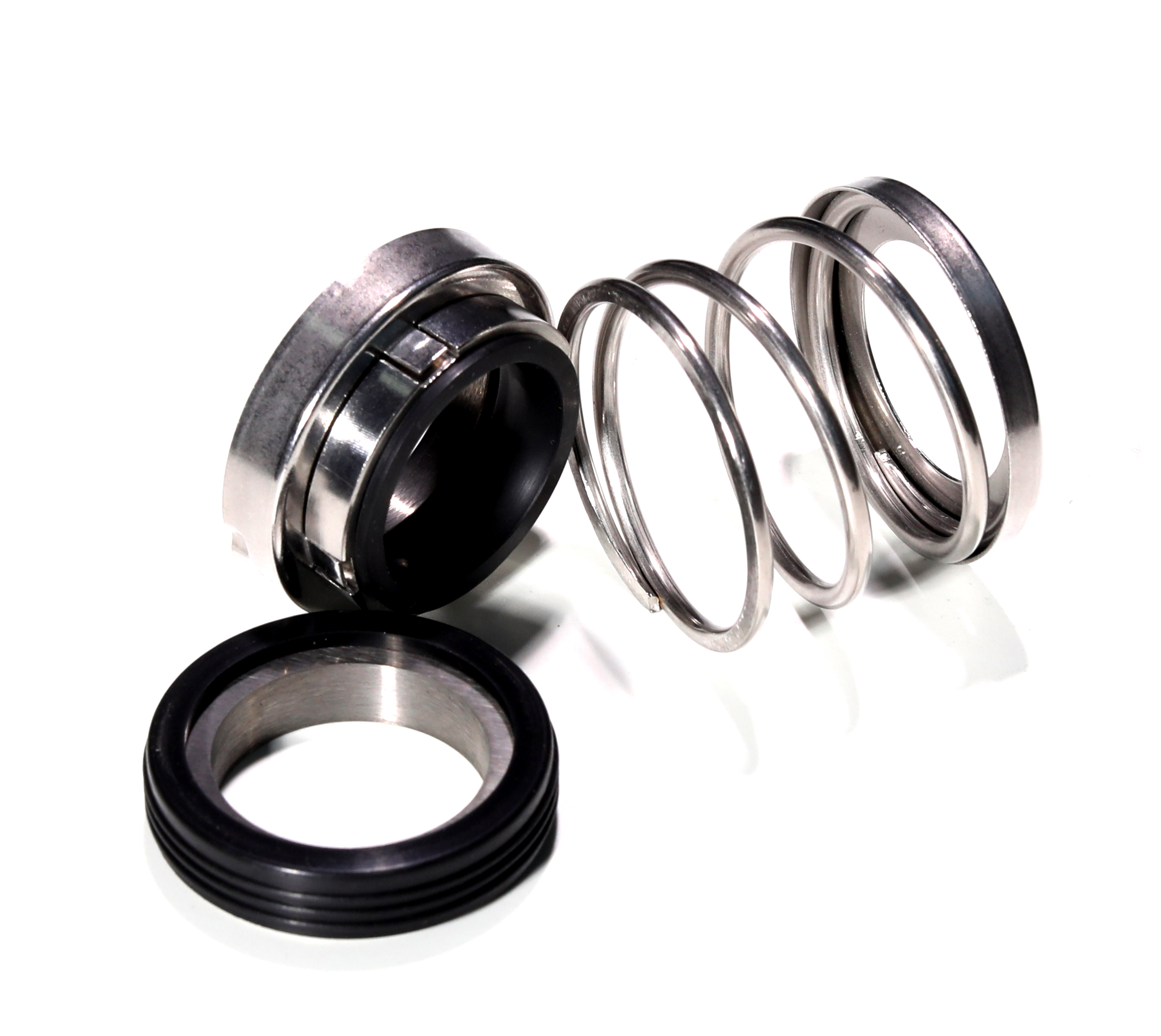

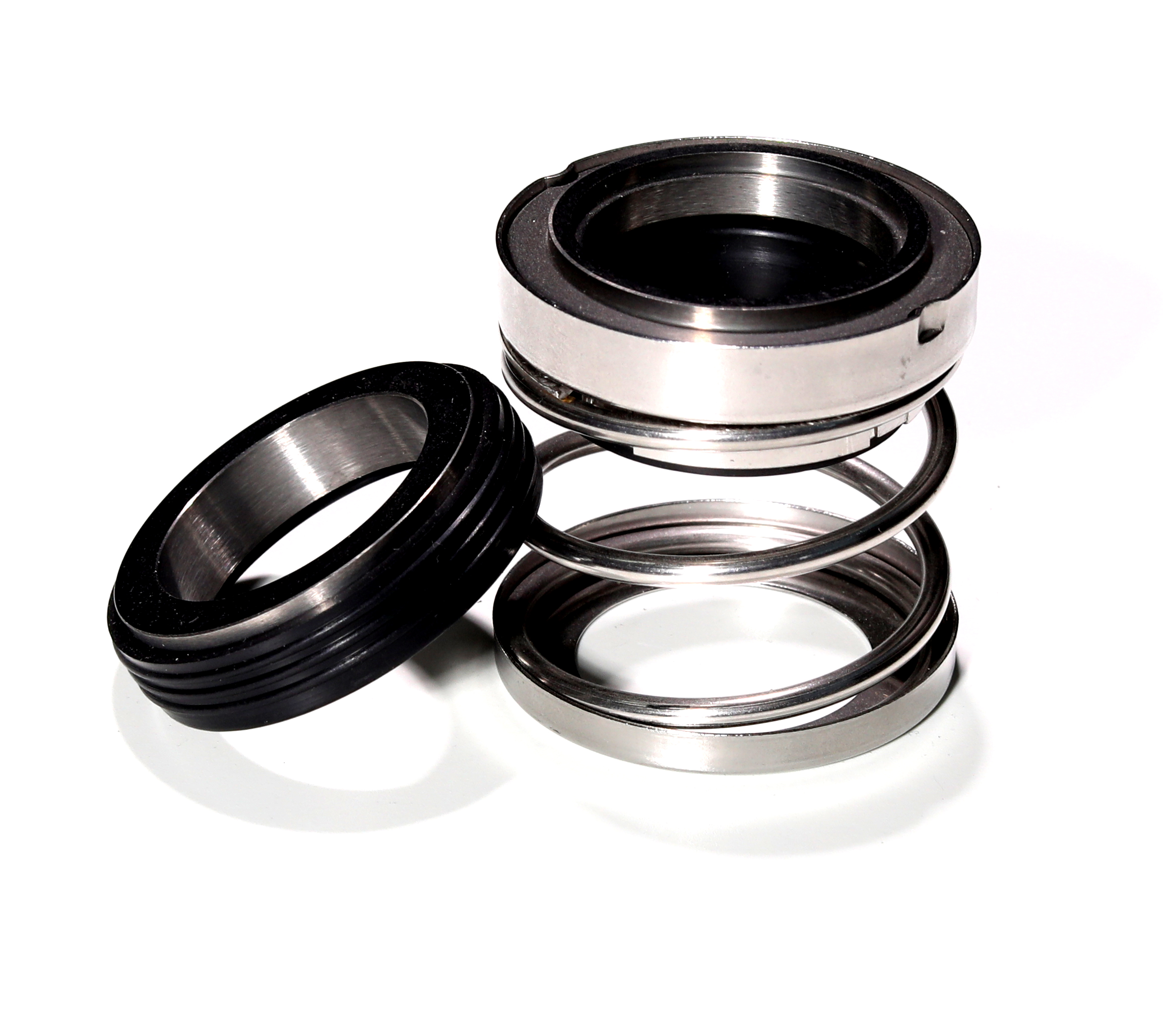

560 Series Elastomer Bellow Mechanical Seal

Features:
Single seal
Loosely inserted seal face provides self-adjusting capability
In-house manufactured sliding parts

Advantages:
The 560 is self-adjusting to shaft misalignments and deflections because of the loosely inserted seal face as well as the ability of the bellows to stretch and tighten. The length of the contact area of the bellows with the shaft is an optimum compromise between ease of assembly (less friction) and sufficient adhesive force for torque transmission. Additionally the seal fulfills very specific leakage requirements. Because the sliding parts are made in-house, a wide variety of special needs can be accommodated.

Operating range:
Shaft diameter:
d1 = 8 … 50 mm (0.375" … 2")
Pressure:
p1 = 7 bar (102 PSI),
vacuum … 0.1 bar (1.45 PSI)
Temperature:
t = -20 °C … +100 °C (-4 °F … +212 °F)
Sliding velocity: vg = 5 m/s (16 ft/s)
Axial movement: ±1.0 mm

Materials
Seal face: Carbon graphite resin impregnated (B), Silicon carbide (Q1, Q2)
Seat:
Aluminium oxide (V), Silicon carbide (Q1, Q2)
Elastomer: NBR (P), FKM (V)
Metal parts: CrNi steel (F)

Recommended applications
Water and waste water technology
Chemical industry
Process industry
Water and waste water
Glycols
Oils
Industrial pumps/equipment
Submersible pumps
Engine pumps
Circulating pumps
